WWMMN561V3300M Wireless N Mini PCI Module

Proware Technologies Co Ltd.
300M Wireless N Mini PCI Module - FCC ID WWMMN561V3 - Proware Technologies Co Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 06, 2011
Application Purpose
Original Equipment
Date of Application
Oct 05, 2011
Equipment Note
300M Wireless N Mini PCI Module
Frequency Range
2422.00000000 - 2452.00000000
Company
Proware Technologies Co Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

PW-MN561 300M Wireless N Mini PCI Module Rev: 1.0.0 FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications Note: Please don’t use the product outdoors in France. CONTENTS Package Contents .................................................................................................... 1 Chapter 1 Product Overview ................................................................................. 2 1.1 Introduction ............................................................................................................. 2 1.2 Features .................................................................................................................. 2 Chapter 2 Installation ............................................................................................. 3 2.1 Hardware Installation .............................................................................................. 3 2.2 Software Installation ................................................................................................ 3 Chapter 3 Connect to a Wireless Network ........................................................... 8 3.1 To connect using AWCU ......................................................................................... 8 3.2 To connect using WPS.......................................................................................... 11 3.2.1 PBC (Push Button Configuration) method................................................ 11 3.2.2 PIN method .............................................................................................. 12 3.3 To connect using Windows built-in wireless utility................................................. 15 3.3.1 In Windows 7............................................................................................ 15 3.3.2 In Windows Vista...................................................................................... 16 3.3.3 In Windows XP ......................................................................................... 18 Chapter 4 Management ........................................................................................ 21 4.1 Profile.................................................................................................................... 21 4.1.1 Add a profile ............................................................................................. 21 4.1.2 Modify a profile......................................................................................... 23 4.1.3 Delete a profile......................................................................................... 23 4.2 Advanced .................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

PROWARE TECHNOLOGIES CO., LTD. AGENCY AUTHORIZATION LETTER FCC ID:WWMMN561V3 Date: Sep.27, 2011 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd (No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China) to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

Cover Letter(s)

PROWARE TECHNOLOGIES CO., LTD. Attestation for FCC Declaration of Conformity FCC ID: WWMMN561V3 Date: Sep.28,2011 Please be notified that we, the undersigned, PROWARE Technologies Co., Ltd. declare that the product bears the above FCC ID is EM-F1000822 also complying with the requirements of FCC DoC. The test report number for FCC DoC is , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

External Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN561V3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11184 14-1 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

ID Label/Location Info

12 E D C B A 12 3456789 E D C 345678 B A 9 料号: 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 FCC ID:WWMMN561V3 Made in China 300Mbps This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 300M Wireless N Mini PCI Module PW-MN561 Label

Internal Photos

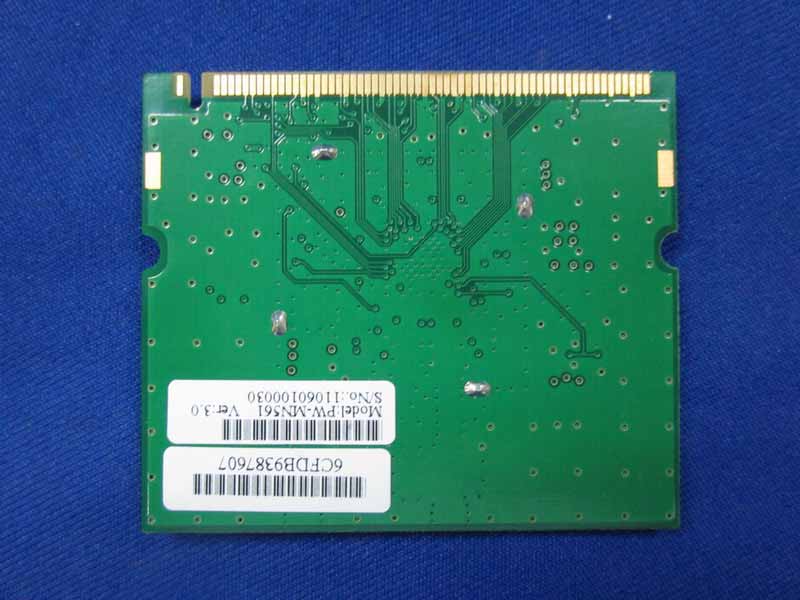

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN561V3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11184 14-2 Figure 3 General Appearance of the EUT

RF Exposure Info

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN561V3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11184 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN561V3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11184 11-2 11.2.Estimation Result EUT: 300M Wireless N Mini PCI Module M/N: PW-MN561 Test date:2011-08-28 Pressure: 100.5 kpa Humidity: 49% Tested by: Leo-Li Test site: RF Site Temperature:25°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 0 dBi Test Mode CH Frequency (MHz) Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 2412 15.31 33.96 0 1.00 0.0068 CH6 2437 14.86 30.62 0 1.00 0.0061 CH11 2462 15.41 34.75 0 1.00 0.0069 11g CH1 2412 19.54 89.95 0 1.00 0.0179 CH6 2437 20.4 109.65 0 1.00 0.0218 CH11 2462 18.67 73.62 0 1.00 0.0147 11n HT20 CH1 2412 19.95 98.86 0 1.00 0.0197 CH6 2437 24.88 307.61 0 1.00 0.0612 CH11 2462 20.76 119.12 0 1.00 0.0237 11n HT40 CH1 2422 17.44 55.46 0 1.00 0.0110 CH4 2437 24.47 279.90 0 1.00 0.0557 CH7 2452 18.66 73.45 0 1.00 0.0146 Note: The estimation distance is 20cm

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN561V3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11184 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Proware Technologies Co., Ltd. 300M Wireless N Mini PCI Module Model No.: PW-MN561 FCC ID: WWMMN561V3 Prepared for : Proware Technologies Co., Ltd. 2nd F1 East Wing,South Section,Factory Building 24,Science&Technology Park, Shennan Rd, Nanshan District, Shenzhen Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number : ACS-F11184 Date of Test : Aug.18~28, 2011 Date of Report : Sep.08, 2011 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN561V3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11184 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-3 2.5. Test Facility ......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-5 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results .................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS...................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ......................................................................................................... 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ...................................................................................................................... 7-1 7.4. Test Results .......................................................................................................................... 7…

Text truncated - open the document above for the full version.

Test Setup Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN561V3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11184 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN561V3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11184 13-2 13.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN561V3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11184 13-3 Above 1000MHz

Contact Information

Applicant

Yongquan Wang(Product Dept. Manager)
[email protected]+86-755-26508263Fax: +86-755-26508930

Technical Contact

Audix TechnologyKen Lu
[email protected]86 775 26639497

52 Block Shenzhen Science and Industry · Guangdong · China

Test Firm

Audix Technology (Shenzhen) Co.Smart Tsai
[email protected]86-755-663-9495Fax: 86-755-663-2877

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz280.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. Device is an 802.11b/g/n device in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing.The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
