WWMRN401MV1150Mbps Wireless N Nano Router

PW-RN401M 150Mbps Wireless N Nano Router Rev: 1.0.0 1910020506 - I - FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” - II - CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. - I - CONTENTS Package Contents.................................................................................................................................. 1 Chapter 1. Introduction ....................................................................................................................... 2 1.1 Overview of the Router ....................................................................................................... 2 1.2 Conventions ........................................................................................................................ 3 1.3 Main Features ..................................................................................................................... 3 1.4 Panel Layout ....................................................................................................................... 4 Chapter 2. Connecting the Router ..................................................................................................... 5 2.1 System Requirements ......................................................................................................... 5 2.2 Installation Environment Requirements .............................................................................. 5 2.3 Connecting the Router ........................................................................................................ 5 Chapter 3. Quick Installation Guide .................................................................................................10 3.1 TCP/IP Configuration ........................................................................................................10 3.2 Quick Installation Guide ....................................................................................................13 Chapter 4. Configuration for AP Mode ............................................................................................29 4.1 Login .................................................................................................................................29 4.2 Status ................................................................................................................................29 4.3 Quick Setup .......................................................................................................................31 4.4 Working Mode .............................................................................................................…

Text truncated - open the document above for the full version.

PROWARE TECHNOLOGIES CO., LTD. AGENCY AUTHORIZATION LETTER FCC ID：WWMRN401MV1 Date: 2012-9-25 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China）to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-265 08930 Web site:WWW.PROWARE.COM.CN

PROWARE TECHNOLOGIES CO., LTD. Date: 2012-9-25 Communications Commission Authorization and Evaluation Division FCC ID: WWMRN401MV1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 F ax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

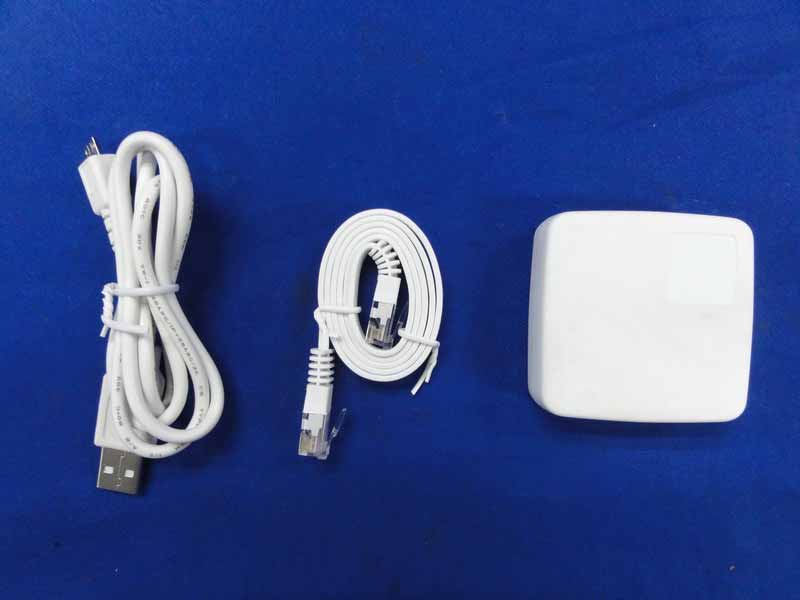

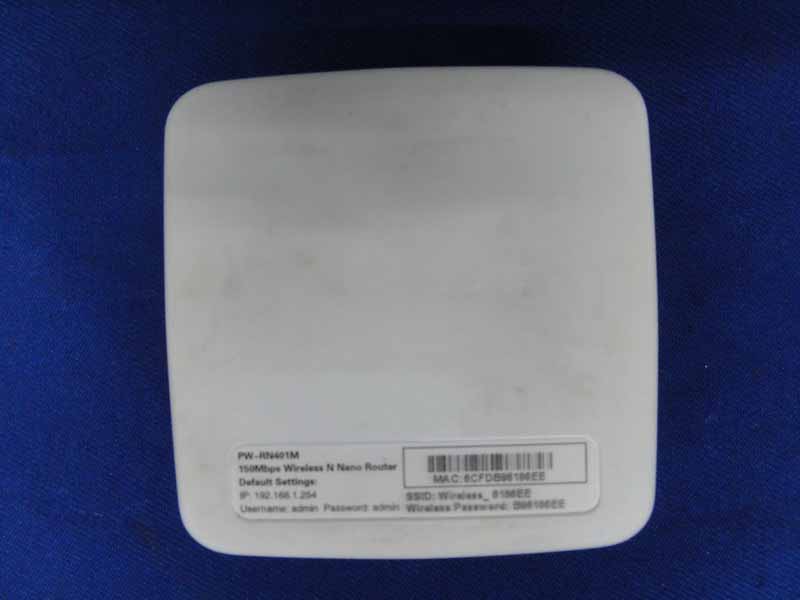

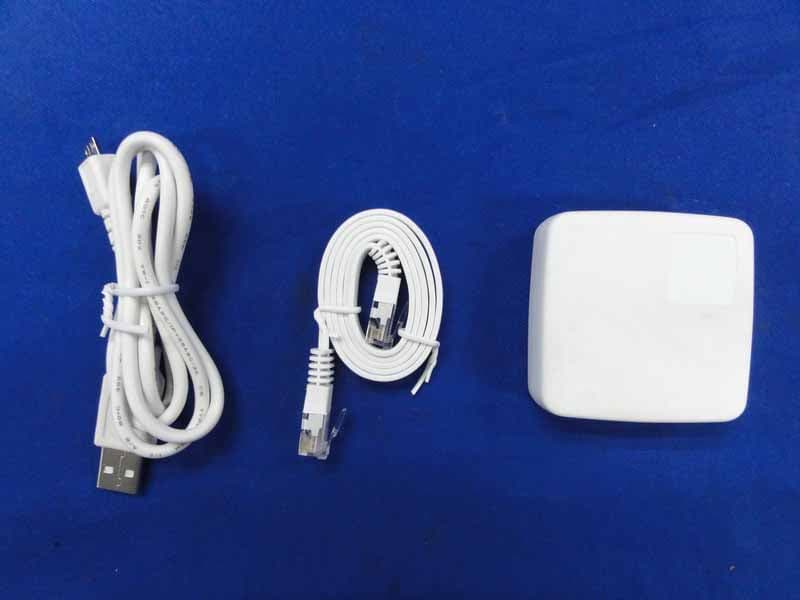

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

C B A 12 C 345678 B E D D A 9 料号： 12345 E 6789 与上一版的区别 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 审 核 完成日期 设 计 41.5*8.5mm, 2R 文件转曲2:1效果图 SSID、PASSWORD、MAC都是变化的，需要供应商打印。标贴中现有条码仅为示意； 编码规则 SSID：Wireless_XXXXXX(MAC后六位) PASSWORD：XXXXXXXX(MAC后八位)； 同MAC码均为大写字母； MAC地址规则：由12位的16进制数字组成，前6位是固定的厂商代码，PROWARE是 6CFDB9打头的，后6位是顺序编码。 MAC分配：6CFDB96186A2到6CFDB9618705中为偶数的位，即从6CFDB96186A2开始第 1、3、5、...99位 备注： 公差：±0.2mm PW-RN401M 150Mbps Wireless N Nano Router Default Settings: MAC: XXXXXXXXXXXX FCC IDWWMRN401MV1

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 14-3 Figure 5 Inside of the EUT Figure 6 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 14-4 Figure 7 Components Side of the PCB Figure 8 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 14-5 Figure 9 Components Side of the PCB Figure 10 Power Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 14-6 Figure 11 Power Adapter Figure 12 Power Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 14-7 Figure 13 USB Cable Figure 14 LAN Cable

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2. Estimation Result EUT: 150Mbps Wireless N Nano Router M/N: PW-RN401M Test date: 2012-09-05 Pressure: 101.2 kpa Humidity: 52.6% Tested by: Leo-Li Test site: RF Site Temperature：25.2°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 1.8 dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 2412 19.17 82.60 1.81.51 0.0249 CH6 2437 19.03 79.98 1.81.51 0.0241 CH11 2462 19.27 84.53 1.81.51 0.0255 11g CH1 2412 23.24 210.86 1.81.51 0.0635 CH6 2437 24.62 289.73 1.81.51 0.0873 CH11 2462 22.85 192.75 1.81.51 0.0581 11n HT20 CH1 2412 22.67 184.93 1.81.51 0.0557 CH6 2437 24.44 277.97 1.81.51 0.0837 CH11 2462 22.78 189.67 1.81.51 0.0571 11n HT40 CH1 2412 210.86 1.81.51 0.0635 CH4 2437 357.27 1.81.51 0.1076 CH7 2462 172.58 1.81.51 0.0520

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 1-1 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Proware Technologies Co Ltd. 150Mbps Wireless N Nano Router Model No.: PW-RN401M FCC ID: WWMRN401MV1 Prepared for : Proware Technologies Co Ltd. 2nd F1 East Wing, South Section, Factory Building 24, Science & Technology Park, Shennan Rd, Nanshan District, Shenzhen Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12203 Date of Test ： Sep.05~14, 2012 Date of Report ： Sep.18, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 1-2 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-5 1.1. Description of Standards and Results ................................................................................... 1-5 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ........................................................................................ 2-3 2.4. Block Diagram of Test Setup ............................................................................................... 2-3 2.5. Test Facility .......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test .............................................................................................. 3-1 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results ..................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment ..................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment ..................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment ..................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment ..................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ..................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401MV1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12203 13-3 (Above 1000MHz)
