WWMRN401XV2150Mbps Wireless Lite-N Router

PW-RN401/PW-RN401D 150Mbps Wireless Lite-N Router Rev: 1.0.0 1910020313 FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. CONTENTS Package Contents..................................................................................................................................1 Chapter 1. Introduction .......................................................................................................................2 1.1 Overview of the Router .......................................................................................................2 1.2 Conventions ........................................................................................................................3 1.3 Main Features .....................................................................................................................3 1.4 Panel Layout .......................................................................................................................4 1.4.1 The Front Panel ......................................................................................................4 1.4.2 The Rear Panel ......................................................................................................5 Chapter 2. Connecting the Router .....................................................................................................6 2.1 System Requirements.........................................................................................................6 2.2 Installation Environment Requirements ..............................................................................6 2.3 Connecting the Router ........................................................................................................6 Chapter 3. Quick Installation Guide...................................................................................................8 3.1 TCP/IP Configuration ..........................................................................................................8 3.2 Quick Installation Guide ................................................................................................... 10 Chapter 4. Configuring the Router ................................................................................................. 15 4.1 Login ................................................................................................................................ 15 4.2 Status ............................................................................................................................... 15 4.3 Quick Setup..........…

Text truncated - open the document above for the full version.

PROWARE TECHNOLOGIES CO., LTD. Date: March 24, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: WWMRN401XV2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

PROWARE TECHNOLOGIES CO., LTD. Attestation for FCC Declaration of Conformity FCC ID: WWMRN401XV2 Date:April 18, 2011 Please be notified that we, the undersigned, Proware Technologies Co Ltd., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is C1M1104053, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26610268 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

AGENCY AUTHORIZATION LETTER FCC IDWWMRN401XV2 Date: March 24, 2011 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd No. 6, Ke Feng Rd., 52 Block Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: TP-LINK Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.TP-LINK.COM E-mail: [email protected]

PROWARE TECHNOLOGIES CO., LTD. Request for Supercede TO: Federal Communication Commission Please kindly be notified that we, Proware Technologies Co.,Ltd. herein request to supercede the FCC ID: WWMRN401XV2 for the following reason: There is one typing error in the header of some two pages of the test report. We are willing to correct it and replace the report. Please kindly permit the supercede. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26610268 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

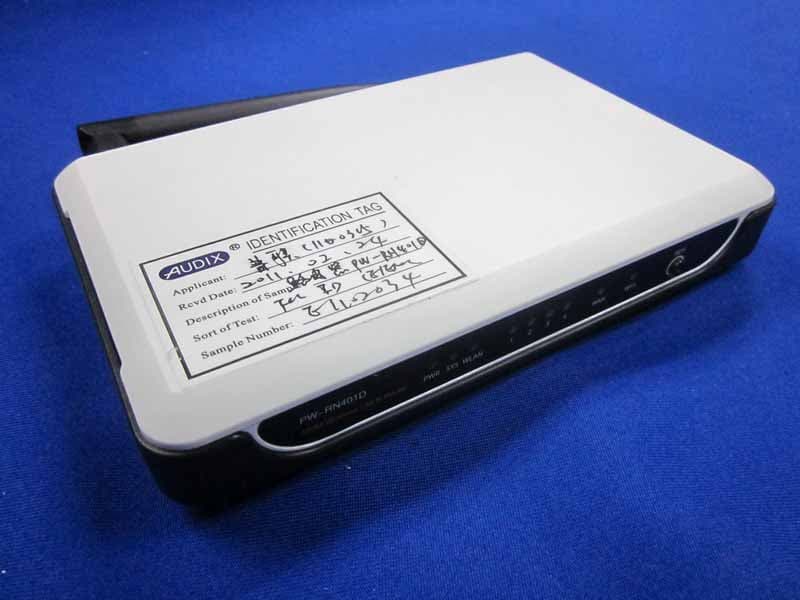

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT Label R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

1 2 E D C B A 1 2 3 4 5 6 7 8 9 E D C 3 4 5 6 7 8 B A 9 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 PW-RN401D产品规格标贴 第一版 80g艾利铜版纸+雾膜 PW-RN401D(MR5) 2.0 2010-5-18 92.5*37.5mm, 3.5R 文字转曲线 黑色 黑色 葛焕丽 Default Settings: IP: 192.168.1.1 Username: admin Password: admin Power: 9V 0.6A 150Mbps Wireless Lite-N Router This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. PIN MAC Address Serial Number FCC ID: WWMRN401XV2 Model No.:PW-RN401D Model No.:PW-RN501D Default Settings: IP: 192.168.1.1 Username: admin Password: admin Power: 9V 0.6A Label

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 14-4 Figure 7 Inside of the EUT Figure 8 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 14-5 Figure 9 Components Side of the PCB Figure 10 Components Side of the PCB

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 11-12 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.2, Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain(linear) MPE 11b 1 2412 19.27 84.53 5 3.16 0.0532 6 2437 22.65 184.08 5 3.16 0.1159 11 2462 20.60 114.82 5 3.16 0.0723 11g 1 2412 21.52 141.91 5 3.16 0.0893 6 2437 20.81 120.50 5 3.16 0.0758 11 2462 20.88 122.46 5 3.16 0.0771 11n HT20 1 2412 20.34 108.14 5 3.16 0.0681 6 2437 21.97 157.40 5 3.16 0.0991 11 2462 17.72 59.16 5 3.16 0.0372 11n HT40 1 2422 11.24 13.30 5 3.16 0.0084 4 2437 20.01 100.23 5 3.16 0.0631 7 2452 14.45 27.86 5 3.16 0.0175 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Proware Technologies Co., Ltd. 150Mbps Wireless Lite-N Router Model No.: PW-RN401D FCC ID: WWMRN401XV2 Prepared for : Proware Technologies Co., Ltd. 2nd F1 East Wing, South Section, Factory Building 24, Science & Technology Park, Shennan Rd, Nanshan District, Shenzhen Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F11067 Date of Test ： Mar.10~23, 2011 Date of Report ： Mar.23, 2011 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-3 2.5. Test Facility ......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results .................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-2 4.1. Test Equipment .................................................................................................................... 4-2 4.2. Block Diagram of Test Setup ............................................................................................... 4-2 4.3. Radiated Emission Limit ...................................................................................................... 4-3 4.4. EUT Configuration on Test .................................................................................................. 4-4 4.5. Operating Condition of EUT ................................................................................................ 4-4 4.6. Test Procedure ...................................................................................................................... 4-4 4.7. Radiated Emission Test Results ........................................................................................... 4-5 5. CONDUCTED SPURIOUS EMISSIONS.................................................................... 5-80 5.1. Test Equipment .................................................................................................................. 5-80 5.2. Limit ................................................................................................................................... 5-80 5.3. Test Procedure .................................................................................................................... 5-80 5.4. Test result ........................................................................................................................... 5-80 6. BAND EDGE COMPLIANCE TEST ........................................................................ 6-103 6.1. Test Equipment ................................................................................................................ 6-103 6.2. Limit ................................................................................................................................. 6-103 6.3. Test Produce ..................................................................................................................... 6-103 6.4. Test Results ...................................................................................................................... 6-103 7. 6dB Bandwidth Test ..................................................................................................... 7-136 7.1. Test Equipment ................................................................................................................ 7-136 7.2. Limit ................................................................................................................................. 7-136 7.3. Test Procedure .................................................................................................................. 7-136 7.4. Test …

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMRN401XV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11067 13-3 (Above 1000MHz)
