WWMWN321GM3V154M Wireless USB Module

54M Wireless USB Adapter M-WN321GM Description： The M-WN321GM Wireless USB Module features a 4-pin connector supporting USB 2.0 signaling which provides you a cost effective compact WLAN module with embedded system for the wireless connectivity. Its auto-sensing capability allows a high transfer rate of up to 54Mbps for maximum throughput, or dynamic range shifting to lower speeds due to distance or operating limitations in an environment with a lot of electromagnetic interference. It can also interoperate with all 11Mbps wireless (802.11b) products. Your wireless communications are protected by up to 128-bit WEP encryption, so your data stays secure. Advanced wireless security using WPA/WPA2 encryption gives your wireless network reliable protection www.proware.com.cn Copyright © 2009 PROWARE Technologies Co., Ltd. All rights reserved. The Reliable Partner Wireless G speed up to 54Mbps 54M 2.4GHz www.proware.com.cn Copyright © 2009 PROWARE Technologies Co., Ltd. All rights reserved. Specifi cations ar e subject to change wi th out noti ce. Proware is a registered trademark of PROWARE Technologies Co., Ltd . Oth er brands and product names ar e tr ademarks or registered tr ademarks of th eir res pective hol ders. No part of th e specifi cations may be reproduced in any form or by any means or used to make any derivative such as translation, transformati on, or adaptation with out permission from PROWARE Technologies Co., Ltd. Features：Specifications： Package： Packing Type Package Contents Honeycomb package 54M Wir eless USB Module M-WN321GM Ralink RT2571WF 0.5KB Supports 54/48/36/24/18/12/9/6Mbps or 11/5.5/2/1Mbps data transfer rates Supports 64/128bit WEP encryption Supports WPA/WPA2 and PA-PSK/WPA2-PSK encryption mechanisms Supports wireless roaming between access mode Chipset EEPROM Indicators Color Status Green*1 LED Solution PCB layers Dimensions ( W*D*H) 4 40.5*20*1.0 mm PCB 4 PIN Connector (6 PIN for optional) Interface Antenna ConnectorI-PEX or RP-SMA cable Working Modes Ad-hoc Infrastructure Windows 2000/XP/Vista, LinuxOperation Syst em Wir eless Par ametersFrequency Band Data Transfer Rates Channel Extend Frequency Modulation Type Transmission Distance Maximum RF Power Receive Sensitivit Wireless Security 2.4~2.4835GHz 11g: 54/48/36/24/12/9/6 Mbps (Auto Sensing) 11b:11/5.5/2/1 Mbps (Auto Sensing) 1~11 DSSS OFDM Indoors up to 100m, outdoors up to 300m. (Standard transmission distance, The actual value is up to environment.) 19dBm 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER 64/128 bit WEP WPA/WPA2, WPA-PSK/WPA2-PSK ( TKIP/AES) Others： Saf ty, Emission and others CE, FCC, Compliant with RoHS FCC IDWWMWN321GM3V1Input3.3V WWMWN321GM5V1Input5V Environment Protocols and Standards IEEE 802.11g, 802.11b USB 2.0, CSMA/CA with ACK Operating Temperature Storage Temperature Operating Humidity Storage Humidity C CC C FF FF 0 ~40 (32 ~104 ) -40 ~70 (-40 ~158 ) 10%~90% non-condensing 5%~90% non-condensing Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. PLEASE NOTE: This transmitter module is authorized only for use in Pocket-Sized Wireless Print Server series where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: WWMWN321GM3V1 (WWMWN321GM5V1)"

Installation Guide The M-WN321GM 54M Wireless USB Module gives you the flexibility to install the wireless system, such as wireless printer server, in the most convenient location available, without the cost of running network cables. In fact, this module has 8 final models because of its different specification of pin number, input voltage and antenna type. Generally, they can be divided into two kinds according to its input voltage. Users can choose appreciate model according to actual use. In this guide, we take M-WN321GM_36S and wireless print server as a reference to show its installation. This model is 6pin connector, its input is 3.3V and antenna type is RP-SMA. 1. Before install it into your product, please read next information which show the module’s pin description, it is compatible with standard USB2.0, and for the actual product, the right turn is from right to left (the pin connector is on upside, just like below picture shows). 2. For using the module into your device, you should make sure the device has the same pin hole and the right pin definition. Below is the sample of wireless print server’s main board. This print server has six pin holes and it is designed according to standard USB2.0. the pin hole’s turn is from left to right. 3. Insert the module from the upside of the main board. 4. Make sure the module’s pin connector come out on back ground of main board about 1mm and then fix it by welding. For other use, you also can insert the M-WN321GM into your device according to above steps and guide. If you have some question on this installation guide, please tell us in time.

AGENCY AUTHORIZATION LETTER FCC ID：WWMWN321GM3V1 Date:Jan 22,2010 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Web site:WWW.PROWARE.COM.CN PROWARE TECHNOLOGIES CO., LTD.

Date: Jan 22,2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: WWMWN321GM3V1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Web site: WWW.PROWARE.COM.CN PROWARE TECHNOLOGIES CO., LTD.

Attestation for FCC Declaration of Conformity FCC ID: WWMWN321GM3V1 Date:Jan 22,2009 Please be notified that we, the undersigned, Proware Technologies Co Ltd., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM990018A , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Web site: WWW.PROWARE.COM.CN PROWARE TECHNOLOGIES CO., LTD.

Modular Approval Request Letter Dear Application Examiner, PROWARE TECHNOLOGIES CO.,LTD, It’s 54M Wireless USB Adapter，FCC ID： WWM321GM3V1, would like to have your authorization as a limited modular approval specified to be used in a series Pocket-Sized Wireless Print Server. The limited modular approval requirements of section 15.212(b). Have been met and shown on the following statements. 1,The modular transmitter has no RF shielding. 2,This modular transmitter only has basic data input and output circuit and has no data buffered circuit, but in the fact use the modulation rate is faster than data inputs rate(the maximum modulation rate is 54Mbps and in the fact use the maximum date inputs rate is 24Mbps), so no conditions of excessive data rates or over-modulation can occur. 3，This modular transmitter has no its own power supply regulation. But the end product is powered by DC 3.3V from Print Server. 4,The modular transmitter complies with the antenna requirements of section 15.203 and 15.204(c) ,and its have RP-SMA or I-PEX antenna connector that no antenna other than that furnished by the responsible party shall be used with the device.The spurious emissions are shown in the test report. 5,This modular transmitter was tested both in a stand-alone configuration outside the host device and operation conditions with the representative end product. Both of this two configurations were found met all the applicable Part 15 requirements. For detailed test information please see the test report for this modular. 6,This modular transmitter is labeled with its own FCC ID number and because the FCC ID is not visible when the module is installed inside the end device the outside of the end device will also display a label referring to the enclosed module this exterior label will use this wording: “Contains FCC ID: WWM321GM3V1” 7,This modular transmitter complies with all operation requirements applicable to the transmitter. 8,This modular transmitter comply with all the applicable RF exposure requirements. RF exposure is addressed in the test report. Best Regarts! Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: Proware Technologies Co Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

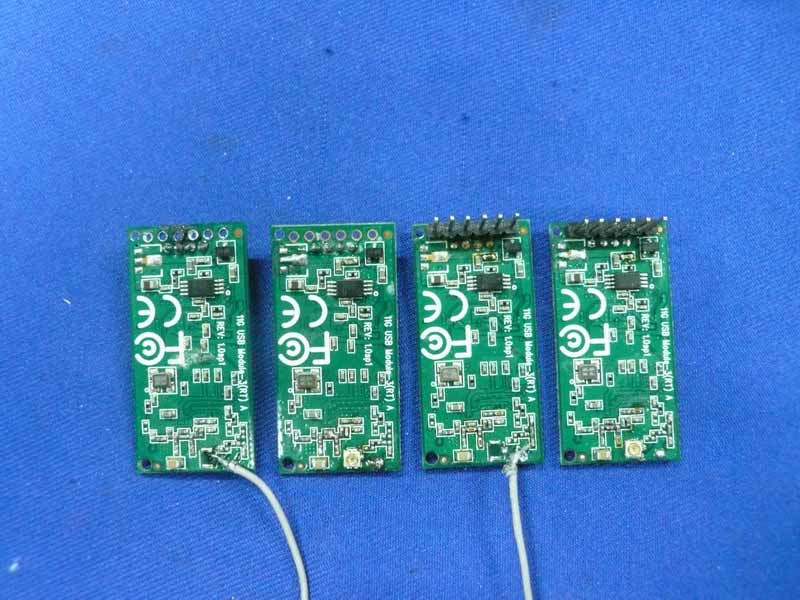

FCC ID:WWMWN321GM3V1 Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09253 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:WWMWN321GM3V1 Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09253 Figure 3 General Appearance of the EUT

FCC ID:WWMWN321GM3V1 Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09253 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:WWMWN321GM3V1 Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09253 Figure 3 General Appearance of the EUT

Contains FCC ID:WWM321GM3V1

FCC ID:WWMWN321GM3V1 Page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09253 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) antenna Gain (linear) MPE 1 2412 19.56 90.36 2 1.58 0.0285 6 2437 18.98 79.07 2 1.58 0.0249 11b 11 2462 18.66 73.45 2 1.58 0.0232 1 2412 23.62 230.14 2 1.58 0.0726 6 2437 22.89 194.54 2 1.58 0.0614 11g 11 2462 23.16 207.01 2 1.58 0.0653 Note: The estimation distance is 20cm
