WWMWR54XGV254M Wireless Router

MR5-WR542G 54M Wireless Router Rev：1.0.0 • 2x to 3x eXtended Range™ • 2.4GHz y 802.11g/b COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2008 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications CONTENT Package Contents..............................................................................................................1 Chapter 1. Introduction ..................................................................................................2 1.1 Conventions ..........................................................................................................................2 1.2 Ov erview of the Router .........................................................................................................2 1.3 Features ................................................................................................................................2 1.4 Panel Layout.........................................................................................................................3 1.4.1 The Front Panel.......................................................................................................3 1.4.2 The Rear Panel ........................................................................................................4 Chapter 2. Connecting the Router ................................................................................6 2.1 System Requirements...........................................................................................................6 2.2 Installation Environment Requirement s ................................................................................6 2.3 Connecting the Router ..........................................................................................................6 Chapter 3. Quick Installation Guide..............................................................................8 3.1 TCP/IP configuration.............................................................................................................8 3.2 Quick In stallation Guide ......................................................................................................10 Chapter 4. Configuring the Router..............................................................................13 4.1 Login ...................................................................................................................................13 4.2 Status ...............................................................................................................................…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID:WWMWR54XGV2 Date:Dec 15,2009 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Techno logies Co., Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Web site: WWW.PROWARE.COM.CN PROWARE TECHNOLOGIES CO., LTD.

Date: Oct 30,2009 Federal Communications Commission Authorization and Evaluation Division FCC ID: WWMWR741NXV1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Web site: WWW.PROWARE.COM.CN PROWARE TECHNOLOGIES CO., LTD.

Attestation for FCC Declaration of Conformity FCC ID: WWMWR54XGV2 Date: Dec 15,2009 Please be notified that we, the undersigned, Proware Technologies Co Ltd. declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM982481 , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel:86-755-26525554 Fax:86-755-26508930 Web site: WWW.PROWARE.COM.CN PROWARE TECHNOLOGIES CO., LTD.

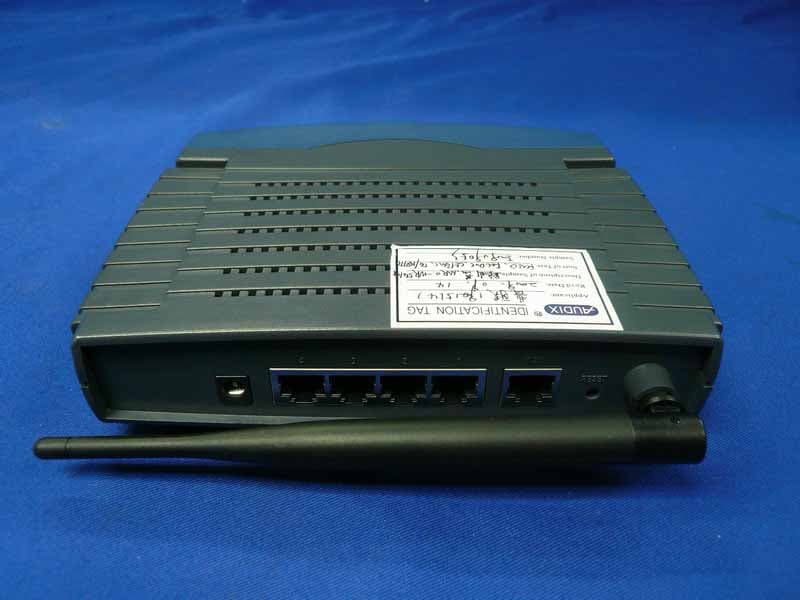

FCC ID:WWMWR54XGV2 Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:WWMWR54XGV2 Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT FCC ID:WWMWR54XGV2 Page 14-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

1 2 E D C B A 1 2 3 4 5 6 7 8 9 E D 3 4 5 6 7 8 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 56.5*33. 5 m m 1 R 第一版 MHO-WR543G 锡箔标贴 周树叶 单色印刷 25#哑银银特多龙+光膜 2009-2-23 MRO-WR543G/1.0.0 MRO Made in China FCCID:WWMWR54XGV2 MR0-WR542G 9V 0.6A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

FCC ID:WWMWR54XGV2 Page 14-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 Figure 7 Inside of the EUT Figure 8 Inside of the EUT FCC ID:WWMWR54XGV2 Page 14-5 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 Figure 9 Inside of the EUT Figure 10 Inside of the EUT FCC ID:WWMWR54XGV2 Page 14-6 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 Figure 11 Inside of the EUT Figure 12 Power Adapter

FCC ID:WWMWR54XGV2 Page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) antenna Gain (linear) MPE 1 2412 17.02 50.35 5 3.16 0.0317 6 2437 17.35 54.33 5 3.16 0.0342 11b 11 2462 17.26 53.21 5 3.16 0.0335 1 2412 21.86 153.46 5 3.16 0.0966 6 2437 22.56 180.30 5 3.16 0.1135 11b 11 2462 21.84 152.76 5 3.16 0.0962 Note: The estimation distance is 20cm

FCC ID:WWMWR54XGV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 APPLICATION FOR CERTIFICATION On Behalf of Proware Technologies Co Ltd. 54M Wireless Router Model Number: MR0-WR542G; MR0-WR541G FCC ID: WWMWR54XGV2 Prepared for : Proware Technologies Co Ltd. 4/F, Building 7, Section 2, Honghualing Industrial Park, Xili, Nanshan District, Shenzhen, P.R.C. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F09238 Date of Test ： Oct.30~Nov.19, 2009 Date of Report ： Nov.23, 2009 FCC ID:WWMWR54XGV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS................................................................... 1-1 1.1. Description of Standards and Results ............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-2 2.1. Description of Device (EUT) .........................................................................................................2-2 2.2. Test information .............................................................................................................................2-3 2.3. Date rate VS power ........................................................................................................................2-3 2.4. Tested Supporting System Details .................................................................................................2-4 2.5. Test Facility ...................................................................................................................................2-5 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..............................................................2-5 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipments.............................................................................................................................3-1 3.2. Block Diagram of Test Setup .........................................................................................................3-1 3.3. Power Line Conducted Emission Test Limits................................................................................3-1 3.4. Configuration of EUT on Test .......................................................................................................3-2 3.5. Operating Condition of EUT..........................................................................................................3-2 3.6. Test Procedure................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results ..............................................................................3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit................................................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-3 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS............................................................................... 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Limit...............................................................................................................................................5-1 5.3. Test Procedure................................................................................................................................5-1 5.4. Test result .......................................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST ..................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Limit...............................................................................................................................................6-1 6.3. Test Produce...................................................................................................................................6-1 6.4. Test Results ....................................................................................................................................6-1 7. 6dB Bandwidth Test.................................................................................................................. 7-1 7.1. Test Equipment ..............................................................................................................................7-1 7.2. Limit................................…

Text truncated - open the document above for the full version.

FCC ID:WWMWR54XGV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 APPLICATION FOR CERTIFICATION On Behalf of Proware Technologies Co Ltd. 54M Wireless Router Model Number: MR0-WR542G; MR0-WR541G FCC ID: WWMWR54XGV2 Prepared for : Proware Technologies Co Ltd. 4/F, Building 7, Section 2, Honghualing Industrial Park, Xili, Nanshan District, Shenzhen, P.R.C. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F09238 Date of Test ： Oct.30~Nov.19, 2009 Date of Report ： Nov.23, 2009 FCC ID:WWMWR54XGV2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F09238 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS................................................................... 1-1 1.1. Description of Standards and Results ............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-2 2.1. Description of Device (EUT) .........................................................................................................2-2 2.2. Test information .............................................................................................................................2-3 2.3. Date rate VS power ........................................................................................................................2-3 2.4. Tested Supporting System Details .................................................................................................2-4 2.5. Test Facility ...................................................................................................................................2-5 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..............................................................2-5 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipments.............................................................................................................................3-1 3.2. Block Diagram of Test Setup .........................................................................................................3-1 3.3. Power Line Conducted Emission Test Limits................................................................................3-1 3.4. Configuration of EUT on Test .......................................................................................................3-2 3.5. Operating Condition of EUT..........................................................................................................3-2 3.6. Test Procedure................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results ..............................................................................3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit................................................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-3 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS............................................................................... 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Limit...............................................................................................................................................5-1 5.3. Test Procedure................................................................................................................................5-1 5.4. Test result .......................................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST ..................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Limit...............................................................................................................................................6-1 6.3. Test Produce...................................................................................................................................6-1 6.4. Test Results ....................................................................................................................................6-1 7. 6dB Bandwidth Test.................................................................................................................. 7-1 7.1. Test Equipment ..............................................................................................................................7-1 7.2. Limit................................…

Text truncated - open the document above for the full version.
