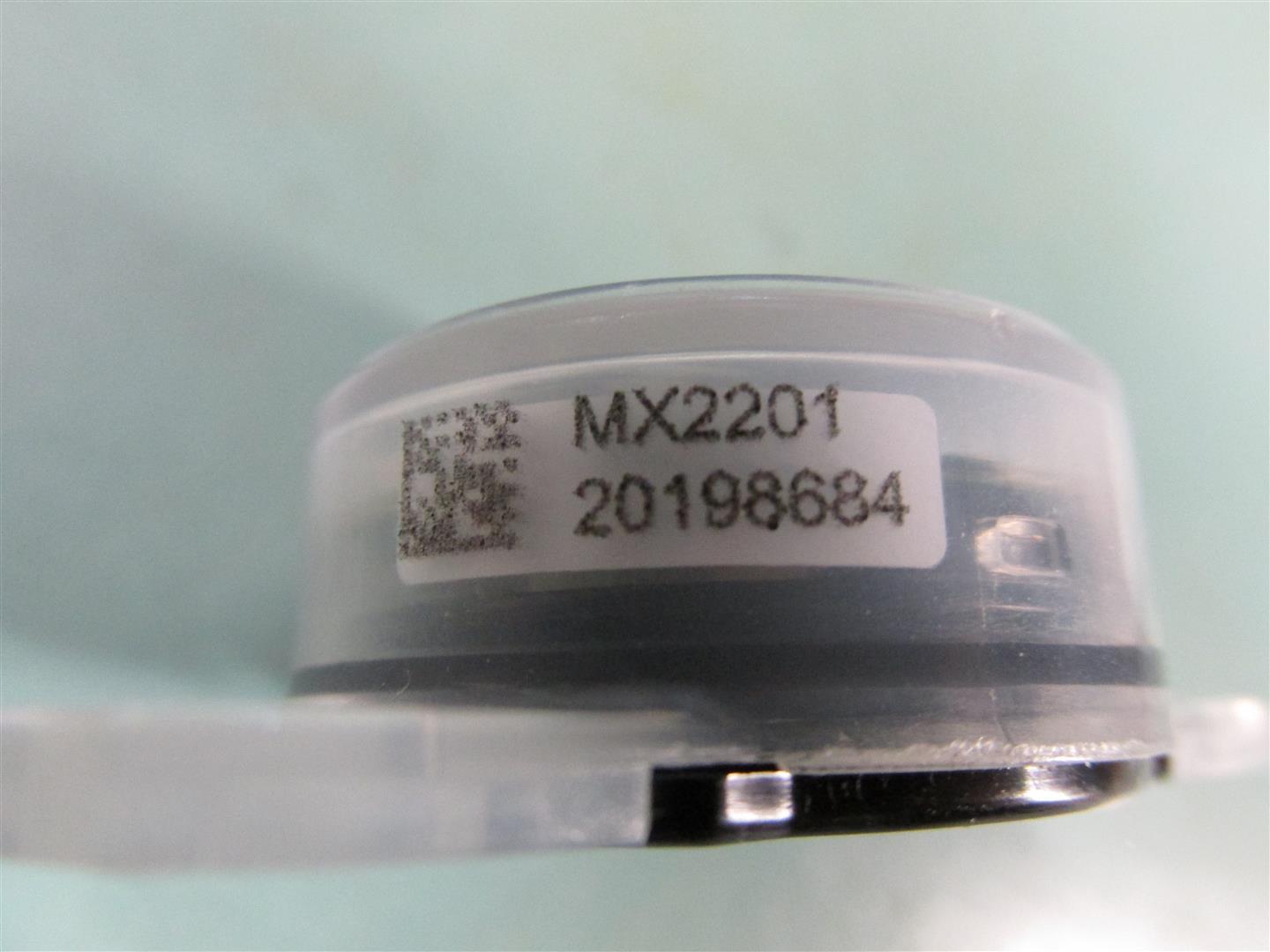

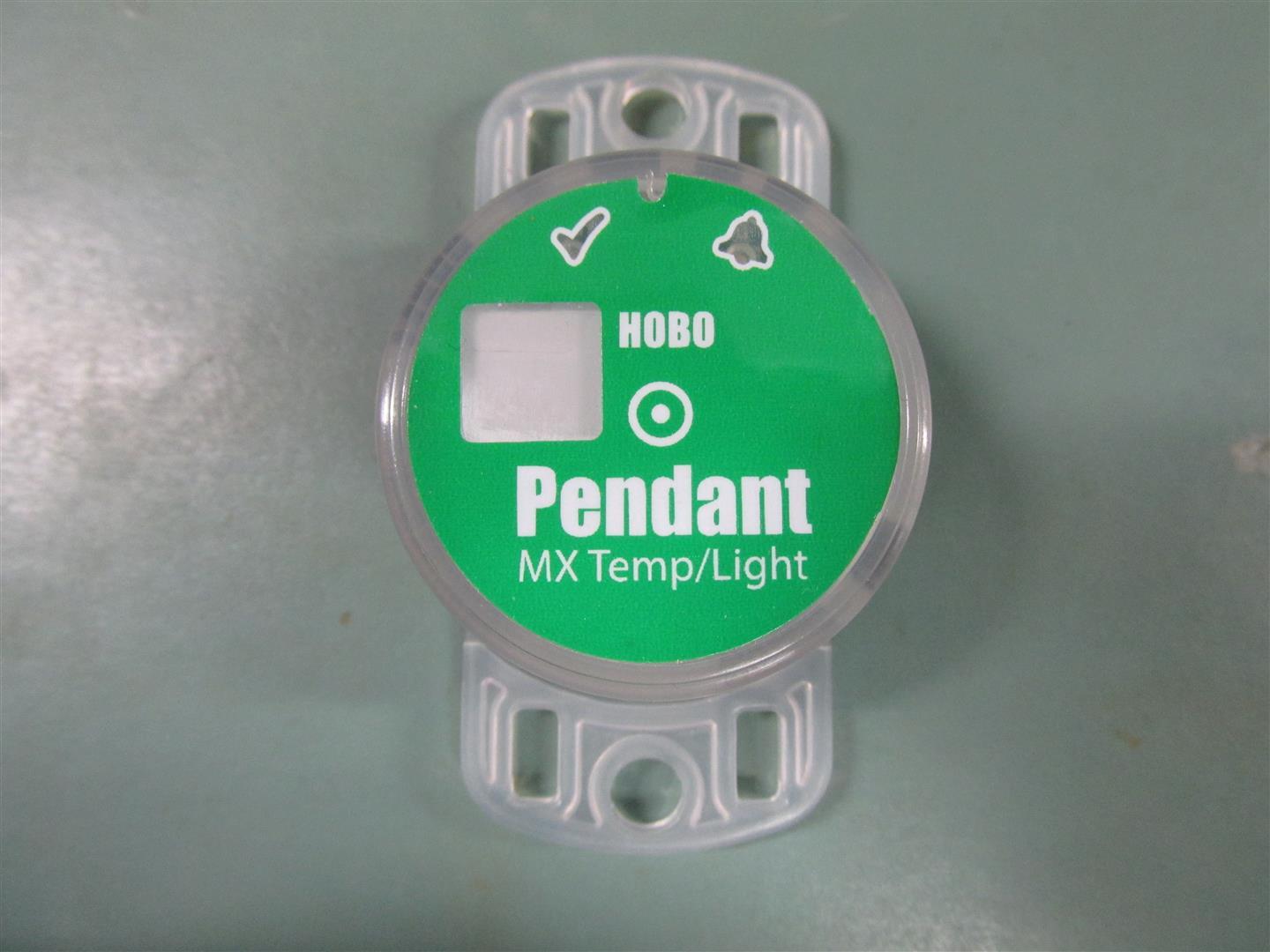

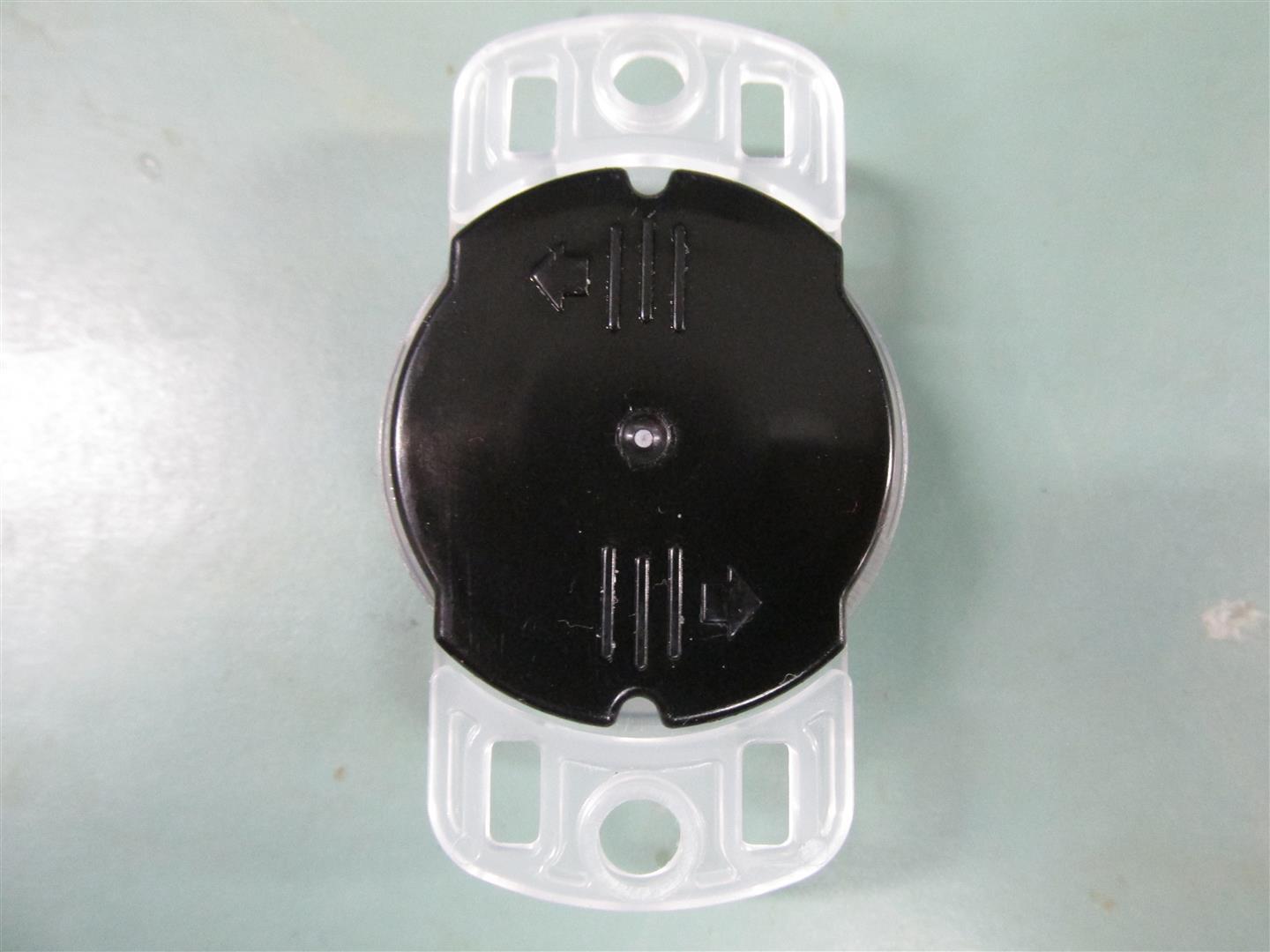

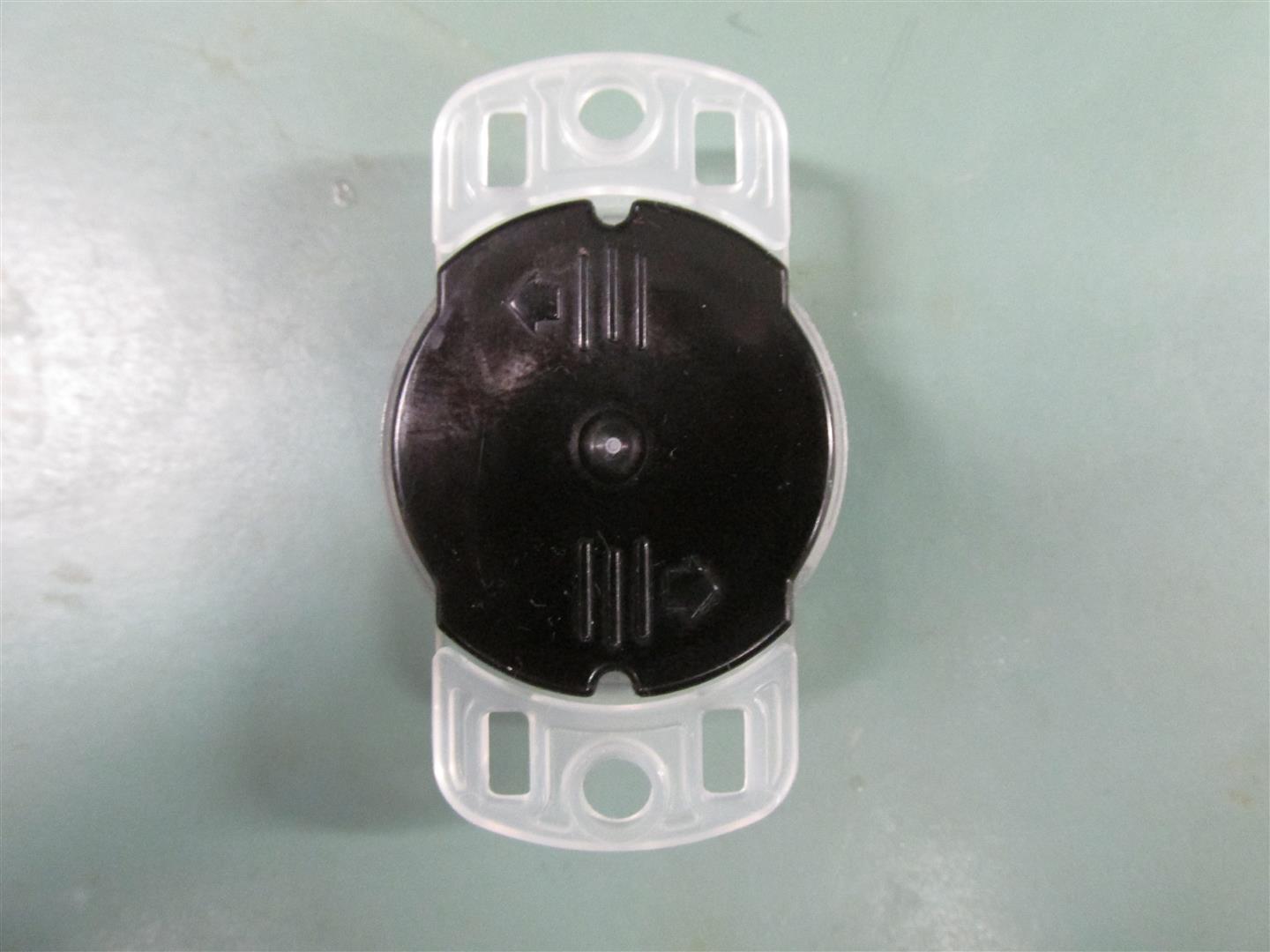

WXF-ONST4HOBO Pendant MX Loggers

HOBO® Pendant® MX Temp (MX2201) and Temp/Light (MX2202) Logger Manual 21536-B HOBO Pendant MX loggers measure temperature (MX2201) or temperature/light (MX2202) in indoor and outdoor environments. Designed for durability, these compact, waterproof loggers can be used in numerous applications, including fresh and salt water. The loggers are Bluetooth® Low Energy-enabled for wireless communication with a mobile device. Using the HOBOmobile® app, you can easily configure the loggers, download logged data to your phone or tablet, or automatically upload the data to HOBOlink® for further analysis. You can also configure the loggers to calculate statistics, set up alarms to trip at specific thresholds, or enable burst logging in which data is logged at a faster interval when sensor readings are above or below certain limits. Specifications Temperature Sensor (MX2201 and MX2202) Range -20° to 70°C (-4° to 158°F) in air -20° to 50°C (-4° to 122°F) in water Accuracy ±0.5°C from -20° to 70°C (-4° to 158°F) Resolution 0.04°C (0.072°F) Drift <0.1°C (0.18°F) per year Response Time 17 minutes typical to 90% in air moving 1 m/s, unmounted 7 minutes typical to 90% in stirred water, unmounted Light Sensor (MX2202) Range 0 to 167,731 lux (15,582 lum/ft 2 ) Accuracy ±10% typical for direct sunlight (see Light Measurement on page 2 for more details) Logger Logger Operating Range -20° to 70°C (-4° to 158°F) in air Buoyancy (Fresh Water) 2 g (0.07 oz) positive Waterproof To 30.5 m (100 ft) Radio Power 1 mW (0 dBm) Transmission Range Approximately 30.5 m (100 ft) line-of-sight Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart) Logging Rate 1 second to 18 hours Time Accuracy ±1 minute per month at 25°C (77°F) Battery CR2032 3V lithium, user replaceable Battery Life 1 year typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off disabled in software. 2 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off enabled in software. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life. To ensure proper battery installation, see Battery Information for detailed instructions on replacing the battery. Memory 96,000 measurements Full Memory Download Time Approximately 45 seconds; may take longer the farther the device is from the logger Wetted Materials Polypropylene case, EPDM O-ring Dimensions 3.35 x 5.64 x 1.6 cm (1.32 x 2.22 x 0.63 inches) Weight 12.75 g (0.45 oz) The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). See last page HOBO Pendant MX Logger Models: • MX Temp (MX2201) • MX Temp/Light (MX2202) Required Items: • HOBOmobile app • Device with iOS or Android™ and Bluetooth Accessories: • Solar radiation shield (RS1 or M-RSA) • Mounting bracket for solar radiation shield (MX2200-RS- BRACKET) • Replacement O-rings (MX2201-02-ORING) MX2201 Model Shown HOBO Pendant MX Temp (MX2201) and Temp/Light (MX2202) Logger Manual 1-800-LOGGERS 2 www.onsetcomp.com Logger Components and Operation MX2202 model shown Mounting Tab: Use the tabs at the top and bottom of the logger to mount it (see Deploying and Mounting the Logger). Temperature and Light Sensors: The temperature sensor (MX2201 and MX2202) and light sensor (MX2202) are located on the right side of the logger. See Light Measurement for more details on the light sensor. Status LED: This LED blinks green every 4 seconds when the logger is logging (unless Show LED is disabled as described in Configuring the Logger). If the logger is waiting to start logging because it was configured to start “On Button Push” or with a delayed start, it will blink green every 8 seconds. Both this LED and the Alarm LED will blink once when you press the start button to wake up the logger before configuring it. If you select Page Logger LED in the HOBOmobile app, both LEDs will be illuminated for 5 seconds. Alarm LED: This LED blinks red every 4 seconds when an alarm is tripped (unless Show LED is disabled as described in Configuring the Logger). Start Button: Press the circle on the front of the logger case for 1 second to wake up the logger (unless Bluetooth Always Off is disabled as described in Configuring the Logger). Both LEDs will blink and the logger will move to the top of the loggers list in HOBOmobile. You may need to press the button a second time to wake up the logger if it is logging every 5 seconds or faster and the temperature is -10°C (14°F) or below. Press this circle for 3 seconds to start or stop the logger when it is configured to start or stop “On Button Push” (see Configuring the Logger). Both LEDs will blink four times when you press the circle to start or stop logging. Press this circle for 10 seconds to reset a password. Note: The circle on the front of the logger represents the button area on the logger. You will not feel an actual button push when you press that area; this is normal. Light Measurement (MX2002) The logger measures light intensity in units of lumens/ft 2 or lux. The light sensor in the MX2202 has a spectral response that tightly matches the photopic response of the human eye. This is shown in Plot A. The light sensor has range of 0 to 167,731 lux (15,582 lum/ft 2 ). The resolution of the light measurement varies from 1 unit of lux or lum/ft 2 in very dim light to 40 lux (4 lum/ft 2 ) for a full scale measurement. Plot A Light Measurement Accuracy Although the MX2202 is factory calibrated to account for the light attenuation of the plastic enclosure, you may notice a significant difference in the MX2202 reading compared to a commercially available lux meter. Ideally, a light meter’s response should be proportional to the cosine of the angle at which the light is incident. The MX2202 does not collect light exactly according to this rule. Plot B illustrates the difference between an ideal cosine response and the approx…
