X2806MBluetooth Dongle

User Guide to Bluetooth Dongle USB06M Product and we hope you enjoy using it. Installation Steps: 1. Uninstall previous version of BlueSoleil. If a previous version has been installed. Then reboot the PC. 2. Insert the Installation software CD-ROM into the CD-ROM drive of your computer. 3. Install the program for the adaptor you are now using, If the Installation program does not start automatically; please double click the “Setup.exe” file on the CD manually. 4. Then follow the instructions to finish the software installation. 5. Restart the computer. After the BlueSoleil software package is installed. This is to ensure the installed Bluetooth Device takes effect. 6. Plug the bluetooth adaptor into a computer USB port. 7. When the computer had been restarted, start the BlueSoleil application by clicking. (Start-Programs-IVT BlueSoleil- BlueSoleil) Specification Compliant with Bluetooth V2.1+EDR Supported: Networking/Dial-up Fax/LAN access/Headset Operating systems: Win2000/XP/VISTA Interface: USB 1.1, 2.0 Transmitting Power: -6dBm~ -0.62dBm Data transmission rate: up to 3Mbps Working Distance: Up to 10m FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

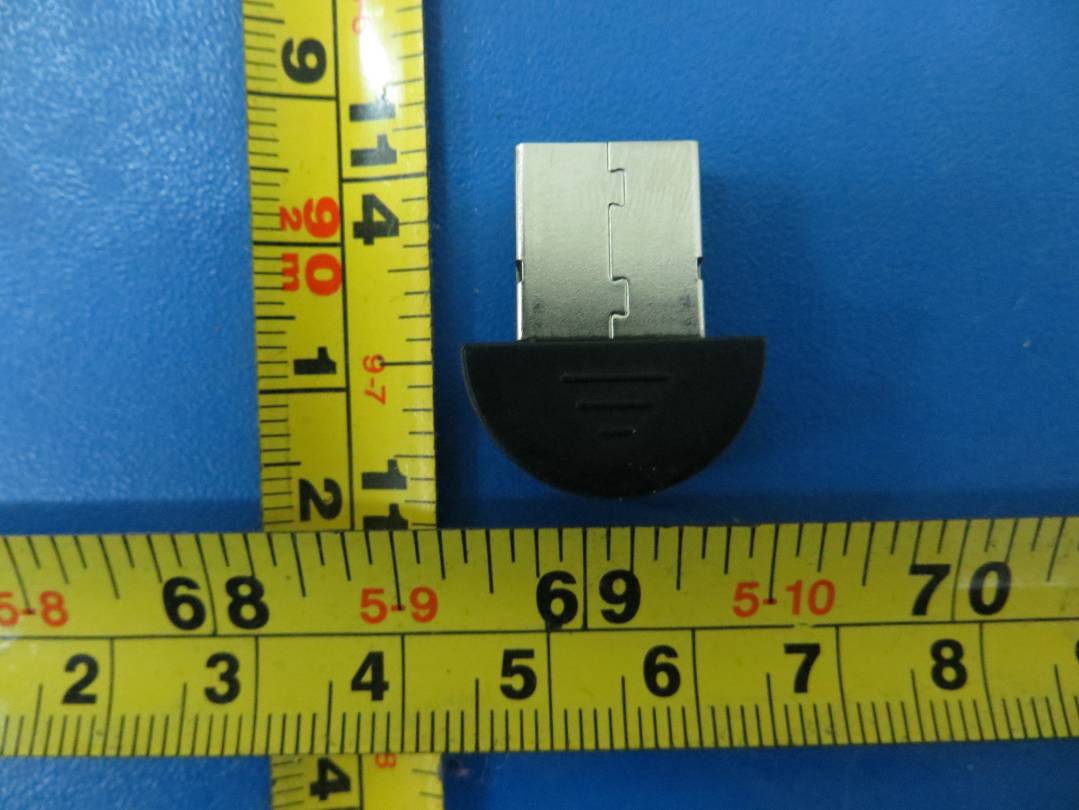

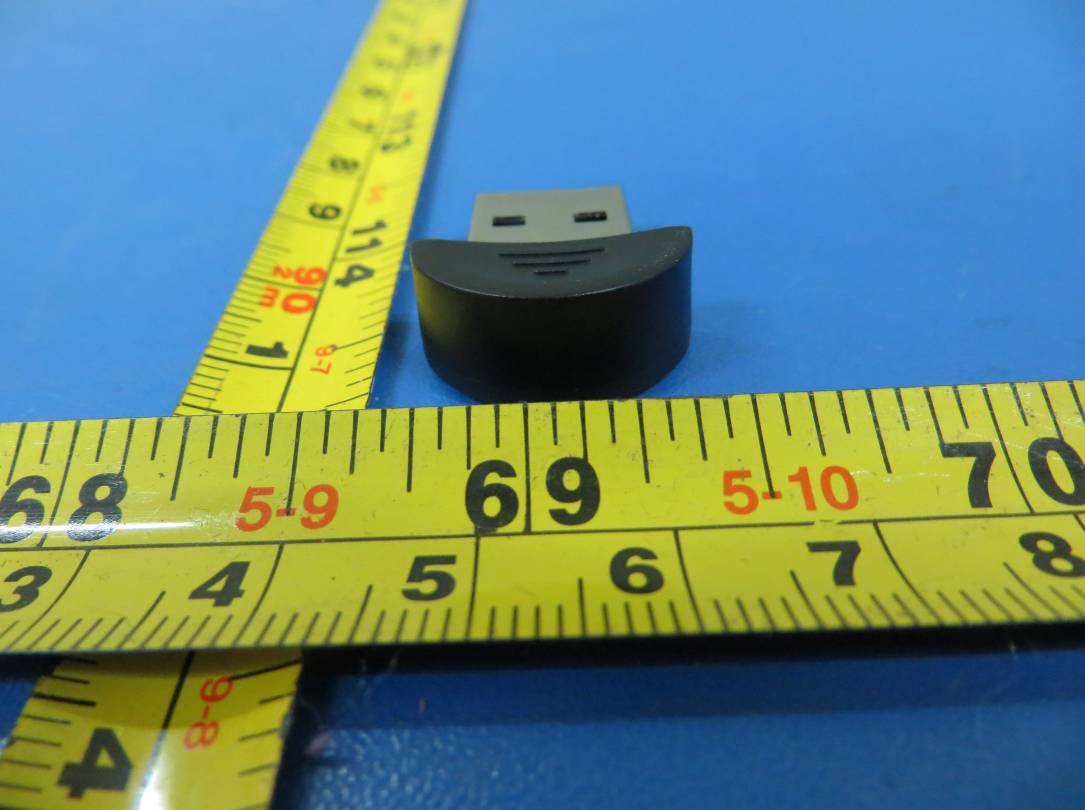

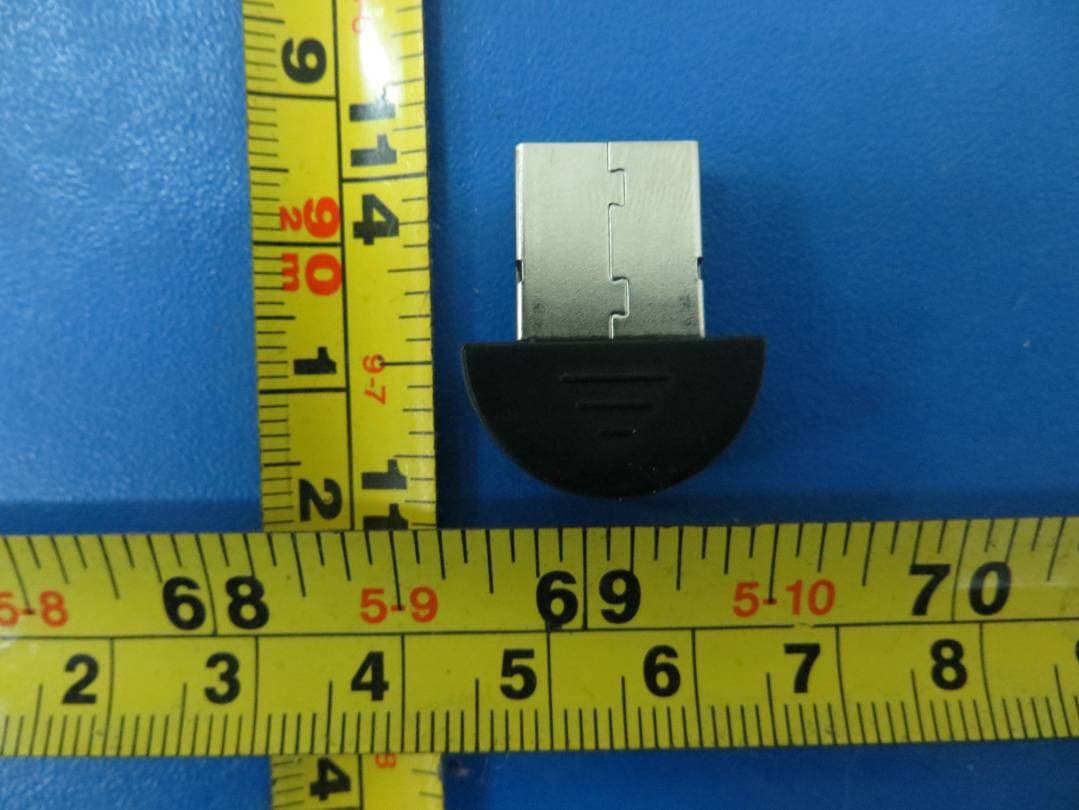

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2806M Report No.:LCS130316297TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2806M Report No.:LCS130316297TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2806M Report No.:LCS130316297TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: X2806M Report No.:LCS130316297TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2806M Report No.:LCS130316297TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2806M Report No.:LCS130316297TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2806M Report No.: LCS130316297TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 41 FCC TEST REPORT FOR Imagination Technologies Ltd / Pure Bluetooth Dongle Model No.: USB06M Prepared for : Imagination Technologies Ltd / Pure Address : Home Park Estate, Kings Langley, Hertfordshire WD4 8LZ, United Kingdom Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : March 14, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : March 14, 2013 - March 21, 2013 Date of Report : March 21, 2013 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2806M Report No.: LCS130316297TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 41 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) / RSS-210 Issue 8/RSS-Gen Issue 3 Report Reference No. ............... : LCS130316297TF Date of Issue ................................. : March 21, 2013 Testing Laboratory Name.......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Imagination Technologies Ltd / Pure Address ......................................... : Home Park Estate, Kings Langley, Hertfordshire WD4 8LZ, United Kingdom Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.247) / RSS-210 Issue 8/ RSS-Gen Issue 3 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : Bluetooth Dongle Trade Mark ................................... : Pure Model/ Type reference ................. : USB06M Ratings .......................................... : DC 5V by PC Result ......................................... : Positive Compiled by: Supervised by: Approved by: Ada Liang/ File administrators Fox Zhang/ Technique principalGavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2806M Report No.: LCS130316297TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 41 FCC -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS130316297TF March 21, 2013 Date of issue Type / Model........................... : USB06M EUT......................................... : Bluetooth Dongle Applicant............................... : Imagination Technologies Ltd / Pure Address.................................. : Home Park Estate, Kings Langley, Hertfordshire WD4 8LZ, United Kingdom Telephone............................... : / Fax.......................................... : / Manufacturer........................ : LANYA ELECTRONIC Co., Ltd. Address................................... : 3-5F，Workshop of 6,Lijincheng Science&Technolagy Industrial Area,The East Road of Industrial AREA,longhua Street,Bao'an District,Shenzhen City,Guangdong Province,P.R.China Telephone............................... : / Fax.......................................... : / Factory................................... : LANYA ELECTRONIC Co., Ltd. Address................................... : 3-5F，Workshop of 6,Lijincheng Science&Technolagy Industrial Area,The East Road of Industrial AREA,longhua Street,Bao'an District,Shenzhen City,Guangdong Province,P.R.China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X2806M Report No.: LCS130316297TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 41 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................5 1.1 Description of Device (EUT)............................................................................................................. 5 1.2 Support equipment List...................................................................................................................... 5 1.3 External I/O ....................................................................................................................................... 5 1.4 Description of Test Facility ............................................................................................................... 5 1.5 Statement of The Measurement Uncertainty ..................................................................................... 6 1.6 Measurement Uncertainty.............................................................................…
