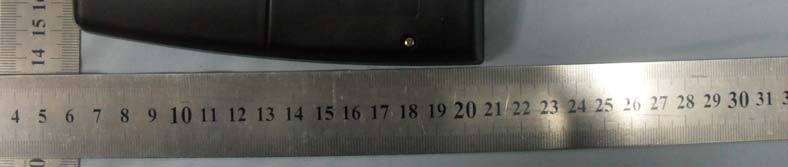

External Photographs The external photographs EUT - Front View EUT - Rear View

FCC ID Label Sample for FCC ID:X55-RC2 FCC ID:X55-RC2 Model: RC2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Location FCC ID Location

Internal Photographs EUT – Uncovered View EUT - PCB View

920MHz Terminal Antenna E H ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Model Q915-L24W Main Techmical pecfications Frequency MH VSWR ≤1.5 Gain 2.5dBi Polarizatio Type Vertical Rated Power 50w Input Impedcion 50Ω Connector Type Antenna colour Black Temperature -40°-+80° Dimensions 10*108mm Weight 13g www.fineprint.cn www.fineprint.cn www.fineprint.cn

Operational Description The circuit is made up of receiver,transmitter. The EUT is transmiter (remote control). First of all, the system power on, then press button of controller ,the EUT will transmit 920MHz signals through antenna and control the light .

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size C Date: 18-Dec-2009 Sheet of File: C:\Documents and Settings\joel\Desktop\RC2-1V1 2.DDB Drawn By: Keyboard Interface LCD Interface RF Module True color LED driver Power Supply AVR microcontroller BT11.5V X 2AA LX 1 GND 2 VOUT 3 SHDN 4 VBATT 5 U1SP6641B-5.0VSOT23-5 L1DT1608C-2230.5A VBATT C51uF10V 10% R310 5% VCC5V C1100uF6.3V10% PDN5V LX 1 GND 2 VOUT 3 SHDN 4 VBATT 5 U2SP6641A-3.3VSOT23-5 VBATT R40 VCC3V3 PDN3V3 VBATT VBATT PDN5V PDN3V3 VBAT_DET VCC3V3 VCC_AVR R547k5% D5MBR0520LT120V 0.5A C2100uF6.3V10% C422uF6.3V 10% C322uF6.3V 10% C71uF10V 10% Don't Mount for A type R647k5% C833nF10V 10% C933nF10V 10% R1 330k 1% R2 680k 1% C6 1uF10V 10% D2MBR0520LT120V 0.5A D4 MBR0520LT120V 0.5A D3MBR0520LT120V 0.5AD1MBR0520LT120V 0.5A L2DT1608C-2230.5A R110Short when 5V supply don't equip RST 1 SCL 2 SDA 3 VSS 4 VDD 5 CAP+ 6 CAP- 7 Vout 8 U7ABO1602D LCD_EN LCD_EN R144k7 5% VCC3V3 R13180 5% R12180 5% SCLSDA SCLSDA + C19 4.7uF10V10% + C204.7uF10V10% VCC3V3 R2310K 5% LCD_BL R247R5 5% AK U7BBO1602D G S D Q2Si2304BDS R25470K 5% GND 1 SDI 2 DCLK 3 LE 4 OUT0 5 OUT1 6 OUT2 7 OUT3 8 OUT4 9 OUT5 10 OUT6 11 OUT7 12 OUT8 13 OUT9 14 OUT10 15 OUT11 16 OUT12 17 OUT13 18 OUT14 19 OUT15 20 GCLK 21 SDO 22 R-EXT 23 VDD 24 U3DM631 TCLED_SDI TCLED_DCLK TCLED_LE VCC3V3 TCLED_GCLK TCLED0TCLED1TCLED2TCLED3TCLED4TCLED5TCLED6TCLED7 TCLED8TCLED9TCLED10TCLED11 TCLED_PO TCLED_PO VCC5V VCC3V3 TCLED0TCLED1TCLED2TCLED3TCLED4TCLED5TCLED6TCLED7TCLED8TCLED9TCLED10TCLED11 R8470k5% R9220k5% R108.2k 5% C100.1uF10V 10% R200 VMBI R190 Use for 5V supply R220No Mount D8LED-TCD9LED-TCD10LED-TCD11LED-TC G S D Q1ASI5513DC G S D Q1BSI5513DC V-REXT = 1.23VI-OUT=(V-REXT/R-EXT)*M10mA Rrext =6K5mA Rrext =12.4K SCLK 1 SO/GDO1 2 GDO2 3 DVDD 4 DCOUPL 5 GDO0 6 CSn 7 XOSC_Q1 8 AVDD 9 XOSC_Q2 10 AVDD 11 RF_P 12 RF_N 13 AVDD 14 AVDD 15 AGND 16 RBIAS 17 DGUARD 18 DGND 19 SI 20 GND 21 U900CC1101 C907100nFX5R_K_10ACAP Pin4 R90056K 5% X90026.000 C90527pFNP0_J_50 C90427pFNP0_J_50 C906100nF6.3VX5R_K_10 C910220pFNP0_J_50ACAP Pin18 VCC3V3_CC VCC3V3_CCVCC3V3_CC VCC3V3_CC C9081p0NP0_C_50* C911220pFNP0_J_50ACAP Pin15 C9122p2NP0_C_50ACAP Pin11 C91310nFX7R_K_25ACAP Pin14 C91410nFX7R_K_25ACAP Pin9 GDO0GDO2 CSn SCLK SI SO L900L_12N_0402_JL901L_12N_0402_J C9031p5NP0_C_50* L905L_18N_0402_J L904L_18N_0402_J C902 1p5 NP0_C_50 * C900100pNP0_C_50* L902L_12N_0402_J L906BEAD-102 VCC3V3 C9151uFX7R_K_16 Radio Module PB5(PCINT13/MOSI) 1 PB6(PCINT14/MISO) 2 PB7(PCINT15/SCK) 3 RESET 4 VCC 5 GND 6 XTAL2 7 XTAL1 8 PD0(PCINT24/RXD0) 9 PD1(PCINT25/TXD0) 10 PD2(PCINT26/RXD1/INT0) 11 PD3(PCINT27/TXD1/INT1) 12 PD4(PCINT28/XCK1/OC1B) 13 PD5(PCINT29/OC1A) 14 PD6(PCINT30/OC2B/ICP) 15 PD7(PCINT31/OC2A) 16 VCC 17 GND 18 (SCL/PCINT16)PC0 19 (SDAPCINT17)PC1 20 (TCK/PCINT18)PC2 21 (TMS/PCINT19)PC3 22 (TDO/PCINT20)PC4 23 (TDI/PCINT21)PC5 24 (TOSC1/PCINT22)PC6 25 (TOSC2/PCINT23)PC7 26 AVCC 27 GND 28 AREF 29 (ADC7/PCINT7)PA7 30 (ADC6/PCINT6)PA6 31 (ADC5/PCINT5)PA5 32 (ADC4/PCINT4)PA4 33 (ADC3/PCINT3)PA3 34 (ADC2/PCINT2)PA2 35 (ADC1/PCINT1)PA1 36 (ADC0/PCINT0)PA0 37 VCC 38 GND 39 PB0(PCINT8/XCK0/T0) 40 PB1(PCINT9/T1/CLKO) 41 PB2(PCINT10/AIN0/INT2) 42 PB3(PCINT11/AIN1/OC0A) 43 PB4(PCINT12/SS/OC0B) 44 U5ATMEGA164P-TQFP44 PDN5V PDN3V3 VBAT_DET KEYLCD_DO[1..4] KEY_C[1..4] RF_GDO2 TCLED_SDI TCLED_DCLK TCLED_LE TCLED_GCLK RF_DR RF_CS RF_SCLKRF_MOSIRF_MISO LCD_EN LCD_EN VCC_AVR KEY_C1KEY_C2KEY_C3KEY_C4 JTAG_TDIJTAG_TDOJTAG_TMSJTAG_TCK 1 2 3 4 5 6 7 8 9 10 JP4JTAG PORT VCC_AVR JTAG_TCKJTAG_TDOJTAG_TMSJTAG_TDI KEYLCD_DO1KEYLCD_DO2KEYLCD_DO3KEYLCD_DO4 TCLED_PO CRY1CRYSTAL TP1 TP2 TP3 RF_SCLK RF_MISORF_MOSI RESET R1510k 5% C130.1uF10V 10% C1810uF6.3V10% C140.1uF10V 10% C1722pF10V 0.5% C1622pF10V 0.5% According to spec of Crystal R16100k 5% KEYLCD_DO[1..4] KEY_C[1..4] C120.1uF10V 10% SCLSDA TX434 R18 3K3 5% R7 3K3 5% VCC_AVR C210.1uF10V 10% Close to P5 C220.1uF10V 10% Close to P17 C230.1uF10V 10% Close to P38 VCC_AVR LCD_BL LCD_BL No Mount TCLED_POTCLED_GCLKPDN3V3 VBAT_DETTCLED_LETCLED_DCLKTCLED_SDIPDN5VSDASCL RF_CS TCLED_GCLK TCLED_LETCLED_DCLKTCLED_SDI LCD_BL RF_GDO2RF_DRTX434 RF_SCLKRF_MISORF_MOSIRF_CSRF_GDO2RF_DR R901 1K 5% R902 1K 5% R903 1K 5% R904 1K 5% R905 1K 5% R906 1K 5% +5VDATAGNDGNDGNDANT U6TXJ1-434MHZ VCC5V R214K7 5% 434MHz Transmitter TX434 2 4 53 U4NC7S04 12 P900ANT C9093p3NP0_C_50* L903L_12N_0402_J C90112pNP0_C_50* C91647pNP0_C_50* L907L_3N3_0402_J RESET VCC_AVR RF_MISO RF_MOSI RF_SCLK R170 1 2 3 4 5 6 JP3ISP PROGRAM L4BEAD 12345678 JP1KEYPAD KEY_C1KEY_C2KEY_C3KEY_C4 KEYLCD_DO[1..4] KEY_C[1..4] KEYLCD_DO1KEYLCD_DO2KEYLCD_DO3KEYLCD_DO4 KEYLCD_DO[1..4]KEY_C[1..4]

Test Report of FCC Part 15 C for FCC Certificate On Behalf of Astera LED-Technology GmbH Product description: Radio remote control Model No.: RC2 FCC ID: X55-RC2 Prepared for: Astera LED-Technology GmbH Goetzeroth 6, Kleinich, 54483, Germany Prepared by: Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT09KR-1120E Issue Date: February 10, 2010 Test Date: November 25,2009 ~ February 10, 2010 Test by: Reviewed By: Kendy Wang Tony Wu Report No.: BCT09KR-1120E Page 2 of 20 FCC ID:X55-RC2 TABLE OF CONTENTS 1. GENERAL INFORMATION............................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ............................................................ 3 1.2 Related Submittal(s) / Grant (s) .............................................................................................. 3 1.3 Test Methodology ................................................................................................................... 3 1.4 Test Facility............................................................................................................................. 4 2. SYSTEM TEST CONFIGURATION .................................................................................................. 5 2.1 EUT Configuration .................................................................................................................. 5 2.2 EUT Exercise .......................................................................................................................... 5 2.3 General Test Procedures........................................................................................................ 5 2.4 List of Measuring Equipments................................................................................................. 6 3. SUMMARY OF TEST RESULTS ......................................................................................................8 4. TEST OF CONDUCTED EMISSION ................................................................................................. 9 4.1 Applicable Standard................................................................................................................ 9 4.2 Test Setup Diagram ................................................................................................................ 9 5. BAND EDGES MEASUREMENT.................................................................................................... 10 5.1 Limit of Band Edges Measurement..................................................................................... 10 5.2 EUT Setup ............................................................................................................................ 10 5.3 Test Procedure ..................................................................................................................... 11 5.4 Test Result............................................................................................................................ 11 6.SPURIOUS EMISSIONS .................................................................................................................. 13 6.1 Limit of Spurious Emissions.................................................................................................. 13 6.2 EUT Setup ............................................................................................................................ 14 6.3 Test Procedure ..................................................................................................................... 15 6.4 Spurious Emissions Test Result ........................................................................................... 15 7. ANTENNA REQUIREMENT............................................................................................................ 20 7.1 Standard Applicable.............................................................................................................. 20 7.2 Antenna Connected Construction ......................................................................................... 20 Report No.: BCT09KR-1120E Page 3 of 20 FCC ID:X55-RC2 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Applicant: Astera LED-Technology GmbH Address of applicant: Goetzeroth 6, Kleinich, 54483, Germany Manufacturer: Astera LED-Technology GmbH Address of manufacturer: Goetzeroth 6, Kleinich, 54483, Germany EUT Description: Radio remote control Model No.: RC2 Rated Voltage DC 3V from battery Frequency range 920MHz Number of channels 1 Channel Separation None Product Class: Low Power Communication Device Transmitter Measurement Procedure ANSI C63.4-2009 Remark: * The test data gathered are from the production sample provided by the manufacturer. 1.2 Related Submittal(s) / Grant (s) This submittal(s) is a test report based on the Electromagnetic Interference (EMI) tests performed on the EUT. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4 - 2009. The tests were performed in order to determine compliance with Section 15.107 and 15.109 under the FCC Rules Part 15 Subpart B and Section 15.207, 15.209,15.249 under the FCC Rules Part 15 Subpart C. 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4 - 2009, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. Radiated testing was performed at an antenna to EUT distance 3 meters. Report No.: BCT09KR-1120E Page 4 of 20 FCC ID:X55-RC2 1.4 Test Facility All measurement required was performed at laboratory of Bontek Compliance Testing Laboratory Ltd at 1/F, Block East H-3, OCT Eastern Ind. Zone,…
