X55AX3-BTBLightDrop BTB

TROUBLESHOOTING SAFETY INFORMATION Before you operate this unit read the manual carefully. Always make sure to include the manual if you pass/ rent/ sell the unit to another user. Please use your own caution when operating. This product is for professional use only. It is not for household use. • Do not operate the unit in areas of high temperature conditions or under direct sunlight. It may cause abnormal behavior or damage the product. • Always use a suitable safety wire when mounting the light overhead. • Connect the safety wire only to the intended safety mount. • Always follow local safety requirements. • Only authorized personal may service the battery. • Do not place in fire or heat. • Do not use or charge the light if it is damaged. • Avoid bumping or plunging, it may cause fire or explosion. • Never store the battery when fully drained. Always recharge immediately when empty. Please do not charge unattended. • Make sure to fully charge all units before storing them. • Partially charged batteries will lose capacity. • Fully recharge every 6 months if not used. • The battery may only be replaced with an original spare part from Astera. • It is recommended to charge at a temperature between 15°C and 35°C. Warning: In extreme cases, abuse or misuse of standard/rechargeable batteries can lead to: • Explosion • Fire development • Heat generation or smoke and gas development. • Do not open the product housing. • Do not apply power if the light is damaged. • Do not submerge the light into any liquid. • Do not replace the LED light source. • Caution, risk of electric shock. The AX3-BTB shall be installed near the socket-outlet which shall be easily accessible. Warning: risk of electric shock - Do not open device. • The exterior surfaces of the light can become hot, up to 70°C (158°F) during normal operation. • Ensure that accidental physical contact with the device is im- possible. • lnstall only in ventilated locations. • Do not cover the light. • Allow all lights to cool before touching. • Keep 0.3m (12in) from objects to be illuminated. INTRODUCTION / INTENDED USE The AX3 LightDrop BTB from ASTERA is a LED spotlight for professional use in the event and film business. The AX3 LightDrop BTB is designed for direct or indirect illumination of objects or sceneries. Due to its built-in battery it can be quickly set up at places where traditional lights cannot be mounted easily. It can be used as compact uplight as well as hanging or standing spotlight and inside translucent objects, truss, etc. The AX3 LightDrop BTB generates white or colored light and the color tempe- rature can be adjusted in many ways. The AX3 LightDrop BTB can be controlled with the AsteraApp or wireless CRMX. The device can also be controlled by the integrated button or by infrared remote control. Thanks to its built-in Bluetooth it can be used as BluetoothBridge (BTB). The AX3 LightDrop BTB can be used standing or hanging. For this purpo- se, the device is equiped with a magnet, a bracket and 3 M4 threads. Its removable bracket has a 3/8“ thread to attach the appropriate mounting accessories. The AX3 LightDrop BTB can be used indoors and outdoors and has an IP65 rating (only with the Charging Socket Cover (AX3-SP) in place). Do not shake the device. Avoid brute force when installing or operating the device. When choosing the installation spot, please make sure that the device is not exposed to extreme heat or dust. Avoid direct sunlight for a longer period of time. The specified ambient temperature must be maintained. Keep away from direct insulation (particularly in cars) and heaters. Never use the device during thunderstorms connected to the power mains. Overvoltage could destroy the device. Always disconnect the device during thunderstorms. Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture. Always fix the fixture with an appropriate safety wire. Operate the device only after having become familiarized with its func- tions. Please consider that unauthorized modifications on the device are are not allowed due to safety reasons! If this device will be operated in any way different to the one described in this manual, the product may suffer damages and voids the warranty. The disclaimer includes all damages, liability or injury resulting from failure to follow the instructions in this manual. Furthermore, any other operation may lead to dangers like short- circuit, burns, electric shock, crash etc. This device is not for household use and is not suitable for permanent installation. CONTENT / LIEFERUMFANG / ENTITÀ DELLA FORNITURA 1.: AX3 LightDrop BTB (AX3-BTB) 2.: 30° Diffuser (two holes) (AX3-DDSK-30) 3.: 120° Diffuser (three holes) (AX3-DDSK-120) 4.: Charger for AX3 (AX3-CHR) 5.: 3 x EyeBolt (AX3-EBLT) 6.: 4 x Rubber Feet (AX3-RBF) 7.: Charging Socket Cover (AX3-SP) 8.: User Manual / Benutzerhandbuch / Manuale utente CLEANING AND MAINTAINING Caution: Liquids entering the housing of the device can cause a short circuit and damage the electronics. Do not use any clea- ning agents or solvents. Only clean using a soft damp cloth. MANUFACTURER DECLARATION Hereby, Astera LED Technology GmbH declares that the type of radio equipment AX3 LightDrop BTB complies with Directive 2014/53 / EU. The full text of the EU Declaration of Conformity is available at the following Internet address: https://astera-led.com/ax3. Astera LED Technology GmbH declares that this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a par…

Text truncated - open the document above for the full version.

Astera LED-Technology GmbH Address: Stahlgruberring 36, Munich, 81829 Germany Email: [email protected] Tel: +49(0)89215522530 Fax: +49(0)89215522530 Attestation letter 2022-09-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Astera LED-Technology GmbH Have a product LightDrop BTB Model name: AX3-BTB, AX3-BTB-WT FCC ID:X55AX3-BTB The RF chip CC1101, installed in our product, only support 917-922.2MHz, for the purpose of marketing, other frequencies has been shielded by software. The RF chip nRF51822 installed in our product, supports Bluetooth Low Energy and 2.4GHz SoC, for the purpose of marketing, this chip only supports 2.4GHz RX. The Bluetooth Low Energy and 2.4GHz TX was disabled to use by manufacture in the software, the end user has no capability to activate it. The BT/BLE and Wi-Fi functions of this product are supported by the module ESP32- WROVER-E. Sincerely, Signature: Norbert Ernst Title: General Manager

Astera LED-Technology GmbH Address: Stahlgruberring 36, Munich, 81829 Germany Email: [email protected] Tel: +49(0)89215522530 Fax: +49(0)89215522530 QA-FR-170-B 7/29/2014 FCC Authorization Date: 2022-09-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Astera LED-Technology GmbH, the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Norbert Ernst Title: General Manager

Astera LED-Technology GmbH Address: Stahlgruberring 36, Munich, 81829 Germany Email: [email protected] Tel: +49(0)89215522530 Fax: +49(0)89215522530 FCC Confidential Authorization Date: 2022-09-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:X55AX3-BTB In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Astera LED- Technology GmbH hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Norbert Ernst Title: General Manager

Astera LED-Technology GmbH Address: Stahlgruberring 36, Munich, 81829 Germany Email: [email protected] Tel: +49(0)89215522530 Fax: +49(0)89215522530 Date: 2022-09-07 Product Similarity Declaration FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam, We, Astera LED-Technology GmbH, hereby declare that we have a product named as LightDrop BTB (Model number:AX3-BTB, FCC ID:X55AX3-BTB) was tested by ATC(Shenzhen). Meanwhile, for our marketing purpose, we would like to list a series models (AX3-BTB-WT) on reports and certificate. All of the models are electrically identical,but the difference among them are color and model name. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact with me if you have any question. Sincerely Yours, Signature: Norbert Ernst Title: General Manager

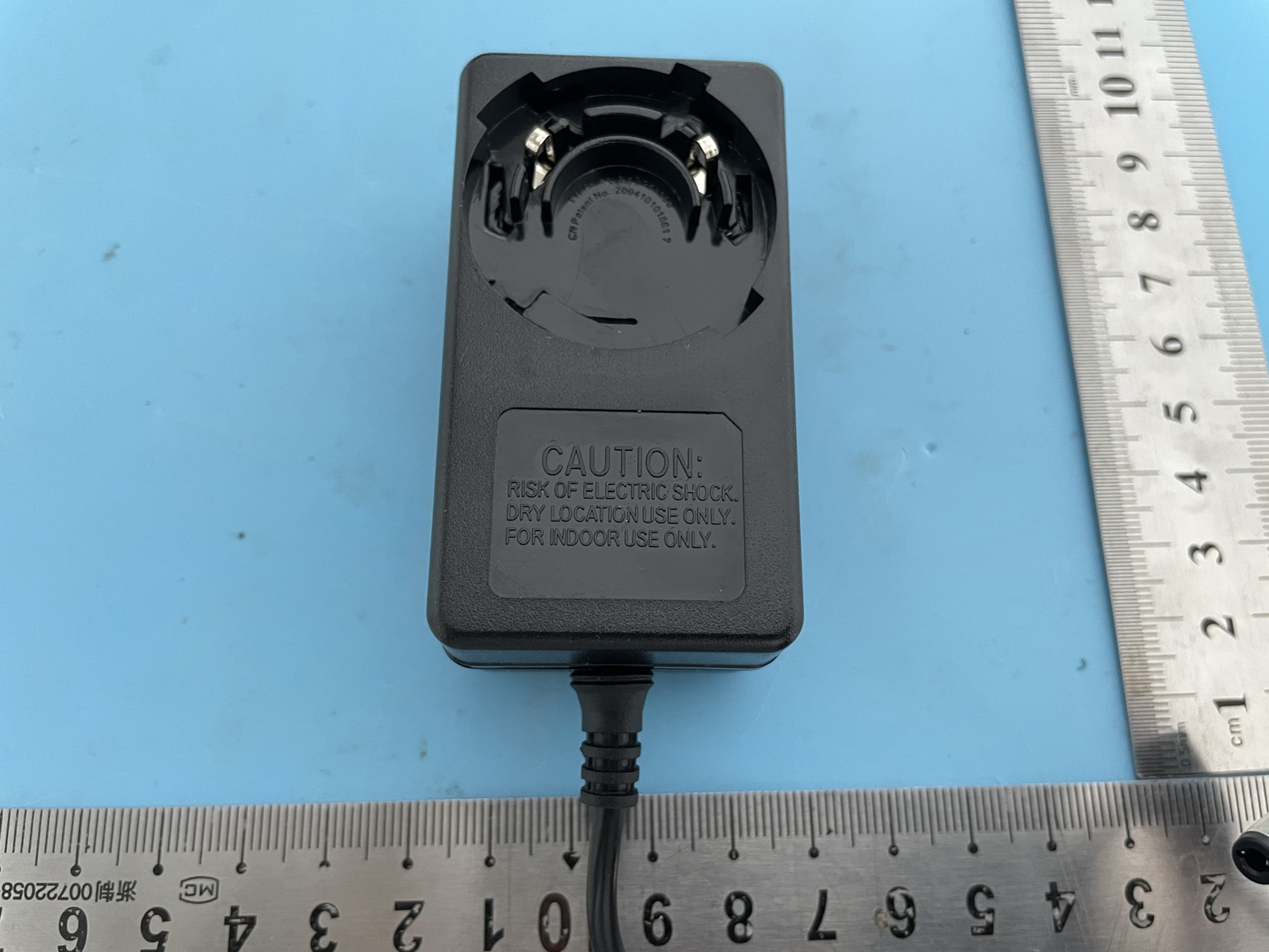

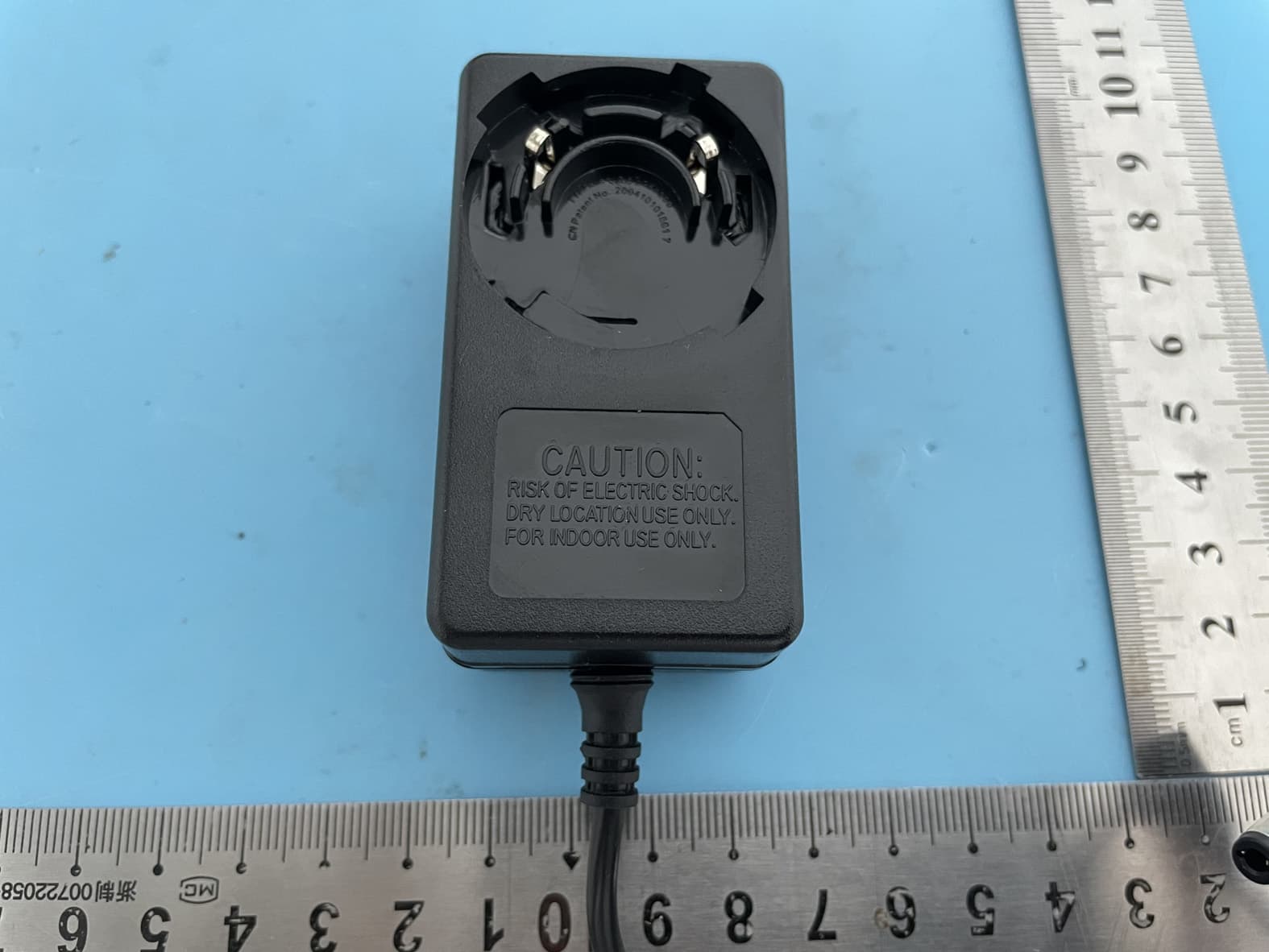

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF External Photos Page 1 of 5 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF External Photos Page 2 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF External Photos Page 3 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF External Photos Page 4 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF External Photos Page 5 of 5

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Internal Photos Page 1 of 10 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Internal Photos Page 2 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Internal Photos Page 3 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Internal Photos Page 4 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Internal Photos Page 5 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Internal Photos Page 6 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Internal Photos Page 7 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Internal Photos Page 8 of 10 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Internal Photos Page 9 of 10 Antenna-BT,BLE,WIFI Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Internal Photos Page 10 of 10 Antenna UHF ANT 2.4GHz CRMX ANT (RX only)

Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220713-31703E-RF-00 Version 64: 2021-11-09 Page 11 of 40 FCC-FHSS FCC §15.247 (i) & §1.1307 (b) (3) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 Interim General RF Exposure Guidance MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power(ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(1)(i)(C)] to support an exemptionfrom further evaluation from 300 kHz through 100 GHz. Ris the minimum separation distance in meters f = frequency in MHz For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation: Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220713-31703E-RF-00 Version 64: 2021-11-09 Page 12 of 40 FCC-FHSS Result Mode Frequency (MHz) Tune up conducted power Antenna Gain ERP Evaluation Distance (m) ERP Limit (W) (dBm) (dBi)(dBd)(dBm)(W) UHF 917-922.2 9.5 -0.22 -2.37 7.13 0.0050.2 0.470 BT 2402-2480 9.0 3.4 1.25 10.25 0.011 0.2 0.768 BLE 2402-2480 7.0 3.4 1.25 8.25 0.007 0.2 0.768 Wi-Fi 2412-2462 27.0 3.4 1.25 28.25 0.668 0.2 0.768 Note: 1. The tune up conducted power and antenna gain was declared by the applicant. 2. The EUT contains a certified BT/Wi-Fi module (model: ESP32-WROVER-E, FCC ID: 2AC7Z-ESP32WROVERE) 3. The UHF can transmit at the same time with the BT or Wi-Fi, the BT and Wi-Fi cannot Simultaneous transmitting Simultaneous transmitting consideration (worst case): The ratio=ERP UHF /limit+ERP Wi-Fi /limit=0.005/0.470+0.668/0.768=0.880＜1.0, so simultaneous exposure is compliant. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant.

Astera LED Technology GmbH Re AX3-BTB Antenna Specification 1. TECHNICAL SPECIFICATION Electrical Specifications Antenna Type PCB PCB Frequency Range(Mhz) EU(865-870), US( 902~928) CRMX2402~2480 Input Impedance(Ω) 50 50 V.S.W.R ≤3 ≤3 Antenna Length(mm) 100 degree arc belt with radius 24 mm and radius 41 mm 10×2.8 Gain(dBi) EU(-1.65), US( -0.22) NA Pcb size(mm) 82.7mm with 46.5mm hole×1.6mm Radiator copper 2. ANTENNA PICTURE Astera LED Technology GmbH Re 3. RADIATION DIAGRAM Antenna Pattern： Theta=90 Phi =0 Astera LED Technology GmbH Re Phi=90 Antenna 3D Pattern： 867MHz +Z Astera LED Technology GmbH Re +x +y Astera LED Technology GmbH Re 913 MHz +z +y Astera LED Technology GmbH Re +x

Note: This report may contain data t ★ hat are not covered by the A2LA accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 64: 2021-11-09 Page 1 of 40 FCC-FHSS TEST REPORT Applicant Name : Astera LED-Technology GmbH Address : Stahlgruberring 36, Munich, 81829 Germany Report Number : SZNS220713-31703E-RF-00 FCC ID: X55AX3-BTB Test Standard (s) FCC PART 15.247 Sample Description Product Type: LightDrop BTB Model No.: AX3-BTB Multiple Model(s) No.: AX3-BTB-WT (model difference see product declaration letter of similarity) Trade Mark: ASTERA Date Received: 2022/07/13 Report Date: 2022/09/01 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Audy Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220713-31703E-RF-00 Version 64: 2021-11-09 Page 2 of 40 FCC-FHSS TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §15.247 (I) & §1.1307 (B) (3) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ..................... 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS .................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 15 TEST DATA ....................................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Test Photos Page 1 of 2 Photo of Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220713-31703E-RF Test Photos Page 2 of 2 Photo of Radiated Emission Measurement (Below 1G) Photo of Radiated Emission Measurement (Above 1G)
