X55FP5-E26NYX Bulb

Users Manual / Gebrauchsanleitung / Manuale di istruzioni MODEL NO: MANUAL VERSION: 1.2  DATE OF ISSUE: 25/08/2020 TROUBLESHOOTING SPECIFICATIONS  TECHNICAL DATA MANUFACTURER DECLARATION SAFETY INFORMATION INTRODUCTION / INTENDED USE Before you operate this unit read the manual carefully. Always make sure to include the manual if you pass/ rent/ sell the unit to another user. Keep in mind that this manual cannot address all possible dangers and environments. Please use your own caution when operating. This product is for professional use only. It is not for household use. • Do not operate the unit in areas of high temperature conditi- ons or under direct sunlight. • It will cause abnormal function or damage the product. • Make sure the unit is mounted properly and safely. • Always follow local safety requirements. • Please note that the mechanical stability of certain lamps and lampholders may be altered and contact and hold may be impaired if the newly inserted lamp is heavier than the original lamp. • Suitable for damp locations • Do not use with standard dimmers • Do not open the product housing. • Do not apply power if the light is damaged. • Do not submerge the light into any liquid. • Do not replace the LED light source. • Caution, risk of electric shock. The NYX Bulb and its power supply shall be installed near the socket-outlet which shall be easily accessible. Warning electric shock: risk of - Do not open power unit, for indoor use only. The exterior surfaces of the light can become hot, up to 70°C (158°F) during normal operation. • Ensure that accidental physical contact with the device is impossible. • lnstall only in ventilated locations. • Do not cover the light. • Allow all lights to cool before touching. • Keep 0.3m (12in) from objects to be illuminated. The Astera NYX Bulb FP5 is a professional 1 pixel RGB+Amber+Mint LED illuminant with ultra high TLCI/ CRI and calibrated color rendering as well as Astera‘s flicker free PWM technology. Built-in CRMX, Bluetooth and RF-Modules provide the same connectivity known from other Astera fixtures. Numerous professional features and mounting options make the NYX Bulb a versatile lightsource for the Film, Broadcast, Event industries and decorative purposes. It can be powered by AC from a E26/ E27/B22 socket as well as by wide range DC from e.g. a USB Powerbank or the optionally available battery powered Astera PowerStation. This device was designed for indoor and outdoor use - outdoor only with plugged in rubber on DC socket. Do not shake the device. Avoid brute force when installing or operating the device. When choosing the installation-spot, please make sure that the device is not exposed to extreme heat or dust. There should not be any cables lying around. You endanger your own and the safety of others! The ambient temperature must be set . Keep away from direct insulation (particularly in cars) and heaters. Never use the device during thunderstorms connected to a power socket. Over voltage could destroy the device. Always disconnect the device during thunderstorms. Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture. Always fix the fixture with an appropriate safety bond. The specified ambient temperature must be maintained Operate the device only after having become familiarized with its func- tions. Device is not dimmable. Use Astera PowerStation or AsteraApp for dimming. Please use the transportation cases or original packaging if the device is to be transported. Please consider that unauthorized modifications on the device are forbidden due to safety reasons! If this device will be operated in any way di¥erent to the one described in this manual, the product may su¥er damages and the guarantee be- comes void. Furthermore, any other operation may lead to dangers like shortcircuit, burns, electric shock, crash etc. PRODUCT OVERVIEW / PRODUCTÜBERSICHT / PANORAMICA DEI PRODOTTI 5. Reset and Linking to a CRMX transmitter + RESET to unpair and set Control Input to auto detection mode RESET zum entkoppeln und Steuereingang auf automatischen Erkennungsmodus setzen RESET per disaccoppiare e impostare l‘ingresso di controllo sul modo di rilevamento automatico 4. Static Colors Turn NYX Bulb into „blue mode“ by holding down the power button for 3 seconds. Press the button shortly to cycle between 13 predefined colors and white tones. To latch chosen color, hold the button until blinking stops. Schalten Sie die NYX Bulb in den „blue mode“, indem Sie den Ein/ Aus- schalter 3 Sekunden lang gedrückt halten. Nun können Sie mit jedem weiteren Tastendruck aus 13 voreingestellten Farben und Weisstönen wählen. Um die gewählte Farbe festzulegen, halten Sie die Taste ge- drückt, bis die Farbe konstant leuchtet. Commutare la NYX Bulb in „modalità blu“ tenendo premuto l‘interruttore on/o¥ per 3 secondi. Ora è possibile scegliere tra 13 colori preimpostati e tonalità del bianco ad ogni ulteriore pressione del tasto. Per impostare il colore selezionato, tenere premuto il pulsante fino a quando il colore non è solido. CONTENTS / LIEFERUMFANG / CONTENUTO 1: NYX Bulb 2: USB DC Cable / USB DC Kabel / Cavo USB DC 3: Users Manual / Gebrauchsanleitung / Manuale di istruzioni STEP 1: NYX BULB STEP 3: NYX BULB TURN ON STEP 1: ART7 STEP 4: ART7 PANEL WAIT CLEANING AND MAINTAINING Caution: Liquids entering the housing of the device can cause a short circuit and damage the electronics. Do not use any cleaning agents or solvents. ProblemPossible causeSolution The fixture does not turn on The fixture maybe is not connect to power Connect it to a E26/E27 socket , PowerStation or power bank to try again The fixture turns on but the LEDs do not emit light The fixture could be set to BLACKOUT mode Set to display black color or is operating in DMX mode and doesn’t receive a valid signal. It is good practice to do a RESET SETTINGS The fixture is not working correctly - it does not display the color or e¥e…

Text truncated - open the document above for the full version.

Astera LED-Technology GmbH Address: Stahlgruberring 36, Munich, Germany 81829 Email: [email protected] Tel: +49(0)89215522530 Fax: +49(0)89215522530 FCC Confidential Authorization 2020/07/14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Astera LED-Technology GmbH Have a product NYX Bulb Model name: FP5 FCC ID: X55FP5-E26 The RF chip CC1101, installed in our product, only support 917.0-922.2MHz launch function, but for the purpose of marketing, other function has been shielded by software. Sincerely, Signature: Norbert Ernst Title: General Manager

QA-FR-170-B Astera LED-Technology GmbH Address: Stahlgruberring 36, Munich, Germany 81829 Email: [email protected] Tel: +49(0)89215522530 Fax: +49(0)89215522530 FCC Authorization 2020/07/14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We (Astera LED-Technology GmbH), the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Norbert Ernst Title: General Manager

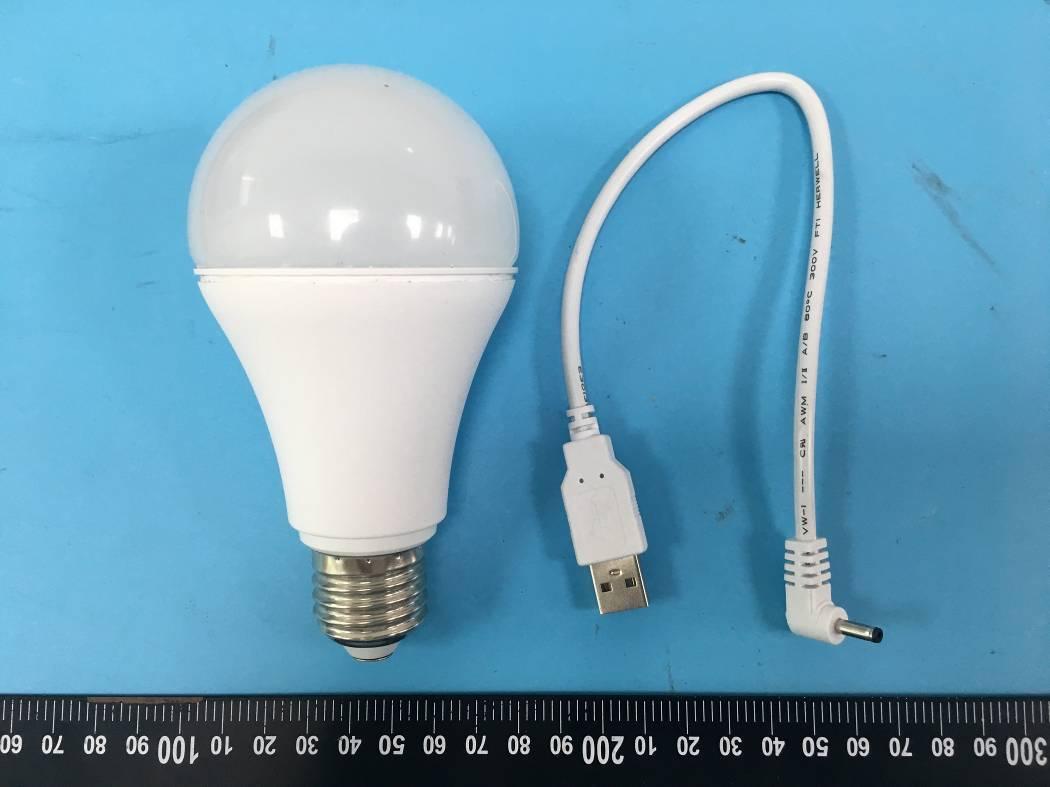

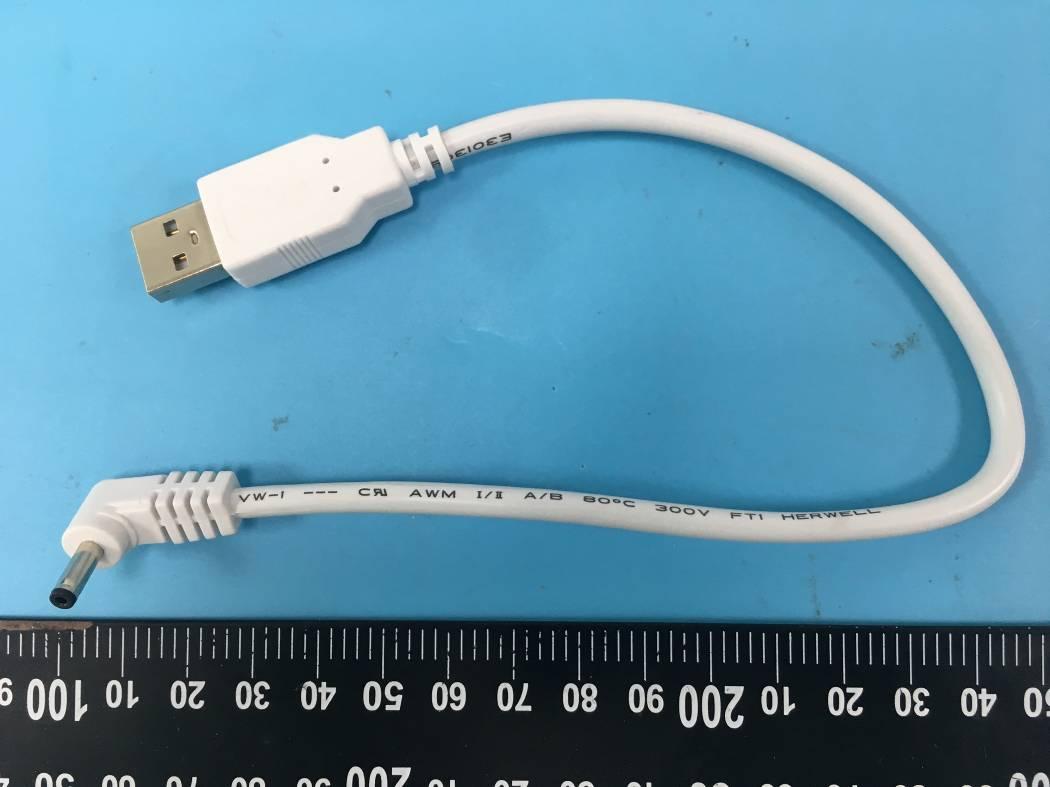

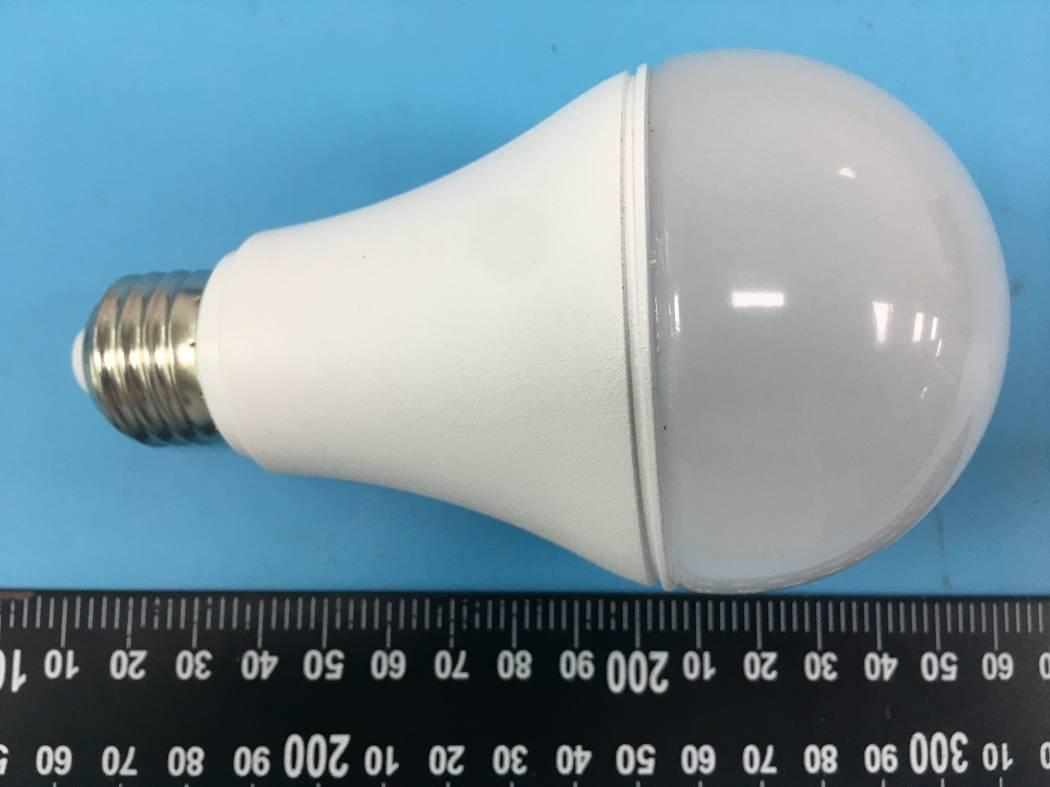

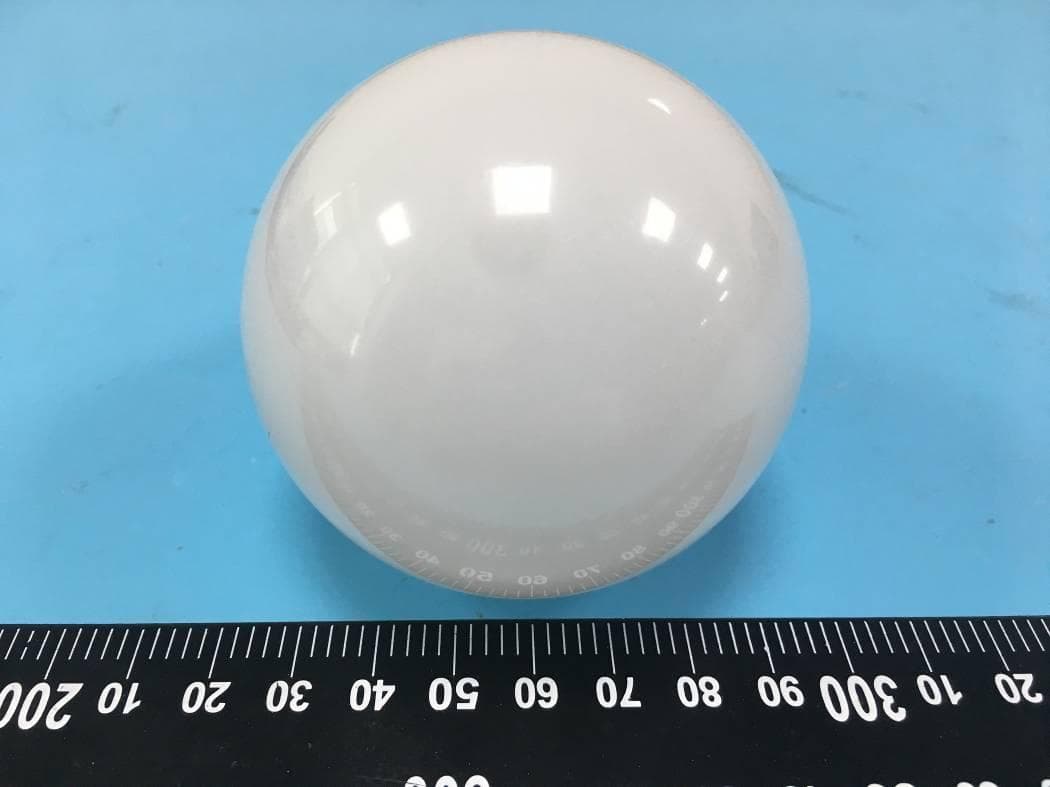

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 1 of 3 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 3 of 3 Cable

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 1 of 9 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 2 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 3 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 4 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 5 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 6 of 9 2.4G FHSS RX antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 7 of 9 UHF SRD antenna Main IC chips 2.4G FHSS RX chip UHF SRD chip Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 8 of 9 BT&Wi-Fi module chips BT&Wi-Fi Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 9 of 9 BT&Wi-Fi module label

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200701011-00 FCC Part 15.247 Page 10 of 41 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200701011-00 FCC Part 15.247 Page 11 of 41 Frequency (MHz) Antenna Gain Tune up conducted power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 917.0-922.2 -1.0 0.79 10.00 10.00 20 0.002 0.61 802.11b 2412-2462 3.4 2.19 27.00 501.19 20 0.2183 1.0 802.11g 2412-2462 3.4 2.19 26.00 398.11 20 0.1734 1.0 802.11n20 2412-2462 3.4 2.19 26.00 398.11 20 0.1734 1.0 802.11n40 2422-2452 3.4 2.19 27.00 501.19 20 0.2183 1.0 BLE 2402-2480 3.4 2.19 7.00 5.01 20 0.0022 1.0 BT 2402-2480 3.4 2.19 9.00 7.94 20 0.0035 1.0 Note: 1. The tune up conducted power was declared by the applicant 2. The BLE, Wi-Fi function can transmit at the same time with the 900 MHz radio. 3. Please refer to the report of the FCC ID: 2AC7Z-ESP32WROVERE for the Bluetoothe and Wi-Fi output power. So the worst simultaneous transmitting consideration: The ratio=MPE 900MRadio /limit + MPE Wi-Fi /limit=0.002/0.61+0.2183/1.0=0.2216＜1.0 To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Astera LED-Technology GmbH Stahlgruberring 36, Munich, Germany 81829 FCC ID: X55FP5-E26 Report Type: O r i gi n a l R e p o r t Product Type: N Y X B u l b Report Number: RSZ200701011-00 Report Date: 2020-09-08 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200701011-00 FCC Part 15.247 Page 2 of 41 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE.................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.20…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 1 of 4 EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Input Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 2 of 4 Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 3 of 4 DC Input Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200701011-RF Page 4 of 4 Radiated Emissions View (Below 1 GHz)
