X58-ETH-102BT Infrared Ear Thermometer

©2012 digiO2 International Co., Ltd. All rights reserved. www.digio2.com Instruction Manual BT Infrared Ear Thermometer Foreword Dear Customers You have purchased a BT Infrared Ear Thermometer, one of the most technologically advanced yet easy to use products available in the marketplace today. We strongly recommend you read this instruction manual carefully prior to using the thermometer the first time. 12 Table of Contents ．Foreword ... page02 ．Precautions ... page03 ．Before using the thermometer ... page04 ．Inserting the thermometer into the ear ... page05-06 ．1. Introduction ... page07 1.1 Features ．2. Important Safety Instructions ... page08 ．3. Package Content ... page09 ．4. LCD display/interface ... page10 ．5. Set up ... page11-14 5.1 How to operate 5.2 Operation mode 5.2.1 Measure body temperature 5.2.2 Check records 5.2.3 Delete records 5.2.4 Bluetooth data transmission ．6. Trouble shooting ... page15 ．7. Replacing the batteries ... page16 ．8. Specifications ... page17 ．Notes ... page18 Precautions 1. Precision components were used in the construction of this device. Extremes in temperature, humidity, direct sunlight, shock or dust should be avoided. 2. Clean the device with a dry, soft cloth or cloth moistened in alcohol. Never use thinner, benzine or cleaner with abrasives. 3. This device is not water resistant. Protect it from liquid spills. 4. Measurements may be impaired if the device is used close to a television, microwave oven, cellular telephone, X-ray or other devices with strong electrical fields. 5. Keep this device out of the reach of children. A child may swallow the probe cover or the battery while playing with it. If a child should swallow them, seek medical treatment immedi ately. 6. Do not self-diagnose your condition using the measured result. Consult your doctor if your temperature is higher than the normal temperature or you feel unwell. 7. Used equipment, parts and batteries are not treated as ordinary household waste and must be disposed of according to the applicable regulations. 34 Before Using the Thermometer Caution Keep this device out of the reach of children. A child may swallow the probe cover while playing with it. If a child should swallow it, seek medical treatment immediately. ■ Use the thermometer at a room temperature between 10 and 40 ̊C. If the thermometer is stored in an environment with the temperature out of the above range or the temperature of the storage area differs greatly from that of the measuring area, allow the thermometer to equalize to the room temperature before use. ■ DO NOT measure temperature if: Your ear is cold, wet or blocked with ear wax. It is within 30 minutes after eating, taking a bath or physical exercise. You are suffering from an ear infection. ■ Always use the thermometer with its probe tip clean. Do not touch the probe cover after cleaning. A dirty probe tip may cause an inaccurate measurement. Clean the probe tip with a dry, soft cloth or cloth moistened with alcohol before use. When cleaned, wait for a few minutes before measuring temperature. ■ Using proper posture When measuring your own temperature: 1. Raise and hold your left hand as shown to the right to pull on your ear. 2. Hold the thermometer in your right hand and insert it into your right ear. (Reverse this when measuring your temperature in the left ear.) When measuring a child’s tempera- ture: 1. Hold the child’s head so that it will not move. To measure a baby’s temperature, lay the baby down with his/her ear facing upward. 2. Hold the baby’s head so that it will not move. 56 Inserting the Thermometer into the Ear Caution Do not force the thermometer into your ear. ■ Insert the thermometer straight into the ear canal. Pull the ear lightly backward to straighten the ear canal. While pulling on the ear, insert the probe tip gently into the ear canal. Never force the thermometer into the ear. If the ear canal is very small, as with a baby, lightly press the probe tip to the ear canal with just enough force to seal the opening around the probe. Hold the thermometer so that the probe faces straight in the direction of the eardrum. 2.Important Safety Instructions 1. Observe the operating conditions described in the Specifications. 2. Use of this instrument is not intended as a substitute for consultation with your physician. 3. Protect it from: - extreme temperatures - impact and dropping - contamination and dust - direct sunlight - heat and cold 4. Maintenance - Use an alcohol swab or cotton tissue moistened with alcohol to clean the thermometer casing and the measuring probe. - Ensure that no liquid enters the interior of the thermometer. 1.Introduction The BT Infrared Ear Thermometer is infrared thermometer intended for the intermittent measurement of human body temperature in people of all ages. The three color backlight alert allows users to make quick judgment. The 30-memory recall with date and time display easily manage your long-term body temperature records. 1.1 Features: Suspended Tip - avoids surface contact Hygienic - anti-bacterial probe design Easy Reading - 2 inches large screen Quick Check - intuitive 3-color LCD backlight for temperature indication Long-Term Tracking - 30-memory recall with time and date display Communicationable - Bluetooth 2.0 interface for data transmission 78 4.LCD display/Interface MENU MEASURE Low power Record Memory size Time and Date Normal temperature Abnormal temperature Time Temperature Scale Meauring 910 3.Package content User manual*1 AAA battery*2 Thermometer*1 Probe protective cover*1 Instruction Manual BT Infrared Ear Thermometer 5.1.5 Set “Higher warning level”, default 37.8 ̊C (100 ̊F ) : Press “MEASURE” to change the number and press “MENU” to finish the setting. 5.1.6 Set “Lower warning level”, default 36 ̊C (96.8 ̊F ) : Press “MEASURE” to change the number and press “MENU” to finish the setting. 5.2. Operation mode: 5.2.1 Measure body temperature : Insert the thermometer into ear smoothly and pre…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 Authority to Act as Agent Date: Oct. 23, 2013 SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, digiO2 International Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: BT Infrared Ear Thermometer Model Name: ETH-102 We affirm that between SIEMIC and digiO2 International Co., Ltd. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Thank you, Agency Agreement Expiration Date: _____ Oct. 09, 2014 _____ By: _ ________ __ Wayne Hsu ______ (Signature) (Print name) Title: _______ Assistant Manager__________ On behalf of: ___ digiO2 International Co., Ltd (Company Name) Telephone: ____+886226985791 _______

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Request for Confidentiality Date: Oct. 23, 2013 Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding Application for certification of FCC ID: X58-ETH-102 Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ‹ Functional Block Diagram ‹ Operational Description (theory of operation) ‹ Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _______________________________________ Wayne Hsu digiO2 International Co., Ltd.. 4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi Chih Dist., New Taipei City 22101, Taiwan

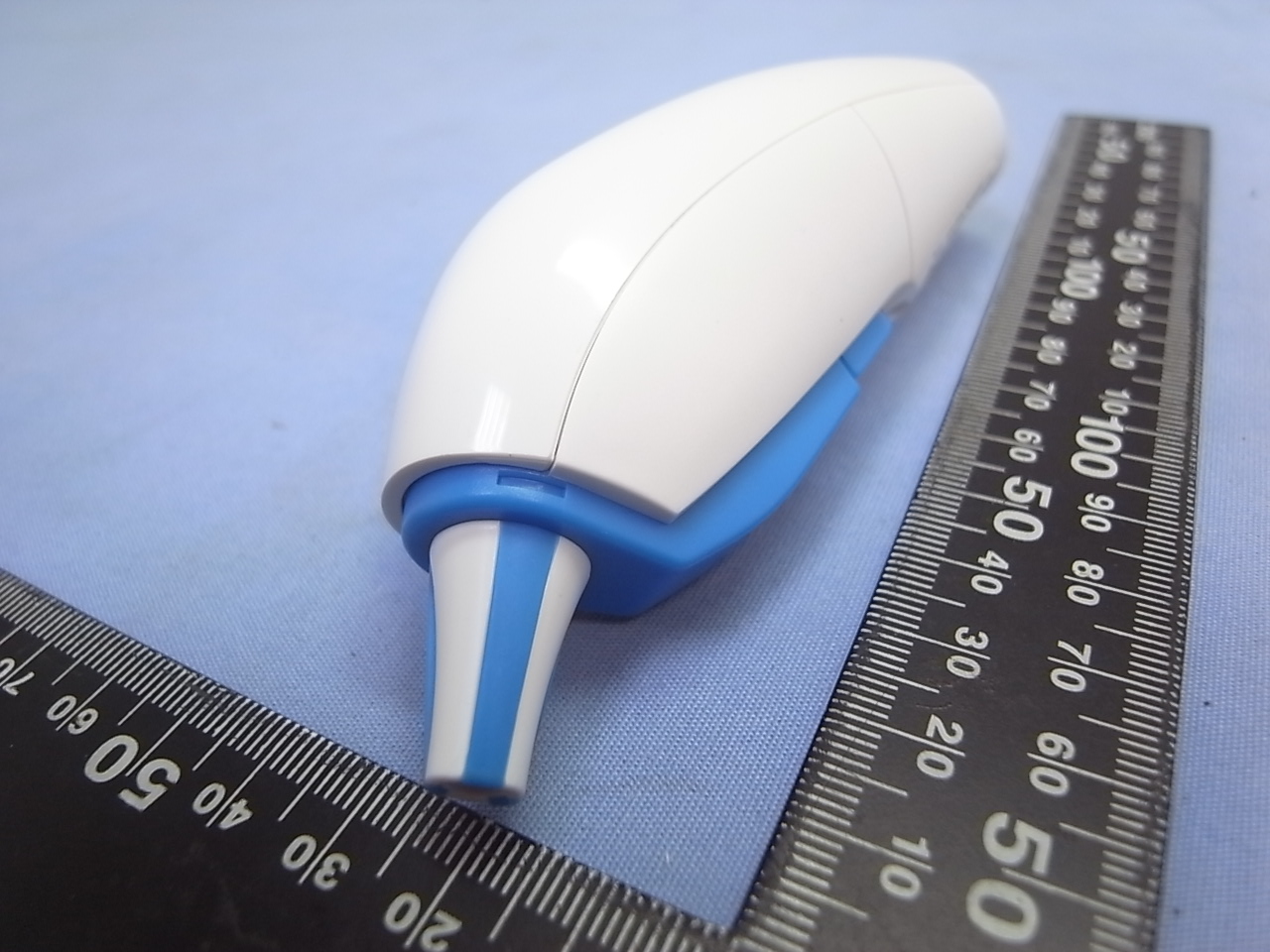

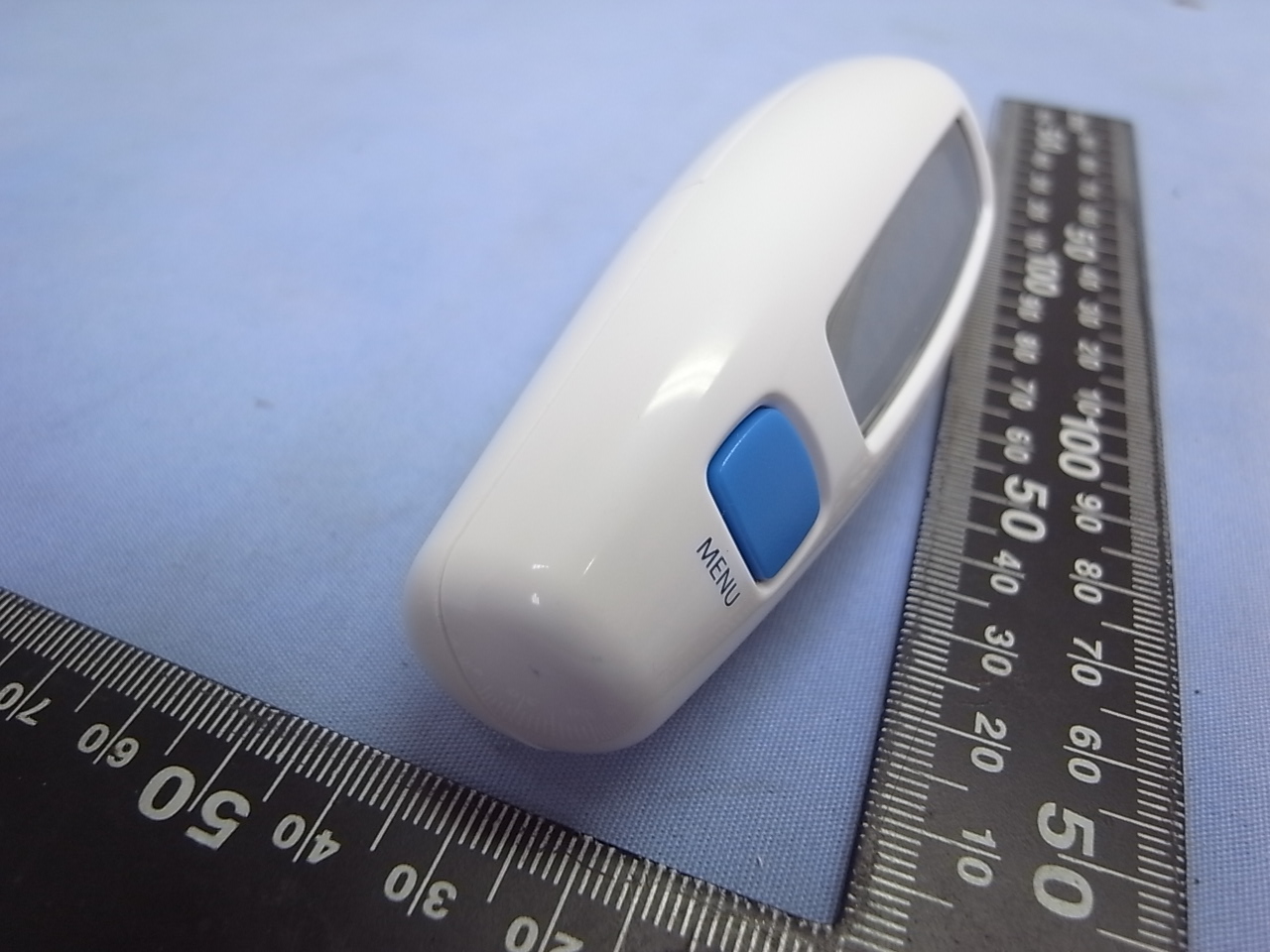

digiO2 International Co., Ltd. BT Infrared Ear Thermometer FCC ID : X58-ETH-102 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View) digiO2 International Co., Ltd. BT Infrared Ear Thermometer FCC ID : X58-ETH-102 Photo 3 General Appearance (Front View) Photo 4 General Appearance (Back View)

digiO2 International Co., Ltd. BT Infrared Ear Thermometer FCC ID : X58-ETH-102 ID Label Location z Label Placement Location (Back View of EUT) z ID Label Format ID Label Placement Location

digiO2 International Co., Ltd. BT Infrared Ear Thermometer FCC ID : X58-ETH-102 EUT Internal Photos Photo 5 Internal View (Removed Cover) Photo 6 Internal View (Removed Internal Boards) digiO2 International Co., Ltd. BT Infrared Ear Thermometer FCC ID : X58-ETH-102 Photo 7 Internal View (Main Board and RF Board) Photo 8 Internal View (Main Board, Back View) digiO2 International Co., Ltd. BT Infrared Ear Thermometer FCC ID : X58-ETH-102 Photo 9 Internal View (Main Board, Front View) Photo 10 Internal View (RF Board, Front View) digiO2 International Co., Ltd. BT Infrared Ear Thermometer FCC ID : X58-ETH-102 Photo 11 Internal View (RF Board, Back View)

Maximum Permissive Exposure FCC ID: X58-ETH-102 Product Name: BT Infrared Ear Thermometer Model No: ETH-102 [Maximum measured transmitter power] The max output power E.I.R.P=2.973dBm=1.983mW Frequency is 2402MHz,√2402=1.55 Distance=5cm So [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ∙ [√f(GHz)] ‐‐‐‐‐‐ (1.983/5)x1.55=0.615≦3 Conclusion: No SAR is required. Sincerely Yours, ____________________________________ Wayne Hsu Assistant Manager digiO2 International Co., Ltd. 10mm

FCC ID. X58-ETH-102 Page 1 of 62 AUDIX Technology Corporation Report No. EM-F1010755 APPLICATION FOR CERTIFICATION On Behalf of digiO2 International Co., Ltd. BT Infrared Ear Thermometer Models No.ETH-102 FCC IDX58-ETH-102 BranddigiO2 Prepared for : digiO2 International Co., Ltd. 4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih Dist., New Taipei City 221, Taiwan Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1309242 Report Number EM-F1010755 Date of Test Oct. 03 ~ Nov. 06, 2013 Date of Report Nov. 06, 2013 FCC ID. X58-ETH-102 Page 2 of 62 AUDIX Technology Corporation Report No. EM-F1010755 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................4 1. GENERAL INFORMATION .......................................................................................................5 1.1. Description of Device (EUT) .................................................................................................................. 5 1.2. Tested Supporting System Details .......................................................................................................... 6 1.3. Description of Test Facility .................................................................................................................... 6 1.4. Measurement Uncertainty ....................................................................................................................... 7 2. POWERLINE CONDUCTED EMISSION MEASUREMENT ................................................8 3. RADIATED EMISSION MEASUREMENT ..............................................................................9 3.1. Test Equipment ....................................................................................................................................... 9 3.2. Block Diagram of Test Setup.................................................................................................................. 9 3.3. Radiated Emission Limits (§15.209) .................................................................................................... 11 3.4. Operating Condition of EUT ................................................................................................................ 11 3.5. Test Procedure ...................................................................................................................................... 11 3.6. Radiated Emission Measurement Results ............................................................................................. 12 4. 20dB BANDWIDTH MEASUREMENT ...................................................................................27 4.1. Test Equipment ..................................................................................................................................... 27 4.2. Block Diagram of Test Setup................................................................................................................ 27 4.3. Specification Limits [§15.247(a)(1)] .................................................................................................... 27 4.4. Operating Condition of EUT ................................................................................................................ 27 4.5. Test Procedure ...................................................................................................................................... 27 4.6. Test Results ........................................................................................................................................... 28 5. CARRIER FREQUENCY SEPARATION MEASUREMENT ..............................................31 5.1. Test Equipment ..................................................................................................................................... 31 5.2. Block Diagram of Test Setup................................................................................................................ 31 5.3. Specification Limits [§15.247(a)(1)] .................................................................................................... 31 5.4. Operating Condition of EUT ................................................................................................................ 31 5.5. Test Procedure ...................................................................................................................................... 31 5.6. Test Results ........................................................................................................................................... 31 6. TIME OF OCCUPANCY MEASUREMENT ..........................................................................34 6.1. Test Equipment ..................................................................................................................................... 34 6.2. Block Diagram of Test Setup................................................................................................................ 34 6.3. Specification Limits [§15.247(a)(1)(iii)] .............................................................................................. 34 6.4. Operating Condition of EUT ................................................................................................................ 34 6.5. Test Procedure ...................................................................................................................................... 34 6.6. Test Results ........................................................................................................................................... 35 7. NUMBER OF HOPPING CHANNELS MEASUREMENT ...................................................47 7.1. Test Equipment .....................................................................…

Text truncated - open the document above for the full version.

FCC ID. X58-ETH-102 Page 58 of 62 AUDIX Technology Corporation Report No. EM-F1010755 12. PHOTOGRAPHS 12.1. Photos of Radiated Emission Measurement at Semi-Anechoic Chamber 12.1.1. Frequency Range 30MHz-1GHz Position: Side Position: Lie FCC ID. X58-ETH-102 Page 59 of 62 AUDIX Technology Corporation Report No. EM-F1010755 Position: Stand 12.1.2. Frequency Range Above 1GHz Position: Side Position: Lie FCC ID. X58-ETH-102 Page 60 of 62 AUDIX Technology Corporation Report No. EM-F1010755 FCC ID. X58-ETH-102 Page 61 of 62 AUDIX Technology Corporation Report No. EM-F1010755 Position: Stand FCC ID. X58-ETH-102 Page 62 of 62 AUDIX Technology Corporation Report No. EM-F1010755 12.2. Photo of Section RF Conducted Measurement
