X58-ETH-301Non-Contact Thermometer

Gracias por la compra del Termómetro Thermo Pal. Por favor, lean este manual de instrucciones detenidamente antes de utilizar el termómetro por primera vez. Merci d’avoir acheté le thermomètre Thermo Pal. Veuillez lire attentivement ce manuel d’instructions avant d’utiliser le thermomètre pour la première fois. Mulţumim pentru chiziţionarea termometrului Thermo Pal . Vă recomandăm insistent să citiţi acest Manual de utilizare cu atenţie ȋnainte de prima utilizare a termometrului. Sehr geehrte Kundin, sehr geehrter Kunde, wir freuen uns, dass Sie sich für ein Product unseres Sortimentes entschieden haben. Bitte lesen Sie diese Gebrauchsanleitung aufmerksam durch, bewahren Sie sie für späteren Gebrauch auf, machen Sie sie anderen Benutzern zugänglich und beachten Sie die Hinweise. Thank you for purchasing Thermo Pal medical non-contact thermometer. Please read this instruction manual carefully prior to first time use. ENDEESFRRO FEATURES ■Measures without skin contact (in 5cm from the forehead) ■Easy to read : 2 inches large screen ■Quick Check * : 3-color LCD backlight for temperature indication ■Long-Term Tracking *: 10-memory recall with time and date display ■Communicationable * :Bluetooth data transmission * Depends on models EIGENSCHAFTEN: ■Hygienisch: Maßnahmen ohne Hautkontakt (in 5cm von der Stirn) ■Leicht zu lesendes Display : 2 Zoll Display ■Schnell Test *: Intuitive 3-Farben LCD Hintergrundbeleuchtung für Temperaturanzeige ■Langzeit Tracking *: 10 Speicherabrufe ■Datenübertragung *: Via Bluetooth *Abhängig vom Modell VENTAJAS ■Higiénico : Medidas sin contacto con la piel (a menos de 5cm de la frente) ■Fácil Lectura : pantalla de 2 pulgadas ■Verificación Rápida *: retroiluminación LCD de 3 colores para indicar temperatura ■Datos a Largo Plazo *: memoria para 10 mediciones ■Comunicable *- Bluetooth para trasmisión de datos * Según el modelo PROPRIETES: ■Hygiénique : Mesures sans contact avec la peau (5 centimètres du front) ■Lecture facile: écran large 2 pouces ■Contrôle rapide *: rétro-éclairage LCD 3 couleurs pour un affichage de température ■Suivi à long terme *: mémoire de 10 mesures ■Communication *: Transmission de données par Bluetooth * Dépend des modèles CARACTERISTICI: ■ Igienic : Măsuri fără contact cu pielea (în 5cm de la frunte) ■ Citire uşoară a afisajului : display de 2 inch ■ Verificare rapidă *: afisaj LCD ȋn trei culori pentru indicarea temperaturii ■ Urmărire pe termen lung *: memorarea ultimelor 10 de ȋnregistrări ■ Transmisii de date *: Bluetooth pentru transmisia de date *Depinde de model SICHERHEITSHINWEISE ■Reinigen Sie das Gerät mit einem trockenen, weichen Lappen oder Tuch das in Alkohol angefeuchtet wurde. Verwenden Sie keinen Verdünner, Benzin oder Reinigungsmittel mit Schleifmitteln. ■Dieses Gerät ist nicht Wasserdicht, schützen Sie es daher vor Kontakt mit Flüssigkeiten. ■ Bewahren Sie dieses Gerät ausserhalb der Reichweite von Kindern auf. Ein Kind kann die Batterie verschlucken. Sollte das Kind die Batterie verschlucken, suchen Sie sofort einen Doctor auf für Mediznische Behandlung ■Nutzen Sie das Messergebniss nicht zur Selbsdiagnose wenn die Temperature höher als normals is befragen Sie Ihren Arzt oder Apotheker. ■n Verwenden Sie das Fieberthermometer in einem Raum mit einer Temperatur zwischen 10°C und 40°C. ■ n Verwenden Sie stets das Thermometer mit einer sauberen Sondenspitze ■Um eine genaue Messung zu erhalten, befreien Sie die Sitrn vom z.B. Schweiß, Haaren, usw bevor Sie eine Messung durchführen. INDICACIONES PARA SU SEGURIDAD ■Limpie el aparato con un paño seco y suave, o con un paño humedecido en alcohol. Nunca utilice disolvente, bencina o un producto limpiador con abrasivos. ■Este aparato no es hermético. Protéjalo de líquidos. ■Mantenga este dispositivo fuera del alcance de los niños. Un niño puede tragar la batería. Si un niño los traga, busque tratamiento médico inmediato. ■No se autodiagnostique utilizando el resultado del termómetro. Consulte al médico si tiene una temperatura más alta de lo normal o si no se siente bien. ■Utilice el termómetro en una habitación con una temperatura entre 10 ̊C y 40 ̊C. ■Utilice siempre el termómetro tras haber limpiado la punta de la sonda. ■Para obtener una lectura precisa, por favor presione el pelo a un lado y limpiar el sudor de la frente cuando se mide. INSTRUCTIONS DE SECURITE ■Nettoyer l’appareil à l’aide d’un tissu doux et sec, ou imbibé d’alcool. Ne jamais utiliser de diluant, d’essence ou de produit de nettoyage abrasif. ■Cet appareil n’est pas étanche. Éviter toute pénétration de liquide. ■Gardez cet appareil hors de la portée des enfants. Un enfant peut avaler la batterie. Si un enfant les avale, consultez immédiatement un médecin. ■Il peut être dangereux d’établir un autodiagnostic sur la base des résultats des mesures. Consultez votre médecin si votre température est supérieure à la température normale, ou si vous vous sentez mal. ■Utiliser le thermomètre à une température ambiante comprise entre 10ºC et 40 ºC. ■Toujours veiller à utiliser le thermomètre avec un embout de sonde propre. ■Pour obtenir une lecture précise, s'il vous plaît pousser les cheveux de côté et essuyer la transpiration du front lors de la mesure. INSTRUCTIUNI DE SIGURANTA IMPORTANTE ■Curăţaţi instrumentul cu o cârpă uscată, moale sau umezită ȋn alcool . Nu folosiţi niciodată diluant,benzen sau produse de curăţat abrazive. ■Acest instrument nu este rezistent la apă. Protejaţi-l de scurgeri de lichide. ■Păstrați acest dispozitiv se lăsa la îndemâna copiilor. Un copil poate înghiți bateria. În cazul în care un copil le înghite, solicitați imediat tratament medical. ■Nu vă auto- diagnosticaţi starea de sănătate folosind rezultatul măsurat. Consultaţi medicul dacă temperatura dumneavoastră este peste limita normală sau dacă nu vă simţiţi bine. ■Utilizaţi termometrul la temperatura camerei intre 10 ̊C si 40 ̊C ■La utilizarea termometrului , vârful sondei trebuie sa fie ȋintodeauna curat. Nu atingeţi ȋnvelişul sondei t…

Text truncated - open the document above for the full version.

November 07,2014 Federal Communications Commission Authorization and Evaluation Division FCC ID Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Wayne Hsu / Assistant Manager Company Name: Address: TEL: +886 FAX: +886 Email: [email protected]

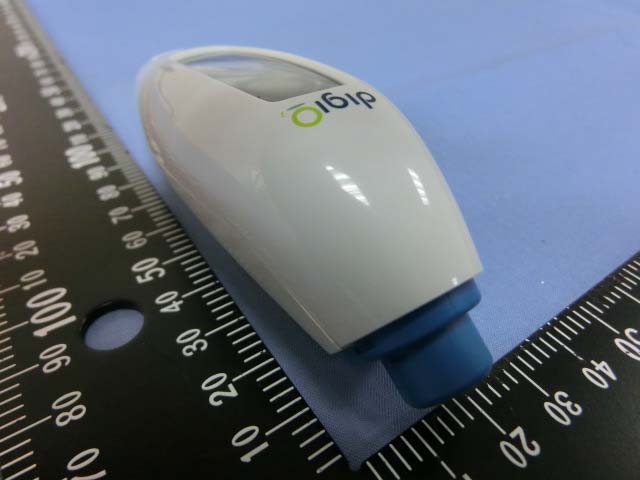

Compliance Certification Services Inc. Report No.: T140904D02-A Date of Issue: October 7, 2014 A1 - 1 / 5 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

Compliance Certification Services Inc. Report No.: T140904D02-A Date of Issue: October 7, 2014 A1 - 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140904D02-A Date of Issue: October 7, 2014 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T140904D02-A Date of Issue: October 7, 2014 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T140904D02-A Date of Issue: October 7, 2014 A1 - 5 Rev. 00 Module Antenna

Compliance Certification Services Inc. Report No.: T140904D02-A- MF Date of Issue: November 20, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The tune-up power is 4.5 dBm +/- 2dB, therefore the highest tune-up power is 6.5 dBm(4.47 mW)@ 2480 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (4.47mW / 5mm)* (2.480GHz ^0.5 )= 1.4 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 1.4 < 3.0 Therefore, standalone SAR measurements are not required for both head and body.

Compliance Certification Services Inc. FCC ID: X58-ETH-301 Report No.: T140904D02-A-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 47 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Non-Contact Thermometer Model: ETH-301 Trade Name: digiO2 Issued to digiO2 International Co., Ltd. 4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, Taipei, Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: October 7, 2014 Compliance Certification Services Inc. FCC ID: X58-ETH-301 Report No.: T140904D02-A -RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 7, 2014 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: X58-ETH-301 Report No.: T140904D02-A -RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4 INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5 FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ....................................................................................................................................... 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6 SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7 FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ............................................................................................................................. 14 7.2 PEAK POWER .................................................................................................................................... 18 7.3 AVERAGE POWER ............................................................................................................................ 20 7.4 BAND EDGES MEASUREMENT ................................................................................................ 21 7.5 PEAK POWER SPECTRAL DENSITY .................................................................................................... 29 7.6 SPURIOUS EMISSIONS ................................................................................................................. 33 7.7 POWERLINE CONDUCTED EMISSIONS ............................................................................................... 45 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................... 46 Compliance Certification Services Inc. FCC ID: X58-ETH-301 Report No.: T140904D02-A -RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: digiO2 International Co., Ltd. 4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, Taipei, Taiwan Equipment Under Test: Non-Contact Thermometer Trade Name: digiO2 Model: ETH-301 Date of Test: October 4, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard N/A We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Secti…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: X58-ETH-301 Report No.: T140904D02-A -RP Page 46 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: X58-ETH-301 Report No.: T140904D02-A -RP Page 47 Rev. 00 RADIATED EMISSION SETUP PHOTOS
