X5YF467DHDE-IPECOSD RBS4000K U4110DA0C14W0E100S1V1G2

Installation, configuration and maintenance ECOS-D Digital Simulcast Technology Radio Base Station Guide A 2 T NETWORKS Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing 2 REVISION TABLE Date Revision Comment 21/01/2015 2 P10 - changed frequency range for USA and Canada 20/11/2014 1 First issue Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing. Selex ES S.p.A. reserves the right to alter without notice the specification, design or conditions of supply of any product or service. Selex ES logo is a trademark of Selex ES S.p.A. Printed in Italy. © Selex ES S.p.A. All Rights reserved. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing 3 Summary 1. Scope ............................................................................................................................................................... 4 2. First aid for electrical shock and safety rules ................................................................................................ 5 2.1 First aid for electrical shock ................................................................................................................. 5 2.1.1 Artificial respiration ........................................................................................................................ 5 2.1.2 Treatment of burns........................................................................................................................... 5 2.2 Product Safety and RF Exposure Compliance .................................................................................... 7 2.2.1 RF Exposure Compliance ................................................................................................................ 7 2.2.2 Electrostatic protection .................................................................................................................... 7 3. Encoding criteria for all derived Products ..................................................................................................... 8 4. Technical/Environmental Specification ...................................................................................................... 10 5. Device Assembly and composition ............................................................................................................... 12 5.1 Position of the connectors and switches ............................................................................................. 14 5.1.1 Archetype ...................................................................................................................................... 14 6. Installation .................................................................................................................................................... 15 6.1 Overview ............................................................................................................................................... 15 6.1.1 Installation Pre-requisites .............................................................................................................. 15 6.1.2 Unpack ........................................................................................................................................... 16 6.1.3 Mechanical installation .................................................................................................................. 16 6.1.4 Electrical wiring ............................................................................................................................ 18 6.1.5 Unit grounding ............................................................................................................................... 18 6.2 Power supplies interfaces .................................................................................................................... 20 6.2.1 48 Vdc input .................................................................................................................................. 20 6.3 Radio Interfaces ................................................................................................................................... 23 6.3.1 TX N type connector ..................................................................................................................... 23 6.3.2 RX N type connector ..................................................................................................................... 24 6.3.3 Diversity receivers interfaces - Dual BNC type connector ............................................................ 25 6.4 Line interfaces ...................................................................................................................................... 26 6.4.1 4W and 4W+E/M Link .................................................................................................................. 26 6.4.2 E1 coax Link .................................................................................................................................. 33 Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing 4 6.4.3 AF in/out ........................................................................................................................................ 35 6.4.4 LAN Interface ................................................................................................................................ 39 6.4.5 Serial Interface ............................................................................................................................... 41 6.4.6 Auxiliary Serial Interface ............................................…

Text truncated - open the document above for the full version.

Viale Europa s.n.c. Selex ES S.p.A. Sede Legale: 20014 Nerviano (MI) - Italia Con unico socio Piazza Monte Grappa 4 – 00195 Roma Tel. +39 0331 587330 Direzione e coordinamento di Capitale Sociale Euro 350.000.000,00 i.v. Fax +39 0331 588106 Finmeccanica S.p.A. Registro Imprese di Roma C.F. e P.I. n. 10111831003 December 10, 2014 Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: X5YF467DHDE-IP Product Name: ECOSD RBS4000K U4110DA0C14W0E100S1V1G2 Application for Certification of Transmitter with FCC ID: X5YF467DHDE-IP The subject equipment is designed for operation in the 851 – 869 MHz frequency band and complies with CFR Title 47, Section 90.203. The operator can’t directly program and transmit on frequencies, other than those programmed by the manufacturer, service or maintenance personnel, using only the normally accessible external controls of the unit. It is a violation of FCC rules if the device operates on unauthorized frequencies. By: Carmelo Augello Signature Printed Title: Vice President Quality Security & Smart Systems On behalf of : Selex ES S.p.A. Telephone: +39 06 91852476

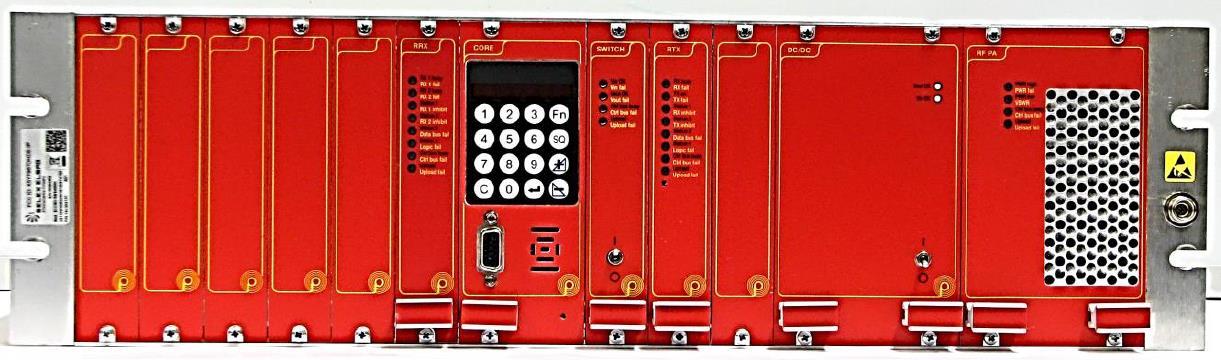

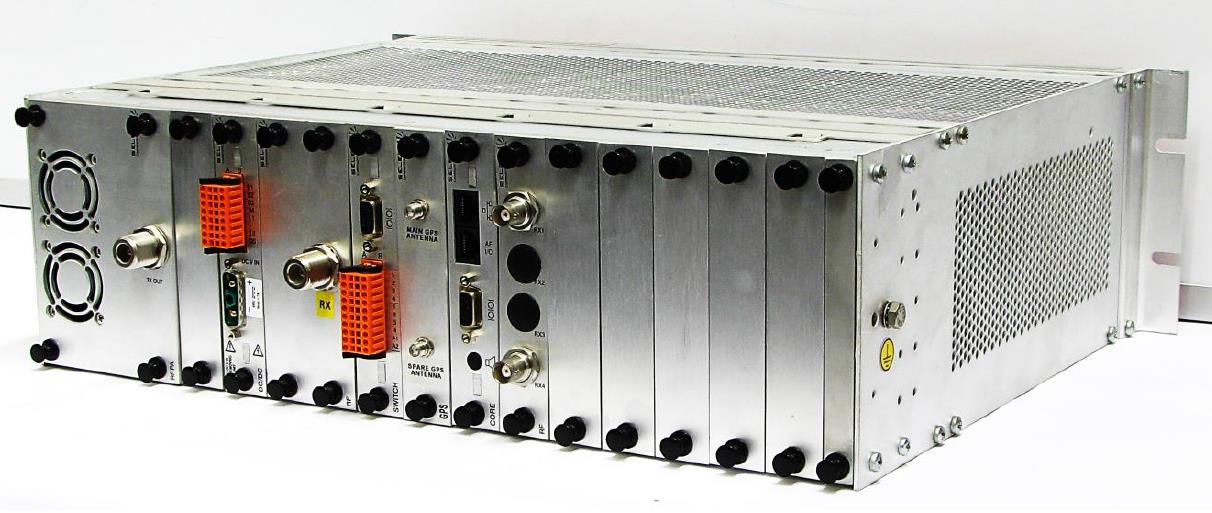

Viale Europa s.n.c. Selex ES S.p.A. Sede Legale: 20014 Nerviano (MI) - Italia Con unico socio Piazza Monte Grappa 4 – 00195 Roma Tel. +39 0331 587330 Direzione e coordinamento di Capitale Sociale Euro 350.000.000,00 i.v. Fax +39 0331 588106 Finmeccanica S.p.A. Registro Imprese di Roma C.F. e P.I. n. 10111831003 FCC ID: X5YF467DHDE-IP Product Name: ECOSD RBS4000K U4110DA0C14W0E100S1V1G2 External Photos FRONT VIEW REAR VIEW

Viale Europa s.n.c. Selex ES S.p.A. Sede Legale: 20014 Nerviano (MI) - Italia Con unico socio Piazza Monte Grappa 4 – 00195 Roma Tel. +39 0331 587330 Direzione e coordinamento di Capitale Sociale Euro 350.000.000,00 i.v. Fax +39 0331 588106 Finmeccanica S.p.A. Registro Imprese di Roma C.F. e P.I. n. 10111831003 FCC ID: X5YF467DHDE-IP IC: 12512A-F467DHDEIP Product Name: ECOSD RBS4000K U4110DA0C14W0E100S1V1G2 FCC - IC Label Format and Location FORMAT The label is a paper polyester film laminated with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic. Label A If the product is subject to 47 CFR Part 15, Subpart C, intentional radiators, will add a further label with the following statement: Label B 1.5 inch. 0.75 inch. 1.5 inch. 0.75 inch. FCC ID: X5YF467DHDE-IP IC: 12512A-F467DHDEIP P/N: 144-2052/01 A 01 S/N: 00nnnnnn Mod. ECOSD RBS4000K -------- U4110DA0C14W0E100S1V1G2 LOCATION A label of the A type will be affixed on every radio apparatus. It will be placed on the left front portion of the unit. If the product is subject to 47 CFR Part 15B, we will add a further label of the B type. In the following drawings is shown the position of the labels affixed to the chassis of the apparatus. Front view: Left side view: Label A Label B

Viale Europa s.n.c. Selex ES S.p.A. Sede Legale: 20014 Nerviano (MI) - Italia Con unico socio Piazza Monte Grappa 4 – 00195 Roma Tel. +39 0331 587330 Direzione e coordinamento di Capitale Sociale Euro 350.000.000,00 i.v. Fax +39 0331 588106 Finmeccanica S.p.A. Registro Imprese di Roma C.F. e P.I. n. 10111831003 FCC ID: X5YF467DHDE-IP Product Name: ECOSD RBS4000K U4110DA0C14W0E100S1V1G2 Internal Photos BACKPLANE SWITCH MODULE BACK-SWITCH CARD 48/28-12V DC/DC MODULE BACK DC-DC CARD CORE MODULE VOCODER CARD SoIP CARD BACK-CORE CARD RTX MODULE RRX MODULE PA MODULE

www.nemko.com Nemko Italy S.p.A., Via del Carroccio 4, 20853, Biassono, Italy. Report number: 273821&1R1TRFWL Apparatus: ECOSD RBS4000I U4110DA0C14W2E1C3S1V1G2 Applicant: SELEX ES SPA Piazza Montegrappa, 4 00195 Roma& Italy FCC ID: X5YF467DHDE&IP Test specification: Subpart S—Regulations Governing Licensing and Use of Frequencies in the 851-869 MHz Band Title 47&Telecommunication Chapter I & Federal Communications Commission Subchapter D – Safety and special radio services Part 90 – Private land mobile services Subpart S—Regulations Governing Licensing and Use of Frequencies in the 806-824, 851-869, 896-901, and 935-940 MHz Bands Reviewed by: 2014&12&23 Signature Date G. Curioni, Wireless/EMC Specialist Tested by: Signature 2014&12&23 D. Guarnone, Wireless/EMC Specialist Date Nemko S.p.A. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko S.p.A. accepts no responsibility for damages, if any suffered by any third party as a result of decisions made or actions based on this report. This report shall not be reproduced except in full without the written approval of the testing laboratory. www.nemko.com Nemko Italy S.p.A., Via del Carroccio 4, 20853, Biassono, Italy Report Number:273821&1R1TRFWL Specification: FCC 90 Page 2 of 44 Table of contents Section 1: Report summary ................................................................................................................... 3 Section 2: Equipment under test .......................................................................................................... 4 2.1 Identification of equipment under test (EUT) ............................................................................ 4 2.2 Accessories and support equipment ......................................................................................... 5 2.3 EUT description ........................................................................................................................ 6 2.4 Technical specifications of the EUT .......................................................................................... 6 2.5 EUT setup diagram................................................................................................................... 7 2.6 Operation of the EUT during testing ......................................................................................... 7 2.7 Modifications incorporated in the EUT ...................................................................................... 7 Section 3: Test conditions .................................................................................................................... 8 3.1 Deviations from laboratory tests procedures ............................................................................. 8 3.2 Test conditions, power source and ambient temperatures ........................................................ 8 3.3 Measurement uncertainty ......................................................................................................... 9 3.4 Test equipment ......................................................................................................................... 9 Section 4: Result summary ................................................................................................................. 10 4.1 FCC Part 90: Test results ....................................................................................................... 10 Appendix A: Test results ..................................................................................................................... 11 Clause 90.205 Output power ............................................................................................................ 11 Clause 90.207 Modulation characteristics ........................................................................................ 14 Clause 90.209 Occupied bandwidth ................................................................................................. 18 Clause 90.210 Spurious emissions at the antenna terminal ............................................................. 26 Clause 90.210 Field strength of spurious radiation ........................................................................... 31 Clause 90.213 Frequency stability .................................................................................................... 39 Clause 90.219 Use of boosters ........................................................................................................ 42 Clause 90.214 Transient frequency behaviour ................................................................................. 43 Appendix B: Block diagrams of test set-ups ..................................................................................... 44 Nemko Italy S.p.A. Via del Carroccio 4, 20853 Biassono, Italy. Section 1: Report summary Report Number 273821&1R1TRFWL Specification: FCC 90 Page 3 of 44 Section 1: Report summary This report contains an assessment of apparatus against specifications based upon tests carried out on samples submitted at Nemko Italy SpA. Test specification: FCC Part 90 Private land mobile services Subpart I – General technical standards Compliance status: Complies Exclusions: None Non&compliances: None Report release history: Original release Test location: Nemko Italy S.p.A. Via del Carroccio 4, 20853, Biassono, Italy. Registration number: 481407 (10 m Semi anechoic chamber) These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 90. Conducted measurements were performed in accordance with ANSI TIA&603&B&2002. Radiated tests were conducted is accordance with ANSI C63.4&2003. Note that the results contained in this report relate on…
