Installation, configuration and maintenance ECOS-D Digital Simulcast Technology Radio Base Station Guide A 2 T NETWORKS Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing 2 REVISION TABLE Date Revision Comment 06/07/2015 2 Added notes to par. 4 11/06/2015 1 First issue Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing. Selex ES S.p.A. reserves the right to alter without notice the specification, design or conditions of supply of any product or service. Selex ES logo is a trademark of Selex ES S.p.A. Printed in Italy. © Selex ES S.p.A. All Rights reserved. Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing 3 Summary 1. Scope ............................................................................................................................................................... 5 2. First aid for electrical shock and safety rules ................................................................................................ 5 2.1 First aid for electrical shock ................................................................................................................. 5 2.1.1 Artificial respiration ........................................................................................................................ 5 2.1.2 Treatment of burns........................................................................................................................... 5 2.2 Product Safety and RF Exposure Compliance .................................................................................... 7 2.2.1 RF Exposure Compliance ................................................................................................................ 7 2.2.2 Electrostatic protection .................................................................................................................... 7 3. Encoding criteria for all derived Products ..................................................................................................... 8 4. Technical/Environmental Specification ...................................................................................................... 10 5. Device Assembly and composition ............................................................................................................... 12 5.1 Position of the connectors and switches ............................................................................................. 14 5.1.1 Archetype ...................................................................................................................................... 14 6. Installation .................................................................................................................................................... 15 6.1 Overview ............................................................................................................................................... 15 6.1.1 Installation Pre-requisites .............................................................................................................. 15 6.1.2 Unpack ........................................................................................................................................... 16 6.1.3 Mechanical installation .................................................................................................................. 16 6.1.4 Electrical wiring ............................................................................................................................ 18 6.1.5 Unit grounding ............................................................................................................................... 18 6.2 Power supplies interfaces .................................................................................................................... 20 6.2.1 48 Vdc input .................................................................................................................................. 20 6.3 Radio Interfaces ................................................................................................................................... 23 6.3.1 TX N type connector ..................................................................................................................... 23 6.3.2 RX N type connector ..................................................................................................................... 24 6.3.3 Diversity receivers interfaces - Dual BNC type connector ............................................................ 25 6.4 Line interfaces ...................................................................................................................................... 26 6.4.1 4W and 4W+E/M Link .................................................................................................................. 26 6.4.2 E1 coax Link .................................................................................................................................. 33 Selex ES S.p.A. Information contained in this document may not be used, applied or reproduced for any purpose unless agreed by Selex ES S.p.A. in writing 4 6.4.3 AF in/out ........................................................................................................................................ 35 6.4.4 LAN Interface ................................................................................................................................ 39 6.4.5 Serial Interface ............................................................................................................................... 41 6.4.6 Auxiliary Serial Interface .......................................................................…

Text truncated - open the document above for the full version.

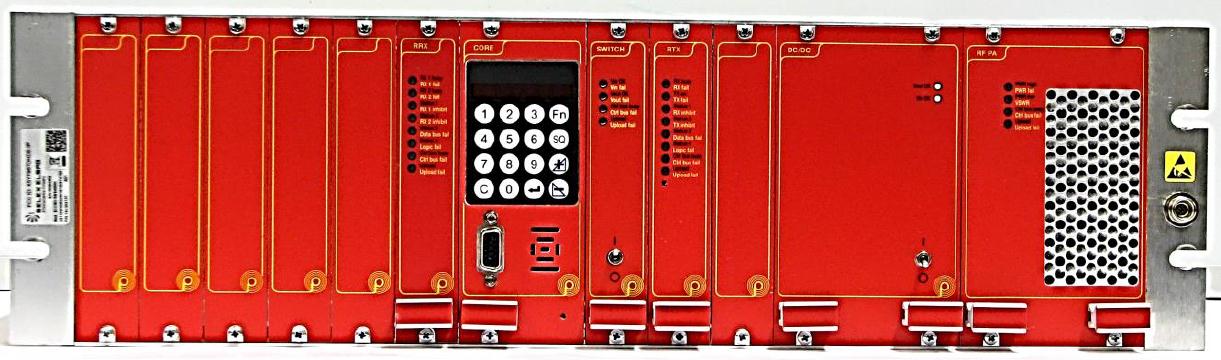

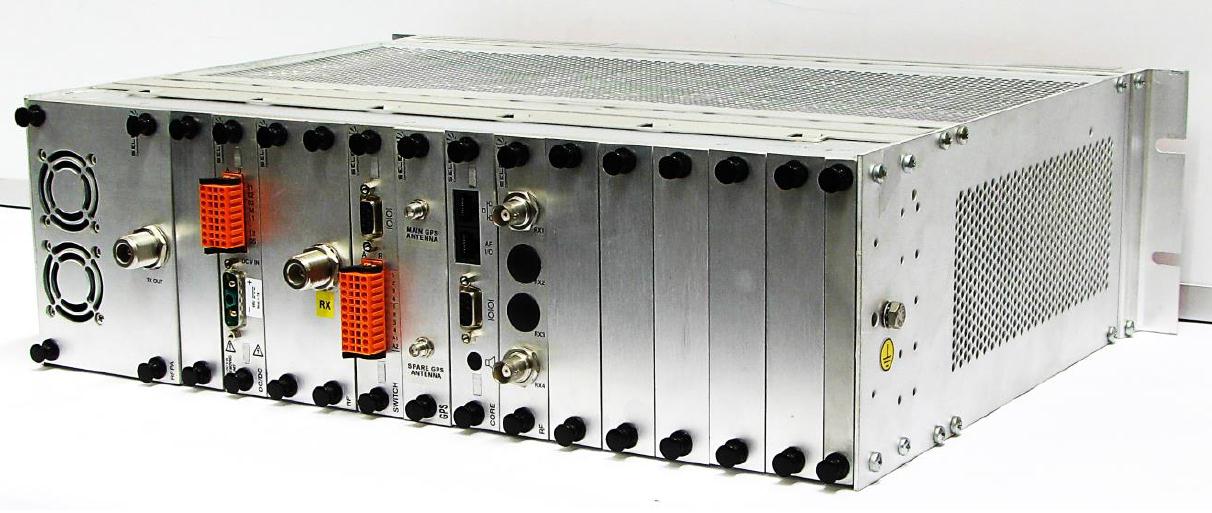

Viale Europa s.n.c. Selex ES S.p.A. Sede Legale: 20014 Nerviano (MI) - Italia Con unico socio Piazza Monte Grappa 4 – 00195 Roma Tel. +39 0331 587330 Direzione e coordinamento di Capitale Sociale Euro 350.000.000,00 i.v. Fax +39 0331 588106 Finmeccanica S.p.A. Registro Imprese di Roma C.F. e P.I. n. 10111831003 FCC ID: X5YF767DHDE-IP IC: 12512A-F767DHDEIP Product Name: ECOSD RBS4000K U5110DA0C14W0E100S1V1G2 External Photos FRONT VIEW REAR VIEW

Viale Europa s.n.c. Selex ES S.p.A. Sede Legale: 20014 Nerviano (MI) - Italia Con unico socio Piazza Monte Grappa 4 – 00195 Roma Tel. +39 0331 587330 Direzione e coordinamento di Capitale Sociale Euro 350.000.000,00 i.v. Fax +39 0331 588106 Finmeccanica S.p.A. Registro Imprese di Roma C.F. e P.I. n. 10111831003 FCC ID: X5YF767DHDE-IP IC: 12512A-F767DHDEIP Product Name: ECOSD RBS4000K U5110DA0C14W0E100S1V1G2 FCC - IC Label Format and Location FORMAT The label is a paper polyester film laminated with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic. Label A If the product is subject to 47 CFR Part 15, Subpart C, intentional radiators, will add a further label with the following statement: Label B 1.5 inch. 0.75 inch. 1.5 inch. 0.75 inch. FCC ID: X5YF767DHDE-IP IC: 12512A-F767DHDEIP P/N: 144-2054/01 A 01 S/N: 00nnnnnn Mod. ECOSD RBS4000K -------- U5110DA0C14W0E100S1V1G2 LOCATION A label of the A type will be affixed on every radio apparatus. It will be placed on the left front portion of the unit. If the product is subject to 47 CFR Part 15B, we will add a further label of the B type. In the following drawings is shown the position of the labels affixed to the chassis of the apparatus. Front view: Left side view: Label A Label B

Viale Europa s.n.c. Selex ES S.p.A. Sede Legale: 20014 Nerviano (MI) - Italia Con unico socio Piazza Monte Grappa 4 – 00195 Roma Tel. +39 0331 587330 Direzione e coordinamento di Capitale Sociale Euro 350.000.000,00 i.v. Fax +39 0331 588106 Finmeccanica S.p.A. Registro Imprese di Roma C.F. e P.I. n. 10111831003 FCC ID: X5YF767DHDE-IP IC: 12512A-F767DHDEIP Product Name: ECOSD RBS4000K U5110DA0C14W0E100S1V1G2 Labels for Power Supply See User manual On Back DC-DC On Fuseholder

Viale Europa s.n.c. Selex ES S.p.A. Sede Legale: 20014 Nerviano (MI) - Italia Con unico socio Piazza Monte Grappa 4 – 00195 Roma Tel. +39 0331 587330 Direzione e coordinamento di Capitale Sociale Euro 350.000.000,00 i.v. Fax +39 0331 588106 Finmeccanica S.p.A. Registro Imprese di Roma C.F. e P.I. n. 10111831003 FCC ID: X5YF767DHDE-IP IC: 12512A- X5YF767DHDEIP Product Name: ECOSD RBS4000K U5110DA0C14W0E100S1V1G2 Internal Photos BACKPLANE SWITCH MODULE BACK-SWITCH CARD 48/28-12V DC/DC MODULE BACK DC-DC CARD CORE MODULE VOCODER CARD SoIP CARD BACK-CORE CARD RTX MODULE RRX MODULE PA MODULE

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 9 7-01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Maximum peak output power at antenna input terminal : 50.48 (dBm) Maximum peak output power at antenna input terminal : 111686.3248 (mW) Antenna gain(typical): 8 (dBi) Maximum antenna gain: 6.309573445 (numeric) Prediction distance: 300 (cm) Prediction frequency: 937.5 (MHz) MPE limit for uncontrolled exposure at prediction f requency: 0.625 (mW/cm^2) Power density at prediction frequency: 0.623085 (mW/cm^2) Maximum allowable antenna gain: 8.013323908 (dBi) Margin of Compliance: 0.013323908 2 4 R PG S π =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:50.48(dBm) Maximum peak output power at antenna input terminal:111686.3248(mW) Antenna gain(typical):15(dBi) Maximum antenna gain:31.6227766(numeric) Prediction distance:672(cm) Prediction frequency:937.5(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.625(mW/cm^2) Power density at prediction frequency:0.622374(mW/cm^2) Maximum allowable antenna gain:15.01828427(dBi) Margin of Compliance:0.018284275 2 4R PG S π =

www.nemko.com Nemko Italy S.p.A., Via del Carroccio 4, 20853, Biassono, Italy. Report number: 285418-1TRFWL Apparatus: ECOSD RBS4000K U5110DA0C14W0E100S1V1G2 Applicant: SELEX ES SPA Piazza Montegrappa, 4 00195 Roma- Italy FCC ID: X5YF767DHDE-IP Test specification: Subpart S—Regulations Governing Licensing and Use of Frequencies in the 935-940 MHz Band Title 47-Telecommunication Chapter I - Federal Communications Commission Subchapter D – Safety and special radio services Part 90 – Private land mobile services Subpart S—Regulations Governing Licensing and Use of Frequencies in the 806-824, 851-869, 896-901, and 935-940 MHz Bands Reviewed by: 2015.07.06 Signature Date G. Curioni, Wireless/EMC Specialist Tested by: Signature 2015.07-06 D. Guarnone, Wireless/EMC Specialist Date Nemko S.p.A. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko S.p.A. accepts no responsibility for damages, if any suffered by any third party as a result of decisions made or actions based on this report. This report shall not be reproduced except in full without the written approval of the testing laboratory. www.nemko.com Nemko Italy S.p.A., Via del Carroccio 4, 20853, Biassono, Italy Report Number: 285418-1TRFWL Specification: FCC 90 Report reference ID:285418-1TRFWL Page 2 of 49 Table of contents Section 1: Report summary .................................................................................................................. 3 Section 2: Equipment under test .......................................................................................................... 4 2.1 Identification of equipment under test (EUT) ............................................................................ 4 2.2 Accessories and support equipment ......................................................................................... 5 2.3 EUT description ........................................................................................................................ 6 2.4 Technical specifications of the EUT .......................................................................................... 6 2.5 EUT setup diagram................................................................................................................... 7 2.6 Operation of the EUT during testing ......................................................................................... 7 2.7 Modifications incorporated in the EUT ...................................................................................... 7 Section 3: Test conditions .................................................................................................................... 8 3.1 Deviations from laboratory tests procedures ............................................................................. 8 3.2 Test conditions, power source and ambient temperatures ........................................................ 8 3.3 Measurement uncertainty ......................................................................................................... 9 3.4 Test equipment ......................................................................................................................... 9 Section 4: Result summary ................................................................................................................. 10 4.1 FCC Part 90: Test results ....................................................................................................... 10 Appendix A: Test results ..................................................................................................................... 11 Clause 90.635 Output power ............................................................................................................ 11 Clause 90.207 Modulation characteristics ........................................................................................ 14 Clause 90.209 Occupied bandwidth ................................................................................................. 17 Clause 90.210 Spurious emissions at the antenna terminal ............................................................. 25 Clause 90.210 Field strength of spurious radiation ........................................................................... 30 Clause 90.213 Frequency stability .................................................................................................... 44 Clause 90.219 Use of boosters ........................................................................................................ 47 Clause 90.214 Transient frequency behaviour ................................................................................. 48 Appendix B: Block diagrams of test set-ups ..................................................................................... 49 Nemko Italy S.p.A. Via del Carroccio 4, 20853 Biassono, Italy. Section 1: Report summary Report Number 285418-1TRFWL Specification: FCC 90 Report reference ID:285418-1TRFWL Page 3 of 49 Section 1: Report summary This report contains an assessment of apparatus against specifications based upon tests carried out on samples submitted at Nemko Italy SpA. Test specification: FCC Part 90 Private land mobile services Subpart I – General technical standards Compliance status: Complies Exclusions: None Non-compliances: None Report release history: Original release Test location: Nemko Italy S.p.A. Via del Carroccio 4, 20853, Biassono, Italy. Registration number: 481407 (10 m Semi anechoic chamber) These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 90. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with ANSI C63.4-…
