Bluetooth Stereo Headset User Manual ˄ Quikcell ˅ FCC ID: X6HQ UIKCELL Basic Specifications Size: 580(R*125+L*406.2*Frame 48.8)*12.35*8.35 mm Weight: 9.7g˄Net Weight˅ Charging Port: Micro USB Keys: 3 (MFB button, volume+/ backward button, volume- /forward button,) Battery: Rechargeable lithium polymer battery 3.7V; Charging Specifications: DC 5V/60mA Charger Output: 5V/0.5~1.0A Charge Indicator: Red LED light (Charging) / Blue LED light (Charging completed) Standby Time: 100 hours Talk Time: 4.5 hours and upwards Music Time: 4 hours and upwards Charging Time: 1.5 hours Volume Control / Variable for per stage : Stage 16 / 1.5dB variable for per stage. Indicator for Charge in working stage: Battery voltage lower than 3.3V˄the stage of battery lower than 15%˅, there will be a warning tone with LED indicator flashing in red; battery voltage lower than 3.1V ( the stage of battery lower than 5%), the headset will power off directly. Operating Temperature: Charging 0 ~ 40ć, charging than -20 ~ 60ć. ƵStorage Temperature: -40 ~ 80ć. Speaker and MIC parameters Speaker Specifications / mode:ž9.0mm, Dynamic Distortion˖Below 1% Impedance:32¡/typ Frequency(Hz): 20Hz̚20KHz MIC Sensitivity: -42f3dB Bluetooth Parameters Bluetooth Version: 4.0 Support Profile: HSP, HFP, A2DP, AVRCP The Remote Control to Speaker: MFB (Power ON / Power Off / Play / Pause) ; Vol+/Next song, Vol-/Previous song. Device Name: Quikcell Pass: 0000 RF Transmitter: class II (-6dBm ~ +4dBm) Receive Sensitivity: -90dBm Transmission Range (Hz): 2.40GHz ~ 2.48GHz Transmission Distance: 10m Operating Instructions(The Switching between Spanish and English ) The Switching between Two Kinds of Language˖Double click the MFB button when the headset is power on and make sure it disconnects with any device. At this time you will hear the warning tone. Power On When the headset is off, press and hold the multi-function Button (MFB) for 3 seconds. The LED indicator will flash twice in blue. At this time you will hear the words “Power 2.402GHz ~ 2.480GHz ON/” from the headset. The headset will be paired with the last connected Bluetooth device or mobile phone automatically when turned on. Power Off When the headset is on, press and hold the MFB for 3 seconds. The LED indicator will flash once slowly in red. At this time, you will hear the words “Power Off/” from the headset. The headset will disconnect from your phone devices when turned off. Pairing Mode When the headset is off, press and hold MFB for 6 seconds until the LED indicator flashes red and blue in alternating colors. At this time, you will hear the words “Pairing/” from the headset. ĆIf you release the MFB before the headset goes into pairing mode, it will power on. If you want to enter into pairing mode again, please power off the headset or press the Vol+ and Vol- button concurrently. Easy connection function If the headset doesn’t connect with any phones when it is on, you can enter into speed pairing mode by pressing the Vol+ and Vol- button concurrently and connect with your phone. Answering calls If a call comes in when listening to music or headset is standing by, press the MFB shortly to answer the incoming call. If the music is playing, it will pause automatically during the call, the music will start playing automatically. Reject Calls If a call comes in, press and hold the MFB button for 2 seconds to reject the incoming call. End Calls Press the MFB shortly to terminate when you finished your call. Volume To adjust the volume when talking on the phone, press the Vol+ and Vol- to make volume do up and down. When you reach the max/min volume, you will hear a warning tone. Last Number Redial When listening to music or headset is standing by, double click MFB to redial the last number. If you are listening to music, it will pause automatically during the call. Mute When talking on the phone, press and hold Vol+ or Vol- for 2 seconds to mute your phone. You will hear the caller, but the caller will not hear you. There will be a warning tone every 10 seconds, reminding you that you are in mute mode. Quit Mute Press and hold Vol+ or Vol- for 2 seconds to exit mute mode. Switching Between Your Mobile Phone and Headset When talking on the phone, double-click the MFB to switch the voice from your headset to your mobile phone. By double-click the MFB again, the voice will switch back to the headset. Reconnect When the headset is disconnected from your mobile phone, you will hear the words “Your headset is disconnected”. If you press the MFB, it will reconnect. You will hear the words “Your headset is connected” from the headset. Ć Some mobile phone may have a prompt screen, that will ask you if you would like to pair your device. Voice-Command Dial If your mobile phone supports this function, press and hold Vol+ or Vol- for 2 seconds to activate voice command. By re-pressing and re-holding vol+ or vol- for 2 seconds during the voice dial mode, voice dial will be canceled. Ć Please refer to the manual of your mobile phone for voice-command dial support. Connect with 2 mobile phones A. First disconnect the Bluetooth device from your phone if it is already connected. B. Press vol+ and vol- concurrently to put the headset in pairing mode. C. Turn on and search Bluetooth device on your second phone until you find “SH19” and select to begin pairing. D. Please reconnect with your first mobile phone device. E. Now you should have two mobile phones connected with the headset. Transfer Calls When you are talking on the phone and receive another incoming call, press the MFB for 2 seconds to reject the incoming call. If you click Vol+ and Vol- concurrently (with the reminding tone), you will answer the incoming call. Your first call will be placed on hold. When you click Vol+ and Vol- concurrently again, you will transfer back to your first call. You should hear a beep. During this time your second call will be placed on hold. You can also end the call by clicking the MFB. Music Play Operating Mu…

Text truncated - open the document above for the full version.

Alpha Comm Enterprises, Inc. Jan30, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_____ X6HQUIKCELL _______ Product Name:___ Quikcell _______ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Jan.30, 2015 By: Signature Printed Title: VP Product Development On behalf of : Alpha Comm Enterprises, Inc. Telephone: (678) 236-9999 X6HQUIKCELL Bluetooth Stereo Headset Frank Piraino

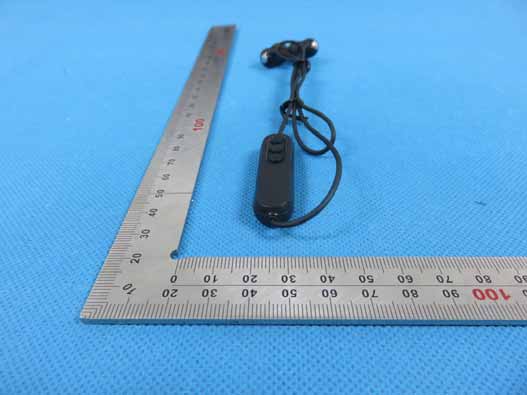

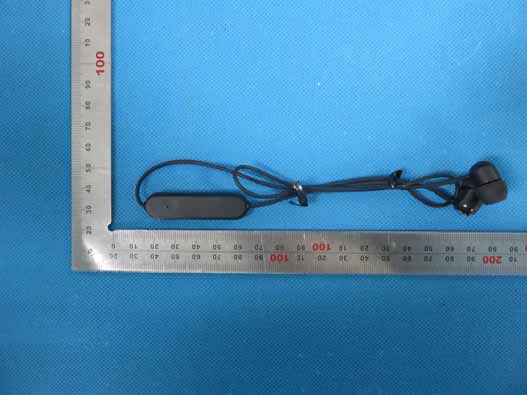

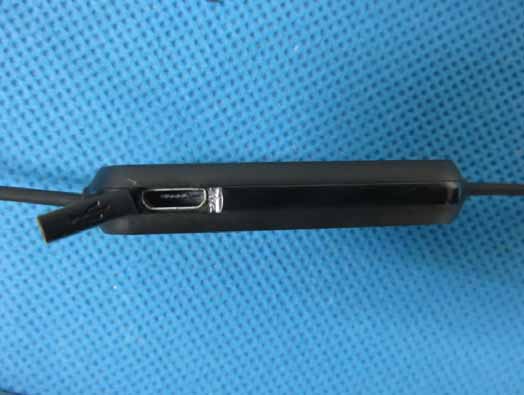

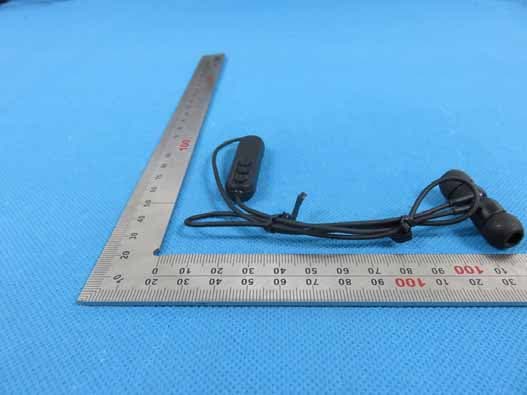

PHOTOGRAPHS OF EUT External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: X6HQUIKCELL

Internal Photos Antenna

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480 MHz 3.24dBm（2.11mW） output power] (2.11mW /5mm) ·[√2.480(GHz)]= 0.67<3.0 for 1-g SAR Then SAR evaluation is not required

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288FAX: +86-755 3688 6277E-mail:[email protected] FCC TESTREPORT Report No: STS1502042 Issued for Alpha Comm Enterprises, Inc. 1500 Lakes Parkway Suite B Lawrenceville GA United States Product Name: Bluetooth Stereo Headset Brand Name: Quikcell Model No.: Quikcell FCC ID: X6HQUIKCELL Test Standard: FCC Part 15.247 S T L A B S Page 2 of64Report No.:STS1502042 TEST RESULT CERTIFICATION Applicant’s name ............. Alpha Comm Enterprises, Inc. Address ............................. 1500 Lakes Parkway Suite BLawrencevilleGA United States Manufacture's Name ........ Shenzhen meesTechnology Co., Ltd. Address ............................. Room 511, Block C, Huafeng Headquarters Economy Bldg., 288 Xixiang Avenue, Baoan, Shenzhen, 518101 Product description Product name ..................... Bluetooth Stereo Headset Band name .......................... Quikcell Model and/or type reference .......................... Quikcell Ratings .............................. DC3.7V by Battery Standards ......................... FCC Part15.247 Test procedure .................... ANSI C63.4-2009 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ................................. Date (s) of performance of tests .. Jan.13,2015 to Jan.14,2015 Date of Issue ................................ Jan.15,2015 Test Result .................................... Pass Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of64Report No.:STS1502042 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.1 DESCRIPTION OF TEST MODES 9 2.2 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.3BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS 11 2.5EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3.EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 TEST SETUP 14 3.1.4EUT OPERATING CONDITIONS 14 3.1.5TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TESTSETUP 19 3.2.5EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS炷炷WORST CASE : GFSK炸 21 4. CONDUCTED SPURIOUS EMISSIONS 38 4.1 REQUIREMENT 38 4.2TEST PROCEDURE 38 4.3 TEST SETUP 38 4.4 EUT OPERATION CONDITIONS 38 4.5 TEST RESULTS 39 5. NUMBER OF HOPPING CHANNEL 46 5.1APPLIED PROCEDURES / LIMIT 46 5.2 TEST PROCEDURE 46 5.3 TEST SETUP 46 5.4 EUT OPERATION CONDITIONS 46 Page 4 of64Report No.:STS1502042 Table of Contents Page 5.5TEST RESULTS 47 6. AVERAGE TIME OF OCCUPANCY 48 6.1 APPLIED PROCEDURES / LIMIT 48 6.2 TEST PROCEDURE 48 6.3 TEST SETUP 48 6.4 EUT OPERATION CONDITIONS 48 6.5TEST RESULTS 49 7. HOPPING CHANNEL SEPARATION MEASUREMENT 51 7.1 APPLIED PROCEDURES / LIMIT 51 7.2 TEST PROCEDURE 51 7.3 TEST SETUP 51 7.4 EUT OPERATION CONDITIONS 51 7.5TEST RESULTS 52 8. BANDWIDTH TEST 53 8.1APPLIED PROCEDURES / LIMIT 53 8.2 TEST PROCEDURE 53 8.3 TEST SETUP 53 8.4 EUT OPERATION CONDITIONS 53 8.5TEST RESULTS 54 9. OUTPUT POWER TEST 57 9.1 APPLIED PROCEDURES / LIMIT 57 9.2 TEST PROCEDURE 57 9.3 TEST SETUP 57 9.4 EUT OPERATION CONDITIONS 57 9.5TEST RESULTS 58 10. ANTENNA REQUIREMENT 62 10.1 STANDARD REQUIREMENT 62 10.2 EUT ANTENNA 62 APPENDIX-PHOTOS OF TEST SETUP 63 Page 5 of64Report No.:STS1502042 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(d) Conducted Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS Page 6 of64Report No.:STS1502042 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China. FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U炻where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2炻providing a level of confidence of approximately 95 %ˤ No. Item Uncertainty 1 Conducted Emission Test ±3.18dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.71dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of64Report No.:STS1502042 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth Stereo Headset Trade Name Quikcell Model Name Quikcell Channel List Please refer to the Note 2. Bluetooth Frequency:2402 – 2480 MHz GFSK(1Mbps),π/4-DQPSK(2Mbps),8-DPSK(3Mbps) Battery Rated Voltage: 3.7V Charge Limit: 4.2V Hardware version number ZXCJSH19HWV1.0 Software versioningnumber ZXCJSH19SFV1.0 Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifica…
