X8WBT600EBlueTooth 4.0 module

Bluetooth Low Energy(BLE) Module BT600 Series Ver 1.0 June 8, 2015 Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: 1 480.948.4928 | Fax: 1 480.948.5459 | E-mail: [email protected]| Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: 886-2-2698-9328 | Fax: 886-2-2698-4813 Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:86-0755-8409-0927|Fax:86-0755 -8409-0973 1 BLE Single Mode Module BT600 Series Specifications:  Processor: Nordic nRF51822  Bluetooth: V4.0, single mode  Frequency: 2.4022.480 GHz  Receiver Sensitivity: -91 dBmtypical  Transmit Power 0dBm +/- 1 dB  Interface UART  Protocol AT Commands  Operation voltage 1.8V-3.6V  Line of Sight Range 20m (60 feet) to 50m (150 feet)  Encryption 128 bit using CCM encryption  Dimensions 20mmX12mmX2mm  Operation -25°C to +75°C  Storage -40°C to +85°C Applications  Smart appliances  Wearable device  Medical devices  Health management devices  Computer peripherals  Other Bluetooth applications Model Summaries Antenna range, m range, feet approval BT600I Internal 30 90 None BT600E External 50 150 FCC BT600P PCB 20 60 none DVB‐BT600 Development board none Bluetooth Low Energy(BLE) Module BT600 Series Ver 1.0 June 8, 2015 Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: 1 480.948.4928 | Fax: 1 480.948.5459 | E-mail: [email protected]| Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: 886-2-2698-9328 | Fax: 886-2-2698-4813 Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:86-0755-8409-0927|Fax:86-0755 -8409-0973 2 Table Of Contents 1 Introduction ................................................................................................................................................. 3 1.1 Standalone Mode ...................................................................................................................................... 3 2 Product Overview ....................................................................................................................................... 4 2.1 Photos ....................................................................................................................................................... 4 2.2 Pin Functions ............................................................................................................................................ 5 3 Operation Parameters ................................................................................................................................ 7 4 AT Commands ............................................................................................................................................ 8 4.1 Brief description of AT commands ............................................................................................................ 8 4.2 Command mode ........................................................................................................................................ 8 4.3 Data Mode ............................................................................................................................................... 10 5 BT600 Evaluation Board ........................................................................................................................... 11 5.1 Communicating with a PC ...................................................................................................................... 11 5.2 Communicating with a Host Processor................................................................................................... 11 6 Miscellaneous ........................................................................................................................................... 11 7 CONTACT US .............................................................................................................................................. 12 Bluetooth Low Energy(BLE) Module BT600 Series Ver 1.0 June 8, 2015 Fanstel Corp. | 7466 E. Monte Cristo Ave. Scottsdale, AZ 85260 USA|Tel: 1 480.948.4928 | Fax: 1 480.948.5459 | E-mail: [email protected]| Fanstel Corp. | 10F-10, 79 Xintai Wu Road, Xizhu, New Taipei City, Taiwan 22101| Tel: 886-2-2698-9328 | Fax: 886-2-2698-4813 Fanstel Technologies Corp. 11 Jiale Street, Ping-Dih, Long-Gang, Shen Zhen, 518117 China|Tel:86-0755-8409-0927|Fax:86-0755 -8409-0973 3 1 Introduction BT600 series Bluetooth single mode module uses Nordic nRF51822 Bluetooth Low Energy (BLE) chip. Three antenna options are offered:  BT600I with a chip antenna on module, line of sight range is 30 meters or 90 feet.  BT600E, an external antenna is required. Line of sight range is 50 meters or 150 feet when used with recommended antenna.  BT600P with on board PCB trace antenna, line of sight range is 20 meters or 60 feet. This is the lowest cost version.  DVB-BT600. Development board for BT600 modules. A PC or a host processor can communicate with BT600 through an UART port. All IO pins are available at connectors. A host processor can set BT600 to command and data mode by setting an I/O pin to high and low, respectively. When using with a PC, a jumper is used to set the BT600 IO pin. When in data mode, the host processor communicates with a smartphone, a computer, or other electronic equipment through this BT module. 1.1 Standalone Mode BT600 can operate in standalone mode – without a host processor. A 32 bit ARM Cortex™ M0 processor with 128 KB of flash memories are built-in. Development tools are available from Nordic and other 3 rd parties. BT600 dimensions and pin assignments are the same as some modules from other manufacturers. Programming tools are commercially available to reprogram module for standalone operation. Bluetooth Low Energy(BLE) Module BT600 Series Ver 1.0 June 8, 2015 Fanstel Corp. | 7466 E. Monte Cristo Ave. …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012

SCS-F26 Modular Approval Letter Page 1 of 2 Rev 7.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (current) 6.0 7.0 Jan-31-2012

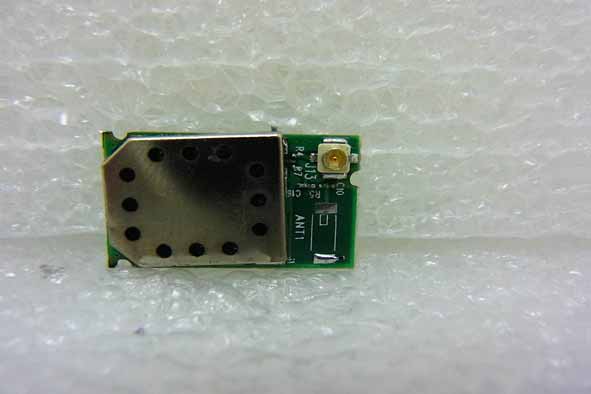

FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS APPENDIX 2 PHOTOGRAPHS OF EUT FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS EUT 1 EUT 2 FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS EUT 3 EUT 4 Antenna

FCC ID LABEL FORMAT AND LOCATION Applicant: Fanstel Corporation, Taipei FCC ID: X8WBT600E

FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS APPENDIX 2 PHOTOGRAPHS OF EUT FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS EUT 1 EUT 2 FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS EUT 3 EUT 4 Antenna

FCC ID: X8WBT600E International Standards Laboratory Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. RSS 102 issue 5. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density Tune-Up Power and Tolerance: Frequency Range: 2402 – 2480MHz Bluetooth Version: V4.0 Modulation type: GFSK Tune-up power 0dBm Power Tolerance: +/- 1dBm Measured Transmit Power: 0.33 dBm Peak Antenna Designation: Dipole Ant , 2.0dBi FCC ID: X8WBT600E International Standards Laboratory FCC: 2.4GHz mode: Dipole Antenna Maximum Permissible Exposure (MPE) Evaluation The worst case of average power: refer to FCC P15C test report for detail measurement date. Power measurement: Frequency (MHz) Peak Reading Power (dBm) Cable Loss Output Power (dBm) Output Power (W) Limit (W) Low 0.33 0.00 0.33 0.00108 1 Mid 0.15 0.00 0.15 0.00104 1 High -0.22 0.00 -0.22 0.00095 1 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna CH 0-78 Tune-U p power at antenna input terminal:0.00 (dBm) Tune-Up power at antenna input terminal:1.00 (mW) Tune-Up power Tolerance:1.00 dB Duty cycle:76.00 (%) Maximum Pav :0.96 (mW) Antenna gain (typical):2.00 (dBi) Maximum antenna gain:1.58 (numeric) Prediction distance:20.00 (cm) MPE limit for uncontrolled exposure at prediction frequency:1.00 (mW/cm^2) Power density at predication frequency at 20 (cm) distance0.0003 (mW/cm^2) Measurement Result: The worst power density is 0.0003 mW/cm^2 which is less than 1 mW/cm^2.

Page: 1 of 39 TEST REPORT of FCC Part 15 Subpart C Full Modular Approval New Application; Class I PC; Class II PC Product : Bluetooth 4.0 Module Brand: FANSTEL Model: BT600 Model Difference: N/A FCC ID: X8WBT600E FCC Rule Part: §15.247, Cat: DTS Applicant: Fanstel Corporation, Taipei Address: 10F-10, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, New Taipei City 221 Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-15LR144FCDTS Issue Date : 2015/06/18 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 39- FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS VERIFICATION OF COMPLIANCE Applicant: Fanstel Corporation, Taipei Product Description: Bluetooth 4.0 Module Brand Name: FANSTEL Model No.: BT600 Model Difference: N/A FCC ID: X8WBT600E Date of test: 2015/06/03 ~ 2015/06/10 Date of EUT Received: 2015/06/03 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this rport is in compliance with the limits of above standards. Test By: Date: 2015/06/18 Dion Chang / Engineer Prepared By: Date: 2015/06/18 Gigi Yeh / Specialist Approved By: Date: 2015/06/18 Vincent Su / Technical Manager -3 of 39- FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS Version Version No. Date Description 00 2015/06/18 Initial creation of document -4 of 39- FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ....................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 SUMMARY OF TEST RESULTS .......................................................................................... 10 4 DESCRIPTION OF TEST MODES ....................................................................................... 10 5 AC POWER LINE CONDUCTED EMISSION TEST ......................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 PEAK OUTPUT POWER MEASUREMENT ....................................................................... 15 6.1 Standard Applicable: .................................................................................................................... 15 6.2 Measurement Equipment Used: ................................................................................................... 16 6.3 Test Set-up: .................................................................................................................................. 16 6.4 Measurement Procedure: ............................................................................................................. 16 6.5 Measurement Result: ................................................................................................................... 16 7 6dB Bandwidth & 99% Bandwidth ................................................…

Text truncated - open the document above for the full version.

FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS APPENDIX 1 PHOTOGRAPHS OF SET UP FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS Radiated Emission Setup Photos FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS FCC ID: X8WBT600E International Standards Laboratory Report Number: ISL-15LR144FCDTS Conducted Emission Set up Photo
