X96881103WIRELESS REMOTE CONTROL

1 INSTALLATION GUIDE RF-24 Wireless Remote Control For Automotive Winches 1. 2. Wireless Control Kit includes: 1. Wireless Receiver.881103 2. Switch Cord W/6P plugs Ø8 X 1500 mm 3. Wireless Transmitter.881102 4. Lithium Battery: 3V CR2032 5. Handsaver Strap 3. 4. 5. Part No.881262 I.Specifications 1. Transmission range:15 ~ 27 m (50 ~ 90 ft) 2. Receiver operation voltage: 8 ~ 24 V 3. Receiver fuse current rating: 7.5 A 4. Protection: IP-66 5. Operating Temperature Range: -20°C ~ +70°C II.Installation Guide Step 1: Connect the wiring a. Connect the Switch cord W/6P plugs to the socket on the control pack. b. Slice the Red wire to the receiver fuse then connect to the positive (+) terminal of the battery. c. Connect the Black wire to the negative (-) terminal of the battery. Step 2: Mount the Receiver a. The receiver should be mounted in a clear and dry location. b. Mount on a flat surface with 2 pieces of Ø7 mm mounting holes on each side of the receiver. Minimum of one mounting hole each side 2 III Operation 1. Install and replace battery. a. Remove the three screws from the wireless transmitter. b. Separate the top section and remove the old battery and dispose it. c. Insert new battery and join the top section with the bottom section. d. Make sure to fasten the three screws. Lithium Battery: CR2032 (3V) 2. Start a. Turn on the Vehicle. b. Press the Power Buttons for 5 seconds until Green light comes on. c. Press the Cable In or Cable Out button after the Red light comes on. 3. Stop a. The system will be automatically shutting down the operation after a silence of operation for 5 minutes. b. Press and hold the Power Button for 5 seconds for shutting down the operation. 4. Reset a. Press and hold the Programming Button for 5 seconds until the Red lights up。 b. Press the Power Buttons for 5 seconds until the Red flashing. c. Press the Cable In or Out button until the Red lights on the receiver turns off. d. Reset is now completed. Please note only one remote can be reset for each receiver. 5. Notes a. The wireless remote control and handlebar trigger switch can be exchanged for activating the winch, but it takes about 10 seconds for exchanging。 b. The flashing Red light shows batter low, the battery should be replaced immediately. c. Please note only one remote can be reset for each receiver Cable OUT Cable IN Cable OUT Cable IN Power Button LED Indicator FCC and Industry Canada (IC) Warning: • This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

COMEUP INDUSTRIES INC. FCC ID.: X96881103 No.112,Nan Yuan Str. Hsi Chih Taipei, Taiwan 22152 .Tel: 886-2-2694-7011 COMEUP INDUSTRIES INC. No.112,Nan Yuan Str. Hsi Chih Taipei, Taiwan 22152 Tel: 886-2-2694-7011 FAX: 886-2-2694-7053 Federal Communications Commission Apr. 01, 2010 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: ( 881103 ) Schem Block Diagram: ( 881103 ) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- Ben Huang / Director COMEUP INDUSTRIES INC.

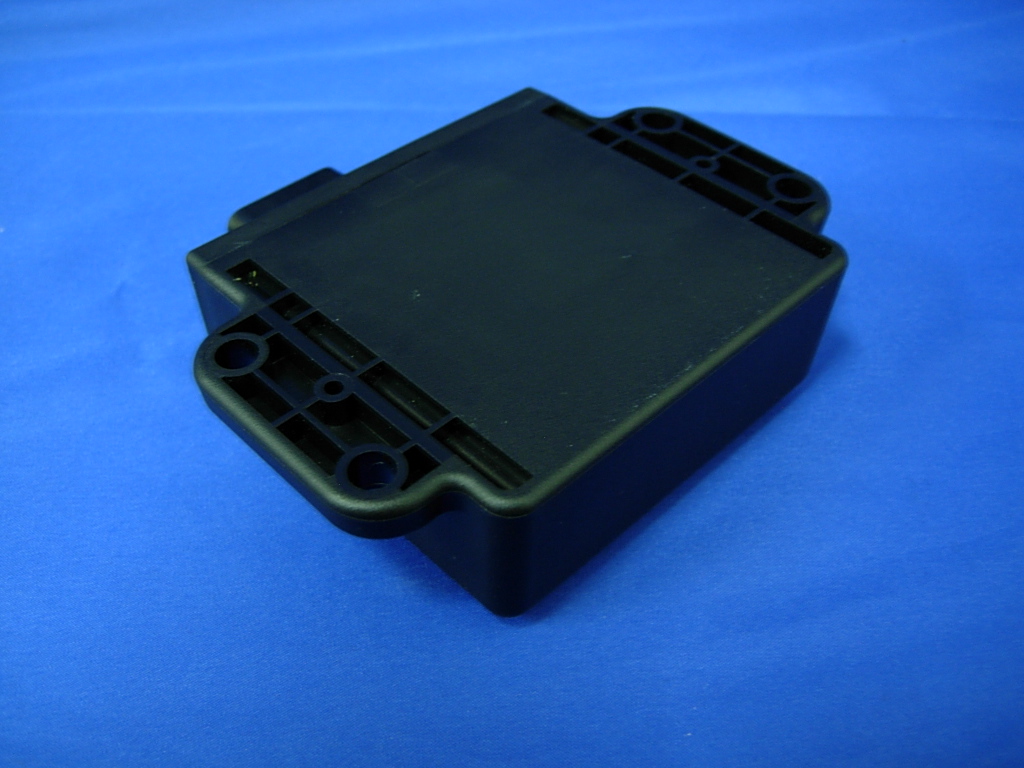

Report No.: 103174R-RFUSP42V01-A Page : 1 of 5 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

COMEUP INDUSTRIES INC. FCC ID.: X96881103 No.112,Nan Yuan Str. Hsi Chih Taipei, Taiwan 22152 .Tel: 886-2-2694-7011 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

COMEUP INDUSTRIES INC. FCC ID.: X96881103 No.112,Nan Yuan Str. Hsi Chih Taipei, Taiwan 22152 .Tel: 886-2-2694-7011 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 103174R-RFUSP42V01-A Page : 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 103174R-RFUSP42V01-A Page : 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 103174R-RFUSP42V01-A Page : 4 of 5 (7) EUT Photo (8) EUT Photo Antenna Report No.: 103174R-RFUSP42V01-A Page : 5 of 5 (9) EUT Photo

Report No. 103174R-RFUSP42V01-A Page : 7 of 47 1.2. Operational Description The EUT is a Wireless Remote Control, The Number of the channels is 79 in 2402~2480MHz. The device operation band in 2.4GHz, modulation is GFSK. The Antenna is Printed on PCB. Test Mode: Mode 1: Transmit

Report No. 103174R-RFUSP05V01-A Page: 1 of 3 RF Exposure Evaluation declaration Product Name Wireless Remote Control Model No. 881103 FCC ID X96881103 Applicant COMEUP INDUSTRIES INC. Address No. 112, Nan Yuan Str. Hsi Chih Taipei, Taiwan 22152 Date of Receipt Mar. 10, 2010 Date of DeclarationMar. 24, 2010 Report No. 103174R-RFUSP05V01-A Report Version V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 103174R-RFUSP05V01-A Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 103174R-RFUSP05V01-A Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Wireless Remote Control Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is -0.51 dBi in logarithm scale. Output Power Into Antenna & RF Exposure Evaluation Distance (-0.51 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 02 2402.00 1.211 0.000123 41 2441.00 1.247 0.000127 80 2480.00 1.219 0.000124 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 103174R-RFUSP42V01-A Page : 1 of 43 Test Report Product Name Wireless Remote Control Model No 881103 FCC ID. X96881103 Applicant COMEUP INDUSTRIES INC. Address No. 112, Nan Yuan Str. Hsi Chih Taipei, Taiwan 22152 Date of Receipt Mar. 10, 2010 Issue Date Mar. 24, 2010 Report No. 103174R-RFUSP42V01-A Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 103174R-RFUSP42V01-A Page : 2 of 43 Test Report Certification Issue Date: Mar. 24, 2010 Report No.: 103174R-RFUSP42V01-A Product Name Wireless Remote Control Applicant COMEUP INDUSTRIES INC. Address No. 112, Nan Yuan Str. Hsi Chih Taipei, Taiwan 22152 Manufacturer COMEUP INDUSTRIES INC. Model No. 881103 EUT Rated Voltage DC 8~24V EUT Test Voltage DC 12V Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Adm. Specialist / Jinn Chen ) Tested By : ( Engineer / NoNo Chang ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 103174R-RFUSP42V01-A Page : 3 of 43 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION.......................................................................................................5 1.1. EUT Description..........................................................................................................................5 1.2. Operational Description.............................................................................................................7 1.3. Tested System Details................................................................................................................8 1.4. Configuration of Tested System................................................................................................8 1.5. EUT Exercise Software..............................................................................................................8 1.6. Test Facility..................................................................................................................................9 2. Peak Power Output................................................................................................................10 2.1. Test Equipment.........................................................................................................................10 2.2. Test Setup..................................................................................................................................10 2.3. Limits...........................................................................................................................................10 2.4. Test Procedure..........................................................................................................................10 2.5. Uncertainty.................................................................................................................................10 2.6. Test Result of Peak Power Output.........................................................................................11 3. Radiated Emission.................................................................................................................12 3.1. Test Equipment.........................................................................................................................12 3.2. Test Setup..................................................................................................................................13 3.3. Limits...........................................................................................................................................14 3.4. Test Procedure..........................................................................................................................14 3.5. Uncertainty.................................................................................................................................14 3.6. Test Result of Radiated Emission..........................................................................................15 4. RF antenna conducted test..................................................................................................19 4.1. Test Equipment.........................................................................................................................19 4.2. Test Setup..................................................................................................................................19 4.3. Limits...........................................................................................................................................19 4.4. Test Procedure..........................................................................................................................20 4.5. Uncertainty.................................................................................................................................20 4.6. Test Result of RF antenna conducted test............................................................................21 5. Band Edge................................................................................................................................23 5.1. Test Equipment.........................................................................................................................23 5.2. Test Setup..................................................................................................................................24 5.3. Limits....…
