X96881490Wireless Remote Control

1 Wireless Receiver Model NO：881490 For DS-9.5rs 12V: 293655 24V: 293160 DS-9.5rsi 12V: 293244 24V: 293266 A B Accessories: 1. Wireless Transmitter: 881102. 2. Lithium Battery: 3V CR2032. 3. Handsaver Strap. 1. 2. 3. I.Specifications 1. Transmission range: 15 ~ 27 m (50 ~ 90 ft) 2. Receiver operation voltage: 8 ~ 24 V 3. Protection: IP 66 4. Operating temperature range: -20°C ~ +70°C III Operation 1. Install and replace battery. a. Remove the three screws from the wireless transmitter. b. Separate the top section and remove the old battery and dispose it. c. Insert new battery and join the top section with the bottom section. d. Make sure to fasten the three screws. 2. Start A. For DS-9.5rsi winch a. Attach the red(+) and black(-) battery leads to battery set on the vehicle, then the buzzer alarms and the right LED on the bridge control box blinks blue for decoding. b. Hold the Power Button of the transmitter for about 5 seconds，then the LED Indicator lights permanently. c. Hold either Cable In Button or Cable Out Button of the transmitter, then the buzzer alarms long sound lasting for 5 seconds. d. The right blinking blue LED of the bridge control box turns off, but the left lights green permanently. e. The wireless remote control is now workable. Wireless Remote Module DS-9.5rsi Lithium Battery: CR2032 (3V) Cable OUT Cable IN Power Button LED Indicator Right LED Left LED Receiver PN：881490 built in control box Receiver PN：881489 built in control box DS-9.5rsi DS-9.5rs 2 B. For DS-9.5rs winch a. Attach the red(+) and black(-) battery leads to battery set on the vehicle, then the buzzer alarms. b. Hold the Power Button of the transmitter for about 5 seconds, then the LED Indicator lights permanently. c. Hold either Cable In Button or Cable Out Button of the transmitter, then the buzzer alarms long sound lasting for 5 seconds. d. The wireless remote control is now workable. 3. Stop a. Hold the Power Button of the Transmitter for 5 seconds for stopping the function. b. Any silence of operation for 5 minutes, the wireless remote module turns off automatically. 4. Reset a. Disassembly the battery leads from the battery set and attach the leads to the battery set again, then the right LED blinks blue and buzzers lasting in 5 minutes for decoding. b. Hold the Power Button of the transmitter for about 5 seconds, then the LED Indicator lights permanently c. Hold either Cable In Button or Cable Out Button of the transmitter for the process of the decoding. d. After the completion of the decoding, the buzzer alarms long sound lasting for 5 seconds and the right LED turns off compared to the permanent green light on the left LED. e. Ascertain the process of the decoding shall be completed within 5 minutes, if it fails to finish, it is inevitable to restore the original setting at the manufacturer. 5. Notes a. The wireless remote control and remote control can be exchanged for activating the winch, but it takes about 10 seconds for exchanging。 b. Blinking Green LED light shows batter low, the battery should be replaced immediately. c. The remote control can be workable on independence.。 d. If the motor is overheating, the left LED of DS-9.5rsi lights red and buzzer has 2 short beeps every 5 seconds until the temperature of the motor falls within the safety range. e. Please note only one remote can be reset for each receiver. f. Blinking Red LED for poor signal. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. DS-9.5rs Cable OUT Cable IN Power Button LED Indicator FCC and Industry Canada (IC) Warning: • This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired o peration.

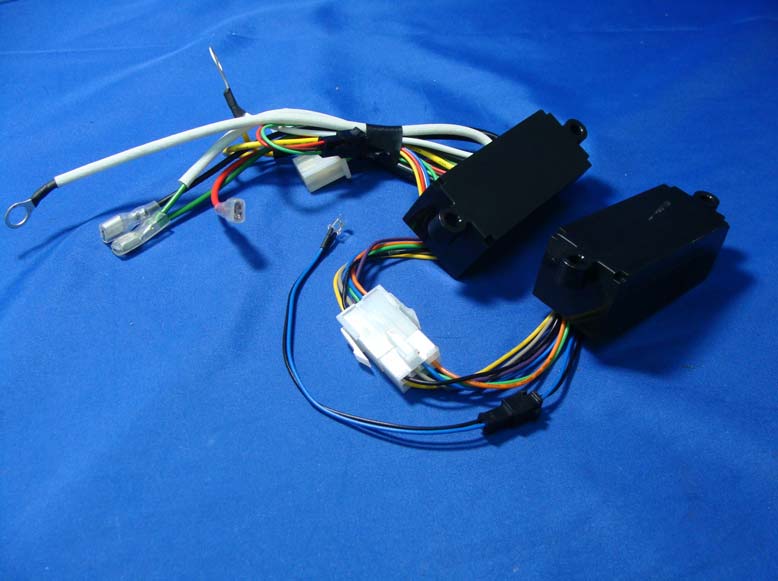

Report No.: 108430R-RFUSP44V01 Page : 1 of 9 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

COMEUP INDUSTRIES INC. FCC ID.: X96881490 NO. 112 Nan Yuan Str. Hsi Chih Taipei,Taiwan 22152.Tel : +886-2-26947011 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No. 108430R-RFUSP44V01 Page: 5 of 31 1.2. Operational Description The EUT is Wireless Remote Control built-in 2.4GHz transceiver. The operation frequency is from 2402 MHz to 2480MHz with GFSK modulation. The signal will be transmitted through 2.4 GHz RF signal from the Printed on PCB. The EUT build in winch, press the button (cable in / cable out) by wireless remote control for activating the winch.

Report No. 108430R-RFUSP44V01 Page: 1 of 31 Test Report Product Name Wireless Remote Control Model No. 881490 FCC ID X96881490 Applicant COMEUP INDUSTRIES INC. Address NO. 112 Nan Yuan Str. Hsi Chih Taipei,Taiwan 22152 Date of Receipt Aug. 25, 2010 Issued Date Sep. 24, 2010 Report No. 108430R-RFUSP44V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 108430R-RFUSP44V01 Page: 2 of 31 Test Report Certification Issued Date: Sep. 24, 2010 Report No.: 108430R-RFUSP44V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Wireless Remote Control Applicant COMEUP INDUSTRIES INC. Address NO. 112 Nan Yuan Str. Hsi Chih Taipei,Taiwan 22152 Manufacturer COMEUP INDUSTRIES INC. Model No. 881490 EUT Rated Voltage DC 8-24V EUT Test Voltage DC 12V(Power by battery) Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied Documented By : (Senior Adm. Specialist / Leven Huang ) Tested By : ( Engineer /Henk Huang ) Approved By : ( Manager / Vincent Lin) Report No. 108430R-RFUSP44V01 Page: 3 of 31 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................5 1.3. Tested System Datails....................................................................................................................6 1.4. Configuration of Test System ........................................................................................................6 1.5. EUT Exercise Software .................................................................................................................6 1.6. Test Facility ...................................................................................................................................7 2. Radiated Emission .......................................................................................................................8 2.1. Test Equipment..............................................................................................................................8 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Radiated Emission................................................................................................12 3. Band Edge ..................................................................................................................................22 3.1. Test Equipment............................................................................................................................22 3.2. Test Setup ....................................................................................................................................23 3.3. Limits ..........................................................................................................................................24 3.4. Test Procedure .............................................................................................................................24 3.5. Uncertainty ..................................................................................................................................24 3.6. Test Result of Band Edge ............................................................................................................25 4. EMI Reduction Method During Compliance Testing ............................................................29 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 108430R-RFUSP44V01 Page: 4 of 31 1. GENERAL INFORMATION 1.1. EUT Description Product Name Wireless Remote Control Trade Name Model No. 881490 FCC ID X96881490 Frequency Range 2402~2480MHz Channel Control Auto Channel Separation 1MHz Antenna Type Printed on PCB Channel Number 79 Type of Modulation GFSK Antenna List No. Manufacturer Part No. Peak Gain 1 COMEUP N/A 0dBi for 2.4 GHz Note: The antenna of EUT is conform to FCC 15.203 Frequency of Each Channel Channel FrequencyChannel FrequencyChannel FrequencyChannel Frequency Channel 2: 2402 MHz Channel 23: 2423 MHz Channel 44: 2444 MHz Channel 65: 2465 MHz Channel 3: 2403 MHz Channel 24: 2424 MHz Channel 45: 2445 MHz Channel 66: 2466 MHz Channel 4: 2404 MHz Channel 25: 2425 MHz Channel 46: 2446 MHz Channel 67: 2467 MHz Channel 5: 2405 MHz Channel 26: 2426 MHz Channel 47: 2447 MHz Channel 68: 2468 MHz Channel 6: 2406 MHz Channel 27: 2427 MHz Channel 48: 2448 MHz Channel 69: 2469 MHz Channel 7: 2407 MHz Channel 28: 2428 MHz Channel 49: 2449 MHz Channel 70: 2470 MHz Channel 8: 2408 MHz Channel 29: 2429 MHz Channel 50: 2450 MHz Channel 71: 2471 MHz Channel 9: 2409 MHz Channel 30: 2430 MHz Channel 51: 2451 MHz Channel 72: 2472 MHz Channel 10: …
