XBAZW069Smart Strip Gen5,Strip Gen5

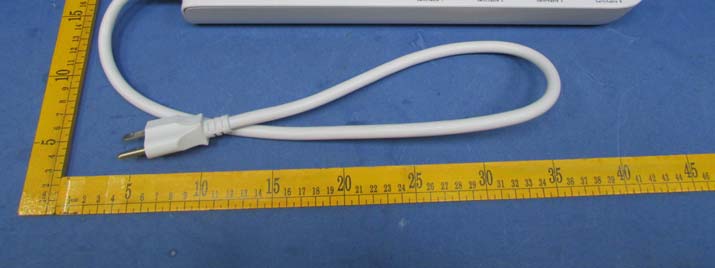

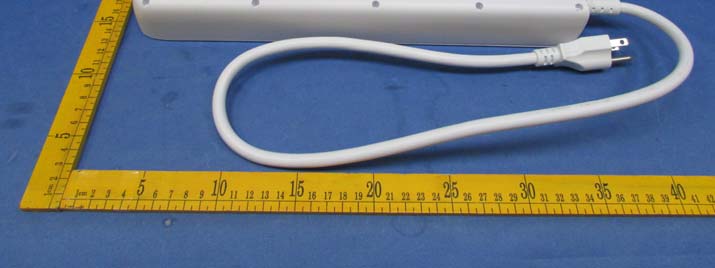

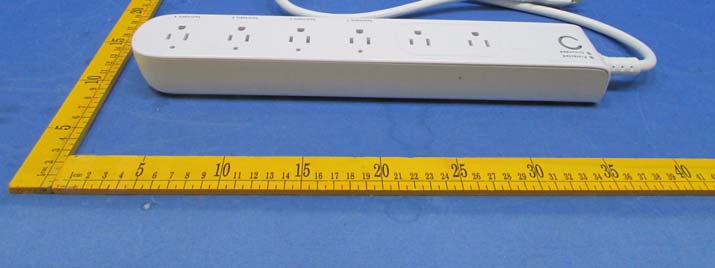

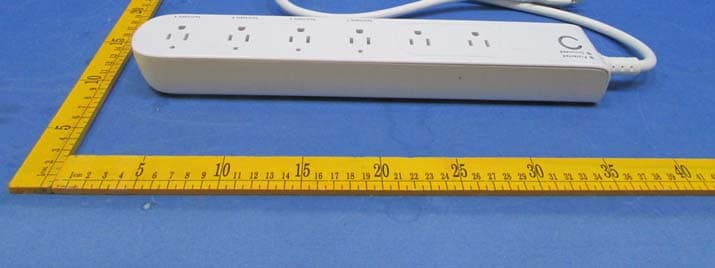

Smart Strip Gen5 http://aeot.ec/spprt/strip View the expanded manual: Electric power strip is widely used in our everyday lives, normal power strips have a shortage of consume some more extra energy, with the development of technology, and as time going these strips are gradually out of style, become unable to meet peoples' requirement any more. Aeon Labs developed a specific strip--Smart Strip, w h i c h c o u l d b e p r o g r a m m e d , s c h e d u l e d , controlled and communicated with controllers from anywhere in the world. Aeotec by Aeon Labs Smart Strip Familiarise yourself with your Smar t Strip Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices. Quick Star t The following instructions describe how to install Smart Strip to Z-Wave network with Aeotec's Z-Stick or Minimote controllers. If using other products as main Z-Wave controller, please refer to relevant unit of its manuals that for how to adding new devices to your z-wave network. Action Button Action Button If you’re using a Z-Stick: Its main light will begin to blink. If your Z-Stick is plugged into a gateway or a computer, unplug it. Bring your Z-Stick near the Smart Strip. Press the Action Button on the Z-Stick. Press the Z-Wave Button on the Smart Strip. I f t h e S m a r t S t r i p h a s b e e n s u c c e s s f u l l y included to your network, its light will no longer blink, otherwise as unsuccessful, and the light will continue to blink. Press the Action Button on the Z-Stick to take it out of installation mode. 1. 2. 3. 4. 5. 6. 7. If you’re using a Minimote: Its main light will begin to blink. Bring Minimote near the Smart Strip. Press the Include button on the Minimote. Press the Z-Wave Button on the Smart Strip. If the Smart Strip has been successfully included to the Z-Wave network, its light will no longer blink. Otherwise should be unsuccessful the light will blink continuously. Press any button on Minimote to get it out of installation mode. 1. 2. 3. 4. 5. 6. Include The Smart Strip can be removed from Z-Wave network at any time. You'll need to use a Z-Wave network's main controller to do this. The following instructions describe how to do this using Aeotec's Z-Stick and Minimote controllers. If you are using other products as main Z-Wave controller, please refer to the part of their respective manuals that tells you how to remove devices from Z-Wave network. Advanced Functions Monitoring your energy usage The Smart Strip could report the energy use of whatever it is plugged, to the associated Z-Wave gateway or controller within a Z-Wave network. the switch can report wattage value or kilowatt-hour (kWh) value. With the main controller supports, the energy c o n s u m p t i o n w i l l b e d i s p l a y e d w i t h i n i t s corresponding interface. Please refer to the manual of your main controller for more detailed information and instructions on monitoring, accessing and interpreting the data collected by the Smart Strip. If you’re using a Z-Stick: If your Z-Stick is plugged into a gateway or a computer, unplug it. Bring Z-Stick near the Smart Strip. Press the Action Button on your Z-Stick. Press the Z-Wave Button on your Smart Strip. If the Smart Strip has been successfully removed from Z-Wave network, its light will blink, otherwise the removal was unsuccessful its light will not blink. Press the Action Button on the Z-Stick to take it out of removal mode. 1. 2. 3. 4. 5. 6. If you’re using a Minimote: Bring the Minimote near the Smart Strip. Press the Remove Button on the Minimote. Press the Z-Wave Button on the Smart Strip. If the Smart Strip has been successfully removed from network, its light will blink. Otherwise the removal was unsuccessful and its light will not blink. Press any button on your Minimote to take it out of removal mode. 1. 2. 3. 4. 5. Remove Now that the Smart Strip is up and running, you are able to control the strip with the Minimote(Remoter) or other compatible controllers in the Z-Wave network. You can also press the Z-Wave Button at the Smart Strip to turn the power on and off. To control other Z- Wave devices, please refer to the relevant part of their respective manuals. R em ovi ng your Str i p from a Z-Wave net wor k Switchable 1 Switchable 1 Switchable 2 Switchable 3 Switchable 4 Switchable 2 Switchable 3 Switchable 4 Protected: OFF RESET When either single socket or the total current exceed 10A,the load over current protection switch will automatically cut off the load. When resuming, need manually press the Over Current Protection Switch down to “RESET” position. Can measure the six sockets power capacity separately and each power consumption. C a n m e a s u r e t o t a l p o w e r c a p a c i t y a n d consumption of six sockets. Keep on, present Lighting protection function normally. Keep off, present the lighting protection invalid. Grounded: Keep on, grounding normally Keep off, grounding abnormally Action Button Action Button: Tap(short pressing), for include / exclude z-wave network. Hold for 20s, excluded and reset to factory default. Totally 6 sockets, two of them on open all time, the other 4 sockets can be controlled separately. Switchable 1Switchable 2 Switchable 3 Switchable 4 6 Technical Specifications Model number: ZW069-A02,ZW072-A02 Input: 125VAC 60Hz Output: 125VAC Max:15A Operating temperature: 0°C to 40°C Relative humidity: 8~80%. Operating distance: Up to 100 feet / 30 meters indoors and 300 feet / 100 meters outdoors www.aeotec.com Cer tifications (regional) Version:501001100001 A e o n L a b s w a r r a n t s t o t h e o r i g i n a l purchaser of Products that for the Warranty Period (as defined below), the Products will be free from material defects in materials and workmanship. The foregoing warranty i s s u b j e c t t o t h e p r o p e r i n s t a l l a t i o n, operation and maintenance of the Products in accordance with installation instructions and the operating manual supplied to Customer…
