XCNC210400CBCM3380Z D3.0 Wireless eMTA

1 U S E R ’ S M A N U A L DVW3213B BCM3380Z D3.0 Wireless eMTA 2 目錄 目錄目錄 目錄 1. Introduction ............................................................................................................................ 3 1.1 Scope ................................................................................................................................ 3 1.2 Function ............................................................................................................................ 3 2 Product Specification ................................................................................................................ 4 2.1 Hardware Specification ...................................................................................................... 4 3. Product Requirements ............................................................................................................. 5 3.1 Hardware Requirements .................................................................................................... 5 3.2 Hardware Architecture ...................................................................................................... 5 4 FCC Notice ................................................................................................................................ 7 3 Section One: Introduction 1. Introduction Project Name: BCM3380Z D3.0 Wireless eMTA. The typical use model for this embedded device is to allow the client device to be connected to an 802.11b/g/n 2x2 wireless network with infrastructure mode or to serve as an ad-hoc (peer-to-peer) data path. 1.1 Scope The Wireless BCM43224 is an available 11n solution in the 2.4GHz band, compatible with the IEEE 802.11b/g/n. The 802.11 g data rate provides for 54, 48, 36, 24, 18, 12, 9, 6Mbps, and 802.11b data rate provides for 11, 5.5, 2, 1Mbps. In addition, 11n provide MCS8~MCS15 for HT20 which PHY data rate up to 150Mbps; also provide MCS8~MCS15 for HT40 with data rate up to 300Mbps. 1.2 Function · RoHS and Green Compliant. · 802.11b/g/n 2x2 based on BCM43224. · PCI-E Half Mini Supported. · Module is powered by the host with a 3.3V +/- 10% supply (55mVpp ripple). · Module’s clock source is provided by the on board XTAL Oscillator of 20 MHz (+/- 10ppm). · JTAG connector will be provided for FA and debug. 4 2 Product Specification 2.1 Hardware Specification Wireless LAN Standards IEEE 802.11 b/g/n Operating Frequency 2400~2483.5MHz WLAN Data Rate 802.11g: 54Mbps with fall back of 48, 36, 24, 18, 12, 9, 6Mbps. 802.11b: 11Mbps with fall back rates of 5.5, 2, and1Mbps 11n: MCS8~MCS15 Transmitter Output Power Typical 15.5dBm(AV) for 11b Typical 15.5dBm(AV) for 11g Typical 14.5dBm(AV) for HT20 Typical 13.5dBm(AV) for HT40 Receiver Sensitivity Typical –65dBm for MCS15 (HT40) @ 10% PER Typical –67dBm for MCS14 (HT40) @ 10% PER Typical –68dBm for MCS13 (HT40) @ 10% PER Typical –71dBm for MCS12 (HT40) @ 10% PER Typical –73dBm for MCS11 (HT40) @ 10% PER Typical –76dBm for MCS10 (HT40) @ 10% PER Typical –79dBm for MCS9 (HT40) @ 10% PER Typical –82dBm for MCS8 (HT40) @ 10% PER Typical –70dBm for MCS15 (HT20) @ 10% PER Typical –72dBm for MCS14 (HT20) @ 10% PER Typical –73dBm for MCS13 (HT20) @ 10% PER Typical –76dBm for MCS12 (HT20) @ 10% PER Typical –79dBm for MCS11 (HT20) @ 10% PER Typical –82dBm for MCS10 (HT20) @ 10% PER Typical –83dBm for MCS9 (HT20) @ 10% PER Typical –85dBm for MCS8 (HT20) @ 10% PER Typical –74dBm for 54Mbps @ 10% PER Typical –76dBm for 48Mbps @ 10% PER Typical –86dBm for 18Mbps @ 10% PER Typical –89dBm for 6Mbps @ 10% PER Typical –89dBm for 11Mbps @ 8% PER Typical –94dBm for 1Mbps @ 8% PER 5 3. Product Requirements 3.1 Hardware Requirements Host Interface PCI-E 3.2 Hardware Architecture This specification describes an embedded 802.11b/g/n WiFi interface PCA ‘module’ for embedded device products. The module has two antennae. This module is powered from the host (3.3V) and interfaces to the host with PCIE-half signals. No switches, indicators or related user interface signals are provided on this module. An on-board 20 MHz XTAL is included. 6 I/O PIN DEFINE 7 4 FCC Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. I MPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operati…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1007C187 Page 2 of 4 1007C187 1007C187 Neutron Engineering Inc. Project No.: 1007C187 Page 2 of 4 1007C187 1007C187 Neutron Engineering Inc. Project No.: 1007C187 Page 3 of 4 1007C187 1007C187 Neutron Engineering Inc. Project No.: 1007C187 Page 3 of 4 1007C187 1007C187 Neutron Engineering Inc. Project No.: 1007C187 Page 4 of 4 1007C187 1007C187 Neutron Engineering Inc. Project No.: 1007C187 Page 4 of 4 1007C187 1007C187

Neutron Engineering Inc. Project No.: 1007C187 Page 2 of 4 1007C187 1007C187 Neutron Engineering Inc. Project No.: 1007C187 Page 2 of 4 1007C187 1007C187 Neutron Engineering Inc. Project No.: 1007C187 Page 3 of 4 1007C187 1007C187 Neutron Engineering Inc. Project No.: 1007C187 Page 3 of 4 1007C187 1007C187 Neutron Engineering Inc. Project No.: 1007C187 Page 4 of 4 1007C187 1007C187 Neutron Engineering Inc. Project No.: 1007C187 Page 4 of 4 1007C187 1007C187

1.1. Test Result of RF Exposure Evaluation . Product: BCM3380Z D3.0 Wireless eMTAExtension Cradle Test Item: RF Exposure Evaluation Data .Test Mode: Normal Operation 1.1.1. Antenna Gain Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Length (mm) 1 WHA YU C107-510708-A Metal PIFA U.FL 2.7 150mm 2 WHA YU C107-510709-AMetal PIFA U.FL 3.7 120mm 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: DSSS Test Date: Sep 6, 2010 Temperature:24°C Humidity: 60％ Modulation Standard: OFDM Test Date: Sep 6, 2010 Temperature:24°C Humidity: 60％ Channel Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2412 2.7 1.8621 21.5200 141.9058 0.052596 1 Complies 2437 2.7 1.8621 22.6800 182.3532 0.068699 1 Complies 2462 2.7 1.8621 21.0200 126.4736 0.046876 1 Complies Channel Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2412 2.7 1.8621 18.5600 71.7794 0.026604 1 Complies 2437 2.7 1.8621 18.7700 75.3356 0.027922 1 Complies 2462 2.7 1.8621 18.0200 63.3870 0.023494 1 Complies Modulation Standard: OFDM-20MHz (Total Ant.1+Ant.2) Test Date: Sep 6, 2010 Temperature:24°C Humidity: 60％ Channel Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2412 6.4 4.3652 20.94 124.1652 0.107882 1 Complies 2437 6.4 4.3652 21.35 136.4583 0.118563 1 Complies 2462 6.4 4.3652 21.30 134.8963 0.117206 1 Complies Modulation Standard: OFDM-40MHz (Total Ant.1+Ant.2) Test Date: Sep 6, 2010 Temperature:24°C Humidity: 60％ Channel Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2422 6.4 4.3652 21.42 138.6756 0.120490 1 Complies 2437 6.4 4.3652 21.50 141.2538 0.122730 1 Complies 2457 6.4 4.3652 21.28 134.2765 0.116668 1 Complies The MPE is calculated as 0.122730 mW/cm 2 < limit 1 mW/cm 2 . So, RF exposure limit warning or SAR test are not required. a For 2412~2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 2 of 115 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 3 of 115 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BETWEEN30 – 1000 MHZ) 22 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 5 . BANDWIDTH TEST 72 5.1 APPLIED PROCEDURES / LIMIT 72 5.1.1 MEASUREMENT INSTRUMENTS LIST 72 5.1.2 TEST PROCEDURE 72 5.1.3 DEVIATION FROM STANDARD 72 5.1.4 TEST SETUP 73 5.1.5 EUT OPERATION CONDITIONS 73 5.1.6 TEST RESULTS 74 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 4 of 115 Table of Contents Page 6 . PEAK OUTPUT POWER TEST 82 6.1 APPLIED PROCEDURES / LIMIT 82 6.1.1 MEASUREMENT INSTRUMENTS LIST 82 6.1.2 TEST PROCEDURE 82 6.1.3 DEVIATION FROM STANDARD 82 6.1.4 TEST SETUP 82 6.1.5 EUT OPERATION CONDITIONS 82 6.1.6 TEST RESULTS 83 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 88 7.1 APPLIED PROCEDURES / LIMIT 88 7.1.1 MEASUREMENT INSTRUMENTS LIST 88 7.1.2 TEST PROCEDURE 88 7.1.3 DEVIATION FROM STANDARD 88 7.1.4 TEST SETUP 88 7.1.5 EUT OPERATION CONDITIONS 88 7.1.6 TEST RESULTS 89 8 . POWER SPECTRAL DENSITY TEST 97 8.1 APPLIED PROCEDURES / LIMIT 97 8.1.1 MEASUREMENT INSTRUMENTS LIST 97 8.1.2 TEST PROCEDURE 97 8.1.3 DEVIATION FROM STANDARD 97 8.1.4 TEST SETUP 97 8.1.5 EUT OPERATION CONDITIONS 97 8.1.6 TEST RESULTS 98 9 . RF EXPOSURE TEST 110 9.1 APPLIED PROCEDURES / LIMIT 110 9.1.1 MPE CALCULATION METHOD 110 9.1.2 DEVIATION FROM STANDARD 110 9.1.3 EUT OPERATION CONDITIONS 110 9.1.4 TEST RESULTS 111 10 . EUT TEST PHOTO 113 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 5 of 115 1. CERTIFICATION E q u i p m e n t : BCM3380Z D3.0 Wireless eMTA Brand Name : Ubee Model Name : DVW3213B A p p l i c a n t : Ubee Interactive Corp. Factory : 1. Hon Fu Jin Precision Industry (ShenZhen) Co., Ltd. 2. Ambit Microsystems (Shanghai) Ltd. Address : 1. No.2, 2 nd Donghuan Road, 10 th Yousong Industrial District, Longhua Town, Baoan,Shenzhen, Guang Dong, China 2. No.1925, Nanle Road Songjiang Export Processing Zone, Shanghai Chia, Post code:201613 Baoan, Shenzhen, Guang Dong, China Date of Test : Jun. 21, 2010 ~ Sep. 02, 2010 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1007C187) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result included in this report is only for the Modular approval part of the product. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 6 of 115 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(d) Radiated Spurious Emission Limit:Table 15.209/15.205 PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 7 of 115 2.1 TEST FACILITY The test facilities used to collect the test data in this report is CB03/DG-C03 at the location of No.3,Jinshagang 1st Road, ShiXia, …

Text truncated - open the document above for the full version.

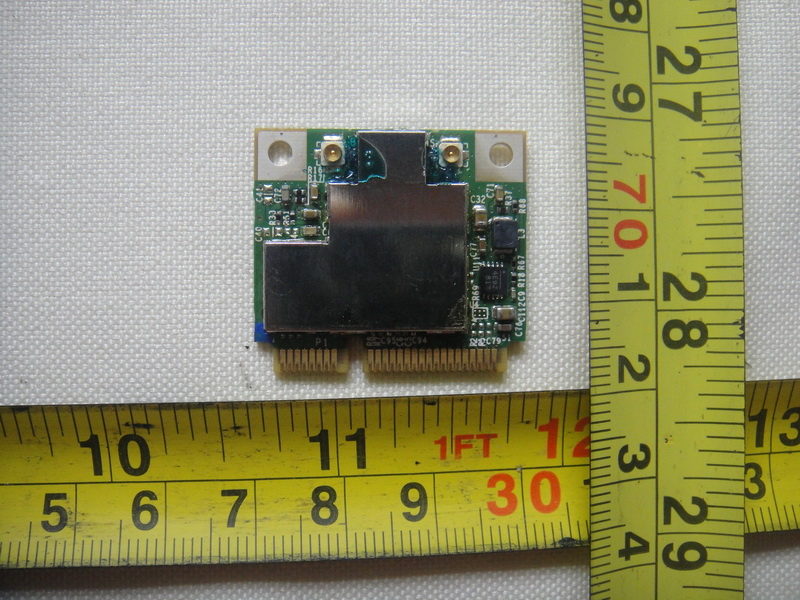

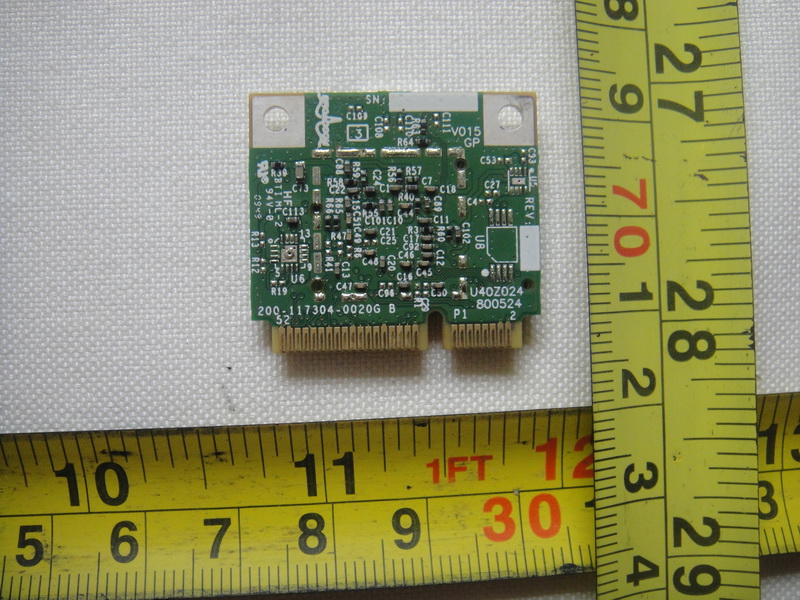

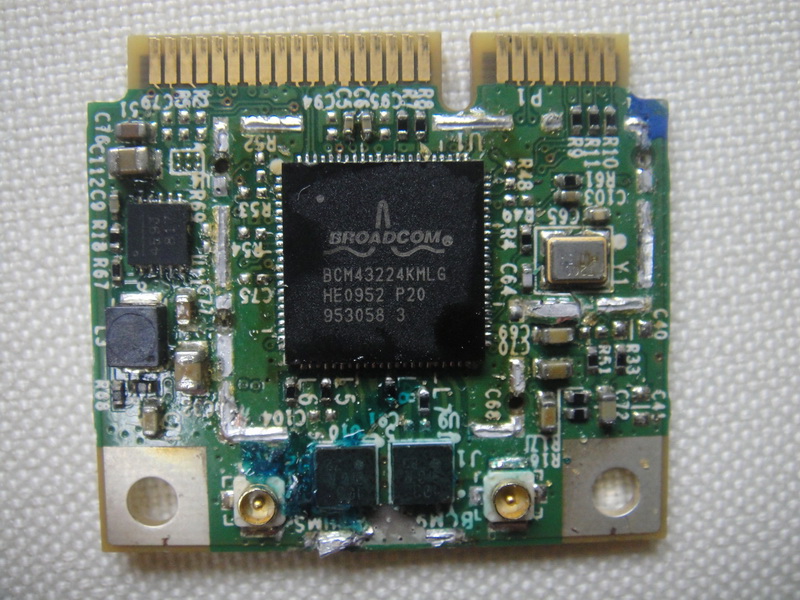

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 113 of 115 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 113 of 115 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 114 of 115 Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 114 of 115 Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1007C187 Page 115 of 115 Radiated Measurement Photos
