XCNUBN2315GPON IAD

www.ubeeinteractive.com GEN9 GPON WiFi 6E Model: UBN2315AA00 ‣ Federal Communication Commission (FCC) Interference Statement ‣ Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to p rov i d e re a s o n a b l e p ro te c t i o n a g a i n st h a r m f u l interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. a. FCC regulations restrict the operation of this device to indoor use only. b. The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. c. Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems.

UBN2315 GPON IAD Safety Manual • DECLARATION OF CONFORMITY UBN2315 Safety Manual • SAFETY NOTICES IMPORTANT: Read these instructions before using the device. • Do not use this device in a humid space, in the rain or near splashing water. • Do not install during thunder or lightning storms. • For operation within the 5.15~5.25GHz and 5.47~5.725GHz frequency ranges, this device is restricted to indoor environments. • Do not cover any ventilation openings in the device housing. • Do not place the device near heat sources such as radiators or stoves. • Clean the device with a clean, dry cloth. Do not use liquid or chemical cleaners. • Disconnecting the device: If the device becomes damaged or encounters some other abnormality, disconnect the power plug from the AC wall outlet immediately. • The device should be installed in a location not to exceed the maximum temperature of 40° Celsius (104° Fahrenheit). • Keep the device away from children and pets. • This equipment is not suitable for use in locations where children are likely to be present. • Do not modify or attempt to disassemble the device. Use it only according to the instructions. • Place the device on a cool surface. Failure to do so may result in overheating which can cause significant damage. • Product information is located on the bottom panel of the apparatus. • Do not dispose of the device in a trash container. Please recycle. • This product is intended to be supplied by a Listed Power Adapter or DC power source marked “L.P.S." (or "Limited Power Source"), rated 12 Vdc, 2.5 A minimum, Tma = 45 degree C minimum. If need further assistance, please contact HON LIN Technology Co., Ltd. for further information.” • Use only a Laser Class 1 optical transceiver: •CLASS 1 LASER PRODUCT & ”IEC 60825-1:2014” •Complies with FDA performance standards for laser products except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. •Caution – Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. UBN2315 Safety Manual • INSTALLATION INSTRUCTIONS 1.Plug one end of a fiber optic cable into the green PON (passive optical network) port on the rear panel of the device. The connector will “click” into place when properly installed. Plug the other end into the optical wall outlet. WARNING: Do not look directly into the optical cable end or directly into the PON port as eye injury may occur. 2.For telephone service, connect one end of another RJ-11 phone cable (not included) to one of the grey PHONE ports. Connect the other end of the cable to the RJ-11 port of an analog telephone. Note that voice service must be provisioned by your service provider. 3.Connect an Ethernet cable (not supplied) to one of the yellow LAN (Ethernet) ports on the back panel of the modem and connect the other end to the Ethernet port of a PC. Use a Category 5e or Category 6 Ethernet cable. A PC should be connected initially for device installation and configuration. 4.Connect the power adapter (supplied) to the POWER port. Connect the other end to a power outlet. 5.Turn the modem on by pressing the ON/OFF button the rear panel. Analog Phone RJ-11 Optical Outlet RJ-45 2 Computer Power Outlet ON/OFF FIBER 5 4 1 3

10F-1, No. 5, Taiyuan 1st St. Jhubei Ci, Hsinchu County 302, Taiwan Tel: +886-3-560-0010 Fax: +886-3-560-0017 Date: 2022-11-16 FCC ID: XCNUBN2315 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Lily Liu Director | Product Line Management Ubee Interactive Corp. Tel.: +886-3-560-0010 Ext.107 Fax: +886-3-560-0017 E-mail: [email protected]

10F-1, No. 5, Taiyuan 1st St. Jhubei Ci, Hsinchu County 302, Taiwan Tel: +886-3-560-0010 Fax: +886-3-560-0017 Date: 2022-11-16 FCC ID: XCNUBN2315 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization) in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Lily Liu Director | Product Line Management Ubee Interactive Corp. Tel.: +886-3-560-0010 Ext.107 Fax: +886-3-560-0017 E-mail: [email protected]

10F-1, No. 5, Taiyuan 1st St. Jhubei Ci, Hsinchu County 302, Taiwan Tel: +886-3-560-0010 Fax: +886-3-560-0017 Date: 2022-11-16 FCC ID: XCNUBN2315 A U T H O R I Z A T I O N L E T T E R To Whom It May Concern: Ubee Interactive Holding Corp. Taiwan Branch hereby authorizes Emerald Chen / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Emerald Chen / Specialist of BV CPS Taoyuan on Ubee Interactive Holding Corp. Taiwan Branch's behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Lily Liu Director | Product Line Management Ubee Interactive Corp. Tel.: +886-3-560-0010 Ext.107 Fax: +886-3-560-0017 E-mail: [email protected]

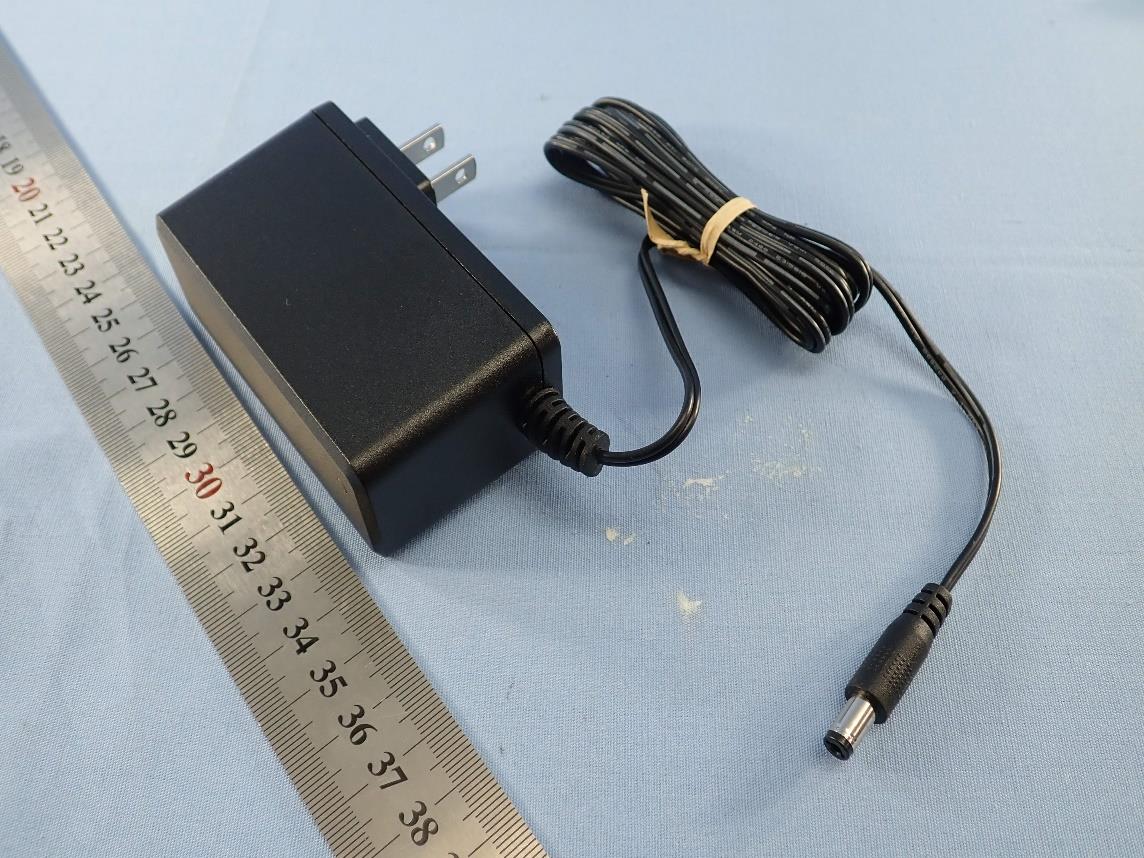

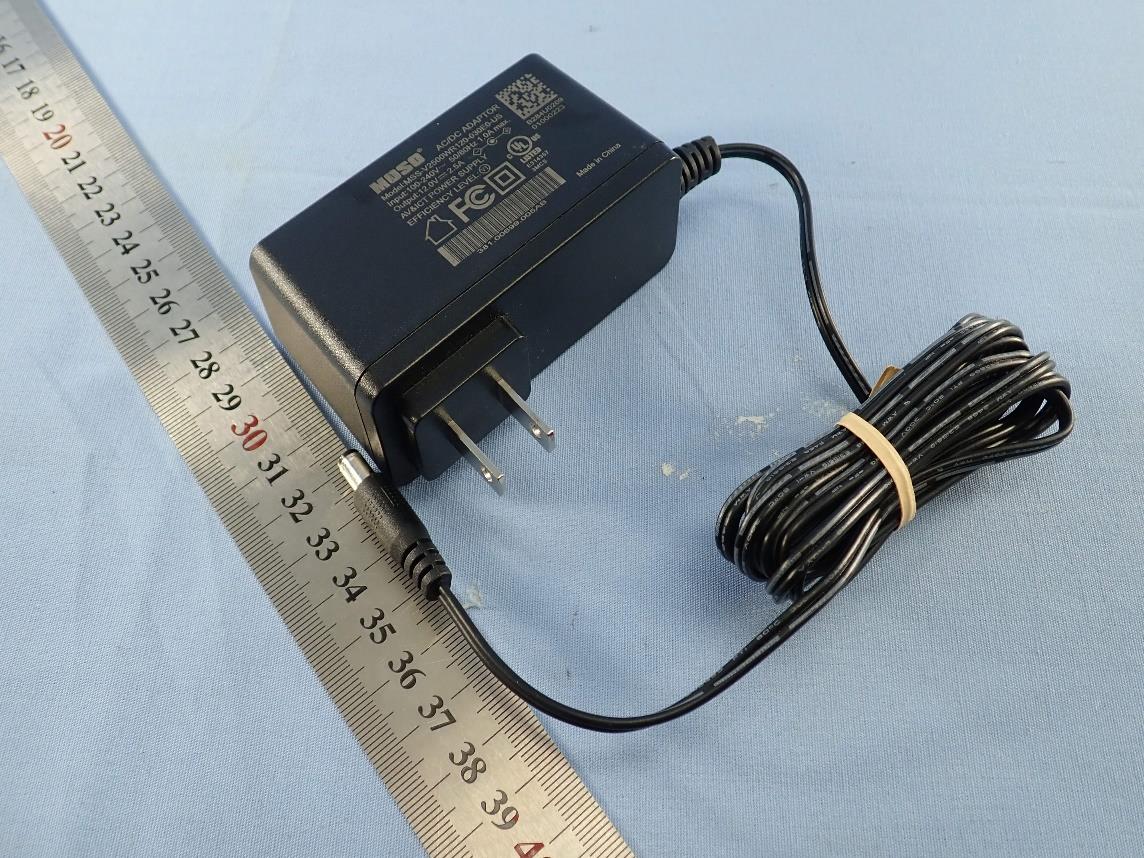

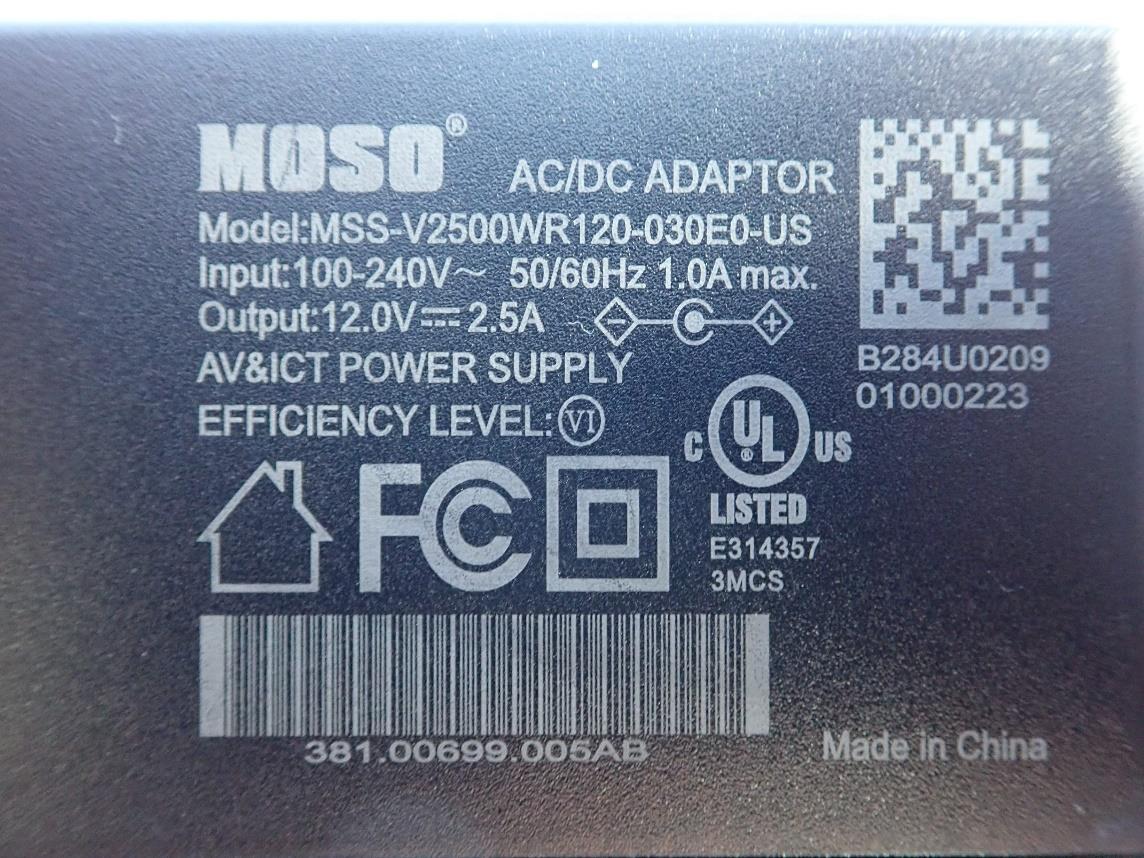

Reference No.:BHQC-WTW-P22070552_EXT Page 1/5 CONSTRUCTION PHOTOS OF EUT Reference No.:BHQC-WTW-P22070552_EXT Page 2/5 Reference No.:BHQC-WTW-P22070552_EXT Page 3/5 Reference No.:BHQC-WTW-P22070552_EXT Page 4/5 Adapter Reference No.:BHQC-WTW-P22070552_EXT Page 5/5

(Fig. 1) FCC ID: XCNUBN2315 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label (Fig. 1) FCC ID: XCNUBN2315

Reference No.:BHQC-WTW-P22070552_INT Page 1/18 CONSTRUCTION PHOTOS OF EUT Reference No.:BHQC-WTW-P22070552_INT Page 2/18 Reference No.:BHQC-WTW-P22070552_INT Page 3/18 Reference No.:BHQC-WTW-P22070552_INT Page 4/18 Reference No.:BHQC-WTW-P22070552_INT Page 5/18 Reference No.:BHQC-WTW-P22070552_INT Page 6/18 Reference No.:BHQC-WTW-P22070552_INT Page 7/18 Reference No.:BHQC-WTW-P22070552_INT Page 8/18 Reference No.:BHQC-WTW-P22070552_INT Page 9/18 Reference No.:BHQC-WTW-P22070552_INT Page 10/18 Antenna NO. 1 Reference No.:BHQC-WTW-P22070552_INT Page 11/18 Antenna NO. 2 Reference No.:BHQC-WTW-P22070552_INT Page 12/18 Antenna NO. 3 Reference No.:BHQC-WTW-P22070552_INT Page 13/18 Antenna NO. 4 Reference No.:BHQC-WTW-P22070552_INT Page 14/18 Antenna NO. 5 Reference No.:BHQC-WTW-P22070552_INT Page 15/18 Antenna NO. 6 Reference No.:BHQC-WTW-P22070552_INT Page 16/18 Antenna NO. 7 Reference No.:BHQC-WTW-P22070552_INT Page 17/18 Antenna NO. 8 Reference No.:BHQC-WTW-P22070552_INT Page 18/18

Report No.: MFBHQC-WTW-P22070552 Page No. 1 / 11 Report Format Version: 7.1.0 Reference No.: BHQC-WTW-P22070552 RF EXPOSURE REPORT CERTIFICATE OF CONFORMITY FCC Rule Part: FCC Part 2 (Section 2.1091) Report No.: MFBHQC-WTW-P22070552 FCC ID: XCNUBN2315 Product: GPON IAD Brand: Model No.: UBN2315 Received Date: 2022/7/28 Test Date: 2022/12/20 Issued Date: 2023/2/3 Applicant: Ubee Interactive Holding Corp. Taiwan Branch Address: 10F-1, No.5, Taiyuan 1st St. Jhubei Hsinchu, 302, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 Approved by: , Date: 2023/2/3 May Chen / Manager This test report consists of 11 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Vivian Huang / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBHQC-WTW-P22070552 Page No. 2 / 11 Report Format Version: 7.1.0 Reference No.: BHQC-WTW-P22070552 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Applicable RF Exposure Limit .................................................................................................................................. 5 2.1 RF Exposure ............................................................................................................................................................. 6 3 Test Results ................................................................................................................................................................ 8 3.1 RF Exposure ............................................................................................................................................................. 8 4 Conclusion ................................................................................................................................................................ 10 5 Information of the Testing Laboratories ................................................................................................................ 11 Report No.: MFBHQC-WTW-P22070552 Page No. 3 / 11 Report Format Version: 7.1.0 Reference No.: BHQC-WTW-P22070552 Release Control Record Issue No. Description Date Issued MFBHQC-WTW-P22070552 Original release. 2023/2/3 Report No.: MFBHQC-WTW-P22070552 Page No. 4 / 11 Report Format Version: 7.1.0 Reference No.: BHQC-WTW-P22070552 1 Certificate Product: GPON IAD Brand: Test Model: UBN2315 Sample Status: Mass product Applicant: Ubee Interactive Holding Corp. Taiwan Branch Test Date: 2022/12/20 FCC Rule Part: FCC Part 2 (Section 2.1091) Standard: KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Report No.: MFBHQC-WTW-P22070552 Page No. 5 / 11 Report Format Version: 7.1.0 Reference No.: BHQC-WTW-P22070552 2 Applicable RF Exposure Limit § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatialaverage SAR of 8 W/kg, aver…

Text truncated - open the document above for the full version.

NE3-22040 UBN2315 Antenna 2/5Gx2,5Gx2,WiFi6Ex4 Version: NE3-22040 Tested Date:2022/11/16 Tested By: Wei Reviewed By: Tim Cheng 1 2 Contents Revised History Conclusion & Comments Specification Antenna Placement & Solution Test Setup for S-parameter Measurement Return Loss Results Isolation Results Test Setup for Radiation Pattern Measurement 2D Radiation Pattern Results Results Summary (return loss, isolation, peak gain, efficiency ) 3 Revision History Released DateVersionRecord 2022/07/01V2.01Antenna Testing Report 2022/07/01V2.02Mainboard add 3 mm 2022/07/15V2.03Antennafine tune (mainboard add 3 mm) 2022/07/25V2.04DB1 and 5G2change position(mainboard add 3 mm) 2022/10/13V2.055G2& DB4 fine tune (S1) 2022/11/16V2.066G5~6G8changeconnector (MHF-4L Plug →MHF Plug) 4 Specification RF FunctionNumberof ANTFrequencyBandRemark DB22400 ~ 2500MHz &5050~5825MHz 5G25050~ 5825MHz 6G45925~ 7125MHz Requirements of Antenna Design Requirements of Measurement Test ItemSpecificationRemark Return Loss> 10dB Isolation> 25dB Peak gain2.4 GHz: <3.5 dBi(dual band); 5 GHz: <4 dBi(dual band); 5 GHz: <3.5 dBi(single band); 6GHz: <3.5 dBi(single band) Efficiency>70% RadiationpatternScale: +10 ~40dBi, Angle step size: 2 degree Cable Loss ANT#2G(dB)5G(dB)6G(dB)Cable length(mm) DB10.671.051.16215 5G20.661.051.16214 5G30.570.911.00185 DB40.350.550.61113 6G50.380.600.66122 6G60.230.360.3973 6G70.240.380.4278 6G80.580.921.01187 7 Antenna Placement & Solution Test Setup for S-parameter Measurement 8 EquipmentBrandModelS/N Network Analyzer KeysightE5071B MY42403554 9 DB1 (2400MHz – 2500MHz; 5050MHz –5825MHz) Return Loss Results 10 5G2 (5050MHz – 5825MHz) Return Loss Results 11 5G3 (5050MHz – 5825MHz) Return Loss Results 12 DB4 (2400MHz – 2500MHz; 5050MHz –5825MHz) Return Loss Results 13 6G5 (5925MHz – 7125MHz) Return Loss Results 14 6G6 (5925MHz – 7125MHz) Return Loss Results 15 6G7 (5925MHz – 7125MHz) Return Loss Results 16 6G8 (5925MHz – 7125MHz) Return Loss Results 17 Isolation Results DB1 18 Isolation Results 5G2 19 Isolation Results 5G3 20 Isolation Results DB4 21 Isolation Results WIFI6E 23 2D Radiation Pattern Results X Z Y X Y Z 24 2D Radiation Pattern Results X Z Y X Y Z 5G2 Y Z X Z Y X XY ⊗ 25 2D Radiation Pattern Results X Z Y X Y Z 5G3 Y Z X Z Y X 26 2D Radiation Pattern Results X Z Y X Y Z DB4 Y Z X Z Y X 27 2D Radiation Pattern Results X Z Y X Y Z 6G5 Y Z X Z Y X 28 2D Radiation Pattern Results X Z Y X Y Z 6G6 Y Z X Z Y X 29 2D Radiation Pattern Results X Z Y X Y Z 6G7 Y Z X Z Y X 30 2D Radiation Pattern Results X Z Y X Y Z 6G8 Y Z X Z Y X 31 Results Summary Return Loss Frequency (MHz)DB15G25G3DB4 2400 MHz 15.0--22.0 2450 MHz 14.0--25.9 2500 MHz 15.0--19.1 5050 MHz 29.611.416.612.0 5150 MHz 23.411.417.813.6 5350 MHz 17.818.224.919.0 5725 MHz 19.214.315.427.2 5825 MHz 17.415.213.930.8 32 Results Summary Return Loss Frequency (MHz)6G56G66G76G8 5925MHz 12.715.222.113.4 6125MHz 13.514.323.312.9 6325MHz 14.014.111.216.1 6525 MHz 14.815.819.222.4 6725 MHz 13.516.715.318.8 6925 MHz 13.215.416.218.7 7125 MHz 14.014.116.022.1 33 Results Summary DB1 to 5G2DB1 to 5G3DB1 to DB4DB1 to 6G5DB1 to 6G6DB1 to 6G7DB1 to 6G8 2400 MHz 35363129294640 2450 MHz 29353031274238 2500 MHz 27403733274043 5050MHz 42494632312757 5350 MHz 37404536292950 5725 MHz 51334432442858 5825 MHz 51355532442943 5925 MHz ---34372943 6125 MHz ---48403041 6325 MHz ---35543147 6725 MHz ---37413839 7125MHz ---34443338 Isolation 34 Results Summary 5G2 to 5G35G2 to DB45G2 to 6G55G2 to 6G65G2 to 6G75G2 to 6G8 2400 MHz -30---- 2450 MHz -32---- 2500 MHz -26---- 5050MHz 284343403034 5350 MHz 264440473734 5725 MHz 255138403532 5825 MHz 254845423033 5925 MHz --48482935 6125 MHz --36383248 6325 MHz --43413540 6725 MHz --35323034 7125MHz --39403034 Isolation 35 Results Summary 5G3 to DB45G3 to 6G55G3 to 6G65G3 to 6G75G3 to 6G8 2400 MHz 32---- 2450 MHz 36---- 2500 MHz 31---- 5050MHz 4134522727 5350 MHz 4137423231 5725 MHz 4432413127 5825 MHz 4241412827 5925 MHz -37392927 6125 MHz -38402727 6325 MHz -40372727 6725 MHz -52483030 7125MHz -56473129 Isolation 36 Results Summary DB4 to 6G5DB4 to 6G6DB4 to 6G7DB4 to 6G8 2400 MHz 47335535 2450 MHz 40365234 2500 MHz 35386335 5050MHz 56424733 5350 MHz 48414329 5725 MHz 54434130 5825 MHz 49414736 5925 MHz 46523647 6125 MHz 57454736 6325 MHz 56563932 6725 MHz 49494829 7125MHz 47465031 Isolation 37 Results Summary 6G5 to 6G66G5 to 6G76G5 to 6G86G6 to 6G76G6 to 6G86G7 to 6G8 2400 MHz ------ 2450 MHz ------ 2500 MHz ------ 5050MHz ------ 5350 MHz ------ 5725 MHz ------ 5825 MHz ------ 5925 MHz 353035353627 6125 MHz 322934353730 6325 MHz 293839443629 6725 MHz 335541374526 7125MHz 294538344528 Isolation 38 Results Summary Peak gain & Efficiency – DB1 Frequency (MHz)Peak Gain (dBi)Efficiency (%) 2400 MHz 3.571 2450 MHz 3.572 2500 MHz 2.672 5050 MHz 3.974 5150 MHz 3.974 5350 MHz 3.772 5725 MHz 3.973 5825 MHz 4.073 39 Results Summary Peak gain & Efficiency – 5G2 Frequency (MHz)Peak Gain (dBi)Efficiency (%) 5050 MHz 3.173 5150 MHz 3.371 5350 MHz 3.474 5725 MHz 3.271 5825 MHz 3.473 40 Results Summary Peak gain & Efficiency – 5G3 Frequency (MHz)Peak Gain (dBi)Efficiency (%) 5050 MHz 3.372 5150 MHz 3.471 5350 MHz 3.374 5725 MHz 3.371 5825 MHz 3.472 41 Results Summary Peak gain & Efficiency – DB4 Frequency (MHz)Peak Gain (dBi)Efficiency (%) 2400 MHz 3.275 2450 MHz 3.374 2500 MHz 3.374 5050 MHz 3.871 5150 MHz 3.372 5350 MHz 3.873 5725 MHz 3.575 5825 MHz 3.875 42 Results Summary Peak gain & Efficiency – 6G5 Frequency (MHz)Peak Gain (dBi)Efficiency (%) 5925 MHz 3.472 6125 MHz 3.371 6325 MHz 3.471 6525 MHz 3.570 6725 MHz 3.171 6925 MHz 3.470 7125 MHz 3.271 43 Results Summary Peak gain & Efficiency – 6G6 Frequency (MHz)Peak Gain (dBi)Efficiency (%) 5925 MHz 3.375 6125 MHz 3.371 6325 MHz 3.174 6525 MHz 3.271 6725 MHz 3.371 6925 MHz 3.170 7125 MHz 3.470 44 Results Summary Peak gain & Efficiency – 6G7 Frequency (MHz)Peak Gain (dBi)Efficiency (%) 5925 MHz 3.475 6125 MHz 3.371 6325 MHz 3.474 6525 MHz 3.270 6725 MHz 3.370 6925 MHz 3.172 7125 M…

Text truncated - open the document above for the full version.

Report No.: RFBHQC-WTW-P22070552-3 Page No. 1 / 180 Report Format Version:6.1.2 FCC Test Report Report No.: RFBHQC-WTW-P22070552-3 FCC ID: XCNUBN2315 Test Model: UBN2315 Received Date: 2022/7/28 Test Date: 2022/11/8 ~ 2022/12/19 Issued Date: 2023/2/3 Applicant: Ubee Interactive Holding Corp. Taiwan Branch Address: 10F-1, No.5, Taiyuan 1st St. Jhubei Hsinchu, 302, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kewi Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: RFBHQC-WTW-P22070552-3 Page No. 2 / 180 Report Format Version:6.1.2 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 9 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 14 3.4 Description of Support Units ............................................................................................................. 15 3.4.1 Configuration of System under Test .................................................................................................. 15 3.5 General Description of Applied Standards and References ............................................................. 16 4 Test Types and Results ...................................................................................................................... 17 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 17 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 17 4.1.2 Test Instruments ................................................................................................................................ 18 4.1.3 Test Procedures ................................................................................................................................. 19 4.1.4 Deviation from Test Standard ............................................................................................................ 20 4.1.5 Test Setup .......................................................................................................................................... 20 4.1.6 EUT Operating Conditions ................................................................................................................. 21 4.1.7 Test Results ....................................................................................................................................... 22 4.2 In-Band Emission (Mask) Measurement ........................................................................................... 76 4.2.1 Limits of In-Band Emission (Mask) Measurement ............................................................................. 76 4.2.2 Test Setup ...................................................................................…

Text truncated - open the document above for the full version.

Report No.: RFBHQC-WTW-P22070552-3 Page No. 146 / 180 Report Format Version:6.1.2 4.6 Peak Power Spectral Density Measurement 4.6.1 Limits of Peak Power Spectral Density Measurement 4.6.2 Test Setup 4.6.3 Test Instruments Refer to section 4.1.2 to get information of above instrument. Operation Band EUT Category Limit Peak Power Density (EIRP) U-NII-5 U-NII-6 U-NII-7 U-NII-8 Indoor AP 5 dBm/MHz 3m 1-4m Variable Turn Table EUT& Support Units Ground Plane Test Receiver 150cm Absorber Ant. Tower Report No.: RFBHQC-WTW-P22070552-3 Page No. 147 / 180 Report Format Version:6.1.2 4.6.4 Test Procedures a. The EUT was placed on the top of a rotating table 1.5 meters above the ground at 3 meter chamber room for test. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The height of antenna is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. Perform a field strength measurement and record the worse read value, is the field strength value via a spectrum reading obtained corrected for antenna factor, cable loss and pre-amplifier factor and then mathematically convert the measured field strength level to EIRP level. e. Follow ANSI 63.10 and KDB 412172 D01 v01r01, EIRP Value (dBm) = Field Strength Value (dBμV/m) + Correction Factor @ 3m. f. Correction Factor (dB) @ 3m =…

Text truncated - open the document above for the full version.
