Ubee Interactive — www.ubeeinteractive.com 1 Ubee DVW32H – Safety and Installation Product Insert v1.1 DVW32H Advanced Wireless Voice Gateway Safety and Installation Product Insert Federal Communications Commission (FCC) Interference Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Regulatory Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. There is one statement for this product: Ubee Interactive — www.ubeeinteractive.com 2 Ubee DVW32H – Safety and Installation Product Insert v1.1 • The device must carry a label stating “FCC ID: XCNDVW32H.” FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device. IEEE 802.11b or 802.11g operation of this device in the U.S.A. is firmware-limited to channels 1 through 11. FCC Radiation Exposure Statement: This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated at a minimum distance of 20cm between itself and your body. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Safety Notices Read these instructions carefully before operating the device. It is important to be aware of these safety instructions. Install the device according to these instructions and keep this guide for future reference. 1. Do not use this device in a humid space, in the rain, or near splashing water. 2. Do not install during thunder or lightening storms. 3. Do not cover any ventilation openings in the device case. 4. Do not place the device near heat sources such as radiators or stoves. 5. Clean the device only with a clean, dry cloth. Do not use liquid or chemical cleaners. 6. Avoid static discharge when touching Ubee Interactive — www.ubeeinteractive.com 3 Ubee DVW32H – Safety and Installation Product Insert v1.1 the device by first touching the coaxial connector of the coaxial cable. 7. Installation of the device should include grounding the coaxial cable to the earth at the building entrance per ANSI/NFPA 70 and the National Electrical Code (NEC, in particular, Section 820.93, Grounding of the Outer Conductive Shield of a Coaxial Cable). 8. The device is designed for IT power systems with phase-to-phase voltage at 100-240V. 9. Disconnecting the Device: If the device becomes damaged or encounters some other abnormality, disconnect the power plug from the AC wall outlet immediately. 10. The device should be installed in a location not to exceed the maximum temperature of 40 degrees Celsius (104 degrees Fahrenheit). 11. When the device is placed upright with the aid of the stand, the stand must be fixed at a 90 degree angle to the device. Otherwise, the device will have the risk of tipping over. This is the recommended position for best Wi-Fi performance 12. Keep the device away from Children and Pets 13. Place the device on a cool surface. Failure to do so may result in overheating which can cause extreme damage. 14. Do not modify or attempt to disassemble the device. Use it only according to the instructions. 15. Do not dispose of the device in a trash container. Please recycle. Ubee Interactive — www.ubeeinteractive.com 4 Ubee DVW32H – Safety and Installation Product Insert v1.1 Installation To install this device, follow the procedures below and refer to the following page for a connection diagram. 1. Connect one end of a coaxial cable (not included) to the CABLE port on the device. Connect the other end to a cable splitter or the cable wall outlet. Be sure not to bend or over tighten the cables as this may strain the connector and cause damage. If you plan to connect the device and a television to the same cable wall outlet, you must use a cable line splitter (not included). 2. Connect one end of the supplied Ethernet cable to one of the LAN ports (LAN1 to LAN4) on the device. Connect the other end to the ETHERNET port (ETH1 to ETH4) on a PC. Note: Category 5e or Category 6 Ethernet cables with RJ45 connectors must be used when connecting Ethernet devices to the LAN ports. This ensures Gigabit Ethernet speeds (unless the computer does not support it). 3. Connect one end of an RJ11 phone cable to one of the TEL ports (TEL1 to TEL2) on the device (a port that has been provisioned for voice service as specified by the service provider). Connect the other end to the phone port of the telephone. Note: If voice service is not provisioned through the service provider, telephone service is not available. 4. Connect the power adapter to the POWER port on the device. Plug the other end of the power adapter into the AC wall outlet. Important: Use only the power adapter that is shipped with the device. Ubee Interac…

Text truncated - open the document above for the full version.

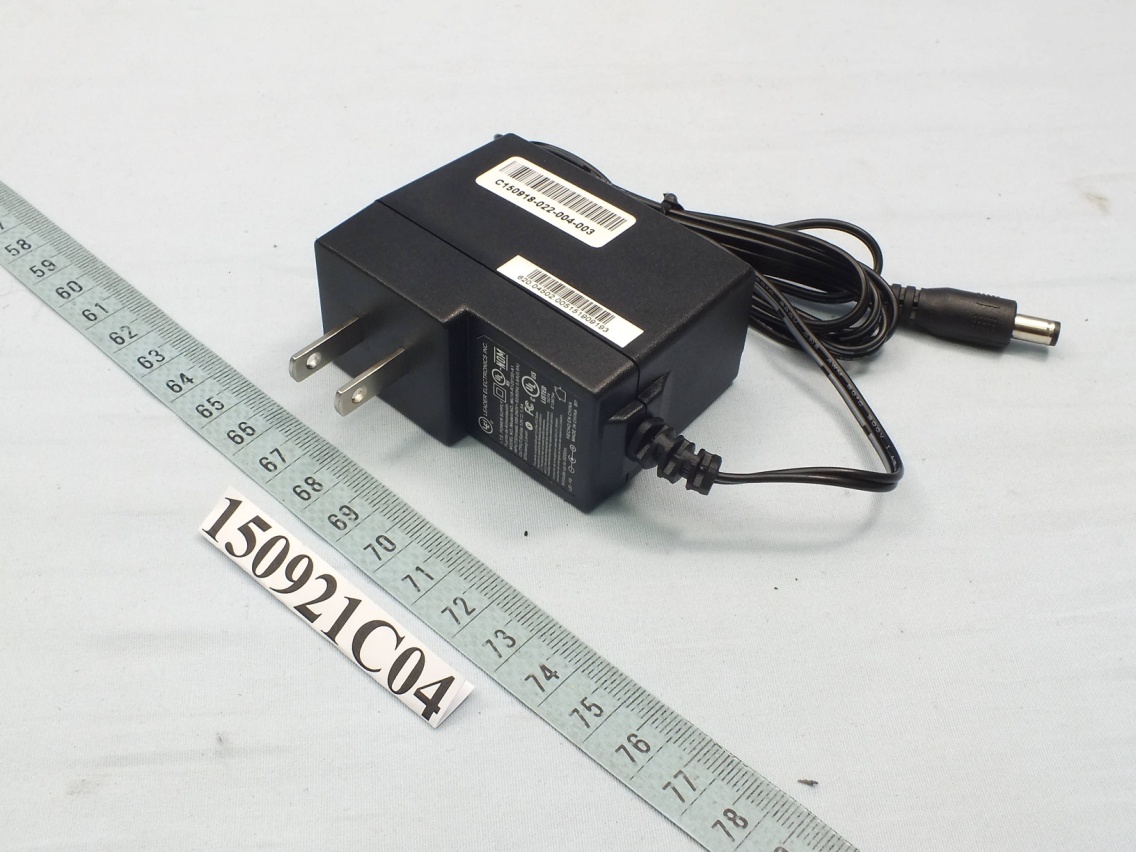

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

Page 1 Page 2 Page 3 Page 4 Page 5

FCC ID: XCNDVW32H Report No.: RF150921C04 Operational Description This device is a Wireless EMTA and WLCM, which operates in 2.4GHz bands; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc from AC adapter. The antenna is PCB antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA150921C04 Page No. 1 / 5 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA150921C04 FCC ID: XCNDVW32H Test Model: DVW32H Received Date: Sep. 21, 2015 Test Date: Oct. 02 ~ Oct. 08, 2015 Issued Date: Oct. 14, 2015 Applicant: Ubee Interactive Corp. Address: 10F-1, No. 5, Taiyuan 1st St. Jhubei Ci, Hsinchu County 302, Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. Lab Address: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN (R.O.C.) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA150921C04 Page No. 2 / 5 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result Of Maximum Conducted Power .......................................................................... 5 Report No.: SA150921C04 Page No. 3 / 5 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA150921C04 Original release. Oct. 14, 2015 Report No.: SA150921C04 Page No. 4 / 5 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Wireless EMTA and WLCM Brand: Ubee Test Model: DVW32H Sample Status: Engineering sample Applicant: Ubee Interactive Corp. Test Date: Oct. 02 ~ Oct. 08, 2015 Standards: FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date:Oct. 14, 2015 Suntee Liu / Specialist Approved by : , Date:Oct. 14, 2015 Ken Liu / Senior Manager Report No.: SA150921C04 Page No. 5 / 5 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 3 Calculation Result Of Maximum Conducted Power Frequency Band (MHz) Max Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 22.46 5.93 20 0.137 1 Note: Directional gain = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /N ANT ] = 5.93dBi ---END---
