XCNUBC1329DOCSIS 3.1 Advanced WiFi 6 Voice Gateway

UBC1329AA00 DOCSIS 3.1 Advanced WiFi 6 Voice Gateway Quick Installation Guide - Subscriber Model Name: UBC1329 www.ubeeinteractive.com UBC1329AA00 D3.1 WiFi 6 eMTA Quick Installation Guide Subscriber Grounding the Device: Install the cable modem to include grounding the coaxial cable to the earth as close as practical to the building entrance per ANSI/NFPA 70 and the National Electrical Code (NEC, in particular, Section 820.93, Grounding of the Outer Conductive Shield of a Coaxial Cable). The device is designed for IT power systems with phase-to-phase voltage at 120V. This unit requires a 100-240V, 50/60Hz power adapter. Power adapter must be keyed for proper polarization, and must be fully inserted to contact the back of the power connector port to ensure snug connection. Do NOT use any other power adapter. Disconnecting the Device: If the cable modem becomes damaged or encounters some other abnormality, disconnect the power plug from the AC wall outlet immediately. Temperature and Altitude: Install the device in a location not to exceed the maximum temperature of 104 Fahrenheit (40 Celsius). Regular operating altitude is 2000 m, and maximum operating altitude is 4500 m. • SAFETY NOTICES • PREPARING FOR INSTALLATION ✓ Locate the RF (coaxial) cable connector on the wall. ✓ Verify the power outlet is working and is wired correctly. Place your cable modem within a proper distance from the outlet. 2.Connect an Ethernet cable (supplied) to one of the Ethernet ports on the back panel of the modem and connect the other end to the Ethernet port of a PC. Use a Category 5e or Category 6 Ethernet cable with RJ-45 connectors to ensure Gigabit Ethernet speeds (when the computer supports it). 3.Connect an RJ-11 phone cable (not supplied) to the TEL1 port on the modem (when provisioned for voice service as specified by the service provider), and connect the other end to the phone port of the telephone. If voice service is not provisioned through the service provider, telephone service is not available. 4.Connect the power adapter (supplied) to the PWR (power) port. Connect the other end to a power outlet. 1 UBC1329AA00 RJ-45 RJ-11 Cable/RF Device must be installed vertically to obtain optimum wireless performance. Connect a PC or Ethernet enabled device (wireless switch or router). A PC should be connected for initial device installation and configuration. 2 1 3 4 1.Connect the coaxial cable (not supplied) to the CABLE connector on the rear panel of the modem and connect the other end to the cable wall outlet. Do not bend or over tighten the cables, as this may strain the connector and cause damage. To connect a modem and a television to the same wall outlet, you must use a cable line splitter (not included). • INSTALLING THE MODEM • DEVICE WALL MOUNT INSTRUCTIONS You can mount the UBC1329AA00 on a wall using the 2 mounting brackets on the side of the device. Two round or pan head screws are recommended. See the figure below for measurements. www.ubeeinteractive.com 2 LabelSize in Millimeters (mm) A6.65 +/- 0.35 B1.9 +/- 0.15 C19.0 +/- 1.2 D4 - 5 UBC1329AA00 Quick Installation Guide NOTE to CATV SYSTEM INSTALLER: This reminder is provided to call the CATV systems installer's attention to section 820-93 of the National Electric Code, which provides guidelines for proper grounding and in particular, specify that the Coaxial cable shield shall be connected to grounding system of the building, as close to the point of cable entry as practical. Note: The screws should protrude from the wall so you can fit the device between the head of the screws and the wall. If you install the screws in drywall, use hollow wall anchors to ensure the unit does not pull away from the wall due to prolonged strain from the cable and power connectors. 2.Mount the device on the wall. To mount the device on a wall: 1.Install the 2 screws horizontally on the wall 140 mm (5.5 inches apart. D 140mm (5.51 inches) • UNDERSTANDING DEVICE CONNECTIONS AND BUTTONS The rear and front panels of the UBC1329AA00 have the following connections and buttons: RESET: Use to reset the device. Take a small object like the end of a paper clip and insert it into the RESET opening. To power cycle the device, hold for less than 5 seconds. To reset to factory default settings, hold for more than 20 seconds. The UBC1329AA00 will reset and reboot. WARNING: Resetting factory defaults will erase ANY and ALL settings that you have made and will restore the device to factory default settings. ETHERNET 1-4: Use to connect to an Ethernet-enabled devices such as computers, gaming consoles or a wireless access point (LAN switch, router) using an RJ45 Ethernet cable. Each Ethernet port on the back panel of the device has two LEDs to indicate its status. See the LED Behavior section on the next page for details. CABLE: Use to connect to the coaxial cable from your Internet service provider. TEL1-TEL2: Use to connect analog telephones to the device. PWR: Use to connect to the power adapter. Plug the other end into the wall power outlet. BATT: Use to connect to an optional external battery. WPS: Located on the front panel of the device, it is used for the Wi-Fi Protected Setup (WPS) method to connect a PIN-protected Wi-Fi device to the cable modem. When a user pushes the WPS button or triggers WPS via Web UI, flashes for 4 minutes until PIN is entered from the wireless client. After a WiFi client attaches successfully, the LED remains on for 5 minutes, then turns off. • BASIC MODEM INFORMATION www.ubeeinteractive.com 3 UBC1329AA00 Quick Installation Guide Example of Cable RF MAC Address 00:71:CC:8E:54:C7 Firmware Version12.10.9303.15-r193.191.05 Compatibility DOCSIS 3.1/3.0/2.0/1.0 certified Ethernet 10/100/1000 Mbps Wireless 802.11a/b/g/n/ac/ax MoCA 2.0 Local Web User Interface Access http://192.168.100.1 or http://192.168.0.1 Modem Web Page Login (web user interface) Login: admin Password: Randomly generated string, 12 characters in length. Found on the device lab…

Text truncated - open the document above for the full version.

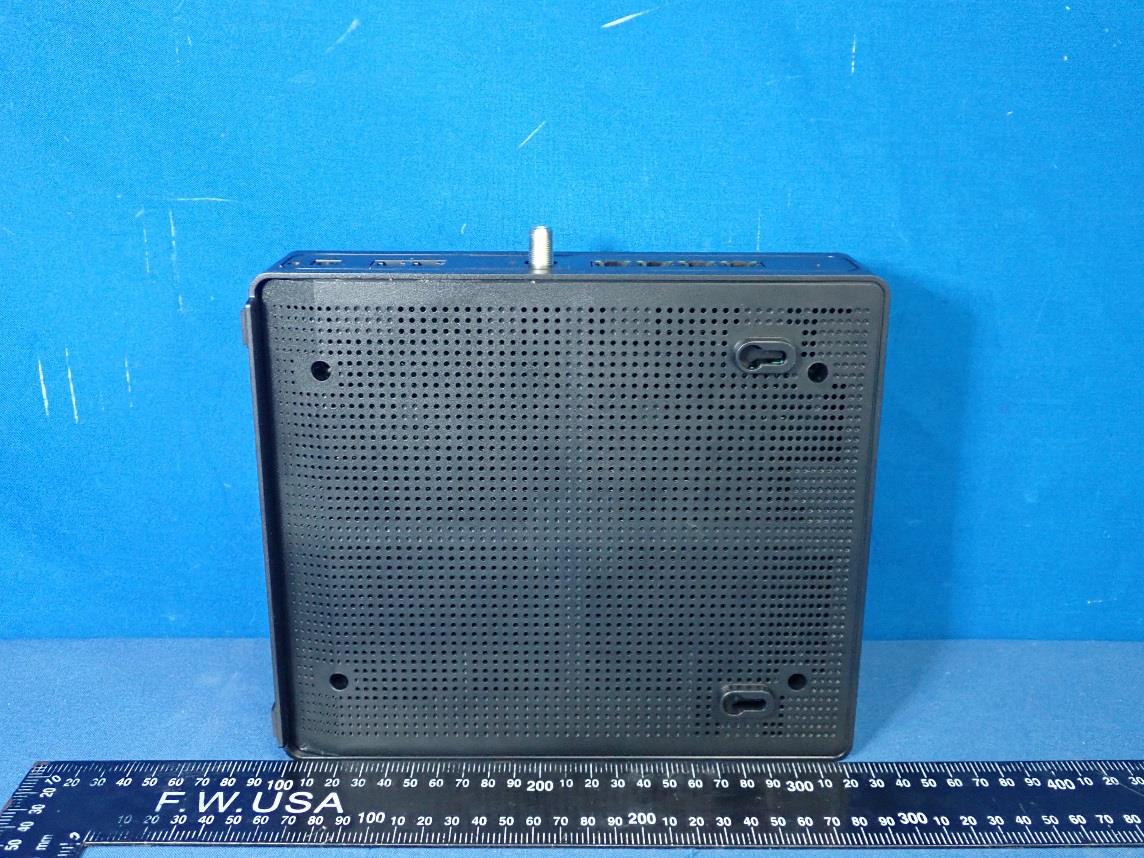

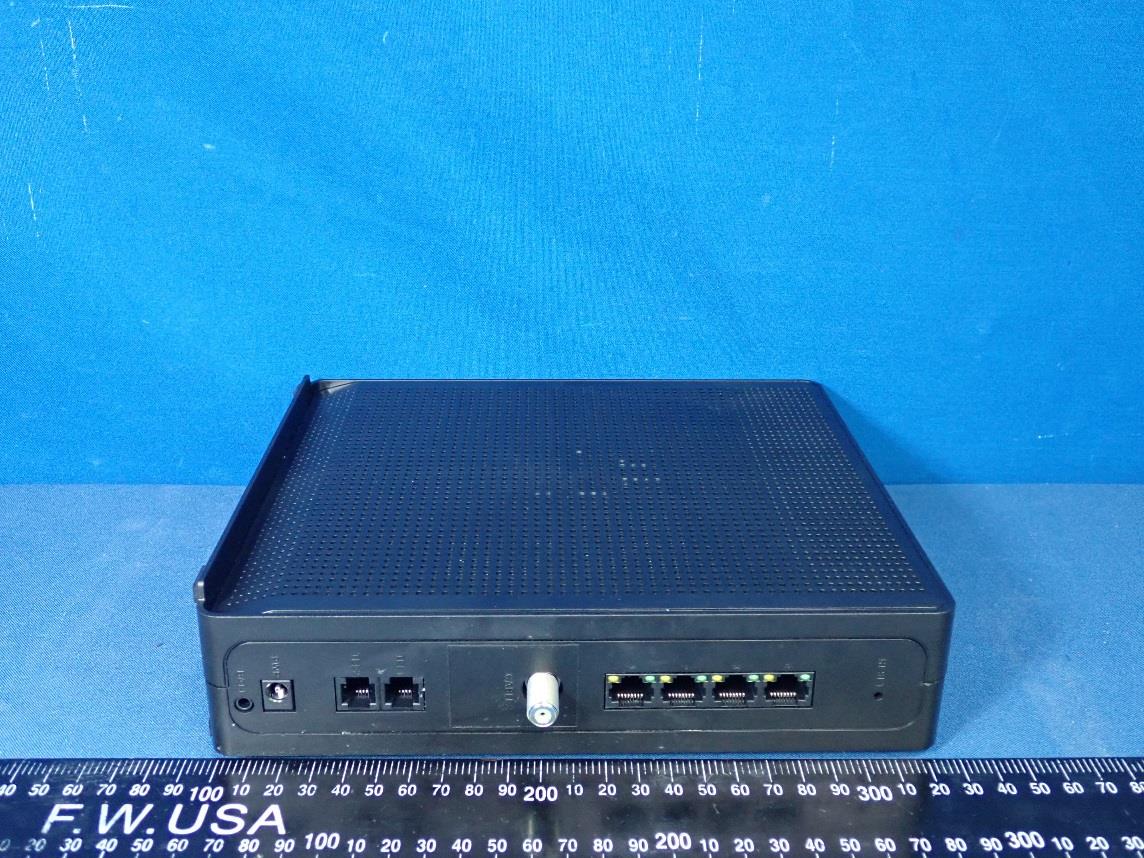

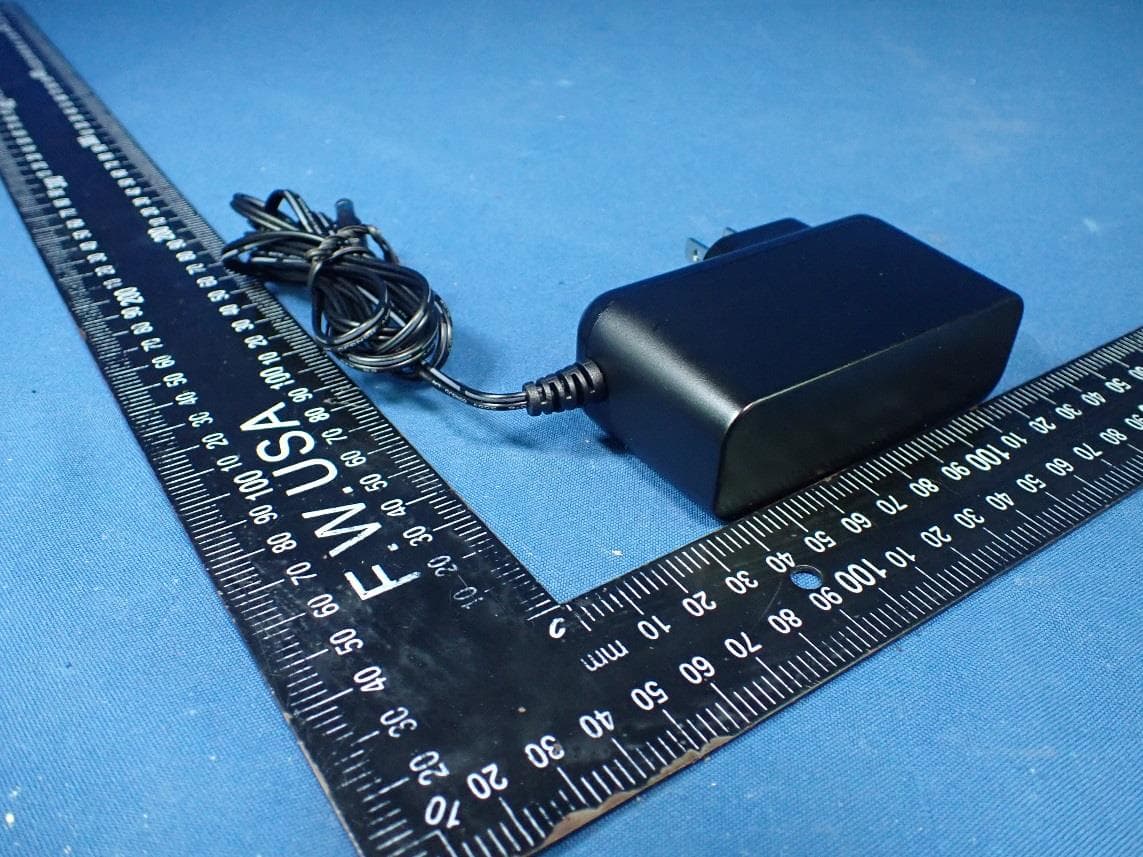

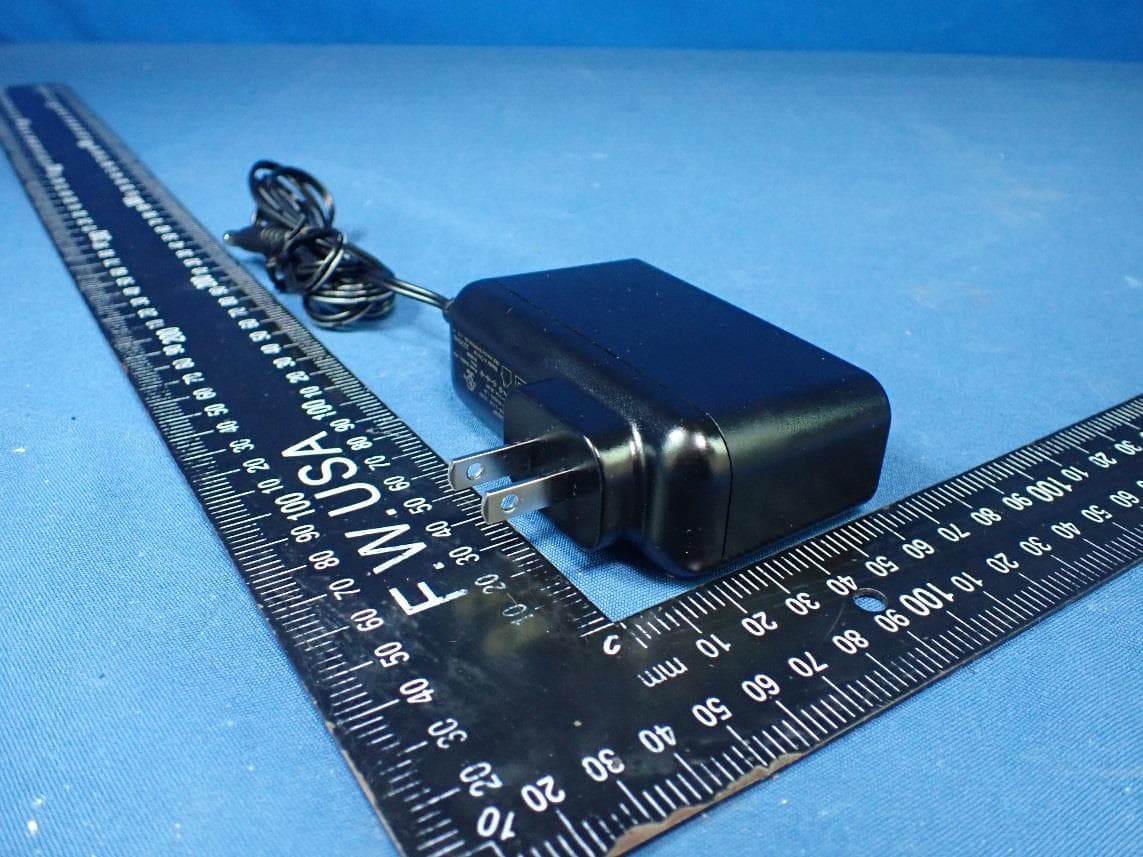

Reference No.: BEMV-WTW-P20070304-1 Page 1/5 CONSTRUCTION PHOTOS OF EUT Reference No.: BEMV-WTW-P20070304-1 Page 2/5 Reference No.: BEMV-WTW-P20070304-1 Page 3/5 Reference No.: BEMV-WTW-P20070304-1 Page 4/5 Reference No.: BEMV-WTW-P20070304-1 Page 5/5

(Fig. 1) FCC ID: XCNUBC1329 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

: 50#Mylar(matte) NOTES: 1. All of the barcode range and SN definition please refer to the test spec 7. Assembled in XXXXX (XXXXX:Country of Manufacture, base on the manufacture factory) 8. DC (Date Code), in MMDDYY format: MM ,DD,YY 4. Wi-Fi Pre-shared Key: XXXXXXXXXXXXXXXX NOTES: 1.Surface Material color:white 2.Printing color is as color defined in artwork 3.A dhesive:Acrylic 4.Adhesive thickness:0.025+/-0.003mm 5.Adhesion to steel(180 o ):1.8+/-0.3 kg/25mm boll 7.Relese Power(90 o 9. Shipment method: Roll 10.This part must comply with RoHS. 11.Test condition : 1.Soak alcohol(99.7%) at first trial and repeat to soak every 50 times 2.Push force:250g 3.Speed:30 times/min 4.Move back and forth 100 times,printing was not removed Vendor code 2. SSID: WIFIXXXXXX XXXXXX: the last 3 octets(6 digits) of the RF MAC address using only uppercase alpha-numeric characters with no punctuation. 3 . SSID: WIFIXXXXXX-5G XXXXXX: the last 3 octets(6 digits) of the RF MAC address using only uppercase alpha-numeric characters with no punctuation. Cable RF MAC Address=XXXXXXXXXXXX eMTA MAC Address=XXXXXXXXXXXX S/N=1234567YYYYYY Factory ID: U Assembled in XXXXX DC: MMDDYY WAN-MAN MAC Address=XXXXXXXXXXXX SSID: WIFIXXXXXX SSID: WIFIXXXXXX-5G Barcode Format: code 128, code B, Height: 3mm Font: Arial Regular 4pt Font: Arial Regular 4pt Model name: UBC1329 Font: Arial Regular 4pt FCC ID: XCNUBC1329 FCC ID: XCNUBC1329 16 characters,must be a randomly generated character string,created individually for each unit at time of manufacture (It must use only uppercase alpha-numeric characters,excluding the number "0" and "O", with no punctuation),Other alpha-numeric characters which may be confused, e.g. the number "8" and the letter "B", MAY also be excluded. This will be referred to as the random encryption scheme. GUI access URL: http://192.168.100.1 GUI user name: admin GUI password: XXXXXXXXXXXX 6.GUI user name admin GUI password: XXXXXXXXXXXX XXXXXXXXXXXX:12 characters,must be a randomly generated character string,created individually for each unit at time of manufacture.(It MUST be restricted to some combination of uppercase alphabetical letters, lowercase alphabetical letters, number characters, and printable special characters. 5.GUI access URL: http://192.168.100.1 Special characters for GUI password must be limited to: !,#,$,&,%,*. The following characters are not allowed: upper case O(oh),0(zero),lower case l(el),upper case I(eye), upper case Z,upper case S,upper case B.) Ubee P/N: UBC1329AA00 Wi-Fi Pre-shared Key: XXXXXXXXXXXXXXXX Foxconn P/N: U10C158.00 MO: xxxxxxxxxx-VVSS Foxconn P/N: U10C158.00,U10C158.00 is FOXCONN P/N, 10. MO: xxxxxxxxx is FOXCONN MO Number. Version: VVSS, VV: the engineering version(refer to Foxconn label Rev. column in the cover of the MFG document) SS: the version of A300/A400 product(refer to FDoc Rev. in the cover of MFG document) 9.

Report No.: SABEMV-WTW-P20070304 Page No. 1 / 7 Report Format Version: 6.1.1 Reference No.: RF Exposure Report Report No.: SABEMV-WTW-P20070304 FCC ID: XCNUBC1329 Test Model: UBC1329 Received Date: July 15, 2020 Test Date: July 26, 2020 Issued Date: Aug. 06, 2020 Applicant: Ubee Interactive Corp. Address: 10F-1, No. 5, Taiyuan 1st St. Jhubei Ci, Hsinchu County 302, Taiwan , R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SABEMV-WTW-P20070304 Page No. 2 / 7 Report Format Version: 6.1.1 Reference No.: Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 6 2.5 Calculation Result ............................................................................................................................... 7 Report No.: SABEMV-WTW-P20070304 Page No. 3 / 7 Report Format Version: 6.1.1 Reference No.: Release Control Record Issue No. Description Date Issued SABEMV-WTW-P20070304 Original release. Aug. 06, 2020 Report No.: SABEMV-WTW-P20070304 Page No. 4 / 7 Report Format Version: 6.1.1 Reference No.: 1 Certificate of Conformity Product: DOCSIS 3.1 Advanced WiFi 6 Voice Gateway Brand: Ubee Test Model: UBC1329 Sample Status: Mass product Applicant: Ubee Interactive Corp. Test Date: July 26, 2020 Standards: FCC Part 2 (Section 2.1091) IEEE C95.3 -2002 References Test Guidance: KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date: Aug. 06, 2020 Cherry Chuo / Specialist Approved by : , Date: Aug. 06, 2020 Clark Lin / Technical Manager Report No.: SABEMV-WTW-P20070304 Page No. 5 / 7 Report Format Version: 6.1.1 Reference No.: 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 35 cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SABEMV-WTW-P20070304 Page No. 6 / 7 Report Format Version: 6.1.1 Reference No.: 2.4 Antenna Gain Antenna NO. RF Chain NO. ex. Chain0/1 Frequency Range (GHz) Antenna Gain (dBi) Antenna Type Connector Type 1 2G Chain 0 / 5G Chain 2 2.4~2.4835 3.79 PCB i-pex(MHF) 5.15~5.25 1.61 5.725~5.85 1.01 2 5G Chain3 2.4~2.4835 NA PCB i-pex(MHF) 5.15~5.25 2.06 5.725~5.85 1.82 3 2G Chain 1 / 5G Chain 1 2.4~2.4835 3.07 PCB i-pex(MHF) 5.15~5.25 2.76 5.725~5.85 1.24 4 2G Chain 2 / 5G Chain 0 2.4~2.4835 3.5 PCB i-pex(MHF) 5.15~5.25 3.26 5.725~5.85 3.36 * The above Antenna informatio…

Text truncated - open the document above for the full version.

Report No.: RFBEMV-WTW-P20070304 Page No. 1 / 70 Report Format Version: 6.1.2 FCC Test Report Report No.: RFBEMV-WTW-P20070304 FCC ID: XCNUBC1329 Test Model: UBC1329 Received Date: July 15, 2020 Test Date: July 18 to 27, 2020 Issued Date: Aug. 06, 2020 Applicant: Ubee Interactive Corp. Address: 10F-1, No. 5, Taiyuan 1st St. Jhubei Ci, Hsinchu County 302, Taiwan , R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RFBEMV-WTW-P20070304 Page No. 2 / 70 Report Format Version: 6.1.2 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 13 3.4 Description of Support Units ............................................................................................................. 14 3.4.1 Configuration of System under Test .................................................................................................. 15 3.5 General Description of Applied Standards and References ............................................................. 16 4 Test Types and Results ...................................................................................................................... 17 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 17 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 17 4.1.2 Test Instruments ................................................................................................................................ 18 4.1.3 Test Procedures ................................................................................................................................. 20 4.1.4 Deviation from Test Standard ............................................................................................................ 21 4.1.5 Test Setup .......................................................................................................................................... 21 4.1.6 EUT Operating Conditions ................................................................................................................. 22 4.1.7 Test Results ....................................................................................................................................... 23 4.2 Conducted Emission Measurement .................................................................................................. 37 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 37 4.2.2 Test Instruments ................................................................................................................................ 37 4.2.3 Test Procedures ................................................................................................................................. 38 4.2.4 Deviation from Test Standard ...................................................................................................…

Text truncated - open the document above for the full version.

Report No.: RFBEMV-WTW-P20070304-2 Page No. 1 / 26 Report Format Version: 6.1.1 Reference No.: Supplemental “Transmit Simultaneously” Test Report Report No.: RFBEMV-WTW-P20070304-2 FCC ID: XCNUBC1329 Test Model: UBC1329 Received Date: July 15, 2020 Test Date: July 22 to 24, 2020 Issued Date: Aug. 06, 2020 Applicant: Ubee Interactive Corp. Address: 10F-1, No. 5, Taiyuan 1st St. Jhubei Ci, Hsinchu County 302, Taiwan , R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwa. Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan. FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RFBEMV-WTW-P20070304-2 Page No. 2 / 26 Report Format Version: 6.1.1 Reference No.: Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 Summary of Test Results ..................................................................................................................... 5 2.1 Measurement Uncertainty ................................................................................................................... 5 2.2 Modification Record ............................................................................................................................ 5 3 General Information .............................................................................................................................. 6 3.1 General Description of EUT ................................................................................................................ 6 3.1.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 8 3.2 Description of Support Units ............................................................................................................... 9 3.2.1 Configuration of System under Test .................................................................................................. 10 4 Test Types and Results ....................................................................................................................... 11 4.1 Radiated Emission and Bandedge Measurement .............................................................................. 11 4.1.1 Limits of Radiated Emission and Bandedge Measurement ............................................................... 11 4.1.2 Test Instruments ................................................................................................................................ 12 4.1.3 Test Procedures ................................................................................................................................. 13 4.1.4 Deviation from Test Standard ............................................................................................................ 13 4.1.5 Test Setup .......................................................................................................................................... 14 4.1.6 EUT Operating Conditions ................................................................................................................. 15 4.1.7 Test Results ....................................................................................................................................... 16 4.2 Conducted Emission Measurement .................................................................................................. 18 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 19 4.2.2 Test Instruments ................................................................................................................................ 19 4.2.3 Test Procedures ................................................................................................................................. 20 4.2.4 Deviation from Test Standard ............................................................................................................ 20 4.2.5 Test Setup .......................................................................................................................................... 20 4.2.6 EUT Operating Conditions ................................................................................................................. 20 4.2.7 Test Results .....…

Text truncated - open the document above for the full version.

Reference No.: BEMV-WTW-P20070304 Page No. 1 / 4 Reference No.: PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Reference No.: BEMV-WTW-P20070304 Page No. 2 / 4 Reference No.: RADIATED EMISSION TEST (Below 1GHz) Reference No.: BEMV-WTW-P20070304 Page No. 3 / 4 Reference No.: RADIATED EMISSION TEST (Above 1GHz) Reference No.: BEMV-WTW-P20070304 Page No. 4 / 4 Reference No.:
