XDY-VERSA-01GPS based tracking device with GSM and Globalstar modules

3/25/2013 GlobalTrak VERSA 203133-01 USER Manual The VERSA is a GlobalTrak product designed to allow for easy implementation of global tracking with versatile sensor capability. The version is designed to mount internally to the door of a shipping container. The mounting allows for an sensing mechanism to determine when the container doors are opened. The unit consists of sensors measuring environmental quantities and allowing for control and data collection from other external sensors. The control and data collection is available via various hard wired interfaces as well as wirelessly via Zigbee. Versa also contains sensitive GPS capabilities to allow for determination of location. This VERSA module contains communications links for GSM and GlobalStar Satellite communication. Finally, the power for the unit is self-contained and supplied by a robust battery. Charging circuits for this battery are also included to allow for externally power operation. Photos of the exterior and interior of the product are shown below. The only user accessible ports are the key switch which turns the unit on and off and a multi-pin connector for external power and user I/O. The bottom of the unit contains two magnets to attach it to a metal surface. One of the magnets has an electronic circuit inside which senses tamper events. Operation The Versa product is activated by turning the key in the key switch (see drawing below). Perpendicular to the long axis of the product is the OFF position and Parallel to the long axis is ON. Status of operations is indicated with the four LEDs (1-4 on drawing) located on the large top surface of the product. LED #1 indicates GSM activity, LED #2 indicates activity per blink code sequences, LED #3 indicates external battery charging, and LED #4 indicates USB connection engaged. Operation consists of activating via the key switch. The device will initialize all of the sensors (including GPS) and establish communications via cell in order to send a status report. If the cell in unavailable a satellite message will be sent. This operation is repeated on a programmable interval. Between reporting activities, the Versa unit places itself in a low power state to conserve battery life. If a sensor that is monitored reports a change greater than a programmed threshold, a special report will be sent immediately. Zigbee is processed by the EM357 as a parallel processor (coordinator). Zigbee will a establish communications with its own wireless network with preselected nodes and synchronize timing to allow both these nodes as well as the Versa Zigbee coordinator to enter a low power state between reporting activities. Communication is selected to be Cell or Satellite but not both. Zigbee communication is independent of the Cell and Satellite communication. GPS is active on an either a periodic basis (to collect location information for a report) or on a continuous basis. External sensors and power can be connected by wire using the external Versa connector. Details of the connector interface are shown below. Available are a USB and a RS-232 interface as well as a analog/digital port and several GPIO ports. Finally there is a regulated power (+3.3V) which is limited to 30 milliamps of current. Versa is designed to be mounted a metalized surface using the attached magnets. For proper operation of the satellite subsystem, the Versa unit must be mounted to allow the top surface to see the sky. The reports generated by the Versa device are sent via either Cell or Satellite to a internet site which is accessible by the user. This site is known as the Information Management Bureau (IMB). Life Expectancy (on a full charge): 16.8 Months at 24-hour reporting 42 Days at 30-minute reporting 21 Days at 15-minute reporting 7 Days at 5-minute reporting Sensors Temp: -40°C (-104°F) to +85°C (+185°F) Operating Light: Light detection on dual surfaces Vibration/Shock: 3-axis shock ±18, ±6, ±3 g/axis, constant monitoring Intrusion Detection: Advanced Sensor based on light, color, material Motion Detection: Integral Motion sensor (Start/Stop). Independent of accelerometer Mounting: Exterior Mount Regulatory Notices (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by GlobalTrak could void the FCC authorization to operate this equipment. This equipment complies with the FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and the human body. This transmitter must not be col-located or operating in conjunction with any other antenna or transmitter.

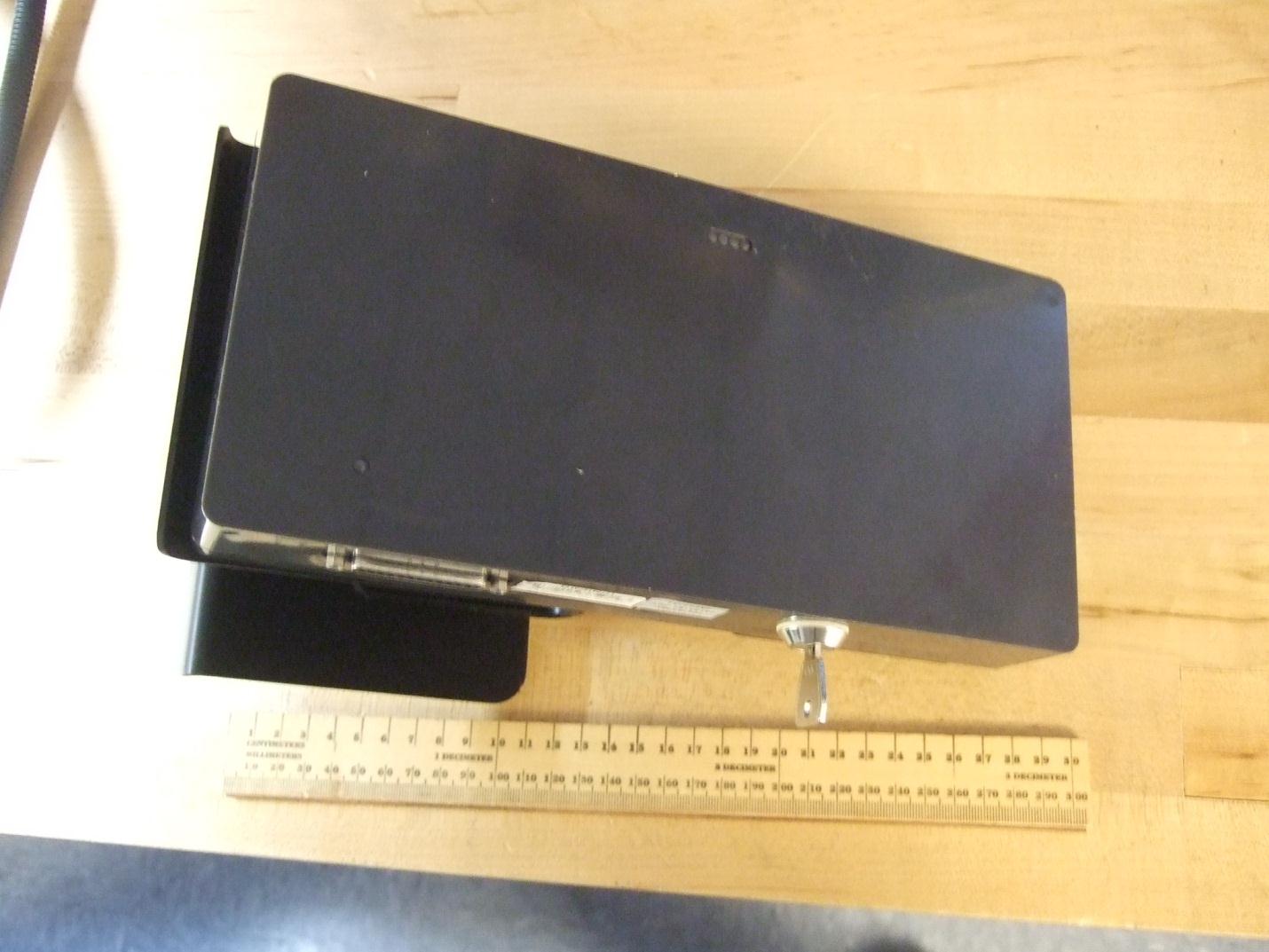

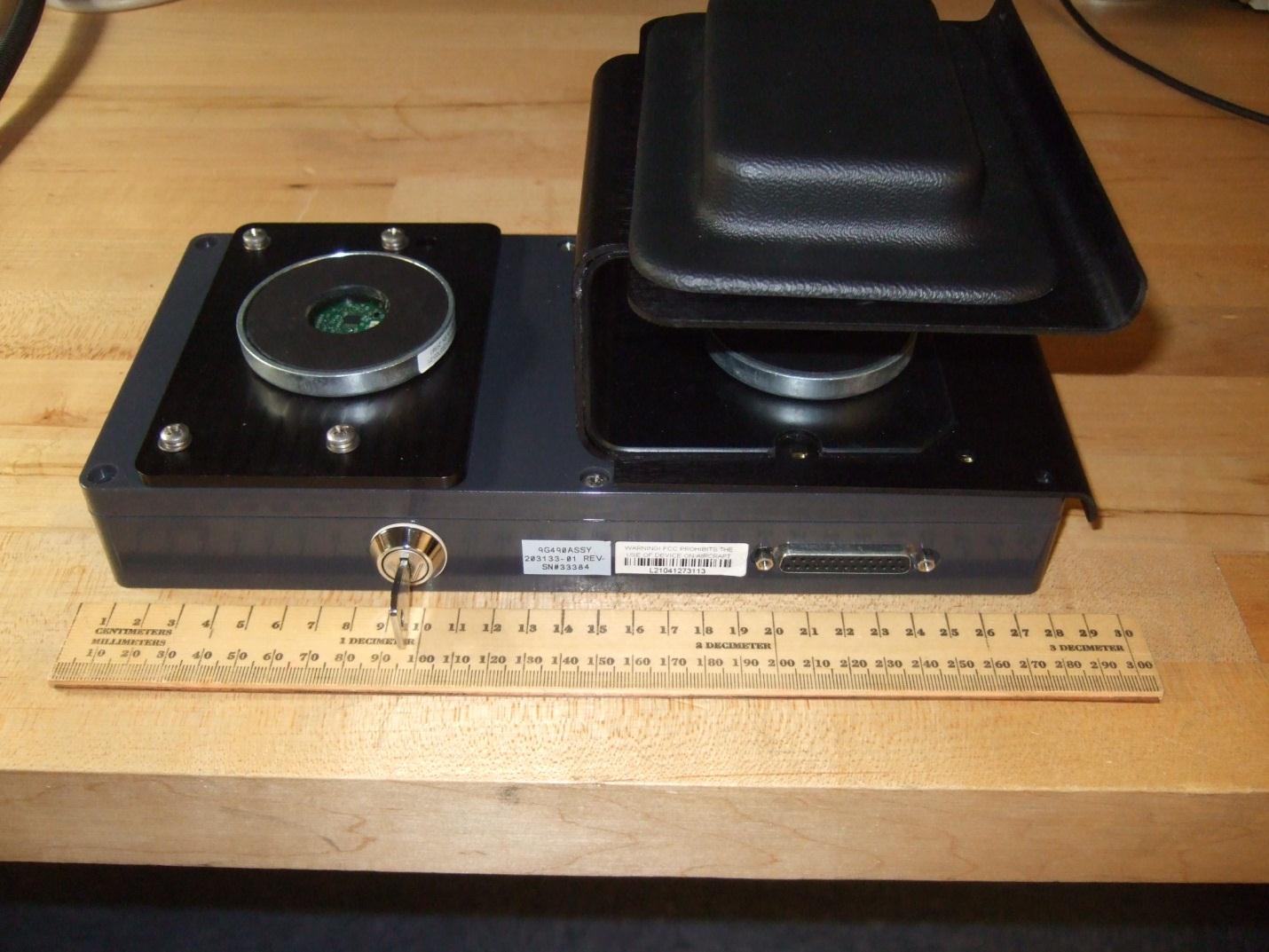

11/11/2012 VERSA 203133-01 External Photos

11/11/2012 VERSA 203100-01 Internal Photos

RF Exposure Evaluation Report FOR: Manufacturer: System Planning Corporation Model #: VERSA 203133-01 FCC ID: XDY-VERSA-01 References: 1. FCC OET Bulletin 65 Supplement 2. FCC CFR Part 1 (1.1307 &1.1310), Part 2 (2.1091) Test Report #: EMC_ SYSTE_004_11001_MPE FCC ID:XDY-VERSA-01 Date of Report : 2013-04-02 May 15 2012. Rev 2.0 Page 2 of 11 1 Administrative Data 1.1 Identification of the Testing Laboratory Issuing the Test Report Company Name: CETECOM Inc. Department: Compliance Address: 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Telephone: +1 (408) 586 6200 Fax: +1 (408) 586 6299 Test Lab Manager: Sajay Jose Test Engineer: Tunji Yusuf 1.2 Identification of the Client Client: System Planning Corporation Street Address: 3601 Wilson Blvd, Suite 500 City/Zip Code Arlington VA 22201 Country USA Contact Person: Ronald Martin Phone No. 703-351-8203 e-mail: [email protected] 1.3 Identification of the Manufacturer Same as Client. Test Report #: EMC_ SYSTE_004_11001_MPE FCC ID:XDY-VERSA-01 Date of Report : 2013-04-02 May 15 2012. Rev 2.0 Page 3 of 11 2 Equipment under Test (EUT) 2.1 Specification of the Equipment under Test Model No./Name: VERSA 203133-01 Product Description: Local Control for remote installations. HW Version/ SW Version : 203133 -05/ 7.45.1 (SV08) FCC ID: XDY-VERSA-01 Integrated Module(s) Info: Sierra Wireless Q2687 (FCC ID: N7NQ2687) Modular Satellite Transmitter STX2 (FCC ID: L2V-STX2-1) Supported Frequency Bands: GSM//GPRS/ EGPRS: 850/900/1800/1900 MHz DTS/ IEEE 802.15.4 (ZigBee): 2.405-2.480 GHz Satellite Transmitter: 1610-1625 MHz GPS: Rx only 1575 MHz Type(s) of Modulation: WWAN: GMSK, 8PSK DTS: O-QPSK SAT: BPSK Antenna Info: WWAN: Internal SMD Antenna Model: Taoglas PA.25a Manufacture reported peak gain (dBi): 0.9-1.8 (in frequency band 800-2200 MHz) DTS: Internal Ceramic Antenna Model: Johanson 2450AT18B100 Manufacturer reported peak gain (dBi):0.5 SAT: Internal Monopole Printed Trace Antenna Model: Spectrum Controls PA25-1615-025SA Manufacturer reported peak gain: 3 dBi Rated Operating Voltage (V DC): 3.6 Rated Operating Temperature Range: –40°C ~ +85°C Test Sample Status: Pre-Production Co-located Transmitters/ Antennas?  Yes: DTS may co-transmit with WWAN or Satellite radios  No Device Category:  Fixed Installation, Vehicular  Mobile  Portable Exposure Category:  Occupational/ Controlled General Population/ Uncontrolled Test Report #: EMC_ SYSTE_004_11001_MPE FCC ID:XDY-VERSA-01 Date of Report : 2013-04-02 May 15 2012. Rev 2.0 Page 4 of 11 3 Assessment This report serves as the Technical Information regarding RF Exposure evaluation of the below identified device according to the rules as stipulated in the documents listed under References above. The device meets the RF exposure limits, or - for some of it's radio functions / bands - the conditions for exemption from routine evaluation as defined in the referenced FCC and IC rule parts. Company Description Model # System Planning Corporation Local Control for remote installations. VERSA 203133-01 2013-04-02 Compliance Tunji Yusuf (EMC Engineer) Date Section Name Signature Test Report #: EMC_ SYSTE_004_11001_MPE FCC ID:XDY-VERSA-01 Date of Report : 2013-04-02 May 15 2012. Rev 2.0 Page 5 of 11 4 RF Exposure Evaluation Requirements 4.1 FCC: Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 1500 – 100.000 1.0 30 Using the equation from page 19 of OET Bulletin 65, Edition 97-01: 2 4R PG S   where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Additionally, according to § 2.1091: The limit for <1.5 GHz mobile operations where no routine evaluation is required is: 1.5W ERP The limit for >1.5 GHz mobile operations where no routine evaluation is required is: 3W ERP Test Report #: EMC_ SYSTE_004_11001_MPE FCC ID:XDY-VERSA-01 Date of Report : 2013-04-02 May 15 2012. Rev 2.0 Page 6 of 11 5 Measurement procedure: 5.1 Radiated power measurement- ERP/EIRP- 1. Connect the equipment as shown in the above diagram with the EUT’s antenna in center of the turn table. 2. Adjust the settings of the Digital Radio Communication Tester (DRT) to set the EUT to its maximum power at the required channel. 3. Set the spectrum analyzer to the channel frequency. Set the analyzer to measure peak hold with the required settings. 4. Rotate the EUT 360. Record the peak level in dBm (LVL). 5. Replace the EUT with a vertically polarized half wave dipole or known gain antenna. The center of the antenna should be at the same location as the center of the EUT’s antenna. 6. Connect the antenna to a signal generator with known output power and record the path loss in dB (LOSS). LOSS = Generator Output Power (dBm) – Analyzer reading (dBm). 7. Determine the ERP using the following equation: ERP (dBm) = LVL (dBm) + LOSS (dB) 8. Determine the EIRP using the following equation: EIRP (dBm) = ERP (dBm) + 2.14 (dB) 9. Measurements are to be performed with the EUT set to the low, middle and high channel of each frequency band. Measurement uncertainty: +/-3.0 dB (Note: Steps 5 and 6 above are performed prior to testing and LOSS is recorded by test software. Steps 3, 4, 7 and 8 above are performed with test software.) Anechoic Chamber Bilog or horn antenna Signaling EUT antenn…
