Thinkify, LLC The TR-200 Desktop RFID Reader Setup Guide and Protocol Reference DRAFT Version 0.8 DRAFT October 2010 The TR200 Desktop RFID ReaderDCN-TF-01009 -007 1 Legal Notices Legal Notices Copyright ©2010 Thinkify, LLC. All rights reserved. Thinkify LLC has intellectual property rights relating to technology embodied in the products described in this document, including without limitation certain patents or patent pending applications in the U.S. or other countries. This document and the products to which it pertains are distributed under licenses restricting their use, copying, distribution and decompilation. No part of this product documentation may be reproduced in any form or by any means without the prior written consent of Thinkify, LLC and its Licensors, if any. Third party software is copyrighted and licensed from Licensors. Thinkify, the Thinkify logo, Insight and other graphics, logos, and service names used in this document are trademarks of Thinkify, LLC in the U.S. and other countries. All other trademarks are the property of their respective owners. U.S. Government approval required when exporting the product described in this documentation. Federal Acquisitions: Commercial Software -- Government Users Subject to Standard License Terms and Conditions. U.S. Government: If this Software is being acquired by or on behalf of the U.S. Government or by a U.S. Government prime contractor or subcontractor (at any tier), then the Government's rights in the Software and accompanying documentation shall be only as set forth in this license; this is in accordance with 48 C.F.R. 227.7201 through 227.7202-4 (for Department of Defense (DoD) acquisitions) and with 48 C.F.R. 2.101 and 12.212 (for non-DoD acquisitions). DOCUMENTATION IS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARANTEES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR APARTICULAR PURPOSE OR NON-INFRINGMENT ARE HEREBY DISCLAIMED, EXCEPT TO THE EXTENT THATSUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID. Note Regarding RF Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm between the radiator (antenna) and your body. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. FCC Notice and Cautions Any changes or modifications to this device not expressly approved by Thinkify, LLC could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this The TR200 Desktop RFID ReaderDCN-TF-01009 -007 2 FCC Notice and Cautions device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. The TR200 Desktop RFID ReaderDCN-TF-01009 -007 3 About Thinkify, LLC About Thinkify, LLC Thinkify, LLC is a wireless technology company specializing in RFID hardware and software products. With 30 years of combined experience in RFID and over 35 patents in the field, our founding team is one of the technically strongest in the industry. Our focus is embedded RFID. -- Applications where we use RFID to enable common objects, devices and whole environments to become aware of the world around them. This capability can transform the way people and objects interact, blurring the line between the physical world and the virtual. Thinkify is a privately held company, located in Morgan Hill, California. We feel that partnerships should be healthy and that Engineering should be beautiful. Thinkify, LLC 18450 Technology Drive, Suite E Morgan Hill, CA 95037 Phone: 408.782.7111 FAX: 408.782.2111 Web: www.thinkifyit.com Thinkify – Making things think. (tm) The TR200 Desktop RFID ReaderDCN-TF-01009 -007 4 About Thinkify, LLC Table of Contents Legal Notices...............................................................................................................................2 Note Regarding RF Exposure.................................................................................................2 FCC Notice and Cautions.......................................................................................................2 About Thinkify, LLC.....................................................................................................................4 Introduction..................................................................................................................................7 Getting Started............................................................................................................................8 What's in the box?..................................................................................................................8 Hooking…

Text truncated - open the document above for the full version.

# Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia. MD 21046 t1/1U2010 Request for Confi dentiality Company name: Thinkify Product: TR 200 FCC Part 15 Certification Gentlemen, In accordance with 0.459 of CFR 47, Thinkify hereby requests confidentiality of all Block Diagrams, Circuit Diagrams, Frequency hopping algorithm, Operational Description and attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Thinkify considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve. Thinkify considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the marKet. Curt Carrender Thinkify 18450 Technology Drive Morgan Hill, Ca. 95037 cell 408-608-8795 office 408-782-7711 cuft@thinkifvit,com

Letter of Authonzation Thinkify 18450 Technology Drive Morgan Hill, Ca.95037 Product name: IDT T1000D Model Number: TR 200 We auth orize M|COM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. This shall include the following: Testing Approval applications and procedures Payment of approval fees We declare that MICOM Labs, 440 Boulder Court, Suite 240, Pleasanton, CA 94566, USA, is allowed to fonnrard all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MICOM Labs on our behalf shall have the same effect as acts of our own. Name: U*Carrarlt" Date: $^.?$-/C riue: 6eLU Signature of applicant Cu rt Ca rrender Th i n kify 18450 Technology Drive Morgan Hill, Ca. 95037 cell 408-608-8795 office 408-782-7LLI

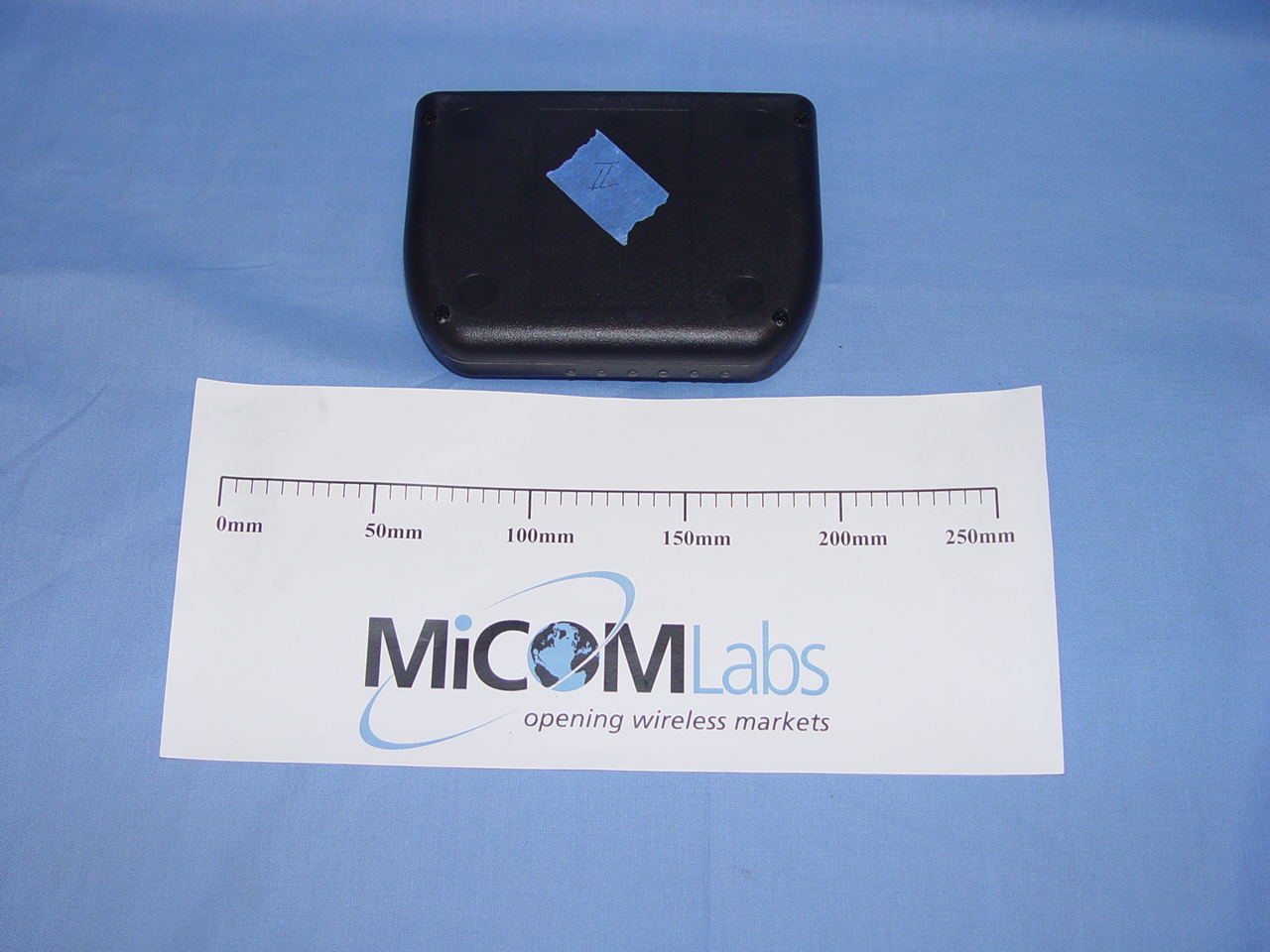

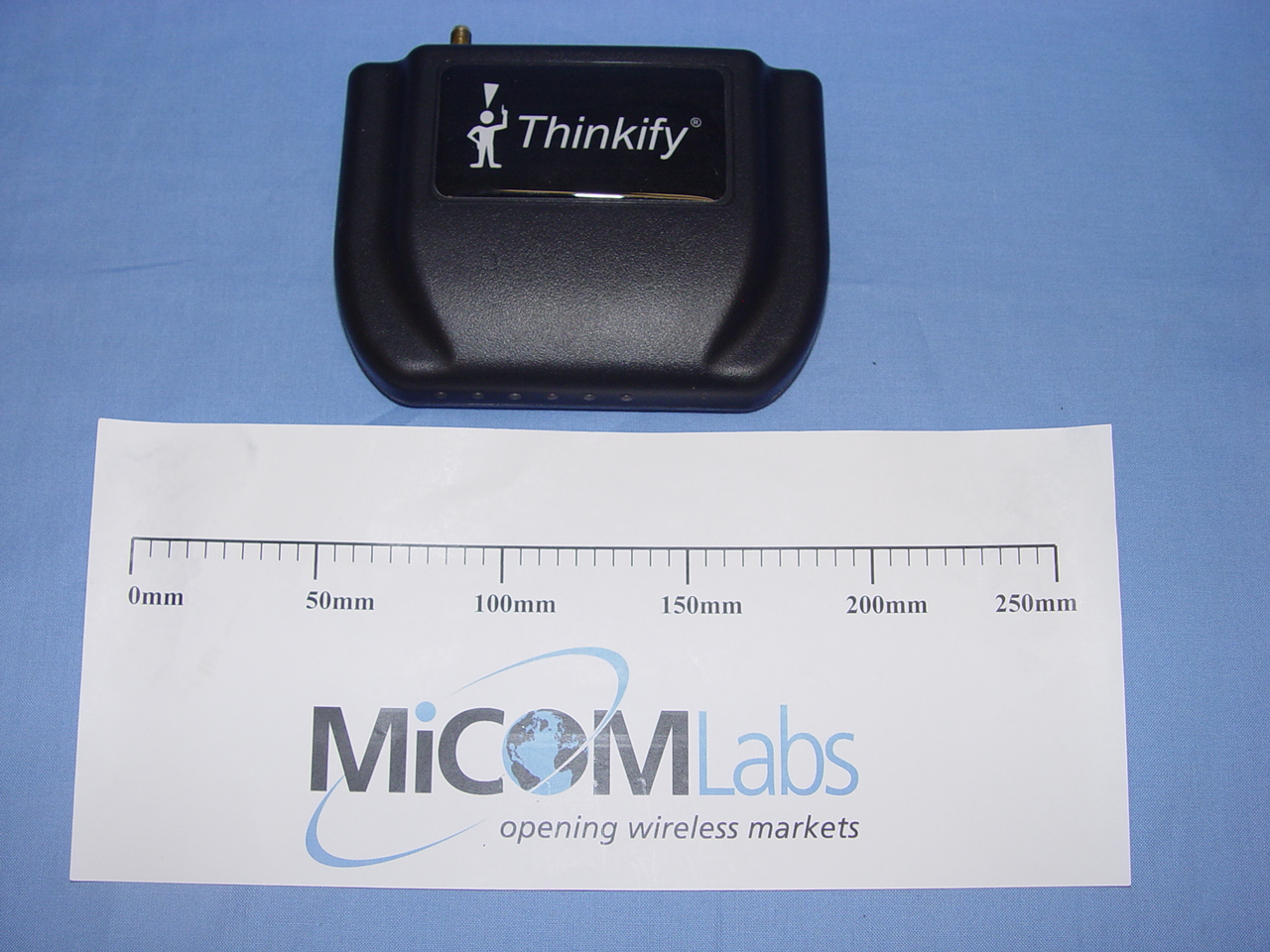

the wireless lab 4 October 2010 External Photographs TR 200 External Top View MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab External Bottom View Page 2 of 3 the wireless lab External Front View Page 3 of 3

Sheet1 Page 1 Thinkify, LLC 18450 Technology Drive, Suite E Morgan Hill, CA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: XE2TF4 www.thinkifyit.com

the wireless lab 5 October 2010 Internal Photographs TR 200 Internal View MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Internal View 2 Page 2 of 4 the wireless lab Main Assy Top Page 3 of 4 the wireless lab Main Assy bottom Page 4 of 4

Typical VSWR ™ ANT-916-CW-HWR-xxx DATA SHEET Product DimensionsDescription Features Electrical Specifications Ordering Information HWR Series 1/2-wave center-fed dipole antennas deliver outstanding performance in a rugged and cosmetically attractive package. The articulating base allows the antenna to tilt 90 degrees and rotate 360 degrees. The antenna's internal counterpoise eliminates external ground plane dependence and maximizes performance. HWR Series antennas attach via a standard SMA or Part 15 compliant RP-SMA connector. Custom colors and connectors are available for volume OEM customers. 5.59” (142.0) 1.02” (26.0) 0.32” (8.2) Electrical specifications and plots measured on 4.00” x 4.00” reference ground plane 0.39” (10.0) 4.57” (116.0) Polar Plot & Gain Information Antenna Factor159 Ort Lane Merlin, OR 97532 www.antennafactor.com 541-956-0931 (phone) 541-471-6251 (fax) Rev 07-26-10 •Internal counterpoise •Low cost •Tilts and rotates •Omni-directional pattern •Outstanding VSWR •Rugged & damage-resistant •Standard SMA or Part 15 compliant RP-SMA connector •Custom colors and terminations for volume OEMs •Internal O-ring seal on connector •Center Freq.916MHz •Recmd. Freq. Range 900-930MHz •Wavelength1/2-wave •VSWR<2.0 typ. at center •Impedance50 ohms •ConnectorRP-SMA or SMA •ANT-916-CW-HWR-RPS (with RP-SMA connector) •ANT-916-CW-HWR-SMA (with SMA connector) CENTER 916.000MHz SPAN 200.000MHz S11 SWR 1.282

Dockon CPL Antenna DATASHEET Dockon CPL Antenna Specifications Antenna type: 915MHz CPL Antenna P/N: ECA1C-915-RevU Frequency range: 882-948MHz Peak Gain: +3 dBi Impedance: 50 Ohm Radiation Pattern: Omnidirectional Polarization: Linear VSWR: < 2:1 [882-948MHz] Height: 3 inches (76.2mm) Width: 3 inches (76.2mm) Product Features:  Self Contained Counterpoise (No Ground Plane Needed)  3”x 3”  50 ohm feed  .062” FR4, Single sided  Available in a Gerber file and other common formats VSWR (Voltage Standing Wave Ratio) versus Frequency (MHz)  <2:1 [882-946MHz]  1.1:1 at 915MHz Dockon - Reno NV - Web: Dockon.com - Tel: 877-2dockon - Fax: 888-317-1039 Dockon CPL Antenna DATASHEET Dockon CPL Antenna Specifications Cont. Radiation Pattern at 915MHz Gain(dB): Theta=90° cut (YZ Plane) Gain(dB): Phi=0° cut (XZ Plane) Gain(dB): Phi=90° cut (XY Plane) Table 1: Antenna Gain and Efficiency Gain Peak Gain (Measured) +3 dBi Efficiency Peak Efficiency (Simulated) 92%

Thinkify, LLC Product Brief – TAC-060-IP67 Insight tm TAC-060-IP67 Circularly Polarized Antenna Product Overview The TAC-060-IP67 is a cost-effective, high- performance antenna for demanding RFID applications. IP67 rated, RoHS compliant. Features •High gain •Low VSWR •Clean, attractive design •Waterproof (IP67) making it suitable for outdoor use •Mounting kit included. About Thinkify Thinkify is a privately-held technology company in Morgan Hill, California that is enabling common objects, devices and whole environments to become aware of their contents using RFID. Thinkify – Making things think. tm Electrical specifications Model NumberTAC-060-IP67 Frequency range (MHz)902-928 Bandwidth26MHz Gain(dBi)6 Half-power beam width(°)60° Impedance(Ω)50 VSWR ≤1.3 Maximum input power(W)100 PolarizationCircular Lightning ProtectionDC Ground Mechanical specifications ConnectorRP TNC Length × Width × Height (mm) 260x260×45 Antenna weight (kg)1 Rated wind velocity(m/s) 60 Reflector material Aluminum Alloy Radome material UV or ABS Radome color White Operating temperature(◦C) -40~70 Mounting hardware (mm) Φ40-φ50 Copyright 2009 Thinkify LLC. All Rights Reserved. Thinkify, LLC, 18450 Technology Drive, Suite E, Morgan Hill, Ca. 95037, www.thinkifyit.com 408-782-7111 DCN-TF-01011-A

Thinkify, LLC Product Brief – TAL-060-IP67 Insight tm TAL-060-IP67 Linearly Polarized Antenna Product Overview The TAL-060-IP67 is a cost-effective, high- performance antenna for demanding RFID applications. IP67 rated, RoHS compliant. Features •High gain •Low VSWR •Clean, attractive design •Waterproof (IP67) making it suitable for outdoor use •Mounting kit included. About Thinkify Thinkify is a privately-held technology company in Morgan Hill, California that is enabling common objects, devices and whole environments to become aware of their contents using RFID. Thinkify – Making things think. tm Electrical specifications Model NumberTAL-060-IP67 Frequency range (MHz)902-928 Bandwidth26MHz Gain(dBi)6 Half-power beam width(°)90° Impedance(Ω)50 VSWR ≤1.3 Maximum input power(W)100 PolarizationLinear Lightning ProtectionDC Ground Mechanical specifications ConnectorRP TNC Length × Width × Height (mm) 300x190×45 Antenna weight (kg)1 Rated wind velocity(m/s) 60 Reflector material Aluminum Alloy Radome material UV or ABS Radome color White Operating temperature(◦C) -40~70 Mounting hardware (mm) Φ40-φ50 Copyright 2009 Thinkify LLC. All Rights Reserved. Thinkify, LLC, 18450 Technology Drive, Suite E, Morgan Hill, Ca. 95037, www.thinkifyit.com 408-782-7111 DCN-TF-01012-A

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 7 October 2010 Maximum Permissible Exposure FCC, Part 15 Subpart C §15.247(i) Industry Canada RSS-Gen §5.5 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 Freq. Antenna Peak Output Antenna Distance @ Minimum Band Gain Power Gain EIRP 1mW/cm2 Separation (GHz) (dBi) (dBm) (numeric) (mW) Limit(cm) Distance (cm) 2.4 - 2.5 6 24.89 3.98107171 2449.06 13.96 20 *Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits §15.247(i) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency levels in excess of the Commission’s guidelines. FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.5 Before equipment certification is granted, the applicable requirements of RSS-102 shall be met.

COVER PAGE Test of Thinkify TR 200 To: FCC 47 CFR Part15.247 & IC RSS-210 Test Report Serial No.: THNK02-U1 Rev A TITLE PAGE TEST REPORT FROM Test of Thinkify TR 200 To FCC 47 CFR Part15.247 & IC RSS-210 Test Report Serial No.: THNK02-U1 Rev A This report supersedes: None Manufacturer: Thinkify 18450 Technology Drive Suite E Morgan Hill California 95037, USA Product Function: RFID Reader Copy No: pdf Issue Date: 7th October 2010 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com TESTING CERTIFICATE #2381.01 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: Thinkify TR 200 To: Serial #: Issue Date: Page: FCC 47 CFR Part15.247 & IC RSS-210 THNK02-U1 Rev A 7th October 2010 3 of 102 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com This page has been left intentionally blank Title: Thinkify TR 200 To: Serial #: Issue Date: Page: FCC 47 CFR Part15.247 & IC RSS-210 THNK02-U1 Rev A 7th October 2010 4 of 102 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS ACCREDITATION, LISTINGS & RECOGNITION ..........................................................5 LISTINGS......................................................................................................................... 6 RECOGNITION................................................................................................................ 6 1. TEST RESULT CERTIFICATE .................................................................................8 2. REFERENCES AND MEASUREMENT UNCERTAINTY ........................................9 2.1. Normative References ............................................................................................ 9 2.2. Test and Uncertainty Procedures ........................................................................... 9 3. PRODUCT DETAILS AND TEST CONFIGURATIONS ........................................10 3.1. Technical Details .................................................................................................. 10 3.2. Scope of Test Program ......................................................................................... 11 3.3. Equipment Model(s) and Serial Number(s) .......................................................... 16 3.4. Antenna Details .................................................................................................... 16 3.5. Cabling and I/O Ports ........................................................................................... 16 3.6. Test Configurations............................................................................................... 16 3.7. Equipment Modifications....................................................................................... 17 3.8. Deviations from the Test Standard ....................................................................... 17 3.9. Subcontracted Testing or Third Party Data .......................................................... 17 4. TEST SUMMARY ....................................................................................................18 5. TEST RESULTS ......................................................................................................20 5.1. Device Characteristics .......................................................................................... 20 5.1.1. 20 dB Bandwidth ....................................................................................... 20 5.1.2. Transmitter Channels - Channel Spacing ............................................... 26 5.1.3. Transmitter Channels................................................................................ 29 5.1.4. Output Power ............................................................................................ 34 5.1.5. Maximum Permissible Exposure............................................................... 37 5.1.6. Conducted Spurious Emissions Transmitter ............................................. 38 5.1.7. Conducted Spurious Emissions Stand-By ................................................ 47 5.1.8. Radiated Emissions - Transmitter and Receiver/Standby Mode............... 50 5.1.9. Radiated Spurious Emissions – Digital Emissions.................................... 87 6. PHOTOGRAPHS.....................................................................................................94 6.1. General Measurement Test Set-Up ...................................................................... 94 6.2. Radiated Emissions <1 GHz - Antenna 1 ............................................................. 95 6.3. Radiated Emissions >1 GHz - Antenna 1 ............................................................. 96 6.4. Radiated Emissions <1 GHz - Antenna 2 ............................................................. 97 6.5. Radiated Emissions >1 GHz - Antenna 2 ............................................................. 98 6.6. Radiated Emissions >1 GHz - Antenna 3 ............................................................. 99 6.7. Radiated Emissions <1 GHz - Antenna 3 ........................................................... 100 7. TEST EQUIPMENT DETAILS..............................................................…
