XE2TF8T2000 AEI Reader

Thinkify LLC

Application Details

Equipment Class
LMS - Part 90 Location & Monitoring Transmitter
Date of Grant
Sep 17, 2015
Application Purpose
Original Equipment
Date of Application
Sep 17, 2015
Equipment Note
T2000 AEI Reader
Frequency Range
910.00000000 - 921.00000000
Company
Thinkify LLC
Country
United States

Documents & Files

Select a file to view

Cover Letter(s)

↗
↗

ID Label/Location Info

↗

RF Exposure Info

↗

Test Report

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

THNK13 External Photos Top Bottom Side 1 Side 2 Side 3 Side 4

ID Label/Location Info

THINKIFY, LLC Model: T2000 Frequency: 902-904 MHz & 909.75-921.75 MHz FCC ID: XE2TF8 IC ID: 9962A-T2000 This device complies with part 90 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Site license is required for the use of this product. Phone (408) 782-7111 www.Thinkifyit.com

RF Exposure Info

Tracker: THNK13 - Thinkify T2000 Maximum Permissible Exposure Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4d 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) The Thinkify T2000 has dual identical transmitters. The peak power in the table below is calculated by assuming a worst case scenario for the maximum gain antenna and output power. The calculated separation distance is for worst case highest power level. In order to take into account the dual transmitter situation the output power was doubled i.e. +3dB Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 2.74 W/m 2 Antenna Model Type Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (W) Calculated Safe Distance @ 2.74 W/m 2 Limit (m) Power Density @ 20cm (mW/cm 2 ) Thinkify Dipole 12 15.85 34.78 3.006 1.17 9.48 Minimum safe distance = 1.17 m Specification Maximum Permissible Exposure Limits §90.1217 Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency levels in excess of the Commission’s guidelines. See §1.1307 (b)(1) of this chapter. Limit = 2.74 W / m 2 from 1.310 Table 1 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty 1.33dB

Test Report

COVER PAGE Test of Thinkify LLC, T2000, Single Track AEI Reader To: FCC Part 90 SubPart I, 90.353; IC RSS-137 Test Report Serial No.: THNK13-U2 Rev A MiCOM Labs is an ISO 17025 Accredited Testing Laboratory TEST REPORT FROM Test of: Thinkify LLC, T2000, Single Track AEI Reader To: FCC Part 90 SubPart I, 90.353; IC RSS-137 Test Report Serial No.: THNK13-U2 Rev A This report supersedes: NONE Manufacturer: Thinkify LLC 18450 Technology Drive, Suite E Morgan Hill, California 95037 USA Product Function: RFID Reader Copy No: pdf Issue Date: 17th September 2015 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 575 Boulder Court Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com TESTING CERT #2381.01 Title: To: Serial #: Issue Date: Page: Thinkify LLC, T2000, Single Track AEI Reader FCC Part 90 SubPart I, 90.353; IC RSS-137 THNK13-U2 Rev A 17th September 2015 3 of 84 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com This page has been left intentionally blank Title: To: Serial #: Issue Date: Page: Thinkify LLC, T2000, Single Track AEI Reader FCC Part 90 SubPart I, 90.353; IC RSS-137 THNK13-U2 Rev A 17th September 2015 4 of 84 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS ACCREDITATION, LISTINGS and RECOGNITION ...................................................... 5 TESTING ACCREDITATION ......................................................................................... 5 RECOGNITION .............................................................................................................. 6 PRODUCT CERTIFICATION ......................................................................................... 7 1. TEST RESULT CERTIFICATE ................................................................................ 9 2. REFERENCES AND MEASUREMENT UNCERTAINTY ..................................... 10 2.1. Normative References ........................................................................................ 10 2.2. Test and Uncertainty Procedures ........................................................................ 10 3. PRODUCT DETAILS AND TEST CONFIGURATIONS ........................................ 11 3.1. Technical Details ................................................................................................. 11 3.2. Scope of Test Program ....................................................................................... 12 3.3. Equipment Model(s) and Serial Number(s).......................................................... 13 3.4. Antenna Details ................................................................................................... 13 3.5. Cabling and I/O Ports .......................................................................................... 13 3.6. Test Configurations ............................................................................................. 14 3.7. Equipment Modifications ..................................................................................... 15 3.8. Deviations from the Test Standard ...................................................................... 15 3.9. Subcontracted Testing or Third Party Data.......................................................... 15 4. TEST SUMMARY .................................................................................................. 16 4.1. Conducted Test Set-Up ....................................................................................... 17 4.2. Radiated Test Set-Up .......................................................................................... 18 5. TEST RESULTS .................................................................................................... 20 5.1. D evice Characteristics ........................................................................................ 20 5.1.1. Occupied Bandwidth ............................................................................ 20 5.1.2. Effective Radiated Power ..................................................................... 29 5.1.3. Maximum Permissible Exposure .......................................................... 31 5.1.4. Frequency Stability; Temperature Variations, and Voltage Variations .. 32 5.1.5. Spectrum Mask (Band-Edge) & Spurious Emissions ............................ 48 5.1.6. Radiated Spurious Emissions .............................................................. 67 5.1.7. AC Wireline Conducted Emissions (0.15 – 30 MHz) ............................ 80 6. TEST SET-UP PHOTOGRAPHS .......................................................................... 82 6.1. General Measurement Test Set-Up ..................................................................... 82 6.2. Radiated Emissions < 1GHz ............................................................................... 83 Title: To: Serial #: Issue Date: Page: Thinkify LLC, T2000, Single Track AEI Reader FCC Part 90 SubPart I, 90.353; IC RSS-137 THNK13-U2 Rev A 17th September 2015 5 of 84 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com ACCREDITATION, LISTINGS and RECOGNITION TESTING ACCREDITATION MiCOM Labs, Inc. is an accredited Electrical testing laboratory per the internat…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Curt L Carrender
[email protected]408-782-7111Fax: 408-782-2111

Technical Contact

MiCOM LabsGordon Hurst
[email protected](925)4620304

575 Boulder Court · Pleasanton, California

Test Firm

Micom LabsGordon Hurst
[email protected]925-462-0304Fax: 925-462-0306

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
290.353910 MHz - 921 MHz2.972 WNON0.35 ppm
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. This device must be professionally installed. The peak radiated output power, including antenna gain and cable loss, must not exceed 30 W ERP. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 117 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The maximum antenna height above ground for non-multilateration LMS systems is 15 meters. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Other Applications from Thinkify LLC

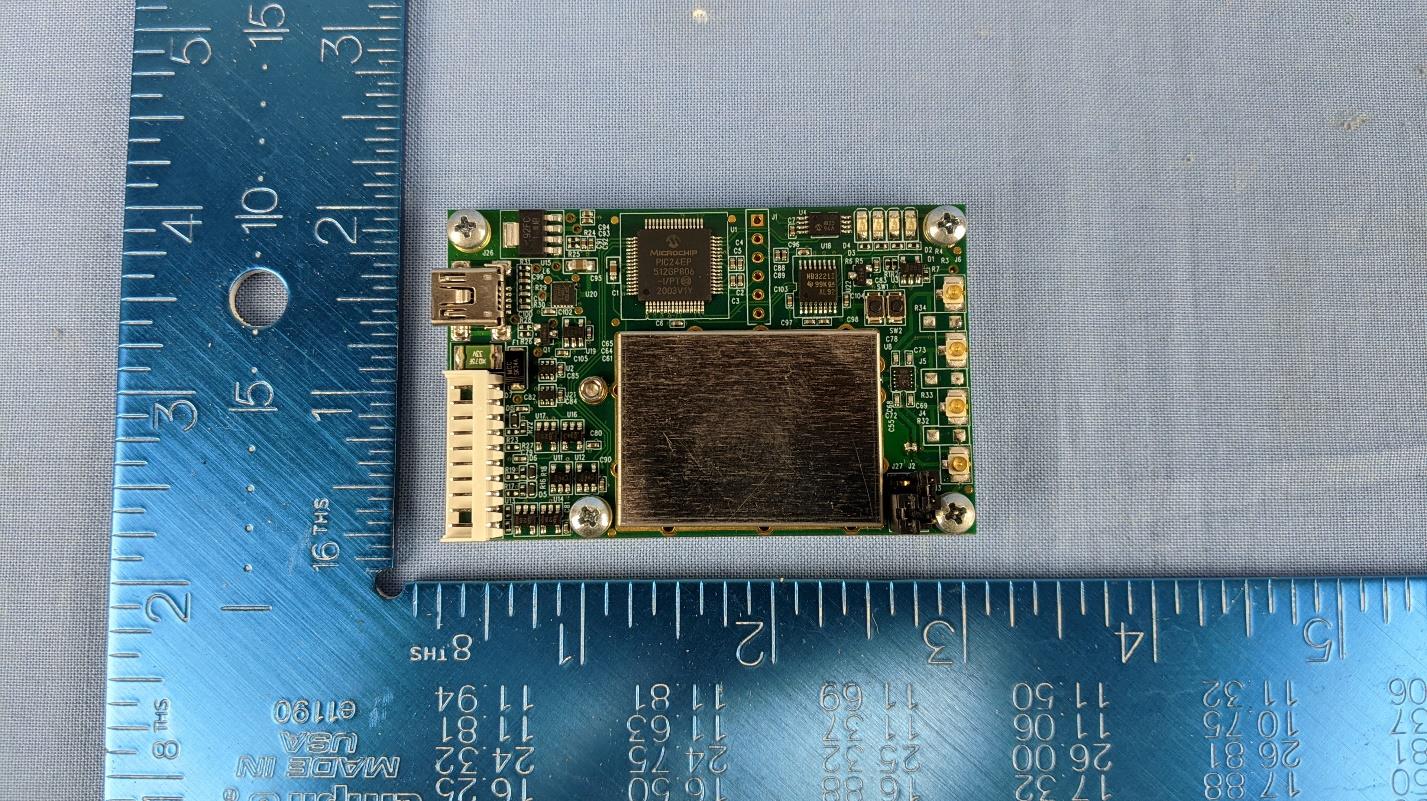

UHF RFID Reader Module - FCC ID XE2C - Thinkify LLC
XE2C

UHF RFID Reader Module

Feb 02, 2021

Equipment Class

DSS - Part 15 Spread Spectrum Transmitter

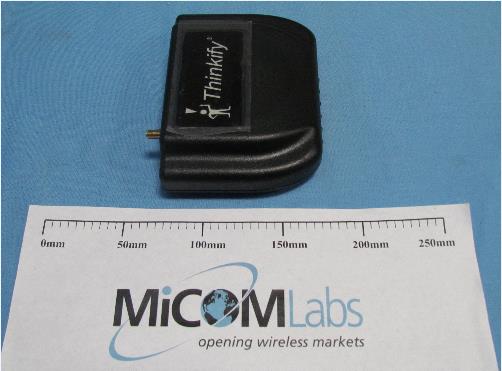

UHF RFID 915 MHz Module - FCC ID XE2TF7 - Thinkify LLC
XE2TF7

UHF RFID 915 MHz Module

Sep 30, 2014

Equipment Class

DSS - Part 15 Spread Spectrum Transmitter
UHF RFID Reader - FCC ID XE2TF6 - Thinkify LLC
XE2TF6

UHF RFID Reader

Nov 27, 2010

Equipment Class

LMS - Part 90 Location & Monitoring Transmitter

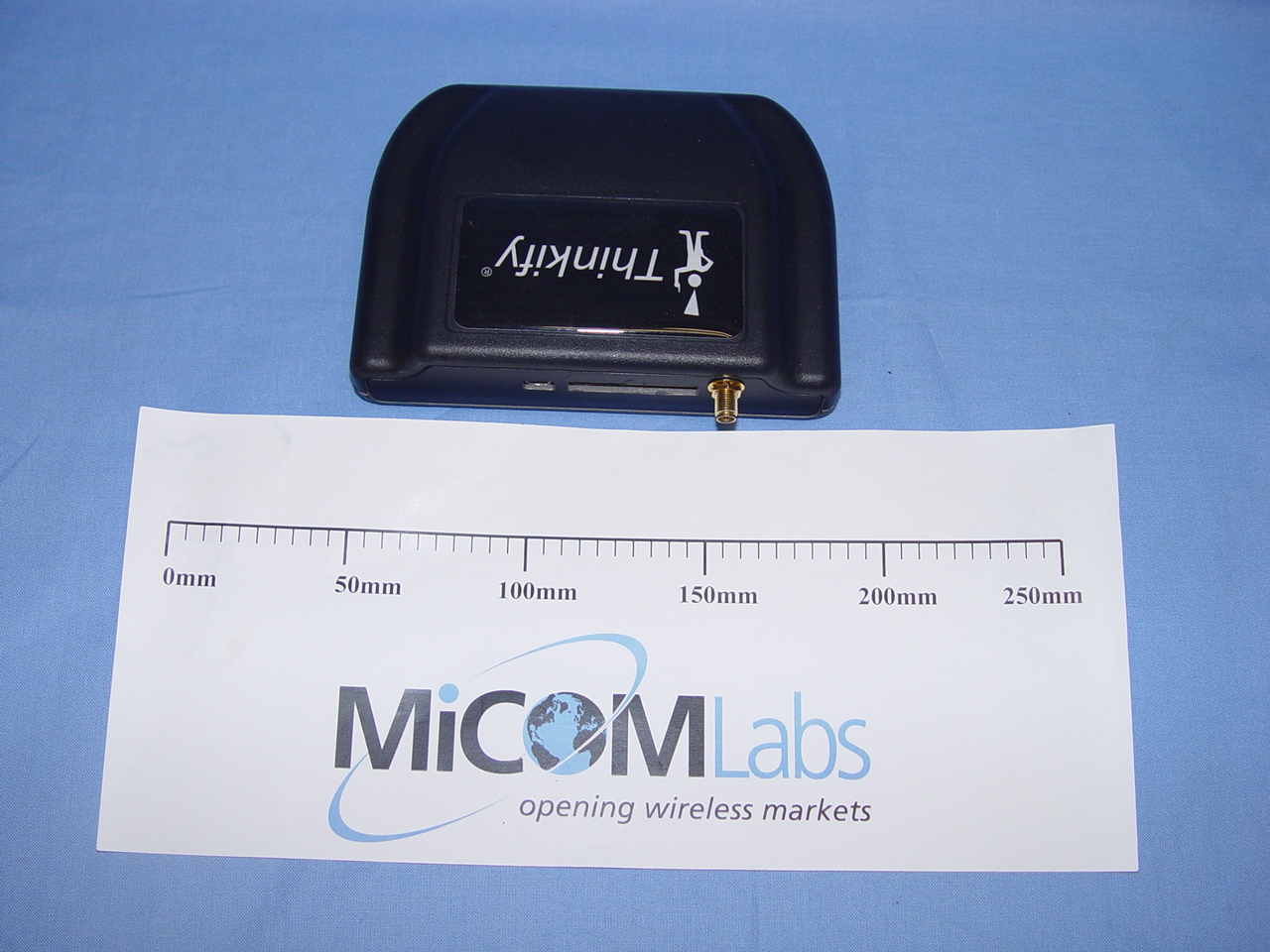

UHF RFID Reader - FCC ID XE2TF4 - Thinkify LLC
