XGS-ST6002Mobile Satellite Earth Station (MSES) module

ORBCOMM ® PROPRIETARY AND CONFIDENTIAL MATERIAL User Manual Model: ST6002 Ref T407 Oct 2022 Brand: ORBCOMM Inc. Address: 395 W Passaic Street, Suite 325, Rochelle Park, NJ 07662, USA Visit ORBCOMM online: www.orbcomm.com Contact Support: [email protected] +1 613 836 2222 http://partner-support.orbcomm.com ST6002 Technical Manual TABLE OF CONTENTS TABLE OF CONTENTS ............................................................................................................... 2 1 Product Overview ........................................................................................................................ 4 2 Compliance ................................................................................................................................... 5 3 Satellite Messaging System Overview ........................................................................................ 7 4 Summary of Specifications .......................................................................................................... 8 5 Integration Guidelines ............................................................................................................... 12 ST6002 Technical Manual T407, Version 05 ORBCOMM ® PROPRIETARY AND CONFIDENTIAL MATERIAL © Jun 2019 3 ST6002 Technical Manual 4 1 Product Overview The ST6002 provides a high performance, low latency, two-way communication solution that uses the IsatData Pro network. This OEM device consists of a Lua application controller, integral antennas, a satellite modem for communicating with the satellite, an integral GNSS subsystem, several input/output feeds capable of monitoring and controlling external sensors and devices and dedicated serial ports (two RS-232 ports). Solution Providers (SPs) must create a custom power supply for their particular application. Figure 1: ST6002 The ST6002 is suitable for both industrial and fixed applications, and it can work as a standalone data- messaging device, with built-in I/O data collection and processing capabilities. Feature-rich software tools make programming easy and shorten the design and testing time. 1. 1 Key Features and Benefits The ST6002 has the following key features and benefits: • Designed to be incorporated into a custom solution • Built-in GNSS receiver to calculate position, speed, and heading that uses the satellite antenna • Broad operational temperature range • IsatData Pro message payload and latency capabilities ST6002 Technical Manual 5 2 Compliance The ST6002 is in the process to obtain the following certifications: CE Mark • RED 2014/53/EU • Declaration of Conformity Hereby, ORBCOMM declares that the radio equipment type ST6002 is in compliance with Directive 2014/53/EU. The DOC (Declaration of Conformity) is either included in the packaging or can be found at the following link: The full text of the EU declaration of conformity is available from http://www2.orbcomm.com/eudoc. Inmarsat Type Approval ISED Canada • IC: 11881A-ST6002 • ISED Canada Compliance Statements This device contains licensed transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licensed RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur autorisée contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio autorisée. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This module antenna should be installed and operated with minimum distance 20 cm (7.9 inches) between the radiator and any part of your body. Pour se conformer aux exigences de conformité ISED RSS-102 RF exposition, une distance de séparation d'au moins 20 cm doit être maintenue entre l'antenne de cet appareil et toutes les personnes. FCC Part 25 • FCC ID: XGS-ST6002 • CFR Title 47: Telecommunication, Part 25 - Satellite Communications, Sub-part C - Technical Standards • OET 65 - Radiation Safety ST6002 Technical Manual 6 • FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. In order to avoid the possibility…

Text truncated - open the document above for the full version.

395 W PASSAIC STREET, SUITE 325, ROCHELLE PARK, NJ 07662 USA HTTPS://WWW.ORBCOMM.COM OBCO-CERT-HW220046 Rev 1.0 Oct. 24, 2022 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Spencer Zhong of Nemko Canada, Inc. 303 River Road, Ottawa, Ontario, Canada K1V 1H2, to act as our agent in the preparation of this application for equipment certification of ST6XXX modular, Model Number ST6002. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides ORBCOMM License Corp., at 395 W PASSAIC STREET, SUITE 325, ROCHELLE PARK, NJ 07662 USA Dated this 24th Day of October 2022 Agency agreement expiration date: Oct. 23, 2023 By: Walter Sonnenfeldt Signature Printed Title: VP Regulatory Affairs 1-585-461-3018 Telephone: On behalf of: ORBCOMM License Corp.

395 W PASSAIC STREET, SUITE 325, ROCHELLE PARK, NJ 07662 USA HTTPS://WWW.ORBCOMM.COM OBCO-CERT-HW220051 Rev 1.0 Oct. 24, 2022 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: XGS-ST6002 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation SHORT TERM CONFIDENTIALITY FOR A PERIOD OF 180 DAYS: Internal Photos External Photos User Manual Test Set-up Photographs When the device is marketed before the requested number of days listed above, the grantee will inform the TCB to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed : Printed name: Walter Sonnenfeldt Title: VP Regulatory Affairs

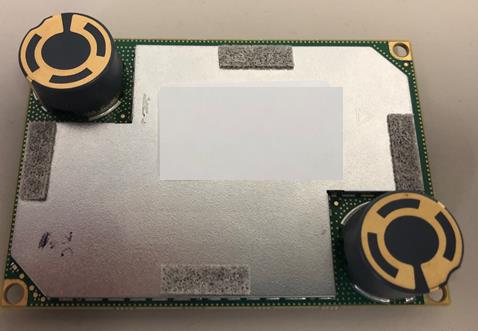

DOC ID: ORBC-CERT-HW220079 REV 1.0 © ORBCOMM PROPRIETARY 395 W PASSAIC STREET, SUITE 325, ROCHELLE PARK, NJ 07662 USA HTTPS://WWW.ORBCOMM.COM Technical Note ST6002 Module Images File: OBCO-CERT-HW220079 REV 2.0 Orbcomm Inc. 750 Palladium Drive, Suite 368 Ottawa, Ontario, Canada, K2V 1C7 (613) 836-6288 www.Orbcomm.com DOC ID: ORBC-CERT-HW220079 REV 1.0 © ORBCOMM PROPRIETARY 395 W PASSAIC STREET, SUITE 325, ROCHELLE PARK, NJ 07662 USA HTTPS://WWW.ORBCOMM.COM External Images Top view Bottom view

ST6002 Label drawing ST6002 Label location (on top of the RF module)

DOC ID: ORBC-CERT-HW220079 REV 1.0 © ORBCOMM PROPRIETARY 395 W PASSAIC STREET, SUITE 325, ROCHELLE PARK, NJ 07662 USA HTTPS://WWW.ORBCOMM.COM Technical Note ST6002 Module Images File: OBCO-CERT-HW220079 REV 2.0 Orbcomm Inc. 750 Palladium Drive, Suite 368 Ottawa, Ontario, Canada, K2V 1C7 (613) 836-6288 www.Orbcomm.com DOC ID: ORBC-CERT-HW220079 REV 1.0 © ORBCOMM PROPRIETARY 395 W PASSAIC STREET, SUITE 325, ROCHELLE PARK, NJ 07662 USA HTTPS://WWW.ORBCOMM.COM Internal view-top Internal view-Bottom

DOC ID: ORBC-CERT-HW220074 REV 1.0 © ORBCOMM PROPRIETARY 395 W PASSAIC STREET, SUITE 325, ROCHELLE PARK, NJ 07662 USA HTTPS://WWW.ORBCOMM.COM Nov 17, 2022 Product Name: ST6002 Module Subject: Tune-up procedure/requirement To Whom it May Concern, The ST6002 OEM Module is tested and tuned during factory production such that there is no requirement of additional tuning by the installer or integrator. Sincerely, Xinming Wang Director, Hardware Integrity & Regulatory

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The SCC Accreditation Symbol is an official symbol of the Standards Council of Canada, used under licence. SCC File Number: 15064 (Ottawa/Almonte); 151100 (Montreal); 151097 (Cambridge) FCC and RSS-102 Annex C – MPE Calculation; Date: May 2021 C h o o s e S c a n d i n a v i a n t r u s t RADIO TEST REPORT – APFWL Type of assessment: MPE Calculation report Manufacturer: ORBCOMM License Corp Model (HVIN): Product description: ST6002 Mobile Satellite Earth Station (MSES) module FCC identifier: ISED certification number: FCC ID: XGS-ST6002 IC: 11881A-ST6002 Specification:  FCC 47 CFR Part 1 Subpart I, §§1.1307, 1.1310  FCC 47 CFR Part 2 Subpart J, §2.1091  FCC KDB 447498 D01 General RF Exposure Guidance v06  ISED Canada RSS-102 Issue 5 Amendment 1, (February 2021) RSS-102 Annex B - Declaration of RF Exposure Compliance ATTESTATION: I attest that the information provided in Annex A is correct; that the Technical Brief was prepared and the information contained therein is correct; that the device evaluation was performed or supervised by me; that applicable measurement methods and evaluation methodologies have been followed; and that the device meets the SAR and/or RF field strength limits of RSS-102. Date of issue: January 5, 2023 Nimish Kapoor, EMC/RF Specialist Prepared by Signature Section 1 MPE calculation Report reference ID: TRFWL Page 2 of 3 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site identifier Organization Ottawa/Almonte Montreal Cambridge FCC: CA2040 CA2041 CA0101 ISED: 2040A-4 2040G-5 24676 Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Section 1 MPE calculation Report reference ID: TRFWL Page 3 of 4 Evaluation summary 1.1 MPE calculation for standalone transmission 1.1.1 References, definitions and limits FCC §2.1091(d) (2) (2) For operations within the frequency range of 300 kHz and 6 GHz (inclusive), the limits for maximum permissible exposure (MPE), derived from whole-body SAR limits and listed in Table 1 in paragraph (e)(1) of this section, may be used instead of whole-body SAR limits as set forth in paragraphs (a) through (c) of this section to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b) of this part, except for portable devices as defined in §2.1093 of this chapter as these evaluations shall be performed according to the SAR provisions in §2.1093. Table 1.1-1: Table 1 to §1.1310(e)(1)—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (i) Limits for Occupational/Controlled Exposure 0.3–3.0 614 1.63 *(100) ≤6 3.0–30 1842 / f 4.89 / f *(900 / f 2 ) <6 30–300 61.4 0.163 1.0 <6 300–1500 f / 300 <6 1500–100000 5 <6 (ii) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) <30 1.34–30 824 / f 2.19 / f *(180 / f 2 ) <30 30–300 27.5 0.073 0.2 <30 300–1500 f / 1500 <30 1500–100000 1.0 <30 Notes: f = frequency in MHz. * = Plane-wave equivalent power density. RSS-102, Section 4 For the purpose of this standard, Industry Canada has adopted the SAR and RF field strength limits established in Health Canada’s RF exposure guideline, Safety Code 6: Table 1.1-2: Table 4 to RSS-102— RF Field Strength Limits Frequency range (MHz) Electric field strength (V/m rms) Magnetic field strength (A/m rms) Power density (W/m 2 ) Reference Period (minutes) Limits for Controlled Environment 10–20 61.4 0.163 10 6 20–48 129.8 / ƒ 0.25 0.3444 / ƒ 0.25 44.72 / ƒ 0.5 6 48–100 49.33 0.1309 6.455 6 100–6000 15.60 ƒ 0.25 0.04138 ƒ 0.25 0.6455 ƒ 0.5 6 6000–15000 137 0.364 50 6 Limits for Uncontrolled Environment 10–20 27.46 0.0728 2 6 20–48 58.07 / ƒ 0.25 0.1540 / ƒ 0.25 8.944 / ƒ 0.5 6 48–300 22.06 0.05852 1.291 6 300–6000 3.142 ƒ 0.3417 0.008335 ƒ 0.3417 0.02619 ƒ 0.6834 6 6000–15000 61.4 0.163 10 6 Notes: ƒ = frequency in MHz. Section 1 MPE calculation Report reference ID: TRFWL Page 4 of 5 References, definitions and limits, continued Equation from page 18 of OET Bulletin 65, Edition 97-01 푆= 푃퐺 4휋푅 2 where: S = power density (mW/cm 2 or W/m 2 ) P = power input to the antenna (mW or W) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm or m) 1.1.2 EUT technical information Prediction frequency 1645 MHz Antenna type Internal antenna Antenna gain 3.7 dBi Number of antennas 1 Maximum transmitter conducted power 32.08 dBm (conducted) Prediction dist…
