SHUOYING DIGITAL SCIENCE&TECHNOLOGY(CHINA)Co., Ltd Declaration To：BV FROM ：SHUOYING DIGITAL SCIENCE&TECHNOLOGY(CHINA)Co., Ltd Product Name: Digital Video Recorder Model No.: DV197S Item: FCC ID FCC ID:XJN-DV197S We applied the item FCC ID in BV DG, in order to cooperate with passing the testing, we debugged the product as below: As well, we declare that make these products will keep identical to the testing product, 1. The product shell paint with electric paint. 2. The product shell add three EMI gasket, the size of the EMI gasket is 20*10*8(mm). 3. The LCD cable change to shielding cable,and both ends connect to GND. 4. R61 and R17 change to bead , the bead model is BEAD0603H301T. 5. The button cable change to shielding cable. 6. The USB cable change to shielding cable,and both ends add a core,and the end of the cable close to PCB should wind around the core, the size of the core is F5K FS9*6*8. 7. The back of the main board should add two piece of EMI gasket,the size of the EMI gasket is 15*12*10 (mm). 8. Cancel the AV output function. 9. R6 change to bead, the bead model is BEAD0402H101T. 10. The front of the main board should add a piece of copper grounding,the size of the copper is 50*32(mm). Location of modification 1 11 1 Location of modification 2 22 2 The product shell paint with electric paint Location of modification 3 33 3 Location of modification 4 44 4 The product shell add three EMI gasket The LCD cable change to shielding cable,and both ends connect to GND. Location of modification 5 55 5 Location of modification 6 66 6 The button cable change to shielding cable. R61 and R17 change to bead. Location of modification 7 77 7 Location of modification 8 88 8 The USB cable change to shielding cable,and both ends add a core,and the end of the cable close to PCB should wind around the core. The back of the main board should add two piece of EMI gasket. Location of modification 9 99 9 Location of modification 10 1010 10 R6 changed to bead. Cancel the AV output function. The front of the main board should add a piece of copper grounding.

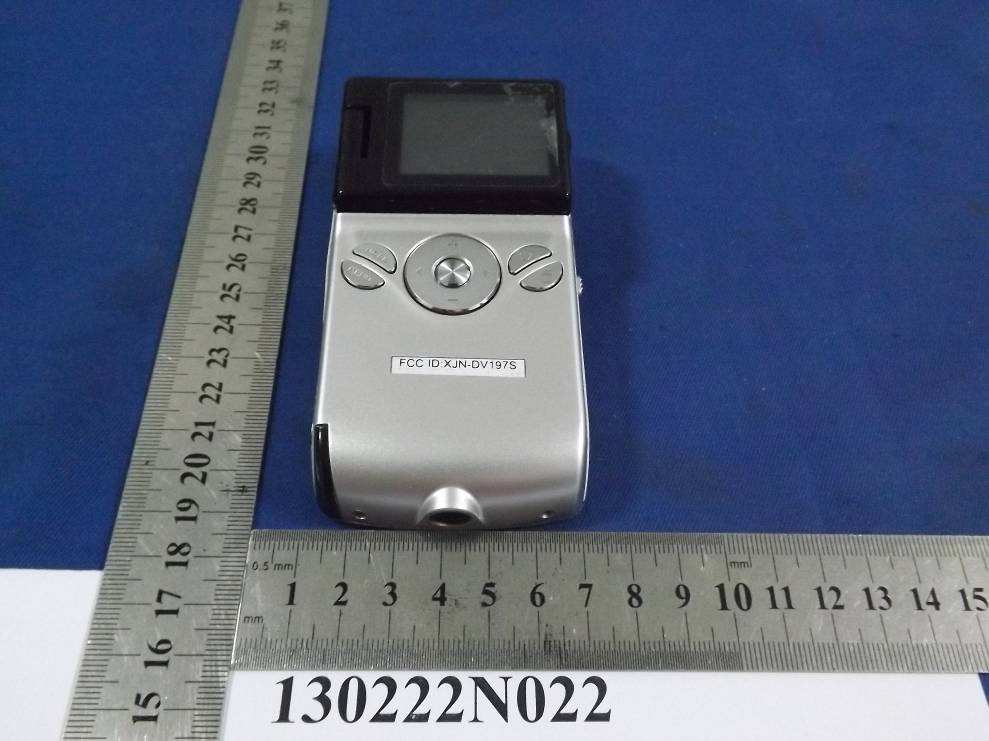

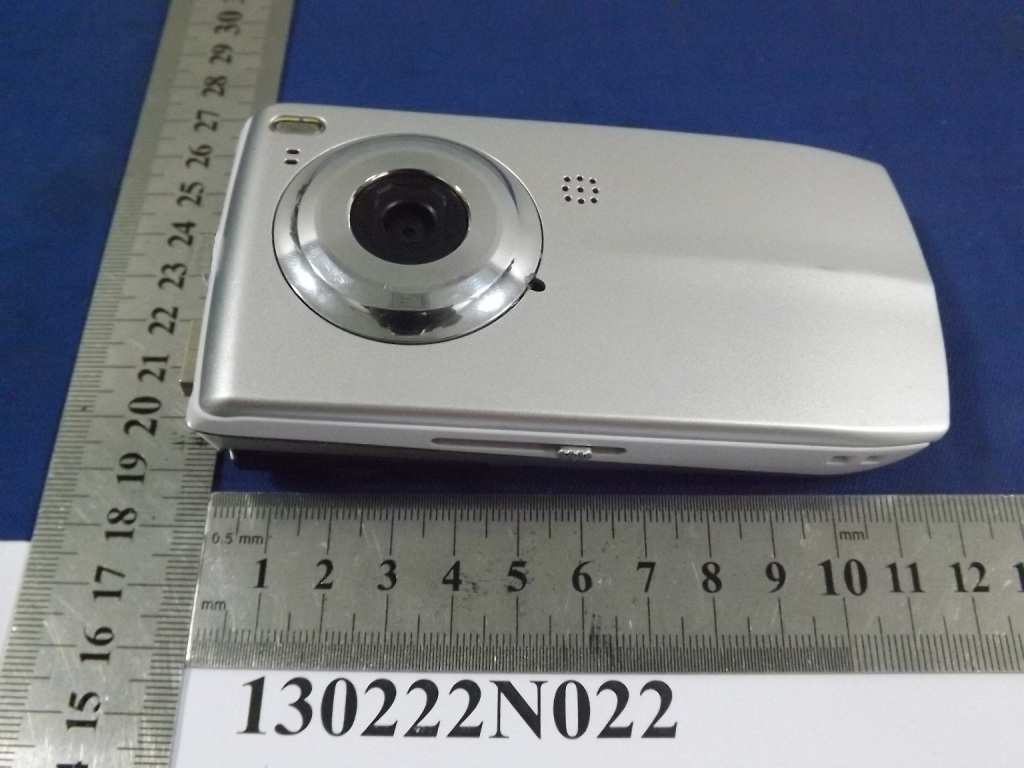

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Reference No.: FC130222N022 PHOTOGRAPHS OF THE EUT Appearance View: Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Reference No.: FC130222N022

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 6 Report Version 1 Reference No.: FC130222N022 PHOTOGRAPHS OF THE EUT Inside View: Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 6 Report Version 1 Reference No.: FC130222N022 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 6 Report Version 1 Reference No.: FC130222N022 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 6 Report Version 1 Reference No.: FC130222N022 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 6 Report Version 1 Reference No.: FC130222N022 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 6 of 6 Report Version 1 Reference No.: FC130222N022

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 18 Report Version 2 Test Report No.: FC130222N022 TEST REPORT Applicant SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD Address Shuoying Road, Hebei Industry Area, Dalang, Longhua Town, Baoan, Shenzhen, China Manufacturer or Supplier SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD Address Shuoying Road, Hebei Industry Area, Dalang, Longhua Town, Baoan, Shenzhen, China Product Digital Video Camera Brand Name N/A Model DV197S Additional Model & Model Difference N/A Date of tests Feb. 23 ~ Apr. 23, 2013 The submitted sample of the above equipment has been tested for according to the requirements of the following standards: FCC Part 15, Subpart B, Class B CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Endy Li Project Engineer / EMC Department Approved by Sam Tung Manager / EMC Department This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 18 Report Version 2 Test Report No.: FC130222N022 Table of Contents RELEASE CONTROL RECORD .................................................................................3 1 SUMMARY OF TEST RESULTS .....................................................................4 1.1 MEASUREMENT UNCERTAINTY...................................................................4 2 GENERAL INFORMATION ..............................................................................5 2.1 GENERAL DESCRIPTION OF EUT ................................................................5 2.2 DESCRIPTION OF TEST MODES ..................................................................6 2.3 DESCRIPTION OF SUPPORT UNITS ............................................................6 3 EMISSION TEST .............................................................................................7 3.1 CONDUCTED EMISSION MEASUREMENT...................................................7 3.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................7 3.1.2 TEST INSTRUMENTS.....................................................................................7 3.1.3 TEST PROCEDURE........................................................................................8 3.1.4 DEVIATION FROM TEST STANDARD............................................................8 3.1.5 TEST SETUP...................................................................................................9 3.1.6 EUT OPERATING CONDITIONS ....................................................................9 3.1.7 TEST RESULTS ............................................................................................10 3.2 RADIATED EMISSION MEASUREMENT......................................................12 3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...................................12 3.2.2 TEST INSTRUMENTS...................................................................................13 3.2.3 TEST PROCEDURE......................................................................................14 3.2.4 DEVIATION FROM TEST STANDARD..........................................................14 3.2.5 TEST SETUP.................................................................................................15 3.2.6 EUT OPERATING CONDITIONS ..................................................................15 3.2.7 TEST RESULTS ............................................................................................16 4 PHOTOGRAPHS OF THE TEST CONFIGURATION....................................18 5 APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB .....................................................................18 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 18 Report Version 2 Test Report No.: FC130222N022 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED FC130222N022 Original release Apr. 23, 2013 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 18 Report Version 2 Test Report No.: FC1…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Reference No.: FC130222N022 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Reference No.: FC130222N022 RADIATED EMISSION TEST (30M~1GHz)
