XJN-PI0920XMID

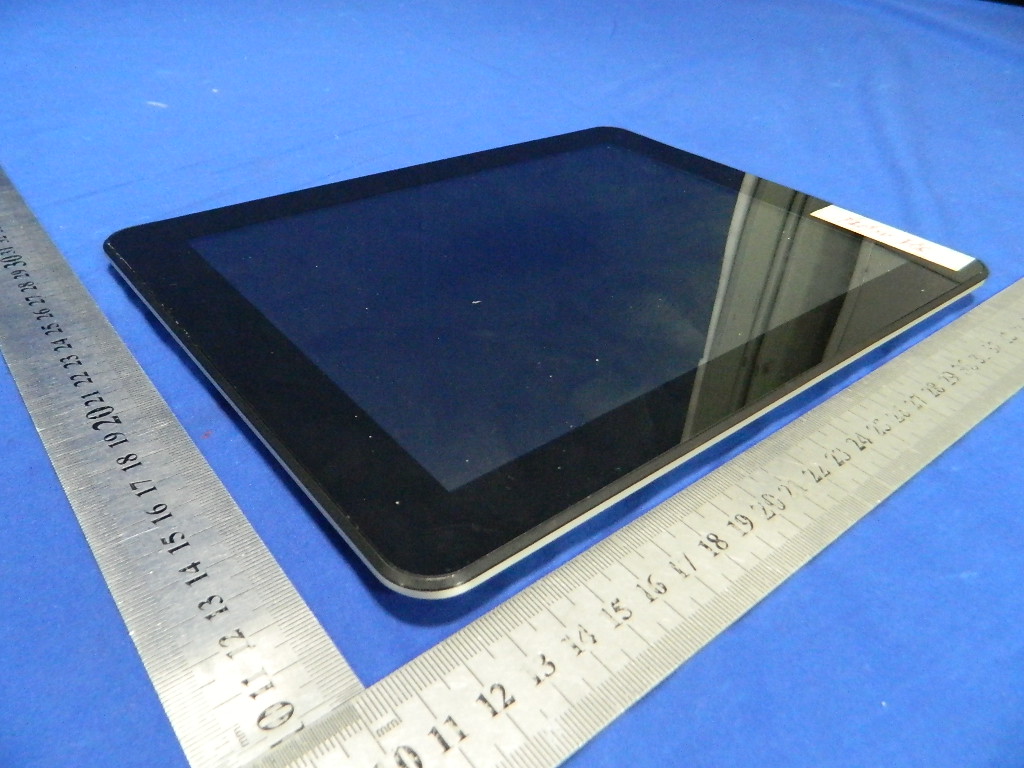

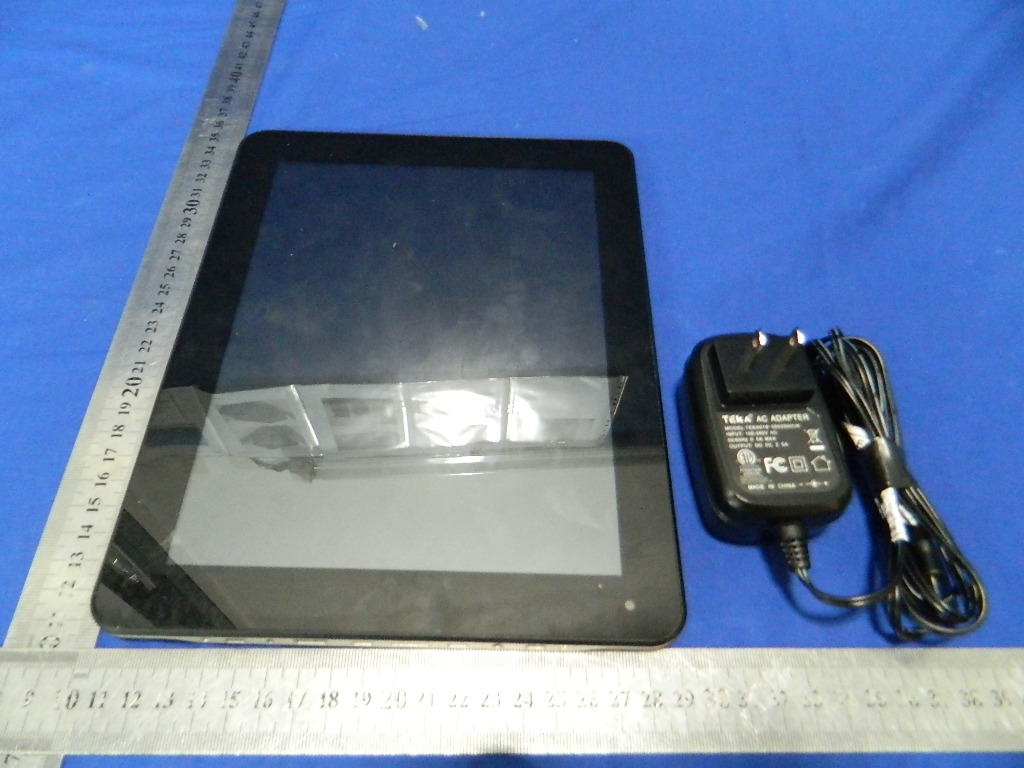

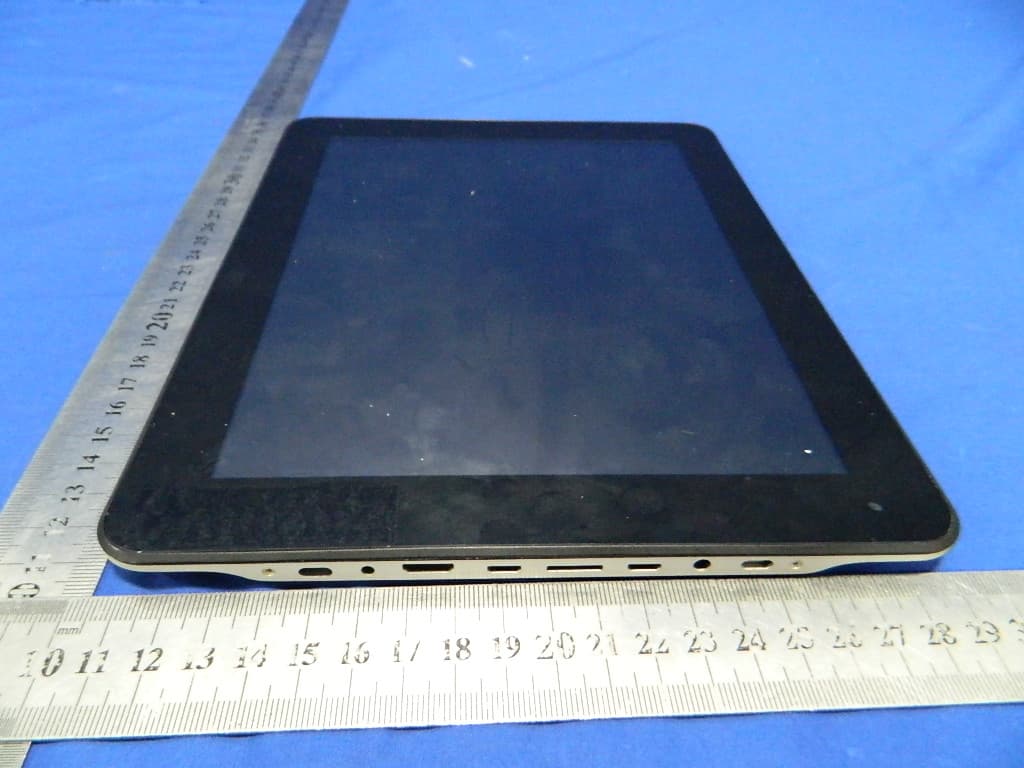

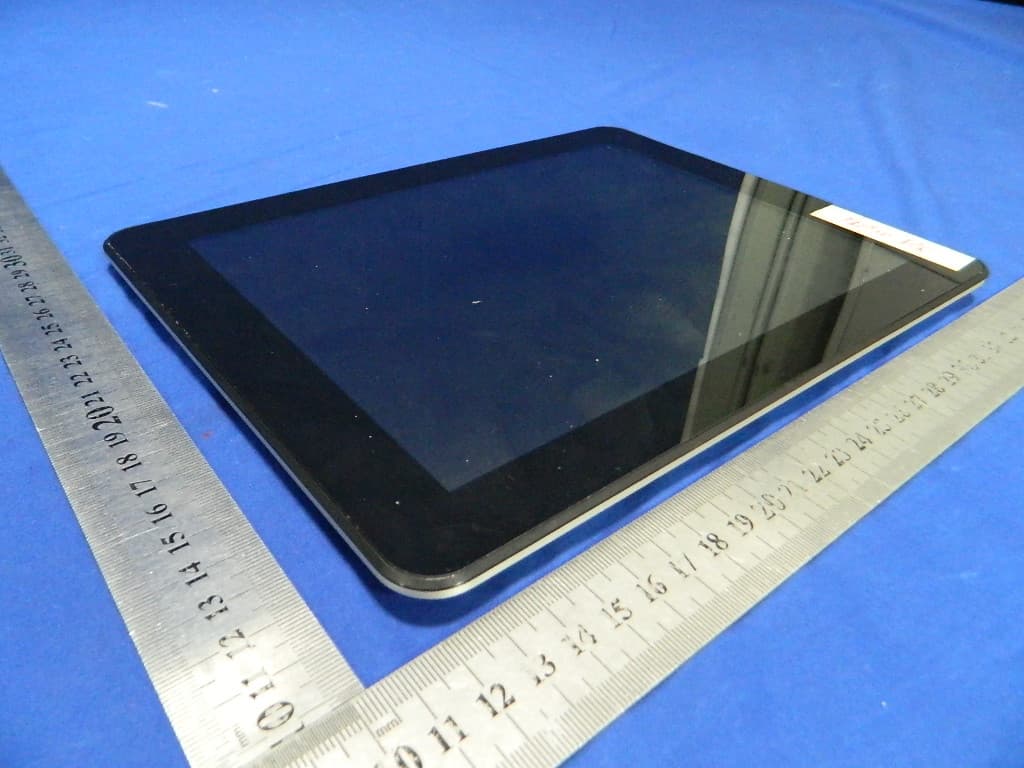

1 PI0920 MID User’s Manual Tablet of Contents 1. Appearance ........................................................................... 4 2. Power Switch ........................................................................ 5 4. Using SD Card ...................................................................... 5 5. Getting Started ...................................................................... 6 6. Desktop ................................................................................. 7 7. Lock Screen .......................................................................... 8 8. Pre-installed applications ...................................................... 9 9. Desktop Menu .................................................................... 10 10. Managing Applications .................................................... 10 11. Clock .............................................................................. 123 13. Browser .......................................................................... 145 14. Calendar ............................................................................ 14 15. Camera ............................................................................ 155 16. Calculator ....................................................................... 167 17. Sound Recorder .............................................................. 178 18. Email .............................................................................. 178 19. File Manager ................................................................... 212 20. Music .............................................................................. 223 2 21. HD Video Player ............................................................ 245 22. Settings ........................................................................... 256 23. HDMI Connection .......................................................... 301 24. FAQ ................................................................................ 356 25. Battery management ......................................................... 38 26. Important safety instruction .............................................. 38 3 1. Appearance USB port TF Card HDMI port DC port USB Port Earphone Back Power switch 4 2. Power Switch Switch on: press and hold the power switch for 3 seconds and wait for startup. Switch off: press and hold the power switch for 3 seconds → click Power off → click OK. Lock/unlock screen: briefly press the power switch to lock/unlock the screen. Force shut down: if the device has no response, press and hold the power switch for 7 seconds to switch off device by force. Warning: forced shut down may cause unexpected system errors! 3. Touch Screen The touch screen is easy and convenient to use. You can use the touch screen in the following methods: Single click: briefly touch the screen with the finger and then move away. Click and hold: click the screen with the finger and hold for about 2 seconds. Drag: click a certain icon in the screen and hold, then move the finger, the icon will move accordingly. ☆ To avoid damage the screen, never put anything directly on screen. 4. Using SD Card ☆ The device supports up to 32GB storage card. Insert the card into the card slot, and push it in with your finger until a “click” is heard. Now the card is ready for use. 5 Removing SD Card Close all programs or files on the card first. Click Settings → Storage → Remove SD card → OK. Then press the card with your finger, and simply remove it when card is ejected. ☆ Do not insert and remove the card repeatedly in a short time, this may cause damage to the card. ☆ We suggest using a reputable storage card brand to ensure compatibility. 5. Getting Started Charging the device ☆ It is not recommended to charge the device via USB cable. ☆ You may operate the device while charging it, but this may prolong the charging time. Connect one end of the AC adaptor to main supply and the other end to the power jack on the device to charge it (it may take about 5 hours to fully charge the device). The battery icon will roll during charging, when battery is full (it will stop rolling), please disconnect the AC adaptor. Starting the device Press and hold the power switch for 3 seconds and wait for system startup. Wi-Fi setting We suggest you configure your Wi-Fi network before using, as many functions require for it to wo 1. Click 2. Swit The device need to ent 3. Click th 4. Click Re ☆ The W click Add 6. Desktop ○ ○ 2 ork normally. k Settings → Wi tch the Wi-Fi on. e will search and li ter a password to c he desired Wi-Fi n eturn to return to d Wi-Fi set as hidden Wi-Fi Network a n p ○ 1 6 ireless and Netwo ist all available W connect to a Wi-Fi etwork → Enter desktop. will not be searche nd enter necessary ork Wi-Fi networks. If a i network. the password (if a n ed automatically. I information to add an icon is displaye ny) → Click Con In this case you ne d your Wi-Fi. d, you nnect. eed to 7 ○ 3 ○ 4 ○ 5 ○ 6 ○ 7 ○ 8 ○ 9 ○ 1 Search ○ 2 Click to view all applications ○ 3 Return ○ 4 Return to desktop directly ○ 5 Task ○ 6 Volume – ○ 7 Volume + ○ 8 Current time ○ 9 Battery status 7. Lock Screen You can set auto lock screen or lock screen manually by pressing the power switch. The lock screen interface is as follows. Slide to the right to unlock the screen. 8. Pre-insttalled Application Photo al b Gmai HD video p Calcula Brows 8 ns bum il Sen player ator M ser View pict d and receive ema addres Play and mana Make four arithme Connect to I tures. ails via your email ss age videos. etic operations. Internet Sound rec Calend Setting Cloc k Searc File man Downloade Camer Musi 1 Mobile M 9 corder R dar A c gs k Vie ch nager View Install ed files ra c Market 300,00 Record and play re alendar where you Make personaliz w current time and Google sear w and manage files Android applicati in SD ca Records of down Take pho Play and manage 00+ Available App ecorded sound. u can set a…

Text truncated - open the document above for the full version.

SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. Date: 2013-7-15 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: XJN-PI0920X To Whom It May Concern: This letter is to ascertain that SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. MID MODEL No.: PI0920, PA0970CA has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Contact Person: Tony Pan / General Manager E-mail: : [email protected] Phone: 86-755-29809865 Fax: 86-755-28177333 Address : NO.1Shuoying Road, Hebei Industry Area, Dalang, Longhua Town,Baoan, Shenzhen, China

SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. Family models declaration letter. 2013-7-17 We SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. Of No.1 Shuoying Road, Hebei Industry Area, Dalang, Longhua Town,Baoan, Shenzhen, China （address） Declare under our sole responsibility that the product FCC ID: XJN-PI0920X Product: MID Model Number ：PI0920, PA0970CA All models have the same constructions, circuit diagram and PCB layout. Only model names are different. Unless otherwise stated Thanks Sincerely, Contact Person: Tony Pan / General Manager E-mail: : [email protected] Phone: 86-755-29809865 Fax: 86-755-28177333 Address : No.1 Shuoying Road, Hebei Industry Area, Dalang, Longhua Town,Baoan, Shenzhen, China

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. Date:2013-7-15 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID: XJN-PI0920X (MID MODEL No.: PI0920, PA0970CA) We affirm that between SIEMIC and SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Contact Person: Tony Pan / General Manager E-mail: : [email protected] Phone: 86-755-29809865 Fax: 86-755-28177333 Address : No.1 Shuoying Road, Hebei Industry Area, Dalang, Longhua Town,Baoan, Shenzhen, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. Date: 2013-7-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XJN-PI0920X We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Contact Person: Tony Pan / General Manager E-mail: : [email protected] Phone: 86-755-29809865 Fax: 86-755-28177333 Address : No.1 Shuoying Road, Hebei Industry Area, Dalang, Longhua Town,Baoan, Shenzhen, China

ID Label MID FCC ID: XJN-PI0920X Model Number: PI0920 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label location

Wifi Module Antenna

FCC ID: XJN-PI0920X WLAN (Portable device) According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm We use the separation distance with 50mm to calculate. Maximum measured transmitter power: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) Result calculation 1-g SAR 2.412 802.11b 9.71 0.29 3.0 Conclusion: For the max result 802.11b: 0.29≤ 3.0 for 1-g SAR extremity SAR, No SAR is required.

TRF No：FCC 15.247/A Page 1 of 76 Report No ES130608081E ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF MID MODEL No.: PI0920, PA0970CA FCC ID: XJN-PI0920X REPORT NO: ES130608081E ISSUE DATE:July 12, 2013 Prepared for SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. No.1 Shuoying Road, Hebei Industry Area, Dalang, Longhua Town,Baoan, Shenzhen, China Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 This report shall not be reproduced, except in full, without the written approval of SHENZHEN EMTEK CO., LTD. TRF No：FCC 15.247/A Page 2 of 76 Report No ES130608081E VERIFICATION OF COMPLIANCE Applicant: SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. No.1 Shuoying Road, Hebei Industry Area, Dalang, Longhua Town,Baoan, Shenzhen, China Manufacturer: SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. No.1 Shuoying Road, Hebei Industry Area, Dalang, Longhua Town,Baoan, Shenzhen, China Product Description: MID Model Number: PI0920, PA0970CA (Note: Both models are the same, except their model number, we take PI0920 to test.) File Number: ES130608081E Date of Test: June 25, 2013 to July 12, 2013 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : June 25, 2013 to July 12, 2013 Prepared by : Joe Xia/Editor Reviewer : June Xie/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No：FCC 15.247/A Page 3 of 76 Report No ES130608081E Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................................................ 5 1.1 PRODUCT DESCRIPTION.................................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT(S)................................................................................................................. 5 1.3 TEST METHODOLOGY....................................................................................................................................... 6 1.4 SPECIAL ACCESSORIES...................................................................................................................................... 6 1.5 EQUIPMENT MODIFICATIONS............................................................................................................................ 6 1.6 TEST FACILITY.................................................................................................................................................. 6 2. SYSTEM TEST CONFIGURATION ................................................................................................................... 7 2.1 EUT CONFIGURATION....................................................................................................................................... 7 2.2 EUT EXERCISE................................................................................................................................................. 7 2.3 TEST PROCEDURE............................................................................................................................................. 7 2.4 CONFIGURATION OF TESTED SYSTEM............................................................................................................... 7 3. DESCRIPTION OF TEST MODES ..................................................................................................................... 9 4. SUMMARY OF TEST RESULTS....................................................................................................................... 10 5. CONDUCTED EMISSIONS TEST.................................................................................................................... 11 5.1 MEASUREMENT PROCEDURE.......................................................................................................................... 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 11 5.3 MEASUREMENT EQUIPMENT USED................................................................................................................. 11 5.4 CONDUCTED EMISSION LIMIT......................................................................................................................... 11 5.5 MEASUREMENT RESULT.................................................................................................................................. 12 6. RADIATED EMISSION TEST ........................................................................................................................... 13 6.1 MEASUREMENT PROCEDURE.......................................................................................................................... 13 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 13 6.3 MEASUREMENT EQUIPMENT USED................................................................................................................. 14 6.4 RADIATED EMISSION LIMIT............................................................................................................................. 14 6.5 MEASUREMENT RESULT.................................................................................................................................. 16 7. 6DB BANDWIDTH TEST...........…

Text truncated - open the document above for the full version.

Radiated test setup: Conducted test setup:
