XJN-PX0880Mobile Internet Device

9＂ Digital Mobile Internet Device PX0880 User’s Manual Version-01-20130408 1. Appearance ................................................................................................................................... 2 2. Power Switch ................................................................................................................................. 2 3. Touch Screen ................................................................................................................................. 2 4. Using SD Card ................................................................................................................................ 3 5. Getting Started .............................................................................................................................. 3 6. Desktop ......................................................................................................................................... 4 7. Lock Screen ................................................................................................................................... 5 8. Reinstalled applications ................................................................................................................ 5 9. Desktop Menu ............................................................................................................................... 7 10. Managing Applications .............................................................................................................. 8 11. Clock ............................................................................................................................................ 9 12. Installing Software Online ......................................................................................................... 10 13. Browser ..................................................................................................................................... 11 14. Calendar .................................................................................................................................... 11 15. Camera ...................................................................................................................................... 12 16. Calculator .................................................................................................................................. 13 17. Sound Recorder ......................................................................................................................... 13 18. Email .......................................................................................................................................... 14 19. File Manager ............................................................................................................................. 16 20. Music ......................................................................................................................................... 17 21. HD Video Player ........................................................................................................................ 18 22. Settings ...................................................................................................................................... 18 FAQ .................................................................................................................................................. 21 Battery management ...................................................................................................................... 23 Important safety instruction ........................................................................................................... 23 1. Appearance 2. Power Switch Switch on: press and hold the power switch for 3 seconds and wait for startup. Switch off: press and hold the power switch for 3 seconds → click Power off → click OK. Lock/unlock screen: briefly press the power switch to lock/unlock the screen. Forced shout down: if the device has no response, press and hold the power switch for 7 seconds to switch off the device by force. Warning: forced shut down may cause unexpected errors of the system! 3. Touch Screen The touch screen is easy and convenient to use. You can use the touch screen in the following methods: Single click: briefly touch the screen with the finger and then move away. Click and hold: click the screen with the finger and hold for about 2 seconds. Drag: click a certain icon in the screen and hold, then move the finger, the icon will move accordingly. ☆ To avoid damage the screen, never put anything on the it. Power switch Earphone jack HDMI port USB port TF card slot Rear camera Speaker 4. Using SD Card ☆ The device supports up to 32GB storage card. Insert the card into the card slot, and push it in with your finger until a “click” is heard. Now the card is ready for use. Removing SD card Close all programs or files on the card first. Click Settings → Storage → Remove SD card → OK. Then press the card with your finger, and simply remove it when it is ejected. ☆ Do not insert and remove the card repeatedly in a short time, this may cause damage to the card. ☆ We suggest you use the card of famous brand to ensure compatibility. 5. Getting Started Charging the device ☆It is not recommended to charge the device via USB cable. ☆You may operate the device while charging it, but this may prolong the charging time. Connect one end of the AC adaptor to the mains supply and the other end to the power jack on the device to charge it (it may take about 5 hours to fully charge the device). The battery icon will roll during charging, and when it is full (it will stop rolling), please disconnect the AC adaptor. Starting the device Press and hold the power switch for 3 seconds and wait for system startup. Wi-Fi setting We suggest you configure your Wi-Fi network before using, as many functions require for it to work normally. 1. Cl…

Text truncated - open the document above for the full version.

Saturday, December 22, 2012 D1.0 BLOCK DIAGRAM 215 ofSheetDate: RevDocument NumberSize Title SD1 IMAPx15 INFOTMIC <CPU> P4~P6 (17mm X 17mm) TF Card P08 NAND P08 NA_IF I2C_3 G-Sensor P10 X'TAL 32.768KHz LCD_RGB_8X8 P09 X'TAL 12MHz Front CAM DDR III - BGA P07 USB 8 BIT DDR3 ES8328 P10 HP Int. MIC AUDIO CODEC P10P10 MIC JACKInt. Speaker I2S_1 CTP I2C_2 I2C_0 Charge IC PMU AXP202 P09 P12 P13 P09 X4 P10 P15 Bluetooth SD2 A B C D 54321 D C B A 12345 USB1 OTG WIFI P14 OTG P14 USB0 HDMI P09 P09 RGB1 HDMI RGB0 IMAPx15 24MHZ 1 1 A N T4 A NT 1 1 A N T7 A NT

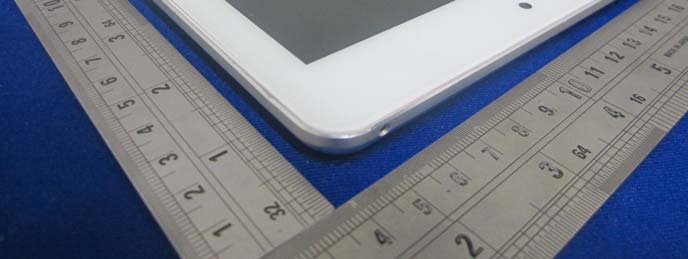

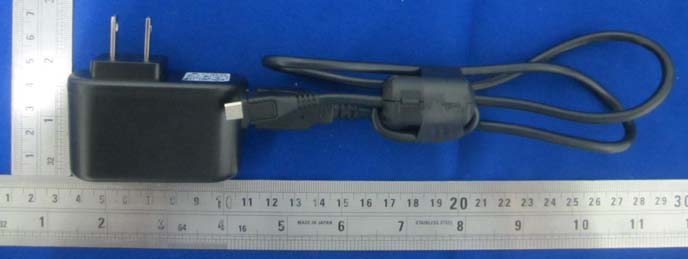

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT –Bottom View EUT – Left Side View EUT – Right Side View EUT – Adapter View EUT – Adapter Label View

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT –Uncover View EUT – Cover Off View Antenna EUT – Main Board Top View EUT –Main Board Bottom View EUT – Antenna View EUT – Battery View

Product Diagram Information 1． Product function introduce PX0880 is an Android MID device with capacitive touch screen. It have functions of visiting internet with WiFi, playing audio and video in NAND flash or TF card, audio/video recorder, alarm clock, calendar, real-time clock, camera and so on.. 2． Structure 2.1 Structure Introduce The system is consist of SOC（ IMAPX15 INFOTMIC），one piece of NAND Flash, 4 pieces of DDR3 RAM, 8” TFT panel, WiFi module (RTL8188EUS ) Bluetooth IC:RDA5876 TF socket, 30W front camera (GC0308), 200W real camera(GC2035) PMU(AXP202), and some other power conversions IC. 2.2 Description When you stir the switch of power about 3 seconds, the system is powered on. When you choose any icon in the GUI of Android 4.1 using your finger or others, IMAPX15 first judge what happened and then give it to the ARM or DSP in the core of IMAPX15 proceeding. The RTL8188EUS is a highly integrated single-chip QFN-46 pin wireless Lan USB network interface controller compatible with the 802.11n specification. It combines a MAC, a 1T1R Capable baseband, and RF in a single Chip. The RTL8188EUS provides a complete solution for a high throughput performance wireless client. The Bluetooth Chip RDA5876 compliant with 2.1+EDR specification, Meet Class 2 transmitting power requirement, support class 1 operation with external power amplifier. 2.3 Power It can use adaptor of 5V*2,5A when the system display the battery remain a little of power or exhaust.
