XJN-SYNET07526Netbook

RF (WIFI) MODULE: RT2070L Antenna: 2412-2462MHz OSCILLATOR 40MHz LC Filter Working frequency: 500MHz

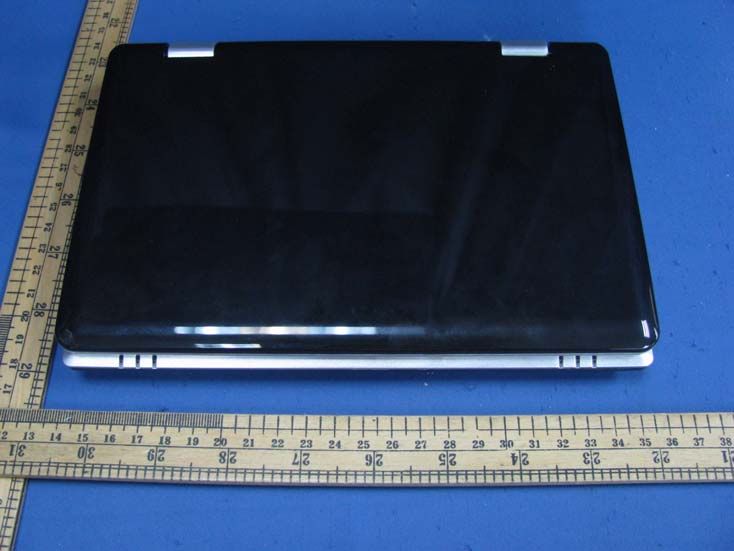

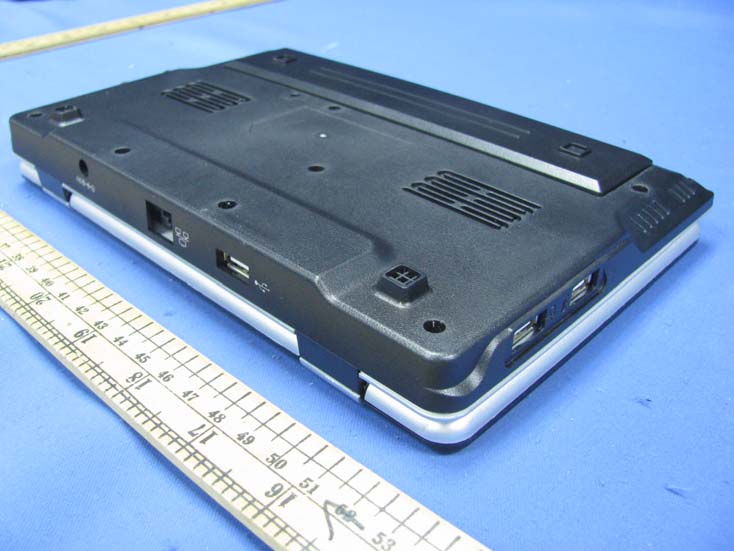

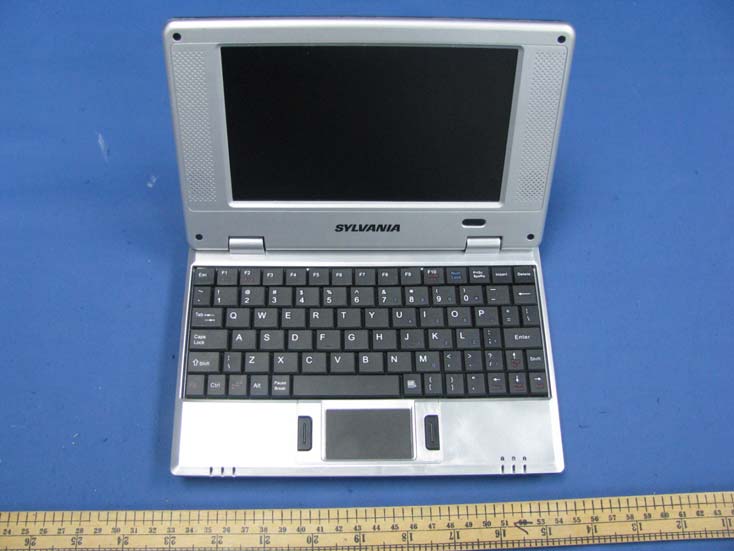

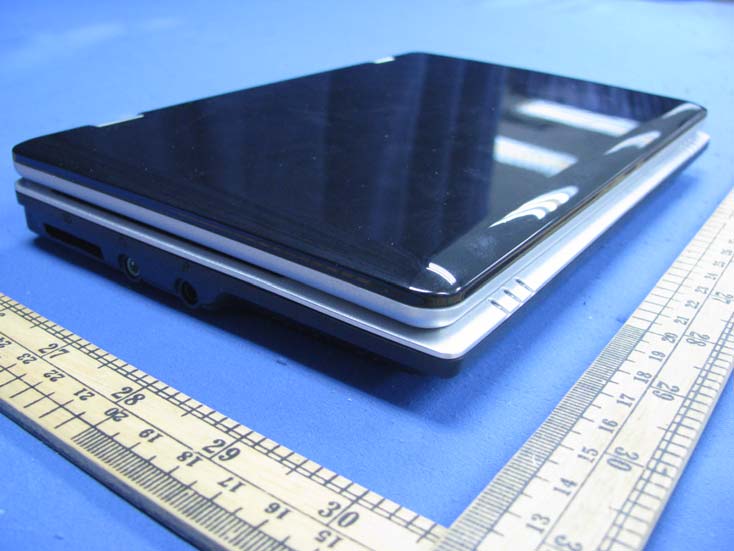

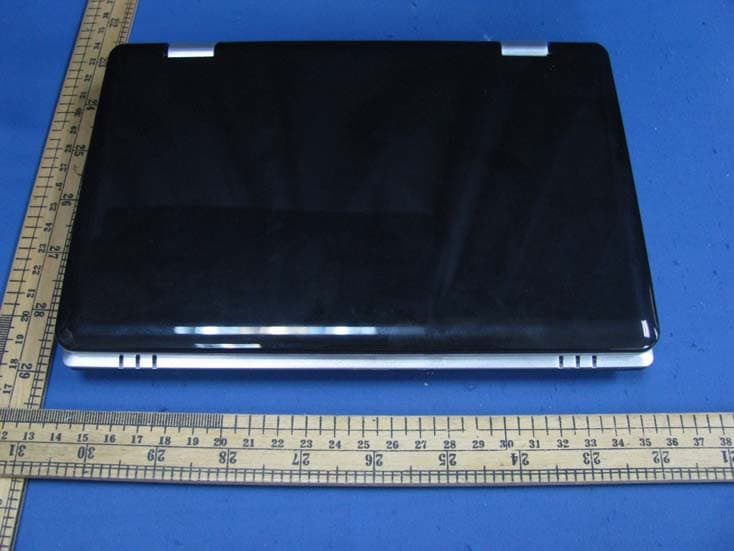

External Photos

50mm 15mm

Internal Photos

Technical Description The Equipment Under Test (EUT) is a Netbook with WiFi operating at 2.412-2.462GHz, 11 channels selection separated by 5MHz channel spacing. The EUT is installed with Windows CE operating system and can carry out the base function of PC. The device is powered by 1 X 8.4V rechargeable battery or AC 120V/60Hz via an external Adapter. Type of Modulation: CCK for 802.11b and OFDM for 802.11g. Antenna Type: Integral PCB Frequency List: 2412MHz, 2417Mhz, 2422MHz, 2427MHz, 2432MHz, 2437MHz, 2442MHz, 2447MHz, 2452MHz, 2457MHz, 2462MHz Main IC Function: 1. BV07-A-8505 SINGLE DDR MAIN BOARD 1) U1*(WM8505) is CPU with varied function such as Control Unit, Arithmetic Logic Unit, Memory Unit. (The symbol * express English Letter.) 2) U2 is DDR2 SDRAM. 3) U3 is NAND flash memory. 4) U4 is Serial Firmware Data flash Memory. 5) X1 and X2 are oscillators for U1*(WM8505). 2). BV07-SY-8505 IO BOARD 1) Q1 and Q12 are N-Channel Enhancement Mode MOSFET. 2) U2, U4, U5, U6, U13, U14, U18, D13, D14 are voltage regulator. 3) U3 is power regulator. 4) U8 is Ethernet 10/100 transceiver. 5) U10 is AC97 codec. 6) U11, U12 are Audio Power Amplifier. 7) U19 is USB HUB controller. 8) COB1 is multimedia keyboard encoder MCU. 9) X1 is oscillator for U19 (USB HUB controller). 10) X2 is oscillator for COB1 (multimedia keyboard encoder MCU). 11) X3 is oscillator for U10 (AC97 codec). 3. BV07-SY-8505 QM9005_LCD 1) U1 is a switching regulator. 2) U3 is LED switching regulator. 4. YXD 5330A PS2 TOUCHPAD. 1) U1 is PS2 touchpad detection sensor. 5. BL-RT3070-5D RF WIFI BOARD 1） U7 is MCU for RF Signal control. 2） U2 is power amplifier. 3） U4 is 1.5W L/ S-BAND SPDT SWITCH 4） U10 is a Synchronous Buck Regulator. 5） U5 is oscillator for U7. RF IC SPECIFICATION: DSR2070_V.1.0_052208 - I - Form No.：QS-073-F02 Rev.：1 Kept by： DCC Ret. Time： 5 Years Datasheet RT2070 Preliminary Revision May 22, 2008 Product Description The RT2070 is a highly integrated MAC/BBP and 2.4 GHz RF single chip with 54Mbps PHY rate supporting. It fully complies with IEEE 802.11 b/g feature rich wireless connectivity at high Block Diagram RF receiver ADC Baseband MAC/ Packet Buffer/ Encrption Engine USB System Control USB bus EEPROM/ GPIO/LED digital controlled RF DAC RF transmitter RF_RF2G_INP/ RF_RF2G_INN RF_RF2G_OUTP standards, delivers reliable, cost‐effective, throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design. deploys a high efficient USB engine and hardware data processing accelerators without overloading the host processor. The RT2070 is designed to support standard based features in the areas of security, quality of service and international regulation, giving end users the greatest performance anytime in any circumstance. Ralink Technology, Corp. (Taiwan) 5th F. No. 36,Taiyuan St, Jhubei City, Hsin‐Chu, Taiwan, R.O.C. Tel: 886‐3‐567‐8868 Fax: 886‐3‐567‐8818 Ralink Technology, Corp. (USA) Cupertino, CA9501420833 Stevens Creek Blvd. Ste 200 Tel: (408) 725‐8070Fax:(408)725‐8069 http://www.ralinktech.com Part Number Temp Range Package RT2070L ‐10~85°C Green/RoHS Compliant 76LD QFN (9mmx9mm) Application •IEEE802.11 b/g Wireless Local Area Networks •USB 2.0 Wi‐Fi Dongle Features • CMOS Technology with RF, Baseband, and MAC Integrated. • 1T1R Mode with 54Mbps PHY Rate for Both Transmit and Receiving. • WEP 64/128, WPA, WPA2 • QoS‐WMM, WMM‐PS • Multiple BSSID Support • USB 2.0 • International Regulation ‐ 802.11d + h • Cisco CCX Support • Bluetooth Co‐existence • Low Power with Advanced Power Management • Operating Systems ‐ Windows XP, 2000, ME, 98SE, Vista, Linux, MAC Order Information DSR2070_V.1.0_052208 - i - Form No.：QS-073-F02 Rev.：1 Kept by： DCC Ret. Time： 5 Years Datasheet RT2070 Preliminary Revision May 22, 2008 Table of Content 1. Pin Layout.........................................................................................................................................................1 2. Pin Description.................................................................................................................................................2 3. Maximum Ratings, Operation Conditions and Electrical Characteristics ........................................................5 3.1. Absolute Maximum Ratings ...................................................................................................................5 3.2. Thermal Information..............................................................................................................................5 3.3. Operating Conditions .............................................................................................................................5 3.4. Storage Condition...................................................................................................................................5 3.5. DC Electrical Characteristics................................................................................................................... 5 4. Register map ....................................................................................................................................................8 4.1. SCH registers ..........................................................................................................................................9 4.2. PBF registers.........................................................................................................................................10 4.3. TEST registers .......................................................................................................................................16 4.4. MAC registers.......................................................................................................................................20 4.5.1. MAC System configuration registers (offset:0x1000) .....................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Radio Frequency Radiation Exposure, FCC Rule 15.247(i): The EUT is a computer with WiFi unit used in portable application, less than 20 cm from any body part of the user or near by persons. The maximum conducted output power (in the worst-case 802.11g 2412MHz) = 13.3dBm And SAR Low Threshold Level: 60/f (GHz) = 60/2.45 = 24.5 mW = 13.9 dBm Since 13.3dBm is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: XJN-SYNET07526

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. C 112Thursday, July 22, 2010 Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. C 112Thursday, July 22, 2010 Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. C 112Thursday, July 22, 2010 WM8505 PID IO Board WMS8061A Cover Page Create PDF with GO2PDF for free, if you wish to remove this line, click here to buy Virtual PDF Printer 5 5 4 4 3 3 2 2 1 1 DD CC BB AA Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. Custom 212Thursday, July 22, 2010 Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. Custom 212Thursday, July 22, 2010 Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. Custom 212Thursday, July 22, 2010 [VCCA15USBPLL] [VCCA33USBPLL] [VCC33USB] [VCCRGMII]@MII [VCCA33DAC] (pull-lowforAutoPowerOnMode) POWER SEQUENCE:POWER TREE: Power Tree & Power Sequence 5V PWREN15 PWREN33 PWREN18 PWRBTN# PWRGD 5 4 5 VINSW 5VSUS 1 3 2 1 3 2 VDD VCC33 VCCMEM RSMRST# PowerONSuspendResumePowerOFF 5 5 4 1P5VSUS 3P3VSUS 3P3V 2 12VDC 5V/3A U2 APW7145 12VDCIN PWREN15 1 1.5V/1A U5 APW7102 3.3V/1A APW7102 U6 2 PWREN33 3P3VSUS [3P3VSUS] 1.5V,3.3V/300mA U14 RT9193-15PB 5V_SUS 1P5VSUS [1P5VSUS] VDD 3P3V [VCCMEM]@DRAM 5V Q8Q7 PWREN33 2N7002 APM2301 [VCCMEM] [VCC33PLL] [VCC33XTAL] [VCC33] [3P3V]@Devices [VDD] 1.8V/600mA U4 SoC Sus-power: APW7101 PWREN18 VCCMEM 3 [5V]@LCD [5V_USB] USB POWER: 1.5V,3.3V/300mA U13 RT9193-33PB Power Sequence Create PDF with GO2PDF for free, if you wish to remove this line, click here to buy Virtual PDF Printer 5 5 4 4 3 3 2 2 1 1 DD CC BB AA SATA1 PWRBTN- APW7145_ENSATA1 VPACK+ VDCIN VDCINVIN VDCIN VPACK+ VDCIN 3P3VSUS 3P3VSUS VIN 3P3V VDCIN 3P3V PWRGD4,12 DCIN_DT12 PWRBTN-12 PWRBTN-KEY11 APW7145_EN4 Charger_STAT12 CHAR_LED+9 SATA1_LED-9 Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. Custom 312Thursday, July 22, 2010 Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. Custom 312Thursday, July 22, 2010 Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. Custom 312Thursday, July 22, 2010 Near Connector Pin for ESD RESET BUTTON 1206 Co-Layer 9V Input 2A 1.5A Rating Buttons 1 9V Adapter Power In Power 450MA Charge 2-cell Battery Connector RC Delay for RESUME Holding time POWER ON/OFF SW Place on LCD board Modify Power ON/OFF circuit RSMRST- PWRBTN- Charger LED R140 4.7K R140 4.7K + CE12 220uFX + CE12 220uFX 1 2 R410K/XR410K/X D1 RSX501L-20 D1 RSX501L-20 AK R16 4.7K R16 4.7K D2 RSX501L-20 D2 RSX501L-20 AK J2J2 1 2 3 R221KR221K Q2 2N7002LT1/X Q2 2N7002LT1/X G D S Q18 AO3401X Q18 AO3401X G DS R18 10KX R18 10KX R11 10K R11 10K R91KR91K Q1 APM9435KC-TRL/X Q1 APM9435KC-TRL/X S 1 S 2 S 3 G 4 D 5 D 6 D 7 D 8 C129 4.7uF C129 4.7uF R7 3.3K R7 3.3K R50 100K R50 100K C41 0.1uF/X C41 0.1uF/X U3 SUN4001 U3 SUN4001 BAT 4 VCC 8 TS 2 LEDS 1 CS1 6 CS2 7 GND 3 DRIVE 5 R12 4.7K R12 4.7K R149 100KX R149 100KX JP1 OpenPad JP1 OpenPad 12 C19 0.1uF C19 0.1uF Q5 AO3401 Q5 AO3401 G DS C6 0.1uF/X C6 0.1uF/X C3 1uF C3 1uF Q4 2N7002LT1/X Q4 2N7002LT1/X G D S R8 100K/X R8 100K/X SW1 TS-A87 SW1 TS-A87 4 21 3 R134 100K R134 100K J1 PJK-107 J1 PJK-107 1 3 2 45 Q3 APM2605CC-TRL Q3 APM2605CC-TRL 3 2 54 6 1 R10 4.7K/X R10 4.7K/X D3 KDZ10B/X D3 KDZ10B/X A K R5410KR5410K C1 10uF C1 10uF R133 1K R133 1K R140.33_1%R140.33_1% R3 6.8K R3 6.8K C40 0.1uF C40 0.1uF R130RXR130RX Q15 APM2301CAC-TRL Q15 APM2301CAC-TRL G DS ESD1 CDS2C16GTH/X ESD1 CDS2C16GTH/X 1 2 Q12 APM9435KC-TRL Q12 APM9435KC-TRL S 1 S 2 S 3 G 4 D 5 D 6 D 7 D 8 C5 0.1uF C5 0.1uF R136 100K R136 100K C14 0.1uF C14 0.1uF R5 10K/X R5 10K/X C16 10uF C16 10uF R19 1K R19 1K C13 10uF C13 10uF VPACK-VPACK- 1 VPACK+VPACK+ 1 R15100K_1%R15100K_1% R132 10K_1% R132 10K_1% C18 10uFX C18 10uFX C2 0.1uF C2 0.1uF C4 10uF C4 10uF Q14 2N7002LT1 Q14 2N7002LT1 G D S R17100K_1%R17100K_1% R551KR551K R57 3.3K R57 3.3K R6 1K/X R6 1K/X R49 10K R49 10K D11 BAT54S D11 BAT54S 2 3 1 Q6 2N7002LT1 Q6 2N7002LT1 G D S D4 B340A D4 B340A AK R21 10K_1% R21 10K_1% D6 uClamp0501H/X D6 uClamp0501H/X A K Create PDF with GO2PDF for free, if you wish to remove this line, click here to buy Virtual PDF Printer 5 5 4 4 3 3 2 2 1 1 DD CC BB AA 5VSUS_0 PWRGD VBAT1 VCCBAT_0 5VSUS VIN VDD 5VSUS VCCMEM 3P3V 5VSUS 5VSUS 5V 5VSUS 5VSUS 3P3VSUS 5VSUS 1P5VSUS 5VSUS 5V VCCBAT VIN VCCBAT3P3VSUS 3P3V PWREN15 12 PWREN33 12 PWREN18 12 PWREN1512 PWREN3312 PWREN1812 PWREN3312 PWRGD3,12 APW7145_EN3 Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. Custom 412Thursday, July 22, 2010 Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. Custom 412Thursday, July 22, 2010 Title SizeDocument NumberRev Date:Sheet of BV07-SY-8505 V1.0 Benign Technologies Co.,Ltd. Custom 412Thursday, July 22, 2010 Voltage Regulators Power Enable: Vout=0.8*(1+R1/R2) 0.8*(1+63.4/12)=5.026V 5V 3A 12V -> 5VSUS (SoC Power, USB VBUS Power) Vout=0.6*(1+R1/R2) 06*(1+300/200)=1.5v@1A 5VSUS -> VDD 5VSUS -> VCCMEM (SoC+DDR2 Chip Power) Vout=0.6*(1+R1/R2) 06*(1+400/200)=1.8v@1A R1 R2 2 5VSUS -> 3P3V Vout=0.6*(1+R1/R2) 0.6*(1+180K/39K)=3.37v@1A 5 6 7 5VSUS -> 1P5VSUS/3P3VSUS (300mA each) 3/4 RTC POWER: 1.5V, 800mA 1.8V, 600mA 3.3V, 800mA R1 R1 R2 R2 5V,1.5A 5VSUS -> 5V (Device Power) (LCD,I2S,UART) 8 Voltage Regulators C56 1uF C56 1uF C119 0.022uF C119 0.022uF R482.2KXR482.2KX R165 47K R165 47K R16127KR16127K C117 1uF C117 1uF R27 1K/X R27 1K/X CE1 47uF CE1 47uF Q8 2N7002LT1 Q8 2N7002LT1 G D S L5JTP0403L5JTP0403 L3JTP0403L3JTP0403 C123 1uF C123 1uF C30 10uF C30 10uF C177 1000pF C177 1000pF C121 1uF C121 1uF U13 RT9193-33PB U13 RT9193-33PB VIN 1 GND 2 EN 3 BP 4 VOUT 5 C22 4.7uF C22 4.7uF C17 47pF C17 47pF CE2 47uF CE2 47uF + CE5 100uF/6.3V + CE5 100uF/6.3V 1 2 C35 4…

Text truncated - open the document above for the full version.

A PS Ref 5 dBmAtt 20 dB * 2 MHz/Center 2.412 GHzSpan 20 MHz * * RBW 100 kHz VBW 300 kHz AC SWT 5 ms 3DB Controlled by EMC32 1 PK VIEW -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -10.67 dBm 2.407080000 GHz 1 Delta 1 [T1 ] -0.29 dB 10.180000000 MHz D1 -4.67 dBm D2 -10.67 dBm Plot: B2A1 A PS Ref 5 dBmAtt 20 dB * 2 MHz/Center 2.437 GHzSpan 20 MHz * * RBW 100 kHz VBW 300 kHz SWT 5 ms AC 3DB Controlled by EMC32 1 PK VIEW -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -12.10 dBm 2.432050000 GHz 1 Delta 1 [T1 ] 1.24 dB 10.190000000 MHz D1 -5.42 dBm D2 -11.42 dBm Plot: B2B1 A PS Ref 5 dBmAtt 20 dB * 3DB 2 MHz/Center 2.462 GHzSpan 20 MHz * * RBW 100 kHz VBW 300 kHz SWT 5 ms AC Controlled by EMC32 1 PK VIEW -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -11.28 dBm 2.457090000 GHz 1 Delta 1 [T1 ] 1.17 dB 10.150000000 MHz D1 -5.73 dBm D2 -11.73 dBm Plot: B2C1 A PS Ref 5 dBmAtt 20 dB * 3DB 2 MHz/Center 2.412 GHzSpan 20 MHz * * RBW 100 kHz VBW 300 kHz SWT 5 ms AC Controlled by EMC32 1 PK VIEW -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -17.78 dBm 2.403900000 GHz 1 Delta 1 [T1 ] -0.57 dB 16.520000000 MHz D1 -11.93 dBm D2 -17.93 dBm Plot: G2A1 A PS Ref 5 dBmAtt 20 dB * 2 MHz/Center 2.437 GHzSpan 20 MHz * * RBW 100 kHz VBW 300 kHz SWT 5 ms AC 3DB Controlled by EMC32 1 PK VIEW -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -18.35 dBm 2.428900000 GHz 1 Delta 1 [T1 ] -0.89 dB 16.520000000 MHz D1 -12.65 dBm D2 -18.65 dBm Plot: G2B1 A PS Ref 5 dBmAtt 20 dB * 2 MHz/Center 2.462 GHzSpan 20 MHz * * RBW 100 kHz VBW 300 kHz SWT 5 ms AC 3DB Controlled by EMC32 1 PK VIEW -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -18.60 dBm 2.453880000 GHz 1 Delta 1 [T1 ] -0.55 dB 16.560000000 MHz D1 -12.83 dBm D2 -18.83 dBm Plot: G2C1

A Att 20 dB * 1 PK MAXH Ref 10 dBm 5 MHz/Center 2.4 GHzSpan 50 MHz 3DB RBW 1 MHz SWT 2.5 ms * VBW 3 MHz * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 0.85 dBm 2.413600000 GHz 1 Delta 1 [T1 ] -45.15 dB -14.400000000 MHz Plot: B4D1 Plot: B4D2 A Att 20 dB * Ref 10 dBm 5 MHz/Center 2.4 GHzSpan 50 MHz * * 3DB RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -0.76 dBm 2.413800000 GHz 1 Delta 1 [T1 ] -36.02 dB -14.000000000 MHz Plot: G4D1 Plot: G4D2

A Att 20 dB ** Ref 5 dBm 150 kHz/Center 2.41144 GHzSpan 1.5 MHz * * 3DB RBW 3 kHz VBW 10 kHz 1 PK VIEW SWT 500 s * * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -22.78 dBm 2.411437000 GHz Plot: B3A1 A Att 20 dB ** Ref 5 dBm 150 kHz/Center 2.436439 GHzSpan 1.5 MHz * * 3DB RBW 3 kHz VBW 10 kHz 1 PK VIEW SWT 500 s * * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -22.83 dBm 2.436463000 GHz Plot: B3B1 A Att 20 dB ** Ref 5 dBm 150 kHz/Center 2.461509 GHzSpan 1.5 MHz * * 3DB RBW 3 kHz VBW 10 kHz 1 PK VIEW SWT 500 s * * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -23.31 dBm 2.461503000 GHz Plot: B3C1 A Att 20 dB ** Ref 5 dBm 150 kHz/Center 2.411227 GHzSpan 1.5 MHz * * 3DB RBW 3 kHz VBW 10 kHz 1 PK VIEW SWT 500 s * * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -25.29 dBm 2.411227000 GHz Plot: G3A1 A PS Ref 5 dBmAtt 20 dB * 3DB 150 kHz/Center 2.43624 GHzSpan 1.5 MHz * * RBW 3 kHz VBW 10 kHz AC Controlled by EMC32 1 PK VIEW SWT 500 s * * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -27.70 dBm 2.436234000 GHz Plot: G3B1 A PS Ref 5 dBmAtt 20 dB * 3DB 150 kHz/Center 2.4612355 GHzSpan 1.5 MHz * * RBW 3 kHz VBW 10 kHz AC Controlled by EMC32 1 PK VIEW SWT 500 s * * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -27.89 dB m 2.461235500 GHz Plot: G3C1

A Att 20 dB * Ref 10 dBm 1 PK MAXH 249.9 MHz/Start 1 MHzStop 2.5 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 250 ms -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -12.19 dBm 2.415034000 GHz 1 Delta 1 [T1 ] -39.75 dB -2.219112000 GHz Plot: B4A1 A Att 20 dB * Ref 10 dBm 1 PK MAXH 2.3 GHz/Start 2 GHzStop 25 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.3 s -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -12.40 dBm 2.368000000 GHz 1 Delta 1 [T1 ] -30.23 dB 828.000000000 MHz Plot: B4A2 A Att 20 dB * Ref 10 dBm 249.9 MHz/Start 1 MHzStop 2.5 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 250 ms 1 PK MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -12.54 dBm 2.435026000 GHz 1 Delta 1 [T1 ] -39.21 dB -2.279088000 GHz Plot: B4B1 A Att 20 dB * Ref 10 dBm 1 PK MAXH 2.3 GHz/Start 2 GHzStop 25 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.3 s -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -12.99 dBm 2.414000000 GHz 1 Delta 1 [T1 ] -29.25 dB 828.000000000 MHz Plot: B4B2 A Att 20 dB * Ref 10 dBm 1 PK MAXH 249.9 MHz/Start 1 MHzStop 2.5 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 250 ms -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -12.76 dBm 2.465014000 GHz 1 Delta 1 [T1 ] -38.85 dB -2.309076000 GHz Plot: B4C1 A Att 20 dB * Ref 10 dBm 2.3 GHz/Start 2 GHzStop 25 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.3 s 1 PK MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -13.03 dBm 2.460000000 GHz 1 Delta 1 [T1 ] -29.30 dB 782.000000000 MHz Plot: B4C2 A Att 20 dB * Ref 10 dBm 1 PK MAXH 249.9 MHz/Start 1 MHzStop 2.5 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 250 ms -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -7.71 dBm 2.415034000 GHz 1 Delta 1 [T1 ] -44.33 dB -2.259096000 GHz Plot: G4A1 A Att 20 dB * Ref 10 dBm 1 PK MAXH 2.3 GHz/Start 2 GHzStop 25 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.3 s -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -8.86 dBm 2.368000000 GHz 1 Delta 1 [T1 ] -34.19 dB 828.000000000 MHz Plot: G4A2 A Att 20 dB * Ref 10 dBm 249.9 MHz/Start 1 MHzStop 2.5 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 250 ms 1 PK MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -5.23 dBm 2.440024000 GHz 1 Delta 1 [T1 ] -46.55 dB -2.284086000 GHz Plot: G4B1 A Att 20 dB * Ref 10 dBm 1 PK MAXH 2.3 GHz/Start 2 GHzStop 25 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.3 s -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -5.15 dBm 2.414000000 GHz 1 Delta 1 [T1 ] -37.09 dB 828.000000000 MHz Plot: G4B2 A Att 20 dB * Ref 10 dBm * * 3DB RBW 100 kHz VBW 300 kHz SWT 250 ms Center 1.2505 GHzSpan 2.499 GHz249.9 MHz/ 1 PK MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -5.70 dBm 2.465014000 GHz 1 Delta 1 [T1 ] -46.33 dB -2.309076000 GHz Plot: G4C1 A Att 20 dB * Ref 10 dBm 1 PK MAXH 2.3 GHz/Start 2 GHzStop 25 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.3 s -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -7.23 dBm 2.460000000 GHz 1 Delta 1 [T1 ] -35.27 dB 782.000000000 MHz Plot: G4C2

 Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Sep 19, 2010 SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. NO.1 Shuoying Rd., Hebei Industry Area, Dalang, Longhua Town, Baoan, Shenzhen, China Dear Tony Pan: Enclosed you will find your file copy of a Part 15 report (FCC ID: XJN-SYNET07526). For your reference, TCB will normally take another 20 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Shawn Xing Assistant Manager Enclosure  • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_Txa FCC ID: XJN-SYNET07526 Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. Application For Certification Netbook (WiFi Transceiver) (FCC ID: XJN-SYNET07526) Model: UMPC7800 SZ10070205-1 Billy Li Sep 19, 2010 INTERTEK TESTING SERVICE TRF no.: FCC 15C_TXa FCC ID: XJN-SYNET07526 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labeling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Miscellaneous Information EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TXa FCC ID: XJN-SYNET07526 ii MEASUREMENT/TECHNICAL REPORT SHUOYING INDUSTRIAL (SHENZHEN) CO., LTD. - MODEL: UMPC7800 FCC ID: XJN-SYNET07526 This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (WiFi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-09 Edition] provision. Report prepared by: Shawn Xing Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 6288 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TXa FCC ID: XJN-SYNET07526 iii Table of Contents 1.0 Summary of test results .............................................................................. 2 2.0 General Description................................................................................................4 2.1 Product Description ....................................................................................... 4 2.2 Related Submittal(s) Grants .......................................................................... 5 2.3 Test Methodology.......................................................................................... 5 2.4 Test Facility ................................................................................................... 5 3.0 System Test Configuration ................................................................................. 7 3.1 Justification ................................................................................................... 7 3.2 EUT Exercising Software............................................................................... 7 3.3 Details of EUT and Description of Peripherals............................................... 8 3.4 Measurement Uncertainty.............................................................................. 8 3.5 Equipment Modification ................................................................................. 8 3.6 Support Equipment List and Description....................................................... 9 4.0 Measurement Results.......................................................................................... 11 4.1 Maximum Conducted Output Power at Antenna Terminals.......................... 11 4.2 Minimum 6dB RF Bandwidth ....................................................................... 12 4.3 Maximum Power Density ................................................................................13 4.4 Out of Band Conducted Emissions ...............................................................15 4.5 Out of Band Radiated Emissions ................................................................. 17 4.6 Transmitter Radiated Emiss…

Text truncated - open the document above for the full version.

Conducted Photos

Radiated Photos
