XJN-SYPID79017" Mini Tablet

7” Mini Tablet Wireless Mobile Internet Device Model Number: PID7901 SYNET7LP Front View: Side Angle View: The Host USB port is used primarily to connect USB devices such as a mouse or keyboard. The OTG USB port may not be user accessible . The Mini HDMI port is an “OUT” port designed to output HDMI. Note: The software on your Mini Tablet is updated frequently to ensure your Mini Tablet is always optimized. Make sure to check for updates frequently. The icons shown may be different than the icons of the actual product. Back View: Using your Stylus: Tap with the stylus or finger nail rather than the pad of your finger. Note that this product has a resistive touch screen. This machine senses pressure applied to it in specific areas and acts on this pressure. Please use a stylus or your nail when tapping the screen for optimal usage. Note that simply touching the screen with your finger will not produce optimal results. Getting Started 1 . C H A R GE Y O U R D E V I C E Plug the power adapter into an electrical outlet and connect your device to the adapter. It is recommended that you fully charge the battery before use, for at least six hours. 2 . T U R N D E V I C E O N Press the power button on the back of the device to turn on. You can use the device while the battery is charging. To turn the power off, hold on to the power button on the back of your device for about three seconds. Then tap power off followed by OK. 3 . C O N F I G U R E T O U C H S C R E E N 1. Press the MENU button on the back of the product. 2. Tap Settings on the bottom menu. 3. Scroll down and tap Touch Screen Calibrate. 4. Use the stylus to tap the middle of the displayed crosshairs to calibrate the touch screen. Note: After a system reset, it may be necessary to re- calibrate your screen. 4 . I N S E R T S D C A R D Inserting an SD Card is an option for importing other files, downloading applications, and playing stored media. Insert a Micro SD Card (up to 16GB) into the SD Cart Slot. You will hear a click when the card is inserted properly. Many of the features included on your device will not function properly without the SD Card. Please note that this product is not a computer. It is a Wireless Internet Device with Android Operating system. Home Screen Features 1. Return to Home Screen 2. Screen orientation (Portrait or Landscape) 3. Wi-Fi Connection Status 4. Battery Level 5. Time Display 6. Tap to take a picture of your screen. 7. Settings Menu 8. Tap this button to go back one screen. 9. Tap to search the web. 10. Application Quick Launch Bar: Frequently used applications are displayed here. Tap the icon to access the application. S E T Y O U R D I S P L A Y P R E F E R E N C E S Landscape (default) Portrait To switch between Landscape and Portrait mode, tap on the Screen Orientation icon on the top menu bar. S E T D A T E A N D T I M E 1. Tap Settings from the Home Screen to access the device settings. 2. To set up the current date and time, tap Date & time. 3. Tap the Automatic option to turn off the network- provided values. 4. Tap Set date and enter the current date. 5. Tap Set when finished. 6. Tap Set time and enter the current time. 7. Tap Set when finished. 8. Change the way in which the date and time are displayed by tapping the Use 24-hour format and Select date format options. W I - F I S E T U P 1. To set up Wi-Fi, tap Wi-Fi settings on the Application Home Screen Panel. 2. Tap Turn on Wi-Fi. The device will automatically scan and list local Wi-Fi networks that it finds. A lock image indicates a secure network that requires a password for access. 3. Tap the network that you would like the device to connect to. 4. If a password is required, a notification screen will appear to allow you to enter the password. Tap the Wireless password box to access the keyboard and enter the password. Tap Done when finished. 5. A wireless icon will appear in the toolbar to indicate that you are connected to the wireless network. 6. Tap the back arrow to exit to the Home Screen. E M A I L S E T U P
POP3, IMAP, and other common email accounts are supported. 1. To set up Email, tap Email on the Application Home Screen Panel. 2. Enter your email address and password. 3. Tap Next. This will be your default account unless you add another email address. After you have more than one account set up, you can select a different address as the default account. (optional) To select the account type, or modify individual account settings, tap Manual Setup after entering your email address and password. N A V I G A T I N G T H E H O M E S C R E E N P A N E L S Your device displays the Home Screen when there are no other applications or menus open on the screen. The Home Screen allows you to organize all of your favorite applications, widgets, and other tools for easy access. The Home Screen is divided into three panels: the Search Panel, The Widget Panel, and the Application Panel. Slide the stylus across the screen to the right or left to change panels.
Use the Search Panel to quickly search the web.
The Widget Panel allows you to customize a variety of tools, or “Widgets” that run right on the Home Screen, such as a calendar, mp3 player, and local weather updates.
The Application Panel displays the Android® applications installed on the device. Tap an application icon to launch the application on your device. Other Settings A N I M A T I O N : You can change your screen animation from 2D (default) to 3D. 1. Tap on Settings Menu. 2. Tap Animation to change the setting. A D D I N G A P P L I C A T I O N S You can easily add applications to your device. Note: A MicroSD card is required to install applications on your device. Use the SAM 3.5 application to search for and install Android applications to your device. OTG Nothing function now,work as HOST M O V I N G I C O N S To move any of the icons on your screen, touch and hold the stylus to the icon. The icon will highlight and then increase in size and allow you to drag…

Text truncated - open the document above for the full version.

RF (WIFI) MODULE: INFOTMIC IMAP200, IMAP441 Working frequency: 500MHz

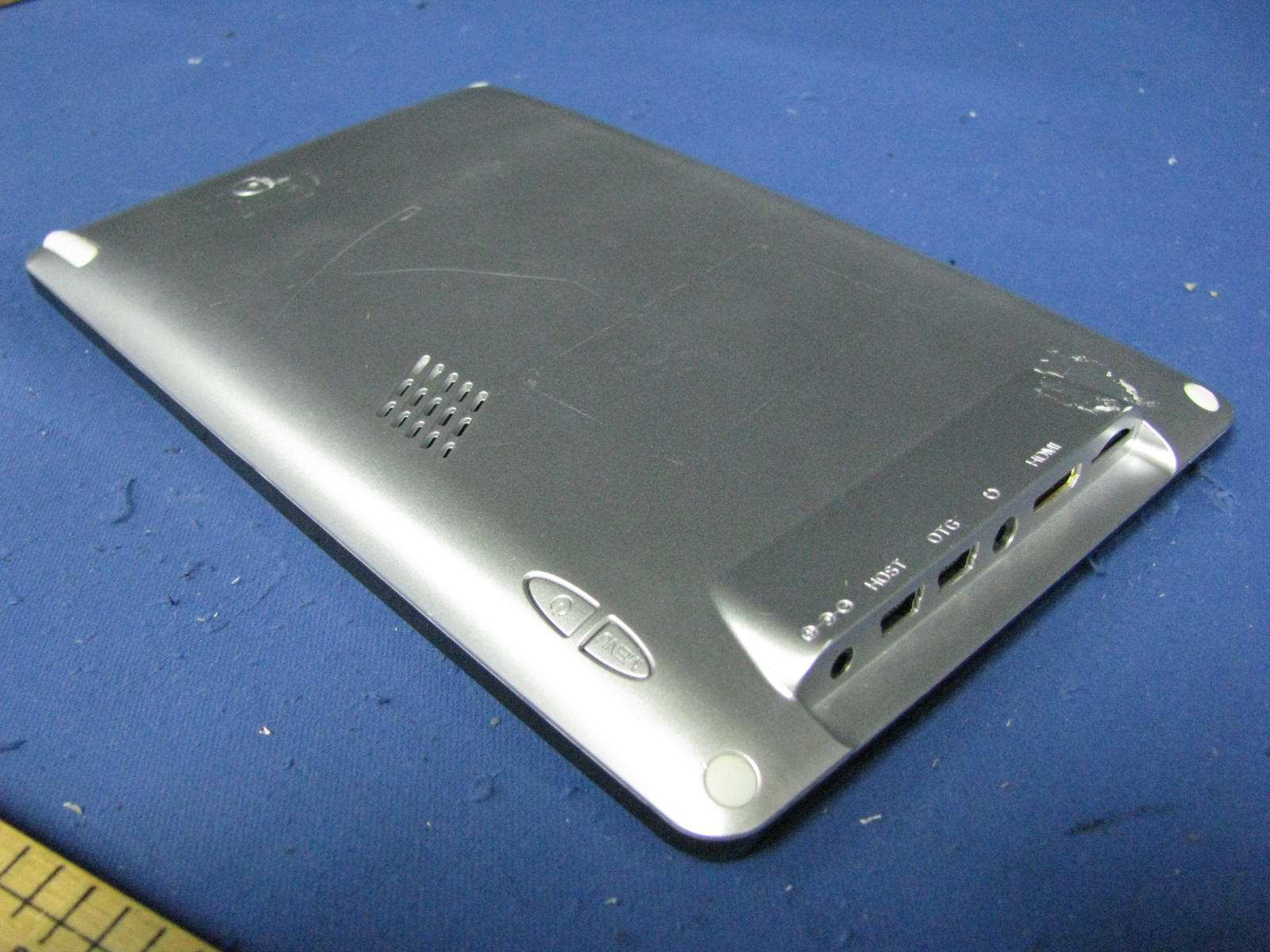

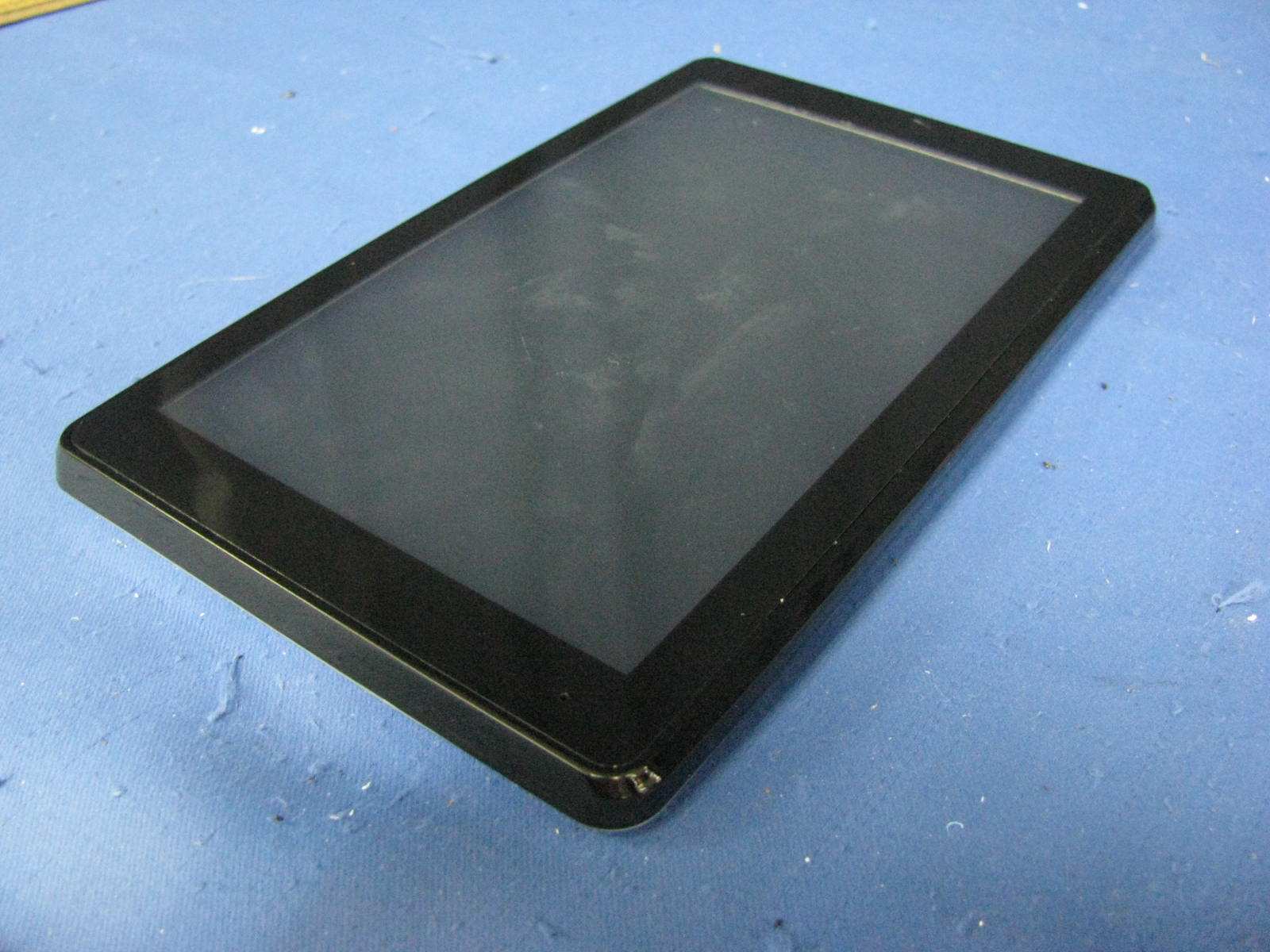

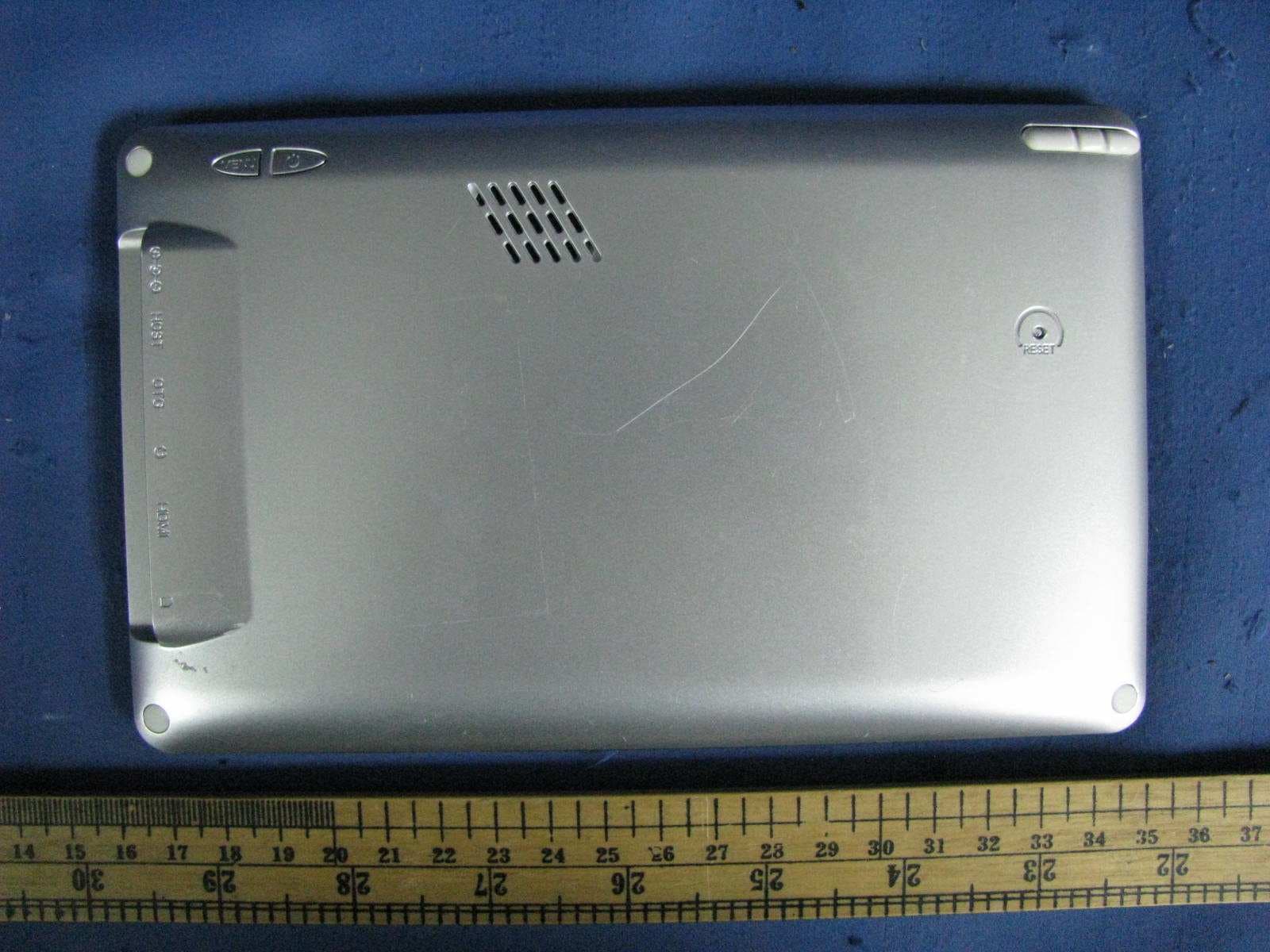

External Photos

FCC Label Size: 80*16mm

Internal Photos

PID7901 Technical Description The Equipment Under Test (EUT) is a 7’’ MINI Tablet with internal WiFi module operating at 2.412-2.462GHz, 11 channels with 5MHz channel spacing. The EUT has a resistive touch screen and can be operated by stylus or your nail tapping the screen. The device is powered by 2 X 4.2V rechargeable batteries or an AC/DC Adapter (INPUT: AC100-240, 50/60Hz 0.3A; OUTPUT: DC 9V, 2.0A). Type of Modulation: CCK for 802.11b and OFDM for 802.11g. Antenna Type: Internal Integral PIFA Antenna. Frequency List: 2412MHz, 2417Mhz, 2422MHz, 2427MHz, 2432MHz, 2437MHz, 2442MHz, 2447MHz, 2452MHz, 2457MHz, 2462MHz Main IC Function: 1. MAIN PCB and BATTERY REGULATOR PCB 1) U1*(IMAP200) is CPU with varied function such as Control Unit Arithmetic Logic Unit. (The symbol * express English Letter.) 2) U4 U5 is DDR2 SDRAM. 3) U3 is NAND flash memory. 4) U10 is HDMI decode IC. 5) U8 is audio decode IC. 6) U2 is G-Sensor. 7) Q11 is P-Channel Enhancement Mode MOSFET for battery charger regulator. 8) U21 is battery charger regulator. 9) U7, U9, U17, U14, U19, U20, U12, U13, U22, U23 are power regulator. 10) U15 is a voltage buck converter. 11) U11 is CMOS SPDT Switch. 11) X2 is oscillator for U1 main frequency. 12) X5 is oscillator for U1 RTC frequency. 2. LCD PCB 1) U20, U21, U1 are power regulator. 2) U2 is touch screen controller IC. 3. WIFI PCB 1 ） U7 is MCU for RF Signal control. 2 ） U2 is power amplifier. 3） U4 is 1.5W L/ S-BAND SPDT SWITCH 4） U10 is a Synchronous Buck Regulator. 5） U5 is oscillator for U7. RF IC SPECIFICATION DSR2070_V.1.0_052208 - I - Form No.：QS-073-F02 Rev.：1 Kept by： DCC Ret. Time： 5 Years Datasheet RT2070 Preliminary Revision May 22, 2008 Product Description The RT2070 is a highly integrated MAC/BBP and 2.4 GHz RF single chip with 54Mbps PHY rate supporting. It fully complies with IEEE 802.11 b/g feature rich wireless connectivity at high Block Diagram RF receiver ADC Baseband MAC/ Packet Buffer/ Encrption Engine USB System Control USB bus EEPROM/ GPIO/LED digital controlled RF DAC RF transmitter RF_RF2G_INP/ RF_RF2G_INN RF_RF2G_OUTP standards, delivers reliable, cost‐effective, throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design. deploys a high efficient USB engine and hardware data processing accelerators without overloading the host processor. The RT2070 is designed to support standard based features in the areas of security, quality of service and international regulation, giving end users the greatest performance anytime in any circumstance. Ralink Technology, Corp. (Taiwan) 5th F. No. 36,Taiyuan St, Jhubei City, Hsin‐Chu, Taiwan, R.O.C. Tel: 886‐3‐567‐8868 Fax: 886‐3‐567‐8818 Ralink Technology, Corp. (USA) Cupertino, CA9501420833 Stevens Creek Blvd. Ste 200 Tel: (408) 725‐8070Fax:(408)725‐8069 http://www.ralinktech.com Part Number Temp Range Package RT2070L ‐10~85°C Green/RoHS Compliant 76LD QFN (9mmx9mm) Application •IEEE802.11 b/g Wireless Local Area Networks •USB 2.0 Wi‐Fi Dongle Features • CMOS Technology with RF, Baseband, and MAC Integrated. • 1T1R Mode with 54Mbps PHY Rate for Both Transmit and Receiving. • WEP 64/128, WPA, WPA2 • QoS‐WMM, WMM‐PS • Multiple BSSID Support • USB 2.0 • International Regulation ‐ 802.11d + h • Cisco CCX Support • Bluetooth Co‐existence • Low Power with Advanced Power Management • Operating Systems ‐ Windows XP, 2000, ME, 98SE, Vista, Linux, MAC Order Information DSR2070_V.1.0_052208 - i - Form No.：QS-073-F02 Rev.：1 Kept by： DCC Ret. Time： 5 Years Datasheet RT2070 Preliminary Revision May 22, 2008 Table of Content 1. Pin Layout.........................................................................................................................................................1 2. Pin Description.................................................................................................................................................2 3. Maximum Ratings, Operation Conditions and Electrical Characteristics ........................................................5 3.1. Absolute Maximum Ratings ...................................................................................................................5 3.2. Thermal Information..............................................................................................................................5 3.3. Operating Conditions .............................................................................................................................5 3.4. Storage Condition...................................................................................................................................5 3.5. DC Electrical Characteristics................................................................................................................... 5 4. Register map ....................................................................................................................................................8 4.1. SCH registers ..........................................................................................................................................9 4.2. PBF registers.........................................................................................................................................10 4.3. TEST registers .......................................................................................................................................16 4.4. MAC registers.......................................................................................................................................20 4.5.1. MAC System configuration registers (offset:0x1000) ...............................................................20 4.5.2. MAC Timing Control Registers (offset:0x1100).........................................................................24 4.5.3. MAC Power save configuration registers (offset:0x1200) ............…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Radio Frequency Radiation Exposure, FCC Rule 15.247(i): The EUT is a Tablet PC with WiFi unit used in portable application, less than 20 cm from any body part of the user or near by persons. The power thresholds for source-based time-averaging Conducted output power (in the worst-case 802.11g 2412MHz) = 13.2dBm And SAR Low Threshold Level: 60/f (GHz) = 60/2.45 = 24.5mW = 13.9dBm Since 13.2dBm is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: XJN-SYPID7901
