XK5-RF95SW915SRRadio Switch

1 Extracted from User’s Manual RF95SW915LR / RF95SW915SR Content 1. General ............................................................................................................................. 2 2. Application Information .................................................................................................. 2 3. FCC/IC Regulatory Information ...................................................................................... 2 3.1 Antenna implementation notes .............................................................................................................. 3 2 1. General This device has to be installed and used in accordance with the technical description / installation instructions provided by the manufacturer. For detail information concerning type approval of this device please contact the authorized local distributor or the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. 2. Application Information The device RF95SW915LR / RF95SW915SR is designed for use with the steute electromechanical energy generator. Model Name: switching insert kpl RF 95 Manufacturer: steute Description: electromechanical energy generator steute Type: 04.95.4241 steute Ordering Number: 1183291 Please contact steute to get more information about electromechanical energy generator. 3. FCC/IC Regulatory Information This device complies with part 15 of the FCC rules and RSS-210 of IC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications not expressly approved by this company could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the antenna. – Increase the separation between the equipment and transceiver. – Consult the dealer or an experienced radio/TV technician for help. Exposure to Radio Frequency (RF) Signals: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Not Authorized modification could void authority to use this equipment. 3 3.1 Antenna implementation notes This device has been designed to operate with the antennas listed below, and having a maximum gain of 0 dBi. Antennas not included in this list or having a gain greater than 0 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. The internal antenna for RF95SW915SR is described as following. Model Name: PCB antenna 915 MHz Manufacturer: steute steute Type: 01.47.0890 steute Ordering Number: 1189217 Max Gain: 0 dBi The internal antenna for RF95SW915LR is described as following. Model Name: wire antenna 915 MHz Manufacturer: steute steute Type: 01.09.1227 steute Ordering Number: 1189216 Max Gain: 0 dBi The devices generally consist of a completely self-contained radiofrequency transceiver and energy generator. steute Schaltgeräte GmbH & Co. KG Brückenstraße 91 32584 Löhne, Germany Telefon +49 (0) 57 31 / 7 45 - 0 Telefax +49 (0) 57 31 / 7 45 - 200 eMail: [email protected] www.steute.com Technical changes without prior notice! Version: 2012-01-17 MADE IN GERMANY

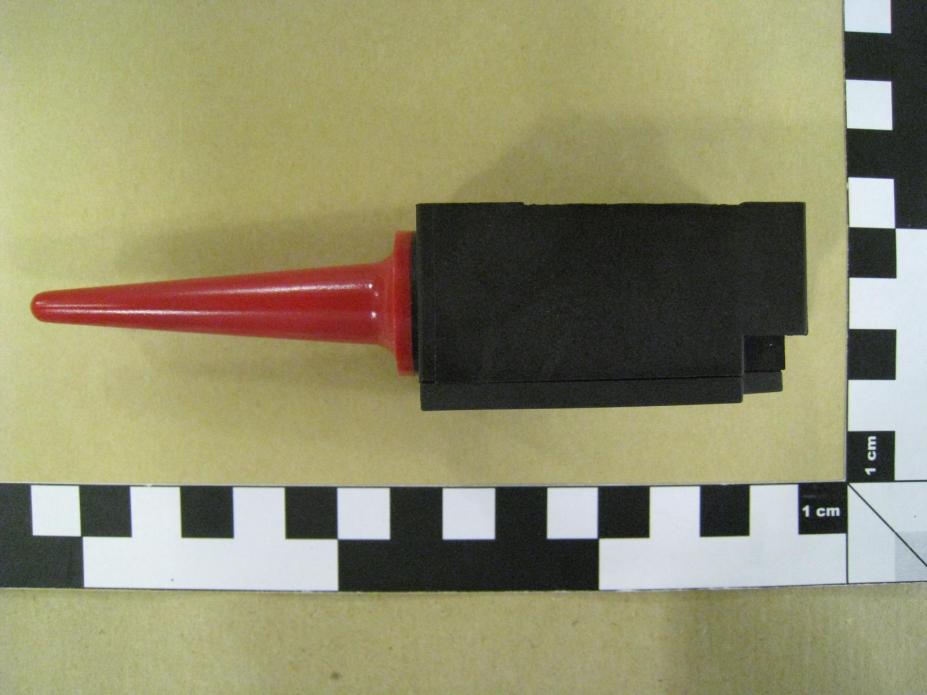

Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Equipment photos EUT TOP EUT SIDE VIEW Page 5 of 46

Product Service Label Sample page 1 Model No.: RF95SW915LR FCC ID: XK5- RF95SW915LR IC: 5158A-RF95SW915LR Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Product Service Label Location page 1 Model No.: RF95SW915LR FCC ID: XK5- RF95SW915LR Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany EUT OPEN EUT PCB TOP WITH SHIELDING Page 6 of 46 Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany EUT PCB TOP WITHOUT SHIELDING EUT PCB BOTTOM Page 7 of 46

Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Digital transmission systems operating within the 902 – 928MHz band Report Reference No. .................... : G0M-1110-1449-TFC247D-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : FCC Filed Test Laboratory, Reg.-No.: 96970 A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 Applicant’s name ........................... : Steute Schaltgeräte GmbH & Co KG Address ............................................ : Brückenstr. 91 32584 Löhne GERMANY Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description SRD-Transceiver Model No. RF95 SW 915 LR (Drahtantenne) Hardware version E194K01_06 Firmware / Software version V2.1 FCC-ID: XK5-RF95SW915LR IC: 5158A-RF95SW915LR Test result Passed Page 1 of 47 Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION: 4 1.1 Equipment photos 5 1.2 Supporting Equipment Used During Testing: 8 1.3 Test Modes: 9 1.4 Test Equipment Used During Testing 10 1.5 Sample emission level calculation 11 2 RESULT SUMMARY 12 3 TEST CONDITIONS AND RESULTS 13 3.1 Test Conditions and Results – Occupied Bandwidth 13 3.2 Test Conditions and Results – 6dB Bandwidth 15 3.3 Test Conditions and Results – Maximum peak conducted power 17 3.4 Test Conditions and Results – Power spectral density 18 3.5 Test Conditions and Results – Band edge compliance 19 3.6 Test Conditions and Results – Conducted spurious emissions 22 3.7 Test Conditions and Results – Transmitter radiated emissions 25 3.8 Test Conditions and Results – Receiver radiated emissions 28 ANNEX A Transmitter radiated spurious emissions 30 ANNEX B Receiver radiated spurious emissions 41 Page 3 of 47 Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1 Equipment (Test item) Description: Description SRD-Transceiver Model RF95 SW 915 LR (Drahtantenne) Serial number None Hardware version E194K01_06 Software / Firmware version V2.1 Contains FCC-ID XK5-RF95SW915LR Contains IC 5158A-RF95SW915LR Equipment type End product Radio type Transceiver Radio technology custom Operating frequency range 915MHz Assigned frequency band 902 - 928MHz Frequency range F MID 915MHz Spreading None Modulations FSK Number of channels 1 Channel Channel spacing None Number of antennas 1 Antenna 1 Type integrated Model λ/4 wire antenna, permanently attached Manufacturer see Manufacturer Gain +0.0dBi Manufacturer IK ELEKTRONIK GmbH Friedrichsgrüner Straße 11-13 08269 Hammerbrücke GERMANY Power supply V NOM 3.3VDC (3V-10V, supply voltage generated by electro-mechanical energy-converter. No additional supply voltage needed (no battery or other kind of external supply voltage used) V MIN N/A V MIN N/A AC/DC-Adaptor Model N/A Vendor N/A Input N/A Output N/A Page 4 of 47 Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Equipment photos EUT TOP EUT SIDE VIEW Page 5 of 47 Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany EUT OPEN EUT PCB TOP WITH SHIELDING Page 6 of 47 Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany EUT PCB TOP WITHOUT SHIELDING EUT PCB BOTTOM Page 7 of 47 Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Supporting Equipment Used During Testing: Product Type* Device Manufacturer Model No. Comments None *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Page 8 of 47 Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Test Modes: Mode # Description Single General conditions: EUT powered by laboratory power supply Radio conditions: Mode = standalone transmit Spreading = None Modulation = FSK Duty cycle = 10% Power level = Maximum Receive General conditions: EUT powered by laboratory power supply Radio conditions: Mode = standalone receive Spreading = None Modulation = FSK Page 9 of 47 Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.4 Test Equipment Used During Testing Occupied Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 ETS 0496 2011-12 2012-12 6dB Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 ETS 0496 2011-12 2012-12 Maximum peak conducted power Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 ETS 0496 2011-12 2012-12 Power spectral density Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 ETS 0496 2011-12 2012-12 Band edge compliance Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 ETS 0496 2011-12 2012-12 Conducted spurious emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 ETS 0496 2011-12 2012-12 Radiated spurious emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Semi-anechoic chamber Frankonia AC 5 ETS 0583 - - Spectrum Analyzer R&S FSIQ26 ETS 0413 2011-04 2012-04 Biconical Antenna R&S HK 116 ETS 0012 2010-01 …

Text truncated - open the document above for the full version.

Test Report No.: G0M-1110-1449-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Test Setup Page 27 of 47
