XK5-RFRXSW915RF Module

1 User’s Manual RFRXSW915 Content 1. General .................................................................................................................................. 2 2. Application Information ....................................................................................................... 2 3. FCC/IC Regulatory Information ........................................................................................... 2 3.1 Labelling ................................................................................................................................................ 3 3.2 Antenna implementation notes .............................................................................................................. 3 4. Separate Approval ............................................................................................................... 4 The purpose of this manual is to explain how to integrate module RFRXSW915 to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. 2 1. General This module has to be installed and used in accordance with the technical description / installation instructions provided by the manufacturer. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the authorized local distributor or the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. 2. Application Information The module RFRXSW915 is designed for use with the steute wireless product portfolio. 3. FCC/IC Regulatory Information This device complies with part 15 of the FCC rules and RSS-210 of IC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications not expressly approved by this company could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Exposure to Radio Frequency (RF) Signals: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Not Authorized modification could void authority to use this equipment. 3 3.1 Labelling steute module RFRXSW915 is labelled as below. Module U.FL connector This device contains FCC-ID XK5-RFRXSW915. This device contains IC 5158A-RFRXSW915. This label will be placed on the final product, clearly visible to all persons exposed to the transceiver. The specific location on the final product will be consistent with each same final product. The physical size of the label and font size of the lettering is fixed. 3.2 Antenna implementation notes This device has been designed to operate with the antennas listed below, connected via U.FL – SMA adapter cable, and having a maximum gain of 5 dBi. Use of an antenna of a different type than the tested antenna or one that exceeds the gain of a tested antenna would require retesting and new approval by either a Telecommunication Certification Body or the Commission. The required antenna impedance is 50 ohms. Specification of external antennas for RFRXSW915 is described as following. Model Name: MC0114037 Manufacturer: MC Technologies Description: Magnet foot antenna, 320 mm steute Type: 01.08.0438 steute Ordering Number: 1188957 Max Gain: 5 dBi Model Name: MC0114036-SMA-ST Manufacturer: MC Technologies Description: Magnet foot antenna, 105 mm steute Type: 01.08.0413 steute Ordering Number: 1187077 Max Gain: 0 dBi Radio module RFRXSW915 can be incorporated into many different devices. The modules generally consist of a completely self-contained radiofrequency transceiver missing only an input and a power source to make it functional. Once the modules are authorized by the Commission under our certification procedure, they may be incorporated into a number of host devices such as, PCs or PDAs, which have been separately authorized. The completed product generally is not subject to requirements for further certification by the FCC. 4 4. Separate Approval A separate approval of the device into which the module is incorporated is only required when it cannot be insured that the conditions on the module grant will be met. The purchaser must satisfy all relevant FCC, IC and EMC directives which apply to their finished product. steute Schaltger…

Text truncated - open the document above for the full version.

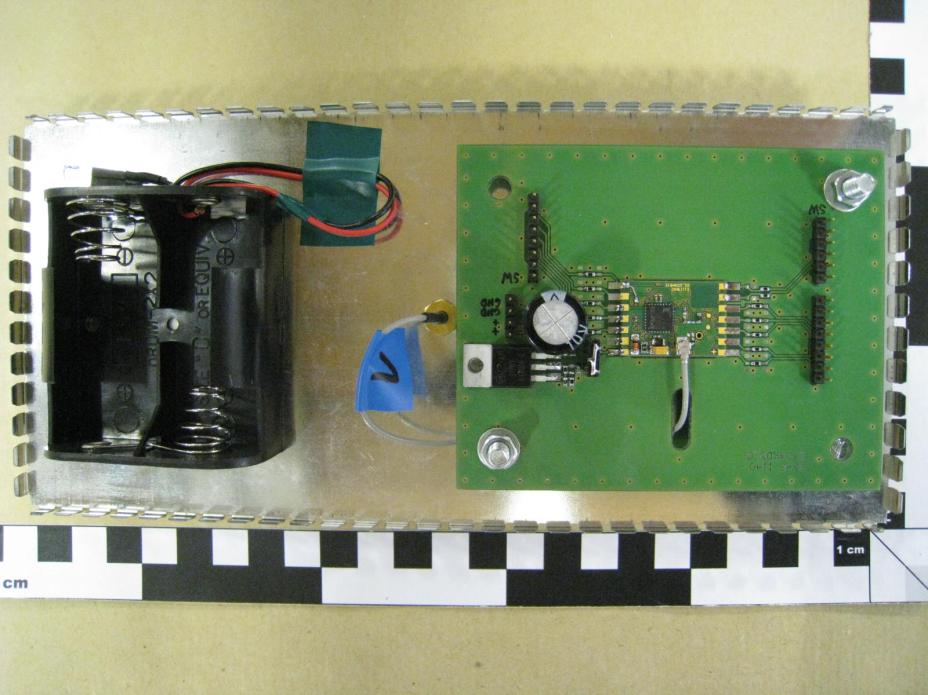

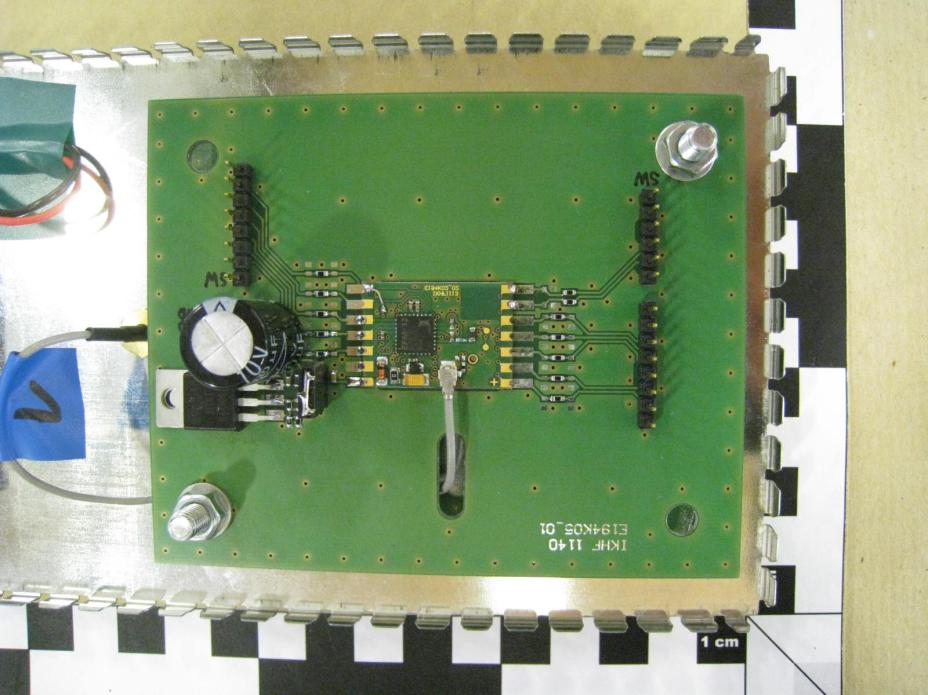

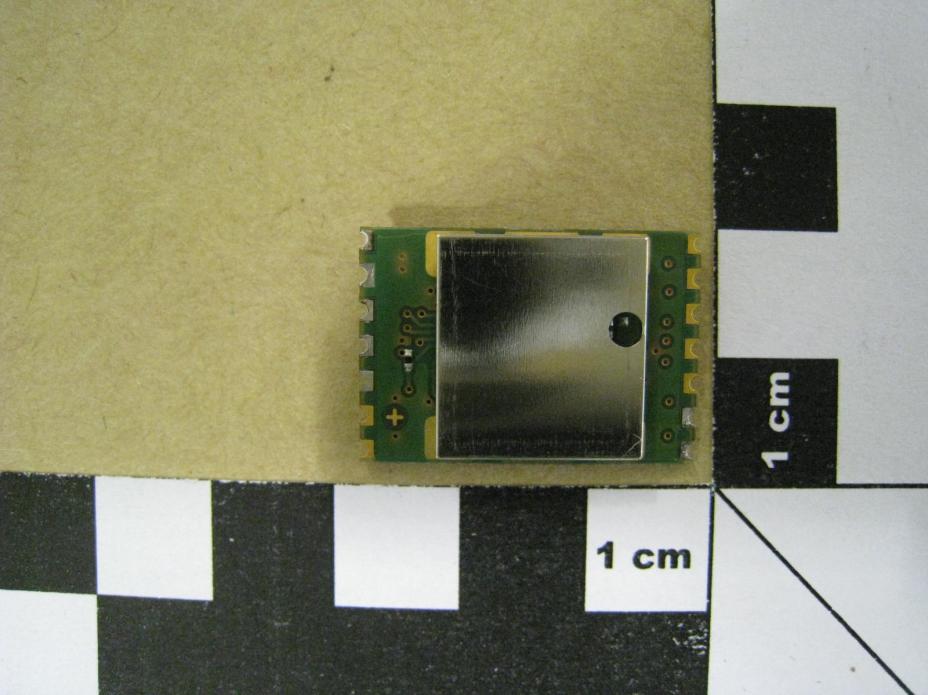

Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Equipment photos EUT WITH EVALUATION BOARD EUT EVALUATION BOARD Page 6 of 51 Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany EUT WITH SHIELDING EUT WITHOUT SHIELDING Page 7 of 51

Product Service Label Sample page 1 Model No.: RFRXSW915 FCC ID: XK5- RFRXSW915 IC: 5158A-RFRXSW915 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Product Service Label Location page 1 Model No.: RFRXSW915 FCC ID: XK5- RFRXSW915 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Equipment photos EUT WITH EVALUATION BOARD EUT EVALUATION BOARD Page 6 of 51 Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany EUT WITH SHIELDING EUT WITHOUT SHIELDING Page 7 of 51

Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Digital transmission systems operating within the 902 – 928MHz band Report Reference No. .................... : G0M-1110-1448-TFC247D-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : FCC Filed Test Laboratory, Reg.-No.: 96970 A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 Applicant’s name ........................... : Steute Schaltgeräte GmbH & Co KG Address ............................................ : Brückenstr. 91 32584 Löhne GERMANY Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Transceiver Module Model No. RFRX SW 915-4W Hardware version E194K02_02 Firmware / Software version V2.1 FCC-ID: XK5-RFRXSW915 IC: 5158A-RFRXSW915 Test result Passed Page 1 of 49 Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION: 4 1.1 Equipment photos 5 1.2 Supporting Equipment Used During Testing: 7 1.3 Test Modes: 8 1.4 Test Equipment Used During Testing 9 1.5 Sample emission level calculation 10 2 RESULT SUMMARY 11 3 TEST CONDITIONS AND RESULTS 12 3.1 Test Conditions and Results – Occupied Bandwidth 12 3.2 Test Conditions and Results – 6dB Bandwidth 14 3.3 Test Conditions and Results – Maximum peak conducted power 16 3.4 Test Conditions and Results – Power spectral density 17 3.5 Test Conditions and Results – AC power line conducted emissions 18 3.6 Test Conditions and Results – Band edge compliance 21 3.7 Test Conditions and Results – Conducted spurious emissions 24 3.8 Test Conditions and Results – Transmitter radiated emissions 27 3.9 Test Conditions and Results – Receiver radiated emissions 30 ANNEX A Transmitter radiated spurious emissions 32 ANNEX B Receiver radiated spurious emissions 43 Page 3 of 49 Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1 Equipment (Test item) Description: Description Transceiver Module Model RFRX SW 915-4W Serial number None Hardware version E194K02_02 Software / Firmware version V2.1 FCC-ID XK5-RFRXSW915 IC 5158A-RFRXSW915 Equipment type Radio module Radio type Transceiver Radio technology custom Operating frequency range 915MHz Assigned frequency band 902 - 928MHz Number of channels 1 Main test frequencies F MID 915MHz Spreading None Modulations FSK Number of channels 1 Channel Channel spacing None Number of antennas 1 Antenna Type external dedicated Model FME-f magent foot antenna, MC0114037 Manufacturer MC Technologies GmbH Gain +5.0dBi Manufacturer IK ELEKTRONIK GmbH Friedrichsgrüner Straße 11-13 08269 Hammerbrücke GERMANY Power supply V NOM 3.3VDC V MIN 2.80VDC V MIN 3.80VDC AC/DC-Adaptor Model N/A Vendor N/A Input N/A Output N/A Page 4 of 49 Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Equipment photos EUT WITH EVALUATION BOARD EUT EVALUATION BOARD Page 5 of 49 Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany EUT WITH SHIELDING EUT WITHOUT SHIELDING Page 6 of 49 Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Supporting Equipment Used During Testing: Product Type* Device Manufacturer Model No. Comments AE Multi-Mode PSU Thurlby-Thandar Instruments Ltd. EX752M *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Page 7 of 49 Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Test Modes: Mode # Description Single General conditions: EUT powered by laboratory power supply Radio conditions: Mode = standalone transmit Spreading = None Modulation = FSK Duty cycle = 10% Power level = Maximum Receive General conditions: EUT powered by laboratory power supply Radio conditions: Mode = standalone receive Spreading = None Modulation = FSK AC-Powerline General conditions: EUT powered by laboratory power supply Radio conditions: Mode = standalone transmit Spreading = None Modulation = FSK Duty cycle = 10% Power level = Maximum Page 8 of 49 Test Report No.: G0M-1110-1448-TFC247D-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.4 Test Equipment Used During Testing Occupied Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 Inv. No. 0496 Aug 10 Aug 12 6dB Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 Inv. No. 0496 Aug 10 Aug 12 Maximum peak conducted power Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 Inv. No. 0496 Aug 10 Aug 12 Power spectral density Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 Inv. No. 0496 Aug 10 Aug 12 Band edge compliance Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 Inv. No. 0496 Aug 10 Aug 12 Conducted spurious emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 Inv. No. 0496 Aug 10 Aug 12 Radiated spurious emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Semi-anechoic chamber Frankonia AC 5 Inv. No. 0583 Spectrum Analyzer R&S FSIQ26 Inv. No. 0413 Apr. 11 Apr. 12 Biconical Antenna R&S HK 116 Inv. N…
