XLG-FS-GM102UHF RFID (902-928MHz)

1 FS-GM102 User's Manual Favite Inc. 2 Table of Contents CHAPTER 1 .......................................................................................................................... 3 Introduction ........................................................................................................................ 3 RFID Reader Module Overview ........................................................................................... 3 EPC Class 1 UHF RFID Tags .................................................................................................. 3 CHAPTER 2 .......................................................................................................................... 4 Specifications ...................................................................................................................... 4 Mechanical: Reader Physical Size ....................................................................................... 5 Figure 1 ‐ Outline Drawing of the FS‐GM102 ...................................................................... 5 Antenna and IO Port Terminal Interface ............................................................................ 6 Figure 2 – 0.80mm pitch 16 pin I/O connector ................................................................... 6 Select mounting position for antenna ................................................................................ 7 3 CHAPTER 1 Introduction This Hardware Guide provides instructions of the FS-GM102 RFID Reader module. This document is designed for use by RFID system integrators. RFID Reader Module Overview The FS-GM102 is embedded with Impinj R2000 chip and compliant with EPC Class1 Gen2 / ISO 18000-6C. The FS-GM102 supports one antenna port for bi-static configuration on RFID reader. The RFID Reader module is delivered with the following components:  One (1) RFID Reader Module. EPC Class 1 UHF RFID Tags The Favite FS-GM102 RFID reader module is designed to read and program any EPC Class 1 Generation 2 tag (see below) and issue event reports to a host computer system. The reader module is also designed to read and program Class 1 Generation 2 tags. Class 1 Generation 2 tags are “passive” devices meaning they do not have a battery or other onboard power source. They are powered solely by the RF energy transmitted by an RFID reader. They communicate with the reader through backscatter modulation in which the tags do not actually transmit RF energy. Instead, they change their reflective characteristics in a systematic way and reflect RF energy back to the reader. An analogy to this is the way you can use a mirror to transmit information by reflecting light from the Sun. Favite Inc. manufactures user-programmable EPC Class 1 Generation 2 tags compliant with all key commercial and DoD mandates. Favite offers a variety of designs capable of delivering optimal performance worldwide, including Europe and Asia. For more information about RFID tags from Favite Inc., please visit our website at http://rfid.favitete.com. 4 CHAPTER 2 Specifications System Host Interface USB / UART Chipset PHY: IMPINJ R2000 MAC: ATMEL AT91SAM7S-256 Operating Voltages 3.4V~4.2V DC Power 3.8V:1.6A @ 30dBm Protocol RFID Protocol Support EPC Gen 2 ISO 18000-6C Support EPC DRM No RF Frequency US: 902 ~ 928MHz（FHSS） EU: 865 ~ 868MHz JS : 952 ~ 954MHz Demodulation PR-ASK Modulation Depth 90% nominal Data Encoding FM0 or Miller code Bit Rate Supports uplink data rates of up to 640 Kbps TX Output power 5 ~ 30dBm in 1dB step Antenna connector 1 UFL connector Regulatory and Environmental Compliance EMC certification FCC, CE, JS Temperature Range Operating: 0 ~ 55 degree C, Storage: -20 ~ 85 degree C Humidity 10% ~ 85% Non-condensing Mechanical (Module) Dimension 40.2mm(L) x 50mm(H) x 4mm(T) ± 0.25mm Table 1 - Specification of the FS-GM102 5 Mechanical: Reader Physical Size Figure 1 - Outline Drawing of the FS-GM102 40.2mm 50mm 4mm 6 Antenna and IO Port Terminal Interface Figure 2 – 0.80mm pitch 16 pin I/O connector Pin no. Name Description 1 GPIO2 Input / Output control signal 2 GPIO1 Input / Output control signal 3 GPIO0 Input / Output control signal 4 RAW_nRST Resetsignal, low active 5 GND Ground 6 UART_TXD UART control signal 7 UART_RXD UART control signal 8 GND Ground 9 USB_D‐ USB control signal 10 USB_D+ USB control signal 11 GND Ground 12 GND Ground 13 VCC Power supply Input 14 VCC Power supply Input 15 VCC Power supply Input 16 VCC Power supply Input Table 2 – I/O port pin description PIN1 PIN16 Antenna Port I/O Port 7 Select mounting position for antenna CAUTION: Reader antenna should be positioned so that personnel in the area for prolonged periods may safely remain at least 23 cm (9 in) in an uncontrolled environment from the antenna’s surface. See FCC OET Bulletin 56 “Hazards of radio frequency and electromagnetic fields” and Bulletin 65 “Human exposure to radio frequency electromagnetic fields.” Mount the antenna at the periphery of the desired read window (either overhead or at the side), so that the position of the most distant tag passing through the window is no farther from the antenna than the maximum range specified for your system design. Position the antenna at a height approximately midway between the highest and lowest expected tag position. (For example, a pallet tag may be the lowest tag position to be read, while the top-most case on a fully stacked pallet may represent your highest tag position.) 8 FCC statement in User’s Manual (for class B) “Federal Communications Commission(FCC) Statement” This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These Limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfe…

Text truncated - open the document above for the full version.

FCC ID: XLG-FS-GM102 Report No.: RF990316C02 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch June 2, 2010 Dear Application Examiner, Favite Inc., It’s an UHF RFID (902-928MHz), FCC ID: XLG-FS-GM102 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in R2000. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is LA3.3,AB1231,APS73622,TI3.3 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via an USB CABLE. Please see section Photographs of Test Configuration in the test report, the EUT was connected with this cable. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: XLG-FS-GM102 Report No.: RF990316C02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

FAVITE Inc. No.176,Taihe Rd., Jhubei City, Hsinchu County 30267, Taiwan Professional Installation Attestation Date: 2010/5/28 To Whom It May Concern: Please be advised that due to the unique Market and function targeted by this product, this product will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold directly to the general public through retail store. Thank you for your attention. Yours sincerely,

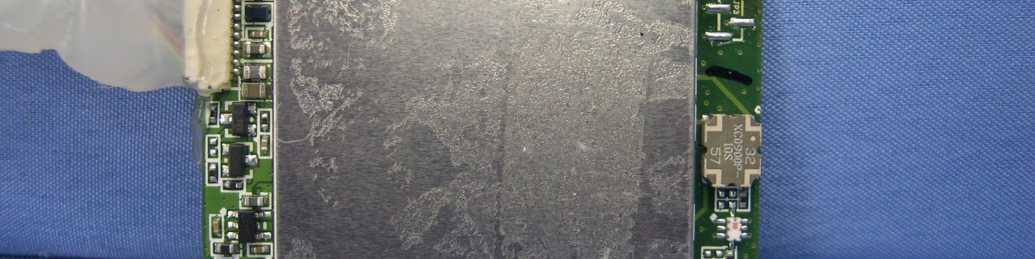

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

Design for GM102 Reader module Logo

Design for GM102 Reader module Logo Favite Inc.UHF ReaderModel Name: FS-GM102EPC Class 1 Gen 2FCC Frequency Range: 902-928MHzETSI Frequency Range: 865-867MHzhttp://www.favite.com FCC ID: XLG-FS-GM102 34mm 34mm Made in Taiwan Tel : +886 - 3 5533880

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: XLG-FS-GM102 Report No.: RF990316C02 OPERATIONAL DESCRIPTION The Favite FS-GM102 RFID reader module is designed to read and program any EPC Class 1 Generation 2 tag (see below) and issue event reports to a host computer system. The reader module is also designed to read and program Class 1 Generation 2 tags. Class 1 Generation 2 tags are “passive” devices meaning they do not have a battery or other onboard power source. They are powered solely by the RF energy transmitted by an RFID reader. They communicate with the reader through backscatter modulation in which the tags do not actually transmit RF energy. Instead, they change their reflective characteristics in a systematic way and reflect RF energy back to the reader. An analogy to this is the way you can use a mirror to transmit information by reflecting light from the Sun The transmitter of the EUT is powered by 3.8Vdc from the host equipment. The antenna is patch antenna with UFL type connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA990316C02 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990316C02 MODEL NO.: FS-GM102 FCC ID: XLG-FS-GM102 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Favite Inc. ADDRESS: No. 176, Taihe Road, Jhubei City,Hsinchu County 30267, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA990316C02 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990316C02 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 0.601 mW/cm2. If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 23cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is Limits for General Population / Uncontrolled Exposure. This device is classified as Mobile Device. Report No.: SA990316C02 Report Format Version 3.0.1 4 6. Test Results 6.1 Antenna Gain The maximum Gain is 5dBi or 3.162278 (numeric) Antenna Type Connector Type Gain (dBi) Patch UFL 5 6.2 Output Power Into Antenna & RF Exposure value at distance 23cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 0 902.75 955.0 0.454 0.601 25 915.25 977.2 0.465 0.601 49 927.25 955.0 0.454 0.601

Report No.: RF990316C02 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990316C02 MODEL NO.: FS-GM102 RECEIVED: Mar. 16, 2010 TESTED: Apr. 02 to 14, 2010 ISSUED: Apr. 16, 2010 APPLICANT: Favite Inc. ADDRESS: No. 176, Taihe Road, Jhubei City,Hsinchu County 30267, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 53 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990316C02 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1 CERTIFICATION..................................................................................................4 2 SUMMARY OF TEST RESULTS...........................................................................5 2.1 MEASUREMENT UNCERTAINTY........................................................................6 3 GENERAL INFORMATION...................................................................................7 3.1 GENERAL DESCRIPTION OF EUT......................................................................7 3.2 DESCRIPTION OF TEST MODES........................................................................8 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:..........................9 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................11 3.5 DESCRIPTION OF SUPPORT UNITS................................................................12 3.6 CONFIGURATION OF SYSTEM UNDER TEST..................................................12 4 TEST PROCEDURES AND RESULTS................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT.......................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.....................................13 4.1.2 TEST INSTRUMENTS.......................................................................................13 4.1.3 TEST PROCEDURES........................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD...............................................................14 4.1.5 TEST SETUP....................................................................................................15 4.1.6 EUT OPERATING CONDITIONS........................................................................15 4.1.7 TEST RESULTS................................................................................................16 4.2 NUMBER OF HOPPING FREQUENCY USED....................................................18 4.2.1 LIMIT OF HOPPING FREQUENCY USED..........................................................18 4.2.2 TEST INSTRUMENTS.......................................................................................18 4.2.3 TEST PROCEDURES........................................................................................19 4.2.4 DEVIATION FROM TEST STANDARD...............................................................19 4.2.5 TEST SETUP....................................................................................................20 4.2.6 TEST RESULTS................................................................................................20 4.3 DWELL TIME ON EACH CHANNEL...................................................................22 4.3.1 LIMIT OF DWELL TIME USED...........................................................................22 4.3.2 TEST INSTRUMENTS.......................................................................................22 4.3.3 TEST PROCEDURES........................................................................................23 4.3.4 DEVIATION FROM TEST STANDARD...............................................................23 4.3.5 TEST SETUP....................................................................................................23 4.3.6 TEST RESULTS................................................................................................24 4.4 CHANNEL BANDWIDTH....................................................................................26 4.4.1 TEST INSTRUMENTS.......................................................................................26 4.4.2 TEST PROCEDURE..........................................................................................27 4.4.3 DEVIATION FROM TEST STANDARD...............................................................27 4.4.4 TEST SETUP....................................................................................................27 Report No.: RF990316C02 3 Report Format Version 3.0.1 4.4.5 EUT OPERATING CONDITION..........................................................................27 4.4.6 TEST RESULTS................................................................................................28 4.5 HOPPING CHANNEL SEPARATION..................................................................29 4.5.1 LIMIT OF HOPPING CHANNEL SEPARATION...................................................29 4.5.2 TEST INSTRUMENTS.......................................................................................29 4.5.3 TEST PROCEDURES........................................................................................30 4.5.4 DEVIATION FROM TEST STANDARD...............................................................30 4.5.5 TEST SETUP....................................................................................................30 4.5.6 TEST RESULTS................................................................................................31 4.6 MAXIMUM PEAK OUTPUT POWER........................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3
