XLG-FS-GM201RFID

HARDWARE SETUP GUIDE FS-GM201 Favite Inc. Table of Contents CHAPTER 1 I1 RFID Reader Review ....... ..........................................................................................................3 EPC Class 1 UHF RFID Tags........................................................................................................3 Requirements...... ..........................................................................................................................2 Specifications ... ............................................................................................................................4 Mechanical: Reader Physical Size ................................................................................................5 USB Port Pinouts ................................................... ....................................................................6 RS-232 Port Pinouts ... ...............................................................................................................6 GPIO Terminal Interface ................................................................................................................7 GPIO Port Screw Terminal (Female) – Looking at Reader............................................................8 CHAPTER 2 READER HARDWARE INSTALLATION AND OPERATION...................................9 Receiving the RFID Reader ...........................................................................................................9 Reader I/O Panel.......................................................................................................10 Diagnostic LEDs ........................................................................................................11 Antenna Panel...............................................................................................................................12 System Assembly and Bench Test ...............................................................................................13 Bench Test Configuration .............................................................................................................13 Bench Test Procedure..................................................................................................................16. Installation ...................................................................................................................................16 Requirements ..............................................................................................................................16 Hardware Installation Procedure .................................................................................................17 System Operation: Software Control ...........................................................................................18 Reader Interface Guide ...............................................................................................................18 Demonstration Software Guide ...................................................................................................18 CHAPTER 1 Introduction This Hardware Setup Guide provides instructions for installing and operating the FS-GM201 RFID Readers. This document is designed for use by RFID system integrators and software developers - those who wish to develop software products and extended systems that take full advantage of the RFID Reader's capabilities. Included with each reader or developer kit is the Favite RFID Reader Software Developer’s Kit and User Documentation CD-ROM. RFID Reader Overview The Favite FS-GM201 RFID reader is designed to read and program any EPC Class 1 Generation 1 or 2 tag (see below) and issue event reports to a host computer system. The reader is also designed to read Class 0 tags and to read and program Class 1 tags. The host computer can be locally connected to the reader via USB, RS-232, or at a remote network location. The RFID Reader is delivered with the following components and accessories: One (1) RFID Reader One (1) USB cable, or (1) RS-232 serial cable, or (1) Ethernet Cable (to connect to host computer) One (1) power supply and cord Favite RFID Reader Software Developer’s Kit and User Documentation CD-ROM EPC Class 1 UHF RFID Tags The Favite FS-GM201 RFID reader is designed to read and program any EPC Class 1 Generation 1 or 2 tag (see below) and issue event reports to a host computer system. The reader is also designed to read and program Class 1 tags. Class 1 tags are “passive” devices meaning they do not have a battery or other onboard power source. They are powered solely by the RF energy transmitted by an RFID reader. They communicate with the reader through backscatter modulation in which the tags do not actually transmit RF energy. Instead, they change their reflective characteristics in a systematic way and reflect RF energy back to the reader. An analogy to this is the way you can use a mirror to transmit information by reflecting light from the Sun. Favite Inc. manufactures user-programmable EPC Class 1 tags compliant with all key commercial and DoD mandates. Favite offers a variety of designs capable of delivering optimal performance worldwide, including Europe and Asia. For more information about RFID tags from Favite Inc., please visit our website at http://rfid.favitete.com. Requirements To interface with the RFID Reader you will need the following: A PC running Windows 98 or higher, with CD-ROM drive, an available USB port, or RS-232 serial port, or Ethernet connectivity Standard 110/220 VAC 50/60 Hz Power supply and cord (included with reader) Host software (Favite Gateway demo software or your own custom software) Specifications Specifications for key components of the RFID Reader system are provided in the tables below: System Host Interface (Module) USB/UART Host Interface (Module with Housing) USB; RS-232 (Option); LAN (Option) Chipset PHY: Impinj R1000 MAC: ATMEL AT91SAM7S-256 Operating …

Text truncated - open the document above for the full version.

MAC ATMEL INTEL R1000 PA BalunBalun Coupler USB UART Reg. 5V 3.3V_MCU Reg. 3.3V_VCOPLL SW Reg. 3.3V Reg. 1.8V Switch ANT1 ANT2 18.432MHz 24MHz

FCC ID: XLG-FS-GM201 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through the inputs. 3 Have it own power supply regulation The transmitter has its own power supply regulator. 4 Meet the antenna requirements of Section 15.203 Device is equipped with SMAantenna connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside the laptop for modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Transmitter meets MPE calculations of 47 CFR 1.1307(b)(1). Refer to MPE sections of test reports

From: [email protected] To: Alan Lane <[email protected]> cc: [email protected] Date: Thursday, March 04, 2010 02:00PM Subject: 回信 : FCC ID: XLG-FS-GM201 (90522301) Dear Alan: For the antenna information,after checked with our client, they confirmed will apply for "Limited module" for using standard antenna type and with professionally installed. Please also find the updated user manual(990304)REV for address it on page 20.Thank you. Dear Daphne, From the antenna relevant information, the standard antenna type is used for this device and does not comply with FCC 15.203 requirement for antenna part. please address it. Thank you. Regards, Alan Lane -------------------------- PHOENIX TESTLAB GmbH Alan Lane FCC TCB, IC FCB Koenigswinkel 10 32825 Blomberg Germany ______________________________________________________________ This e-mail transmission is confidential and intended solely for being 寄件人 : Alan Lane <[email protected]> 收件人 : [email protected] 副本抄送 : [email protected] 日期 : 2010/03/04 下午 01:41 主旨 : FCC ID: XLG-FS-GM201 (90522301) reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission. Thank you for your attention. Attachments: FS-GM201_User's Manual(990304)REV.pdf

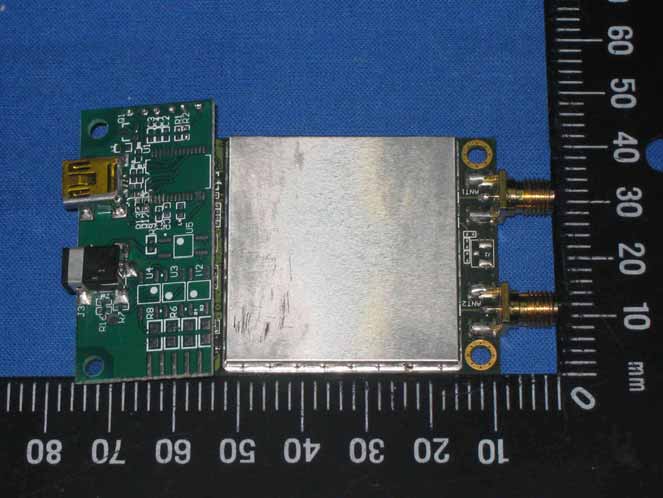

Compliance Certification Services Inc. Report No.90522301 Page 1 of 14 External Photo

Label Location

Compliance Certification Services Inc. Report No.90522301 Page 1 of 14 External Photo Compliance Certification Services Inc. Report No.90522301 Page 2 of 14 Compliance Certification Services Inc. Report No.90522301 Page 3 of 14 Internal Photo Compliance Certification Services Inc. Report No.90522301 Page 4 of 14 Compliance Certification Services Inc. Report No.90522301 Page 5 of 14 Compliance Certification Services Inc. Report No.90522301 Page 6 of 14 Compliance Certification Services Inc. Report No.90522301 Page 7 of 14 Compliance Certification Services Inc. Report No.90522301 Page 8 of 14 Compliance Certification Services Inc. Report No.90522301 Page 9 of 14 Antenna Photo Compliance Certification Services Inc. Report No.90522301 Page 10 of 14 Compliance Certification Services Inc. Report No.90522301 Page 11 of 14 Power Adapter Photo Compliance Certification Services Inc. Report No.90522301 Page 12 of 14 Compliance Certification Services Inc. Report No.90522301 Page 13 of 14 RF Cable Photo Compliance Certification Services Inc. Report No.90522301 Page 14 of 14 USB Cable Photo

FS-GM201 Specification System Host Interface Mini-card (USB / UART / LED / Reset / Debug Port / JTEG / SAMBA / 5V DC in / GND) Chipset PHY: Impinj R1000 MAC: ATMEL AT91SAM7S-256 Operating Voltages 5.0V+/-5% DC Power 1.1A @ 30dBm Protocol RFID Protocol Support EPC Gen 2 ISO 18000-6C Support EPC DRM Yes (with DRM Filter) RF Frequency US: 902 ~ 928MHz (FHSS) EU: 865 ~ 868MHz Demodulation ASK or PSK Modulation Depth 90% nominal Data Encoding FM0 or Miller code Bit Rate Supports uplink data rates of up to 640 Kbps TX Output power 5 ~ 30dBm in 0.1dB step Antenna Type Mono-static or Bi-static (option) Antenna connector 2 SMA connectors or 1 U.FL connector (option) Regulatory and Environmental Compliance EMC certification FCC 47 CFG Ch.1 Part 15 (US) ETSI EN 302 208-1 (V1.1.1) (EU) Temperature Range Operating: 0 ~ 55 degree C, Storage: -20 ~ 85 degree C Humidity 10% ~ 85% Non-condensing Software Driver Windows XP / Linux Mechanical Dimension 69mm x 40mm x 7 mm ± 0.25mm

CUSTOMER: CUSTOMER MODEL NO.: JOYMAX MODEL NO.: DESCRIPTION:                 REV.: DATE:    㤢㐉✗ᤘ⍶ᘩ᜘⠑ᐔᔩ 㤢㐉✗ᤘ⍶ᘩ᜘⠑ᐔᔩ㤢㐉✗ᤘ⍶ᘩ᜘⠑ᐔᔩ 㤢㐉✗ᤘ⍶ᘩ᜘⠑ᐔᔩ               Index. Item 1. Drawing 2. Test repor t   Electrical test   Pattern test 3. Specification   Cable   Connector 4. Packing PE Bag Carton Modification History: Rev.DateContent              ⠸ ⠸ ⠸ ⠸  ၤ  ၤ ၤ  ၤ               Model. GPX-026XMPA9-256 Return loss/V.S.W.R Test Report Return loss V.S.W.R. Model. GPX-026XMPA9-256 Pattern Test Report Cable 1.37 ConnectorMini PCI Conn    ቖ      ! " #$%$&$$$"' ($) $" !*$ ' ($" ! + ,- ./0 ,/,. ဴ 'ቖ$2  /- ./ 3/.4,. / 50-.  6) #*/ .70 / /, 4   8 ./  .ဥ+ ႂ၄ဤ= ႂ  >/,,/?--0 0@ ?- . ./  "   ,0@  ./ ?--/ .00-A>- ,,.4--/ .00- ,.4@0--03/   3/  - ,---.05./ -/ ./0  ,/ .- ,0,,/?- +   ,0@  ./ / .-?4 A>- , . 4.4 . 4/   0@- * - ,---.05./ -/ ./0  ,/ .- ,0,,/?-$ ' ./ - . ' ./ -  B0>40,40B0 !  )0 . .>40,40B0 ! "  ,- .0>BCD=+E#  % /@/ ./0  . F 5/0  . -  . ' ./ - % /@/ ./0 ,

Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 68 of 74 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 69 of 74 LIMIT Power Density Limit, S=0.6mW/cm 2 TEST RESULTS Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain (dB) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) 5.85 23.0 29.41 3.85 0.60 0.505038 Remark: For mobile or fixed location transmitters, the maximum power density is 0.6 mW/cm 2 even if the calculation indicates that the power density would be larger.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size Tabloid Date: 28-Jul-2009 Sheet of File: D:\WORK\R1000 Tools Release 1.2 (D)\Hardware\FS-GM201 V1.0\EMI\EMI_FS-GM201_V1.0.ddb Drawn By: ADVREF COPY_SAMBA_ROM ADVREF 1 GND 2 AD4 3 AD5 4 AD6 5 AD7 6 VDDIN 7 VDDOUT 8 PA17/AD0 9 PA18/AD1 10 PA21 11 VDDCORE 12 PA19/AD2 13 PA22 14 PA23 15 PA20/AD3 16 GND 17 VDDIO 18 PA16 19 PA15 20 PA14 21 PA13 22 PA24 23 VDDCORE 24 PA25 25 PA26 26 PA12 27 PA11 28 PA10 29 PA9 30 PA8 31 PA7 32 TDI 33 PA6 34 PA5 35 PA4 36 PA27 37 PA28 38 NRST 39 TST 40 PA29 41 PA30 42 PA3 43 PA2 44 VDDIO 45 GND 46 PA1 47 PA0 48 TDO 49 JTAGSEL 50 TMS 51 PA31 52 TCK 53 VDDCORE 54 ERASE 55 DDM 56 DDP 57 VDDIO 58 VDDFLASH 59 GND 60 XOUT 61 XIN 62 PLLRC 63 VDDPLL 64 U204 AT91SAM7S256-AU-001 C239 10pF/4 C238 10pF/4 C2301nF/4 C22910nF/4 C2310.1uF/4 C2362.2uF/4 C2340.1uF/4 C2320.1uF/4 C2350.1uF/4 C2411nF/4C2421nF/4 C2432.2uF/4 12 34 Y20118.432 MHz/20PPM/3225 C24068pF/4 D207LM431 GND GND GND GND GND GND GND GND 3.3V_MCU GND GND GND Only used during SAM-BA GND GND 3.3V_MCU GND C2510.1uF/4 +VS VO GND U206sensor 3.3V_MCU GND AMBIENT_TEMP LED0LED1LED2 PA_GPIO0 USB_DMUSB_DP ATMEL_1.8V 15 GND C24415pF/4C25215pF/4 C24533pF/4 GNDGND Tilden_IRQ Tilden_IRQT2R_CLKT2R_FRMT2R_D0 AMBIENT_TEMP GND GND R2T_D0 R2T_CLK R2T_FRM DTEST0DTEST1 TILDEN_RESET TILDEN_RESET DTEST0DTEST1 3.3V_MCU R2T_FRM R2T_CLK T2R_D0R2T_D0 T2R_CLK T2R_FRM RST nRST nRST nPWREN_TILDEN MCUXINMCUXOUT RF_PWR_DET L208BEAD_600/6 nPWREN_RFDRM_DISABLEELK_GPIO1ELK_GPIO0 ANT_SENSE_1_MCUnPWREN_PAELK_GPIO3ELK_GPIO2MCUPLL LOW_GAIN_EN nPWREN_TILDEN ANT_TX0ANT_TX1 R2351.5k/4/1% R24233/4R24333/4R24433/4 R248470/4 R2461k/4/1%R24710k/4/1% R2450/4 R23927/4R24027/4 R2491.5k/4/1% 3.3V_MCU ANTSENSE1ANTSENSE2 BiasDACRegulatorDAC DBG_TX DBG_RX TDI TDOTMS TCK R151k/4 3.3V_MCU R256100k/4/1% C22810nF/4 GND R2541.5k/4/1% nUSB_DP_PUP nUSB_DP_PUP R2410/4 SAMBA_PUP VBUS USB_DP R255100k/4 VBUS VBUS_DET R257NR/4 UART_CTSUART_RTSUART_TXDUART_RXD ERASE_ALL_FLASH ERASE_ALL_FLASHCOPY_SAMBA_ROM RAW_nRST UPDATED RESET CIRCUIT 7/27/07 ATMEL MCU IS ALSO AVAILABLE IN QFN 1 23 4 L210Filter PA_BIAS_DAC PA_REGULATOR_DAC ANT_SENSE_1ANT_SENSE_0 nIRQ_TILDEN R2T_D0 T2R_CLK R2T_CLKR2T_FRM T2R_FRM T2R_D0 DTEST0DTEST1TILDEN_RESET GND TEMPERATURE 3.3V_VCOPLL 3.3V 5V 1.8V RF_PWR_DET PA_IN PA_OUT ANT_TX0ANT_TX1 nPWREN_PA PWREN_PA MIX_IP MIX_IN AMP_IP AMP_INMIX_QP MIX_QN AMP_QPAMP_QN TildenTilden VBUS 3.3V 3.3V_MCU 1.8V 5V GND 3.3V_VCOPLL nRSTRST nPWREN_TILDEN Power_Supplies_MainPower_Supplies_Main 1 23 Q2NDS355AN RF_PWR_DET Close Pin7 GND PA_INPA_OUT3.3VPWREN_PA PAPA GND MCUFS-GM201 1.0 ANT_TX0ANT_TX1 G 1 D 2 S 3 Q1FDN338P nPWREN_PA MIX_IPMIX_INAMP_IPAMP_INMIX_QPMIX_QNAMP_QPAMP_QN DRMDRM TOP BOT +1.5V 6 RESERVED 8 +1.5V 28 RESERVED 20 GND 4 GND 18 +3.3Vaux 24 PERST# 22 USB_D- 36 SMB_CLK 30 GND 26 SMB_DATA 32 +3.3V 2 GND 34 LED_WWAN# 42 +1.5V 48 GND 40 +3.3V 52 GND 50 WAKE# 1 RESERVED 17 REFCLK- 11 GND 9 GND 15 RESERVED 19 GND 21 CLKREQ# 7 PERn0 23 GND 27 GND 29 GND 35 RESERVED 10 RESERVED 12 RESERVED 14 RESERVED 16 USB_D+ 38 LED_WLAN# 44 LED_WPAN# 46 RESERVED 3 RESERVED 5 REFCLK+ 13 PERp0 25 PETn0 31 PETp0 33 RESERVED 37 RESERVED 39 RESERVED 41 RESERVED 43 RESERVED 45 RESERVED 47 RESERVED 49 RESERVED 51 J4PCIe-MiniCard-Card GND GND C6310pF/4 USB_D+USB_D- RAW_nRSTUSB_D-USB_D+SAMBA_PUPPA16 PA16 LED0LED1LED2 R236 330/4 R237 330/4 R238 330/4 VBUSVBUSVBUS TDI TDO TMS TCK R947K/4 R847K/4 R747K/4 R647K/4 3.3V_MCU DBG_RX DBG_TX UART_CTSUART_RTSUART_TXDUART_RXD R25 0/4/X R26 0/4/X ANT_TX0ANT_TX1 ELK_GPIO1ELK_GPIO0ELK_GPIO3ELK_GPIO2 ELK_GPIO0ELK_GPIO1ELK_GPIO2ELK_GPIO3 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size Tabloid Date: 28-Jul-2009 Sheet of File: D:\WORK\R1000 Tools Release 1.2 (D)\Hardware\FS-GM201 V1.0\EMI\EMI_FS-GM201_V1.0.ddb Drawn By: C750.1uF/4 C7768pF/4 C721uF/4 L3118nH/4/X C7333pF/4 L2918nH/4 C910.1uF/4 C9268pF/4 C901uF/4 C960.1uF/4 C9768pF/4 C981uF/4 C990.1uF/4 L448.2nH/4 C11233pF/4 C11133pF/4 L422.7nH/4 C114 0.1uF/4 C113 68pF/4 C115 1uF/4 C106 1uF/4 C104 0.1uF/4 C102 68pF/4 C105 0.1uF/4 C103 68pF/4 C107 1uF/4 R3947k/4 R3847k/4 C860.1uF/4 C8568pF/4 C881uF/4 C690.1uF/4 C5868pF/4 C500.1uF/4 C4868pF/4 C541uF/4 C4268pF/4 C71uF/4C210.1uF/4 R3347k/4R32NR/4 R34NR/4R3547k/4 L28BEAD_600/6 L23BEAD_600/6 L24BEAD_600/6 L33 BEAD_600/6 L34BEAD_600/6 C7433pF/4 C10933pF/4C11033pF/4 C10068pF/4 L36BEAD_600/6 L46BEAD_600/6 L40BEAD_600/6L39BEAD_600/6 R4047k/4 L30BEAD_600/6 C781uF/4 C790.1uF/4 L25BEAD_600/6 L458.2nH/4 L432.7nH/4 L32NR/4 C870.1uF/4 C101NR/4 R31k/4/1% VDD_RF_RX 1 RX_P 2 RX_N 3 ATEST_0 4 ATEST_1 5 LO_P 6 LO_N 7 ATEST_2 8 ATEST_3 9 DETECTOR_P 10 DETECTOR_N 11 TEMP 12 VDD_TX_RF 13 VDD_TX_PRE 14 VDD_TX_PA 15 PA_AM 16 PA_P 17 PA_N 18 VDD_TX_ANA 19 PA_MOD_P 20 PA_MOD_N 21 ANT_SENSE_0 22 ANT_SENSE_1 23 PA_REG 24 PA_BIAS 25 SCAN_TEST 26 CHIP_RESETn 27 VDD_DIG 28 VDD_IO 29 T2R_FRM 33 T2R_D0 30 T2R_D1 31 T2R_D2 32 T2R_CLK 36 R2T_CLK 35 R2T_FRM 34 R2T_D0 37 INTn 38 DTEST0 39 DTEST1 40 CLK_OUT 41 TCXO_IN 42 VDD_CLKREF 43 VDD_PLL 44 PLL_FIL0 45 PLL_FIL1 46 VDD_VCO 47 AMP_QP 48 AMP_QN 49 MIX_QN 50 MIX_QP 51 AMP_IP 52 AMP_IN 53 MIX_IN 54 MIX_IP 55 VDD_RX_ANA 56 HEATSLUG 57 U1R1000 R4133/4R4433/4R3133/4 GND GND GND GND GND GND GND GND GND GND 3.3V GND 3.3V 3.3V GND GND GND GND GND 3.3V 3.3V GND 3.3V GND GND 3.3V GND 3.3V GND GND GND UNBAL 1 GND 2 NC 6 BAL_2 3 GND 5 BAL_1 4 L26HHM1522E1 UNBAL 1 GND 2 NC 6 BAL_2 3 GND 5 BAL_1 4 L27HHM1522E1 UNBAL 1 GND 2 NC 6 BAL_2 3 GND 5 BAL_1 4 L41HHM1522E1 VDDCLK AFC GND y1TXO922025-STO-2855/3225 R40/4 GND GND GND LO_IN PA_BIAS_DAC PA_REGULATOR_DAC ANT_SENSE_1ANT_SENSE_0 nIRQ_TILDEN R2T_D0 T2R_CLKR2T_CLK R2T_FRMT2R_FRM T2R_D0 DTEST0DTEST1 TILDEN_RESET GND RX_IN GND 35 C471nF/4 C461nF/4 R22.7k/4/1% C5222nF/4 R14.7k/4/1% PLL Loop F ilter C1085.6pF/4 R36100k/4 GND R45100k/4 3.3V GND PLL_FIL_1 PLL_FIL_2 GND GND GND GND GND GND TEMPERATURE Input 1 Direct 2 ISO 3 CPL 4 5 6 U2Anaren XC0900P-20P GND GND GND R210/4 ANT 3.3V_VCOPLL 3.3V_VCOPLL 5V 1.8V 1.8V 1.8V 3.3V_VCOPLL 1.8V 1.8V 3.3V C8068pF/4…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 1 of 74 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For RFID Model : FS-GM201 Trade Name : FAVITE Issued for FAVITE Inc. NO.19, Lane 78, Yanhe St., Jhubei City, Hsinchu County 30267, Taiwan Issued by Compliance Certification Services Inc. Tainan Laboratory No. 8, Jiu Cheng Ling, Jiaokeng Village, Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 2 of 74 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 07/28/2009 Initial Issue All Page 74 Jeter Wu Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 3 of 74 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 4 2. EUT DESCRIPTION.................................................................................................................. 5 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 5 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................5 5. FACILITIES AND ACCREDITATIONS .................................................................................. 6 5.1 FACILITIES .......................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................ 6 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 7 6. CALIBRATION AND UNCERTAINTY .................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 8 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 9 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 10 8.1 DUTY CYCLE CORRECTION FACTOR ............................................................................. 10-11 8.2 20dB BANDWIDTH FOR HOPPING................................................................................... 12-17 8.3 MAXIMUM PEAK OUTPUT POWER ................................................................................. 18-23 8.4 HOPPING CHANNEL SEPARATION.................................................................................. 24-26 8.5 NUMBER OF HOPPING FREQUENCY USED .................................................................. 27-28 8.6 AVERAGE TIME OF OCCUPANCY .................................................................................... 29-32 8.7 CONDUCTED SPURIOUS EMISSION................................................................................ 33-37 8.8 RADIATED EMISSIONS ...................................................................................................... 38 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ................................................ 38-41 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ................................................ 42-47 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz............................................... 48-59 8.8.4 RESTRICTED BAND EDGES ........................................................................................ 60-63 8.9 POWERLINE CONDUCTED EMISSIONS .......................................................................... 64-67 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE............................................................ 68-69 APPENDIX II SETUP PHOTOS................................................................................................... 70-74 Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 4 of 74 1. TEST REPORT CERTIFICATION Applicant FAVITE Inc. Address NO.19, Lane 78, Yanhe St., Jhubei City, Hsinchu County 30267, Taiwan Equipment Under Test RFID Model FS-GM201 Trade Name FAVITE Tested Date May 22 ~ July 24, 2009 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 PASS Approved by: Reviewed by: Jeter Wu Section Manager Eric Yang Senior Engineer WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 5 of 74 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name RFID Model Number FS-GM201 Frequency Range 902MHz to 928MHz Transmit Power 29.41dBm Channel Spacing 500kHz Channel Number 50 Channels Type of Modulation ASK or PSK (FHSS) Frequency Selection by sof…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 70 of 74 APPENDIX II SETUP PHOTOS RADIATED MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 71 of 74 Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 72 of 74 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 73 of 74 ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID XLG-FS-GM201 Report No.90522301-RP1 Page 74 of 74 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
