Lightcomm Technology Co., Ltd. Covered Equipment Certification Attestation Letter Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 8/21/2024 Canada Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equi ATTN.: Reviewing Engineer FCC ID: XMF-CVD1662 Lightcomm Technology Co., Ltd.(“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. pment is not “covered” equipment. Lightcomm Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Jack.sun Title: Certification Manager Company Name: Lightcomm Technology Co., Ltd. Date: 8/21/2024

* Lightcomm Technology Co., Ltd. the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Aug 21, 2024 Canada ATTN.: Reviewing Engineer Phuntion LLC 25214 Spectrum, Irvine, CA92618 Jun.Tian [email protected] FCC ID: XMF-CVD1662 FRN:0018979138 Per section 2.911(d)(7) of the FCC rules,Wuhan Yixin Technology Co., Ltd.certifies that the equipment for which authorization is sought is designated to thefollowing U.S. Designated agent* for service of process: Company Name: Physical U.S. Company Address: Agent name: Agent Email Address: FRN: Expiration date:Aug 20,2025 0033422403 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Printed name: Jun.Tian Title: CEO Company Name: Phuntion LLC Date: Aug 21 Signed: Printed name:Jack.sun Title: Certification Manager Company Name: Lightcomm Technology Co., Ltd. ,2024 Date: Aug 21, 2024

Lightcomm Technology Co., Ltd. Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada 8/21/2024 K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: XMF-CVD1662 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rulesand FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Bill of Materials/Parts List Block Diagrams the date of the Grant for this Application. Sincerely, Signed: Printed name:Jack.sun Title: Certification Manager

Lightcomm Technology Co., Ltd. Model difference statement Signed: Printed name: Test item description : Car Multimedia Player Model/Type reference : CVD1662-AJ , CVD7621-AJ, CVD9662-AJ Jack.sun Title: Certification Manager (Only the display size, appearance and model are different, and the other circuit principles and RF modules ,PCB layout, components, antenna are exactly the same.) FCC ID: XMF-CVD1662

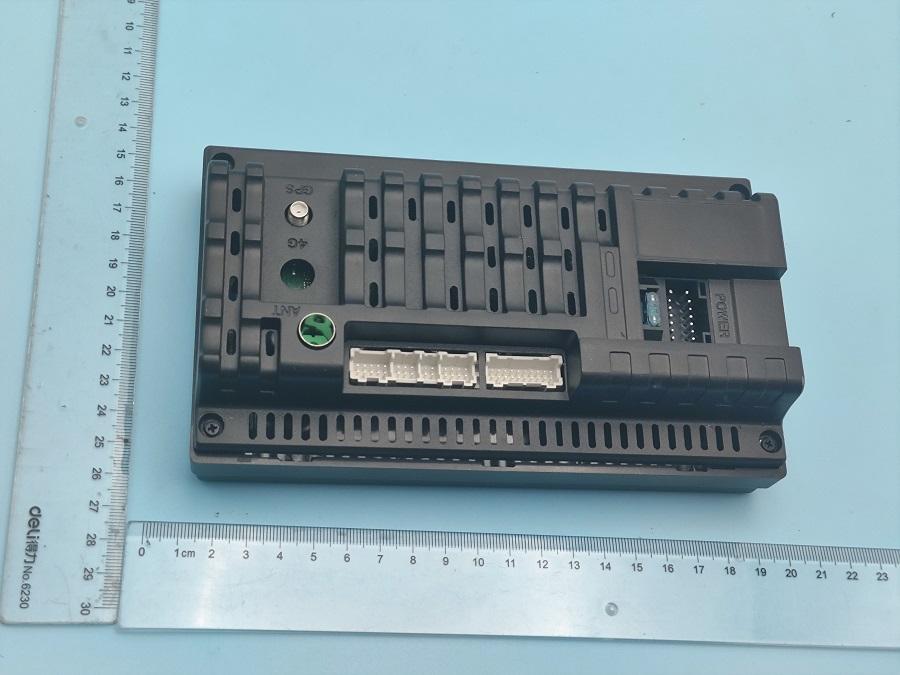

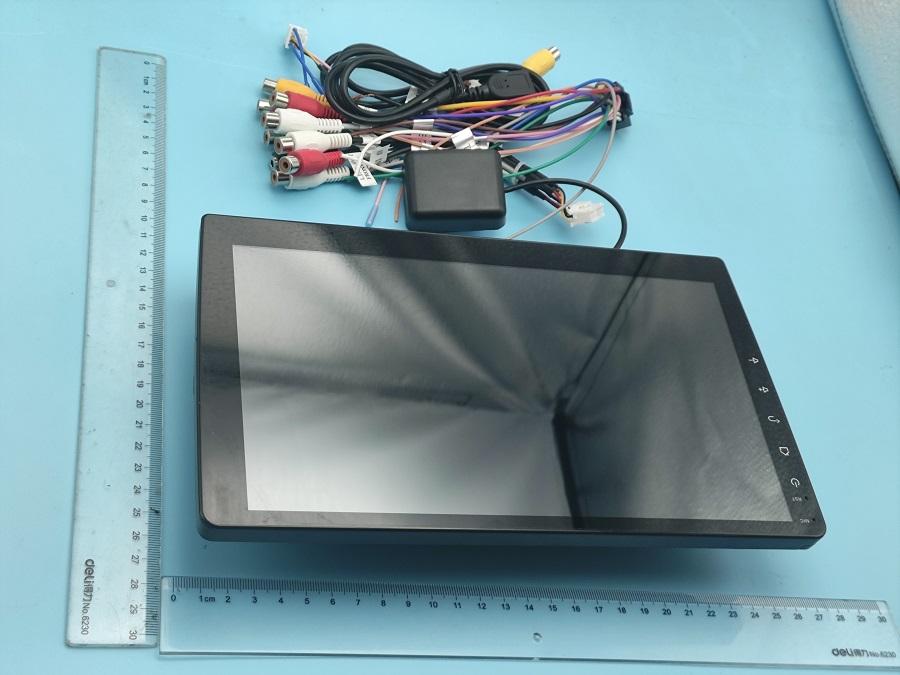

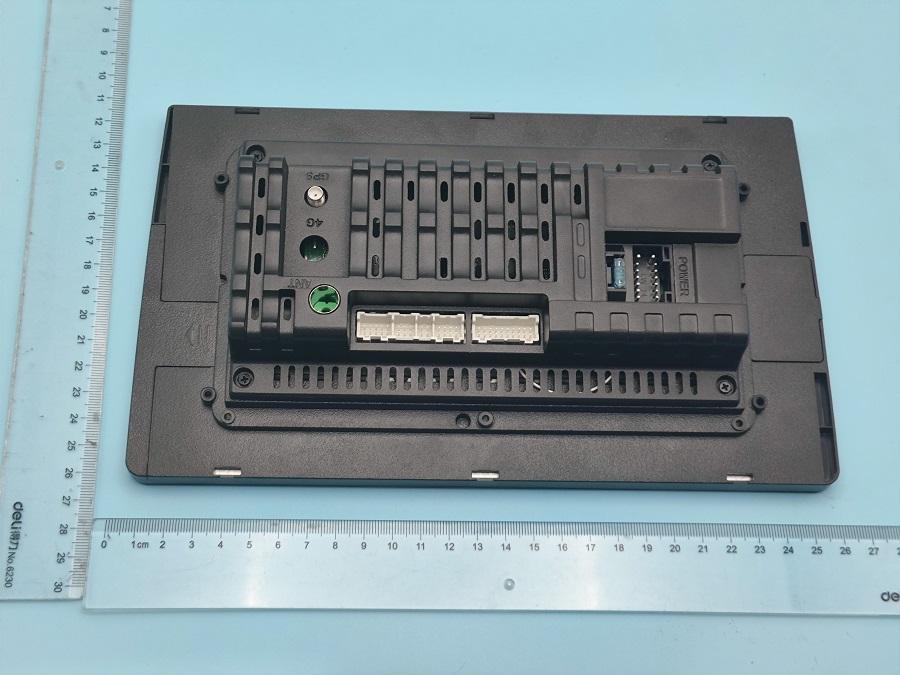

External photo FCC ID: XMF-CVD1662 Page 1/10 M/N:CVD1662-AJ External photo FCC ID: XMF-CVD1662 Page 2/10 M/N: CVD1662-AJ External photo FCC ID: XMF-CVD1662 Page 3/10 M/N: CVD1662-AJ External photo FCC ID: XMF-CVD1662 Page 4/10 M/N: CVD1662-AJ External photo FCC ID: XMF-CVD1662 Page 5/10 M/N: CVD7621-AJ External photo FCC ID: XMF-CVD1662 Page 6/10 M/N: CVD7621-AJ External photo FCC ID: XMF-CVD1662 Page 7/10 M/N: CVD7621-AJ External photo FCC ID: XMF-CVD1662 Page 8/10 M/N: CVD9662-AJ External photo FCC ID: XMF-CVD1662 Page 9/10 M/N: CVD9662-AJ External photo FCC ID: XMF-CVD1662 Page 10/10 M/N: CVD9662-AJ --END---

Label Location

Internal photo FCCID: XMF-CVD1662 Page 1/3 Internal photo FCCID: XMF-CVD1662 Page 2/3 BT/WiFi antenna Internal photo FCCID: XMF-CVD1662 Page 3/3

Manufacturer: Huizhou Hengdu Electronics Co.,Ltd. Address: No.8 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou,Guangdong,China M/N: 22#17/0.14BSOD:1.5

Operation Description This product controlled by the main MT8163. When power on, the CPU will reset, and detecting the connecting device success, it will mutual communication control. IEEE 802.11 WLAN 1. Touch Pannel: MT8163 connect with I2C1 communication port control the touch screen. 2. Debug: UART0 print the debug information. 3.RF ChipMT6625LNCrystal26MHz Mode Supported : 802.11b 802.11g 802.11n(20MHz channel bandwidth) 802.11n(40MHz channel bandwidth) Modulation : DSSS with DBPSK/DQPSK/CCK for 802.11b; OFDM with BPSK/QPSK/16QAM/64QAM for 802.11g/n; Operating Frequency Range : 2412-2462MHz for 802.11b/g/n(HT20) 2422-2462MHz for 802.11n(HT40) Number of Channels : 11 channels for 802.11b/g/n(HT20); 9 channels for 802.11n(HT40); Antenna Type : External antenna Antenna Gain : 2dBi Power Supply: DC 12V Channel List Channel No. Frequency (MHz) Channel No. Frequency (MHz) 1 2412 2 2417 3 2422 3 2422 4 2427 4 2427 5 2432 5 2432 6 2437 6 2437 7 2442 7 2442 8 2447 8 2447 9 2452 9 2452 10 2457 10 2457 11 2462 11 2462 802.11b/g/n(HT20) 802.11n(HT40) Operation Frequency: 2402MHz-2480MHz Channel numbers: 79 Channel separation: 1MHz Modulation type: GFSK, π/4-DQPSK, 8DPSK Antenna Type: External antenna Antenna gain: 2dBi Power supply: DC 12V Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) 1 2402 2 2403 3 2404 4 2405 5 2406 6 2407 7 2408 8 2409 9 2410 10 2411 11 2412 12 2413 13 2414 14 2415 15 2416 16 2417 17 2418 18 2419 19 2420 20 2421 21 2422 22 2423 23 2424 24 2425 25 2426 26 2427 27 2428 28 2429 29 2430 30 2431 31 2432 32 2433 33 2434 34 2435 35 2436 36 2437 37 2438 38 2439 39 2440 40 2441 41 2442 42 2443 43 2444 44 2445 45 2446 46 2447 47 2448 48 2449 49 2450 50 2451 51 2452 52 2453 53 2454 54 2455 55 2456 56 2457 57 2458 58 2459 59 2460 60 2461 61 2462 62 2463 63 2464 64 2465 65 2466 66 2467 67 2468 68 2469 69 2470 70 2471 71 2472 72 2473 73 2474 74 2475 75 2476 76 2477 77 2478 78 2479 79 2480 - -

RF Exposure FCC ID: XMF-CVD1662 Report No.: LP23080282C01-35-1 Page 1/3 SAR EVALUATION F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. RF Exposure FCC ID: XMF-CVD1662 Report No.: LP23080282C01-35-1 Page 2/3 MEASUREMENT RESULT Calculated Result and Limit BT: Mode Frequenc y (MHz) Peak output power (dBm) Peak output power (mW) Target power （dBm） Maximum tune-up Power (mW) Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear) GFSK 2402 -1.541 0.701 -1±1 1.00 2.0 1.58 0.0031 1 Complies 2441 1.317 1.354 1±1 1.58 2.0 1.58 0.0050 1 Complies 2480 1.783 1.501 1±1 1.58 2.0 1.58 0.0050 1 Complies 8DPSK 2402 -1.993 0.632 -1±1 1.00 2.0 1.58 0.0031 1 Complies 2441 1.045 1.272 1±1 1.58 2.0 1.58 0.0050 1 Complies 2480 2.616 1.826 2±1 2.00 2.0 1.58 0.0063 1 Complies Mode Frequenc y (MHz) output power (dBm) output power (mW) Target power （dBm） Maximum tune-up Power (mW) Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear) IEEE 802.11b 2412 14.45 27.86 14±1 31.62 2.0 1.58 0.1000 1 Compiles 2437 14.32 27.04 14±1 31.62 2.0 1.58 0.1000 1 Compiles 2462 14.11 25.76 14±1 31.62 2.0 1.58 0.1000 1 Compiles IEEE 802.11g 2412 14.28 26.79 14±1 31.62 2.0 1.58 0.1000 1 Compiles 2437 14.31 26.98 14±1 31.62 2.0 1.58 0.1000 1 Compiles 2462 13.82 24.10 13±1 25.12 2.0 1.58 0.0999 1 Compiles IEEE 802.11n HT20 2412 13.43 22.03 13±1 25.12 2.0 1.58 0.0630 1 Compiles 2437 13.70 23.44 13±1 25.12 2.0 1.58 0.0794 1 Compiles 2462 13.17 20.75 13±1 25.12 2.0 1.58 0.0794 1 Compiles IEEE 802.11n HT40 2422 11.90 15.49 11±1 15.85 2.0 1.58 0.0501 1 Compiles 2442 12.52 17.86 12±1 19.95 2.0 1.58 0.0630 1 Compiles 2462 12.86 19.32 12±1 19.95 2.0 1.58 0.0630 1 Compiles RF Exposure FCC ID: XMF-CVD1662 Report No.: LP23080282C01-35-1 Page 3/3 Power Density (S) (mW/cm2) Limited of Power Density (S) (mW/cm2) Test Result BT WIFI Sum 0.0063 0.1000 0.1063 1 Compiles The Maxinum power is less than the limit, complies with the exemption requirements, SAR is exempted. Remark: The Max Conducted Peak Output Power data refer to report Report No.: LP23080282C01-35 , LP23080282C01-36 Prepared by: Approved & Authorized Signer: Jerry Hu/ Engineer Frank Shen/ Manager Issue Date：August 23, 2024 ---END---

Report No. LP23080282C01-35 Dongguan Lepont Testing Service Co.,Ltd. page 1 of 71 TEST REPORT Applicant: Address: Lightcomm Technology Co., Ltd. UNIT 1306 13/F ARION COMMERCIAL CENTRE,2-12 QUEEN'S ROAD WEST,SHEUNG WAN HK Manufacturer: Address: Lightcomm Technology Co., Ltd. UNIT 1306 13/F ARION COMMERCIAL CENTRE,2-12 QUEEN'S ROAD WEST,SHEUNG WAN HK Factory: Address: Huizhou Hengdu Electronics Co.,Ltd. No.8 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou,Guangdong,China E.U.T.: Car Multimedia Player Model Number: CVD1662-AJ Series Model : CVD7621-AJ, CVD9662-AJ Trade mark: N/A FCC ID: XMF-CVD1662 Date of Receipt: Aug 04, 2024 Date of Test: Aug 04, 2024- Aug 16, 2024 Test Specification: FCC 47 CFR Part 15, Subpart C Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Prepared by: Approved & Authorized Signer: Jerry Hu/ Engineer Frank Shen/ Manager Issue Date: August 23, 2024 This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Dongguan Lepont Service Co., Ltd. Report No. LP23080282C01-35 Dongguan Lepont Testing Service Co.,Ltd. page 2 of 71 TABLE OF CONTENTS 1. GENERAL PRODUCT INFORMATION 4 1.1. PRODUCT FUNCTION ..................................................................................................................................................... 4 1.2. EUT TECHNICAL DESCRIPTION ............................................................................................................................ 4 1.3. INDEPENDENT OPERATION MODES ............................................................................................................................... 5 2. TEST STANDARDS AND SITES 6 2.1. DESCRIPTION OF STANDARDS AND RESULTS ................................................................................................................. 6 2.2. LIST OF TEST AND MEASUREMENT INSTRUMENTS ........................................................................................................ 7 2.3. MEASUREMENT UNCERTAINTY .......................................................................................................................... 8 2.4. TEST FACILITY .............................................................................................................................................................. 8 3. SETUP OF EQUIPMENT UNDER TEST 9 3.1. RADIO FREQUENCY TEST SETUP 1 ...................................................................................................................... 9 3.2. RADIO FREQUENCY TEST SETUP 2 ...................................................................................................................... 9 3.3. CONDUCTED EMISSION TEST SETUP .................................................................................................................. 11 3.4. BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM .................................................................................. 11 3.5. SUPPORT EQUIPMENT ............................................................................................................................................ 12 4. TEST RESULTS AND MEASUREMENT DATA 13 4.1. 20DB BANDWIDTH .................................................................................................................................................. 13 4.2. CARRIER FREQUENCY SEPARATION .................................................................................................................. 19 4.3. NUMBER OF HOPPING FREQUENCIES ................................................................................................................. 25 4.4. AVERAGE TIME OF OCCUPANCY (DWELL TIME) ............................................................................................. 28 4.5. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................. 36 4.6. RADIATED SPURIOUS EMISSION .......................................................................................................................... 42 4.7. ANTENNA APPLICATION ....................................................................................................................................... 62 4.8. RF EXPOSURE ........................................................................................................................................................... 63 4.9. TESTING PHOTO ............................................................................................................................................................ 64 4.10. PHOTOGRAPHS OF THE EUT ............................................................................................................................. 65 Report No. LP23080282C01-35 Dongguan Lepont Testing Service Co.,Ltd. page 3 of 71 Revision History of This Test Report Report Number Description Issued Date LP23080282C01-35 Initial Issue 2024-8-23 Report No. LP23080282C01-35 Dongguan Lepont Testing Service Co.,Ltd. page 4 of 71 1. GENERAL PRODUCT INFORMATION 1.1. PRODUCT FUNCTION Refer to Technical Construction Form and User Manual. 1.2. EUT TECHNICAL DESCRIPTION Product Name: Car Multimedia Player Model No.: CVD1662-AJ , CVD7621-AJ, CVD9662-AJ Test Model No: CVD1662-AJ Remark: The above models are identical in PCB layout, internal structure and circuit. The difference is the model name and size for commercial use. Test sample(s) ID: LP23080009C01-S035 Sample(s) Status Engineer sample Operation Frequency: 2402MHz-2480MHz Channel numbers: 79 Channel separation: 1MHz Modulation type: GFSK, π/4-DQPSK, 8DPSK Antenna Type: External antenna Antenna gain: 2dBi Power supply: DC 12V Report No. LP23080282C01-35 Dongguan Lepont Testing Service Co.,Ltd. page 5 of 71 1.3. INDEPENDENT OPERATION MODES The EUT has been tested under its typical operat…

Text truncated - open the document above for the full version.

Test photo F FCC ID: XMF-CVD1662 Page 1/1 Radiated emission ---END---
