XMF-MID1015MID

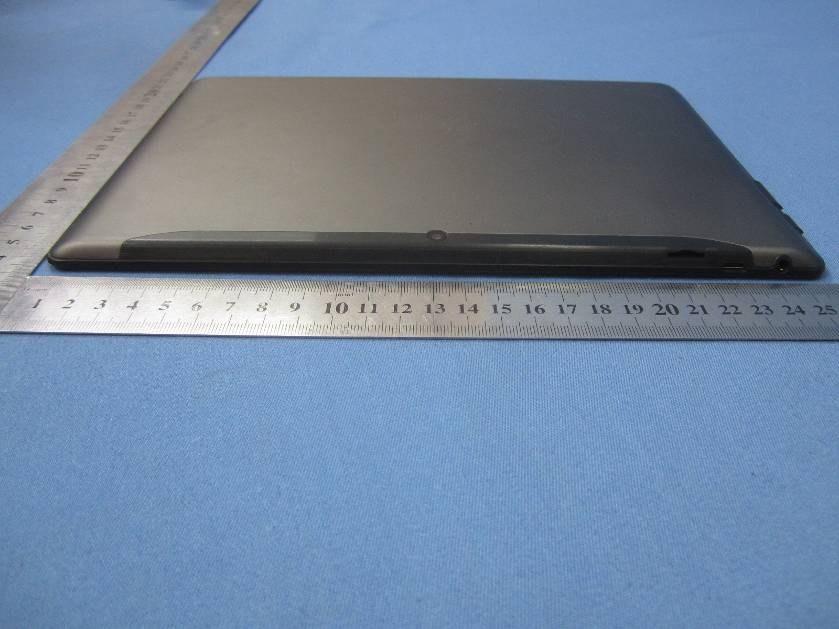

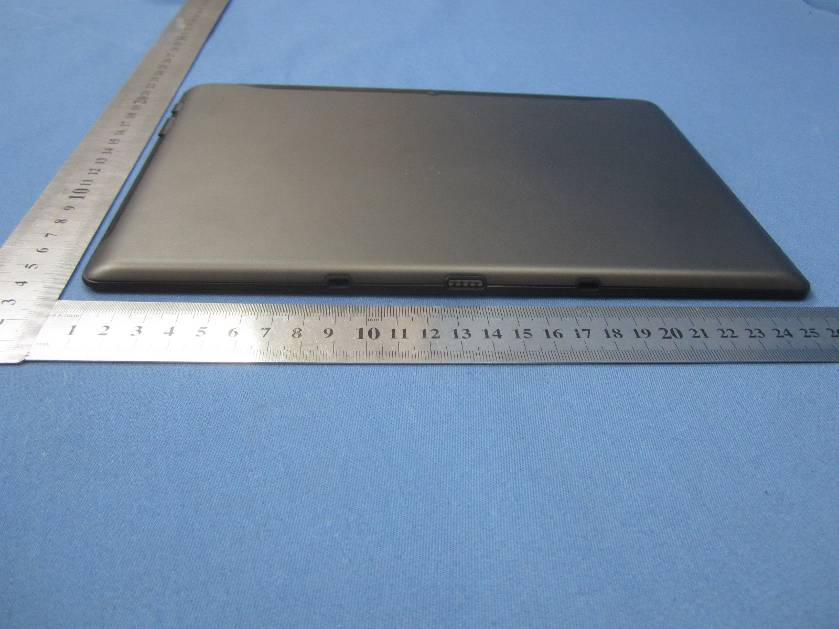

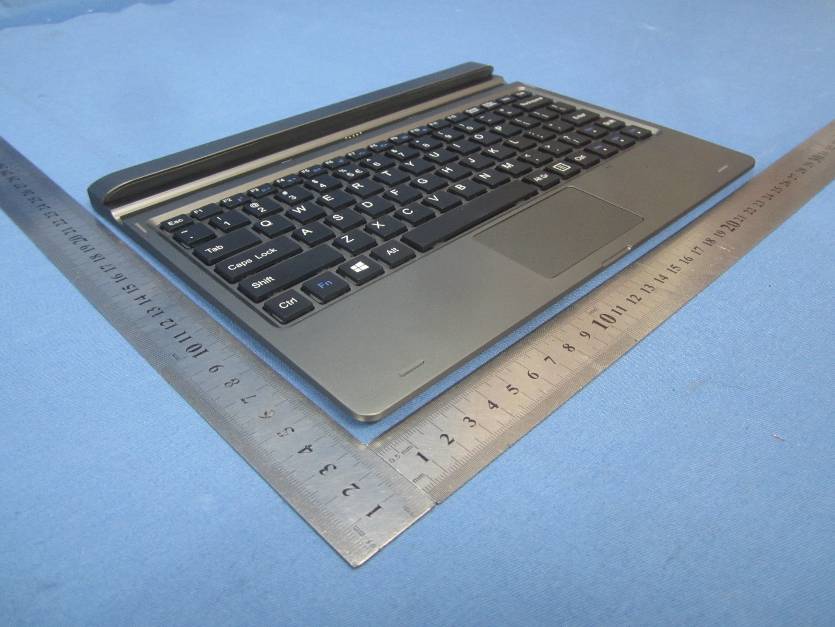

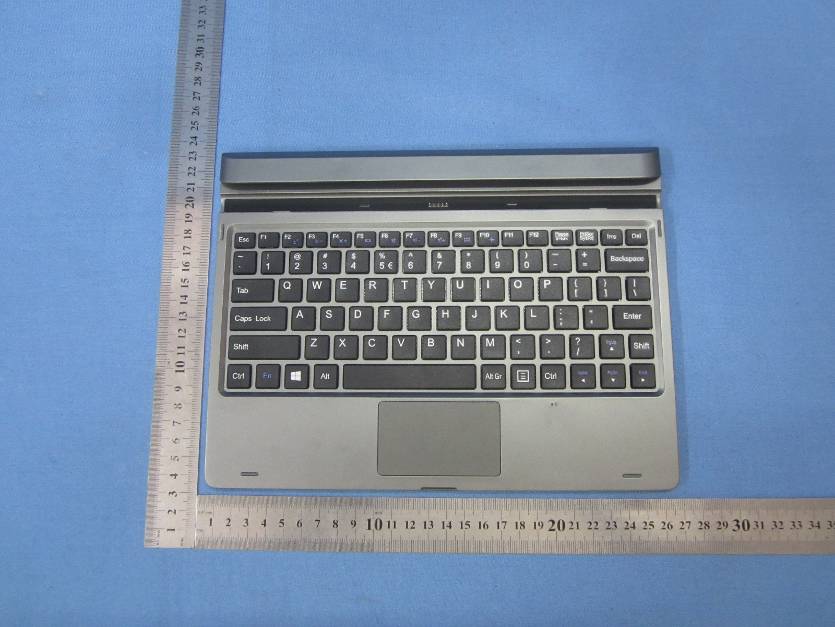

TM101W545L Quick Start Guide 3 Introduction Thank you for purchasing the NuVision TM101W545L 2-in-1 hybrid tablet. The device runs on Windows 10, the latest and best operating system yet, utilizing both tablet touch technology and a standard keyboard to make your personal computing and media content experience convenient, productive and immersive. It is the perfect companion for accomplishing everyday tasks, enhancing productivity on the go, playing video games, streaming music and movies, taking photos, checking emails, engaging with social media and so much more. New features in Windows 10 include Cortana, your voice-activated personal assistant who can search the web, find files for you, keep track of your personal calendar, and tell you todays weather. Microsoft Edge is the new replacement browser for Internet Explorer that is faster and more convenient to use. Other features include Bluetooth connectivity, front & rear cameras, and a memory card slot for up to an additional 64GB of storage. With a sleek design and bright high-definition IPS touch screen that ensures ultra wide viewing angles, you’ll enjoy the TM101W545L for many years to come. Use finger gestures to navigate the tablet or connect the keyboard to turn your device into a laptop. The following information will help you get the most out of your tablet. We strongly recommend reading it thoroughly before first use. For more information check out the on-line user manual at www.nuvision.com NuVision Customer Service Phone: (800) 890-1288 Hours: 8:30am to 5:30pm PST M-F Email: [email protected] Customer Service For expedited customer support, please visit www.nuvision.com 5 Important Safety Instructions 4 Features & Package Contents TM101W545L TabletAC Adapter Transfer Cable - 10.1” 1200 x 800 IPS HD Touch Screen Tablet - Magnetically connected Windows Keyboard - Intel Quad Core Baytrail Processor - AC Wall Adapter - Windows 10 Operating System - 32GB Internal Storage; 2GB RAM - 2.0MP Front and Rear Cameras - Bluetooth/ WiFi 802.11b/g/n - Micro USB Port - TF Memory Card Slot (Up to 64GB Additional Storage) - Cortana –Personal Assistant Please read the following instructions and notices before using your tablet. 1. Avoid using in extremely hot, cold, dusty, damp or wet environments. 2. The tablet is not moisture or water-resistant. Avoid using the tablet around sources of water. 3. Avoid dropping or forcibly placing the tablet onto a hard surface. This may damage the screen or internal electronic components and void the warranty. 4. Do not use alcohol, thinner or benzene to clean the surface of the tablet. Use only cleaning products designed for computer tablet devices. 5. Do not use the tablet while walking or driving. 6. Excessive use of earphones at high volume may lead to hearing impairment. Limit earphone usage, and adjust the volume to a moderate level only. 7. The images in this manual may vary slightly from the actual product. 8. Charge the tablet battery under any of the following circumstances: a. Battery level icon indicates low power b. Tablet powers-off automatically, continuing to do so even after restarting. c. On-screen keys or display does not function properly. 9. Do not suddenly disconnect the tablet when formatting, uploading or downloading data. This may lead to program errors (e.g., system or screen “freezing”.) 10. Static discharge is normal and can occur in an electronic device. Although not life threatening, it may corrupt files or damage memory and its content. Do not use accessories that are not from Nuvision. 11. Dismantling the tablet will void the manufacturer’s warranty. If you are experiencing problems, review the FAQ section of this manual. 12. Tablet functions, hardware, software, and warranty information may be revised by the manufacturer or their respective owners, and subject to change without notice. 13. Warning: This product may contain a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm. 7 1. Camera: Built in 2.0MP front camera to take HD photos or videos. 2. Window: Press to return to Home/Start Menu. 3. Power: Press and hold for 3 seconds to turn on the tablet. Press momentarily to enter Sleep mode. This will turn o display and save battery life. Press and hold to turn o. 4. Volume- / Volume +: Decrease or increase volume level for speakers or headphones. 5. Headphone: Insert headphones for private listening or connect with amplified speakers. 6. Micro USB Power Port: Connect to power supply to recharge tablet; connect an external flash drive or other compatible device. 7. Micro TF Memory Card Slot: The built-in storage card reader slot supports an optional TF memory card for additional storage. 8. Microphone: Built in microphone to speak to Cortana, or for personal voice recording. 9. Camera: Built in 2.0MP rear camera to take HD photos or 720p videos. 10. Loudspeakers: Built in audio speakers to listen to music, podcasts, etc., without headphones. 11. Caps Lock Light 12. Full-Size USB Port 6 Tablet Overview 1 2 89 Connecting the Tablet and Keyboard Your tablet features a specially designed magnetic hinge that attaches and secures the tablet and keyboard together, enabling quick and easy docking. 1. Dock Port Connect the 5-pin magnetic dock port to support the keyboard, touchscreen and USB functions. 2. Hinge Tabs Align and insert tabs into their respective holds to attach the tablet. Undocking the Tablet Firmly grasp the tablet and secure the keyboard at the same time, then gently pull out the tablet. 11 Battery Care Operating temperature: Your device is designed to function between 32°F and 95°F (or 0°C to 35°C). Lithium-ion batteries are sensitive to higher temperatures so keep away from direct sun light. Don’t leave in a closed environment susceptible to extreme temperatures (ie: a vehicle on a hot sunny day). Recharge anytime: You can recharge the internal battery at any time. However, we recommend discharging the battery down t…

Text truncated - open the document above for the full version.

19 Action Center The Action Center is the central location to view alerts, notifications, all of your settings, and more. Swipe your finger inward from the right edge of the screen to bring up the Action Center. Swipe your finger back towards the edge to hide the Action Center. 18 Apps Menu To display the convenient and easy to use Apps menu, tap or click the All Apps button in the Start Menu. Launch apps, features and programs that are set up alphabetically. Slide your finger or scroll up and down to view all apps on your tablet. Add / Remove / Resize Apps You can reconfigure the tiles within the Start Menu quite easily. To create, or pin a tile from an app located in the App Menu, select and drag your selection to place the tile in a preferred location. To change the tile size or to remove (unpin) it, tap or click and hold for one second to display available options. 2021 Microsoft EdgeCortana, your Voice-Activated Personal Assistant Microsoft Edge, the new internet browser for Windows 10, replaces Internet Explorer and offers a modern, fast web browsing experience where pages load quickly and scrolling is smooth. Cortana, your personal assistant is located in the address bar to help you get things done like making dinner reservations or providing instant directions. Speak to Cortana and request the weather forecast, set personal reminders, send an email, find specific files, search the web, and more. Summon Cortana by speaking clearly and slowly into the microphone. Start by saying the command, “Hey Cortana!” To manage and personalize Cortana, go to the Cortana app, press “Settings” and follow the prompts. Manage settings and what Cortana should know about you. Tap or click the Cortana app then click the Set- tings icon in the upper left corner to display its menu. 2223 3D Builder / Movies & TV / Additional Storage Creating a Microsoft Account / Adding an Email Account 3D Builder Create models and print in 3D using the new 3D Builder app. The app was created to make loading, manipulating and printing 3D models easy and fun. Print directly to supported 3D printers. Movies & TV Rent or purchase the latest releases in Movies & TV shows, or games from the Windows Store. Easily downloads to your device. In addition, you can search for titles from your video collection. Additional Storage with a TF Memory Card Slot At some point you may require additional space on your Tablet for additional music, video, photo or business files. Insert an optional TF style memory card with a storage capacity up to 64GB. Create a Microsoft account It is recommended to set up or use an existing Microsoft account for better enjoyment of Microsoft services such as Xbox, Hotmail, Outlook.com, OneDrive, etc. Many apps and services rely on the account to sync content and settings across devices. If you have more than one Microsoft account already, you’ll need to choose one. Add Other Email Accounts To add your email accounts: 1. Open the Start Menu and select Mail. 2. Open and Add account. 3. Choose the type of account you want to add, and then follow the on-screen instructions. 25 Using USB, Micro USB and Bluetooth Devices 24 Connecting to the Internet The tablet utilizes WiFi 802.11b/g/n networks to connect with the internet. In order to connect, you will need the following: or WI-FI Available Here + Network Name/SSID Password Wireless Router Connect to a WiFi Network Open the Action Center (swipe your finger inward from the right edge of the screen), then tap or click All Settings > Network & Internet. Or from the Task Bar tap the wireless network icon then connect to the appropriate network. Tap (or click) Connect. When prompted enter the password (if applicable). Disconnect from a WiFi Network Open the Action Center. Tap the wireless network icon that is connected, then tap (or click) Disconnect. USB flash drive or hard drive Insert a USB flash drive or external hard drive into the Tablet USB port using the included transfer cable. You can also connect using the USB port located on the right side of the keyboard case. In addition, you can add an external mouse, connect a keyboard, or other USB compatible device. NOTE: The first time you plug in a USB accessory, Windows will install the necessary software for you (if applicable). Add a Bluetooth device Add or “pair” a Bluetooth compatible device with your Tablet as follows: 1. Power on the compatible Bluetooth device and make it discoverable. 2. From the Action Center open All Settings > Devices > Bluetooth. Turn on Bluetooth then tap or click on Connected Devices. Tap or click to add a new device. Once the Bluetooth compatible device is found, select it. 3. Make sure Bluetooth is powered on, then wait while Windows searches for the device. 27 Using the Cameras Front and Rear Cameras Your tablet features two 2MP cameras. With the front-facing camera you can video chat and take selfies. Use the rear camera to take photos or record videos. To take a photo or record video, open the Camera app and tap the on screen Camera or Video shutter button. Tap the Video shutter button once again to stop recording. The cameras Settings menu provides options for viewing and editing photos and videos. Add folders that contain all of your photos and videos for convenient viewing. In addition albums can be created automatically, whereby Microsoft will select your best shots and create an album. 26 Windows Store The Windows Store has all the apps you’re looking for. Start searching for apps in top categories such as games, entertainment, music, sports, eBooks, News, Food & Dining, Travel, business and more. Once you have signed up for a Microsoft account, you can download and install apps from the Windows Store. TMAX DIGITAL,INC. MODEL:TM101W535L FCC ID: 2AAP6M1042 INPUT: 5V/2A MADE IN CHINA Camera Function Guide 28 Using the Cameras (Cont.) 11 5 4 12 3 89 10 67 1. Change Camera: Tap to switch between front and rear cameras. 2. Camera Adjustments Menu: Adjust Brightness, White Ba…

Text truncated - open the document above for the full version.

Lightcomm Technology Co., Ltd. RM1708-10,17/F,PROSPERITY CENTRE, 25 CHONG YIP STREET,KWUN TONG, HONG KONG DATE :2015-08-25 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Hank Yan of Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong (Name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Lightcomm Technology Co., Ltd. and RM1708-10,17/F,PROSPERITY CENTRE, 25 CHONG YIP STREET,KWUN TONG, HONG KONG Dated this / Day of 8/25/2015 / Agency agreement expiration date: 8/25/2016 By: Jason Zeng Signature Printed Title: Certification Engineer On behalf of : Lightcomm Technology Co., Ltd. Telephone: 0085221913611

Differences Declaration To whom concern, We company Lightcomm Technology Co., Ltd. hereby declares: The product model(s) TM101W545L is identical in the same PCB layout, interior structure and electrical circuits with the model MID1015-IB which tested in Global Unit Technology Co., Ltd., the only differences are the model name for commercial purpose. Authorized signature: Date: 2015-08-25

Date: 8/25/2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: XMF-MID1015 To Whom It May Concern: We,Lightcomm Technology Co., Ltd., are applying FCC DOC for product MID which model no. are MID1015-IB, TM101W545L. the FCC DOC is doing at proper FCC authorized and recognized lab, and FCC DOC will be issued soon. If you have any question or concerns, pls. contact us. Sincerely, By: Jason Zeng Signature Printed Title: Certification Engineer On behalf of : Lightcomm Technology Co., Ltd. Telephone: 0085221913611 FCC authorized and recognized MRA lab, and FCC DOC will be issued soon.

Lightcomm Technology Co., Ltd. RM1708-10,17/F,PROSPERITY CENTRE, 25 CHONG YIP STREET,KWUN TONG, HONG KONG DATE 2015-08-25 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: XMF-MID1015 Product Name: MID Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this / Day of 8/25/2015 / By: Jason Zeng Signature Printed Title: Certification Engineer On behalf of : Lightcomm Technology Co., Ltd. Telephone: 0085221913611

FCC ID: XMF-MID1015 The device has a standalone transmission. According to KDB 447498 D01 General RF Exposure Guidance v0.5 The 1-g and 10-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz power and distance are rounded to the nearest mW and mm before calcuation The result is rounded to one decimal place for comparison Worse case is as below:[2437MHz 7.94dBm(6.22mW) output power] (6.22mW/5mm) ·[√2.462(GHz)]=1.88 <3.0 for 1-g SAR Then SAR evaluation is not required.

Global United Technology Services Co., Ltd. Report No.: GTSE15080159801 FCC Report(WIFI) Applicant: Lightcomm Technology Co., Ltd. Address of Applicant: RM1708-10,17/F,PROSPERITY CENTRE, 25 CHONG YIP STREET,KWUN TONG, HONG KONG Equipment Under Test (EUT) Product Name: MID Model No.: MID1015-IB, TM101W545L FCC ID: XMF-MID1015 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2014 Date of sample receipt: August 19, 2015 Date of Test: August 20-24, 2015 Date of report issued: August 25, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. RobinsonLo Report No.: GTSE15080159801 2 Version Version No.DateDescription 00August 25, 2015Original Prepared By: Date: August 25, 2015 Project Engineer Check By:Date: August 25, 2015 Reviewer Pj tE i Global United Technology Services Co., Ltd.Project No.: GTSE150801598RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone,Xixiang Road, Baoan District, Shenzhen 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960Page 2 of 66 Tested By: Report No.: GTSE15080159801 3Contents Page 1COVER PAGE ...........................................................................................................................................1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE........................................................................................................................................ 6 5.4 DESCRIPTION OF SUPPORT UNITS....................................................................................................... 6 5.5 TEST FACILITY.................................................................................................................................... 7 5.6 TEST LOCATION................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA...................................................................................... 9 7.1 ANTENNA REQUIREMENT..................................................................................................................... 9 7.2 CONDUCTED EMISSIONS................................................................................................................... 10 7.3 CONDUCTED PEAK OUTPUT POWER.................................................................................................. 13 7.4 CHANNELBANDWIDTH...................................................................................................................... 14 7.5 POWER SPECTRAL DENSITY............................................................................................................. 19 7.6 BAND EDGES.................................................................................................................................... 24 7.6.1 Conducted Emission Method ..................................................................................................... 24 7.6.2 Radiated Emission Method ........................................................................................................27 7.7 SPURIOUS EMISSION......................................................................................................................... 32 7.7.1 Conducted Emission Method ..................................................................................................... 32 7.7.2 Radiated Emission Method ........................................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
