XMF-MID1024MID

1 134567890267 TM1088 Quick Start Guide 152*103mm,封面：120g 双铜，内部105g NuVision Customer Service Phone: (800) 890-1288 Hours: 8:30am to 5:30pm PST M-F Email: [email protected] Customer Service Full User Manual Available at www.nuvision.com 3 Package Contents AC Adapter and USB CableTM1088 Tablet Transfer Cable 4 TM1088 Tablet At-a-Glance 1. AC Adapter 2. Headphone Jack 3. Micro USB 4. Microphone 5. TF Card Slot 6. Camera (Back) 7. Camera (Front) 8. Power Button 9. Mini HDMI 10. Speak er 76 10 139 2 8 5 4 5 Home Screen At-a-Glance 12 12 43 6 5 13 1110987 1. Connection/Activity 2. Google Search 3. Google Audio Search 4. Status Bar 5. Volume Control 6. App Tray 7. Volume Up 8. Open Apps 9. Home 10. Back 10. Back 11. App 12. Volume Down 13. Time Widget 6 Starting Your Tablet 1. Press and hold the Power button for 3 seconds. (If your unit does not turn on, or instructs you to “Connect your charger”, connect the AC adapter and charge the unit.) 2. At the Start-up screen, slide the lock icon to the right. 3. Once you’ve arrived at the home screen, you can begin using your tablet. 7 Charging Your Tablet It is recommended to fully charge the tablet before first use. To charge the tablet, plug the micro USB end of the included USB cable into the top of the tablet, in the slot marked “USB” (1). Connect the other end of the cable to the AC adapter (2), and plug the AC adapter into a wall outlet (3). If the tablet is on, the battery icon will pulse, showing that it is being charged. It is fully charged when an icon of a full battery is displayed on the screen. A complete battery charge will take approximately 5 hours. It is normal for the tablet to be warm to the touch as it is being charged. 1 2 3 8 Touching and Typing Type goes in field Need Information Type goes in field Need Information Type goes in field Need Information Type goes in field Need Information Type goes in field Need Information Type goes in field Need Information To select an item on the screen, simply tap it once with your fingertip. Some items may require you to “double-tap”. To type into an text field (i.e., when inputting your name, or a web address), tap the text field. The on-screen keyboard will appear, and allow you to type the information you wish to enter. Touch and Hold: Keep your finger on an on-screen item until it glows or activates an alternate menu. Drag: Move an App or object by touching and holding the image, then sliding it to the destination. Slide: When there are extra “screens” to the side, slide one or more fingers from one side to another. 9 Connecting to the Internet The Tablet utilizes WiFi 802.11 networks to connect to the internet. (WiFi distance can be affected by your surrounding environment and a WiFi router.) Distance may vary or WiFi Available Here + Network Name/SSID Password Wireless Router Wireless Router 10 Connecting to the Internet (Cont.) In order to connect to the internet, you will need the following: • A wireless router or an access point with a broadband internet connection. • The name of your network (SSID), as well as the password or other credentials, if your network is secure. (NOTE: You may encounter open WiFi networks, or “hot spots.” These networks are usually configured so that you can simply connect to them without needing to know its settings. The tablet will obtain information from the router automatically.) The wireless router must support WiFi 802.11b/g connections. If the router supports 802.11n, make sure that it has been configured to accept 802.00b/g connections as well. (Note: A minimum connection speed of 64 Kbps is recommended. Faster speeds will provide for a better internet experience.) Distance may vary or WiFi Available Here + Network Name/SSID Password Wireless Router Wireless Router 11 Apps that come with your Tablet The App Tray is a convenient way to access all of your applications (apps). After tapping the icon, the screen will open to the Launcher Tab page. At the top, you will find options to see all apps (applications) or widgets. Maxthon Internet Browser software is a powerful tabbed browser with a highly customizable interface. Google Play Store Google Play™ is music, books, magazines, movies, TV shows, and apps, available anywhere you go. AccuWeather provides hourly and Minute by Minute™ forecasts with Superior Accuracy™ for nearly 3 million locations worldwide, with customized content and engaging video presentations. CloudLink increases the content and capability of Android devices by offering the best-in-class line up of productivity Apps. Gmail Users If you have a Gmail Account, we recommend using the Gmail App. PlayKids offers the best educational games and popular TV shows for kids and toddlers in just one app! Yahoo and others Using the Email App may yield better results. To connect your email Insure that you are online. Tap on either the Gmail or Email Icons, depending on your use. Follow the on-screen instructions. 12 Widgets Widgets are mini apps that run on your Home screen. Your tablet comes with several by default, including a calendar and a clock, and you can download more. 13 Getting More Apps and Widgets What you’ll need: 1) A wireless internet connection. 2) An active account with Google Play or similar App distribution service. Installing Apps from Google Play Click on the Google Play Icon. It will take you online to the Google Play Store. Shop the Google Play Store. You can peruse the various subjects like “Games” or “Productivity”, or Search for a specific App you’re interested in. Tap “Install” If this is a paid application, you’ll be asked a set of verification questions before the App begins to download. The App will download to your Launcher. Once the download is complete, tap on the App to use. 14 Settings: Date, Time Tap on the Settings Icon This will take you to the Setting page, where all adjustments for the tablet can be made. 1) Scroll to ‘Date & Time’ under ‘Settings’, and select. 2) If you would like your Network to automatica…

Text truncated - open the document above for the full version.

2014-07-02 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: XMF- MID1024 To Whom It May Concern: This letter is to ascertain that Lightcomm Technology Co., Ltd. Product MID has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature : Client’s name / title : Jason Zeng/ Certification Engineer

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 Lightcomm Technology Co., Ltd. 2014-06-24 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Lightcomm Technology Co., Ltd. _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (MID, MID1024-Z, TM1088) Sincerely, Client’s signature Client’s name / title Jason Zeng/ Certification Engineer Contact information / address RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 4.0 Lightcomm Technology Co., Ltd. 2014-06-24 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Lightcomm Technology Co., Ltd. ____hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): (MID, MID1024-Z, TM1088) We affirm that between SIEMIC, Inc. and ____ Lightcomm Technology Co., Ltd. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title Jason Zeng/ Certification Engineer Contact information / address RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG

Lightcomm Technology Co., Ltd. SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Lightcomm Technology Co., Ltd. SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2014-06-24 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XMF- MID1024 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Jason Zeng/ Certification Engineer Contact information / address RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG

Model Declaration Letter We, the undersigning company Company Name: Lightcomm Technology Co., Ltd. Address: RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG Hereby confirm that the following products: Product description: MID Type designation: MID1024-Z, TM1088 Tradename or Brand(s): / That All models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. City and Country: Date: Name: Function: Signature: Hongkong 06/24/2014 Jason Zeng Certification Engineer

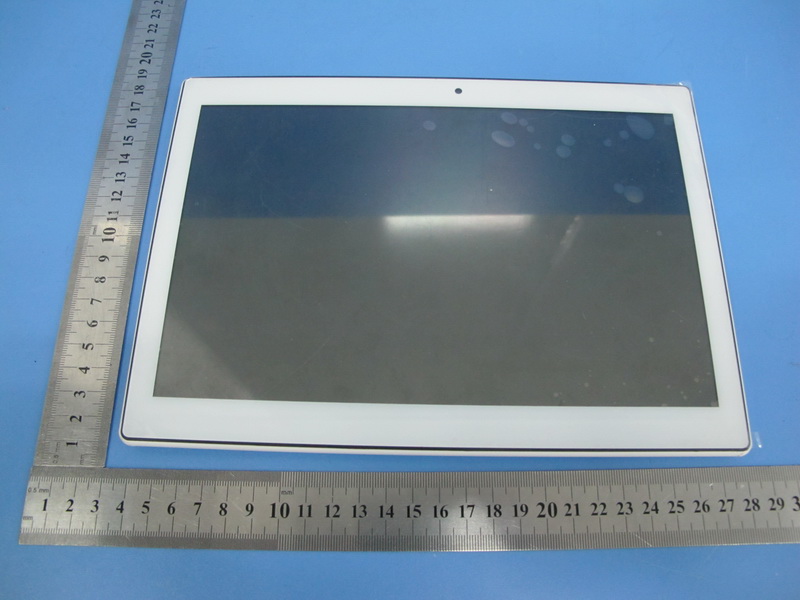

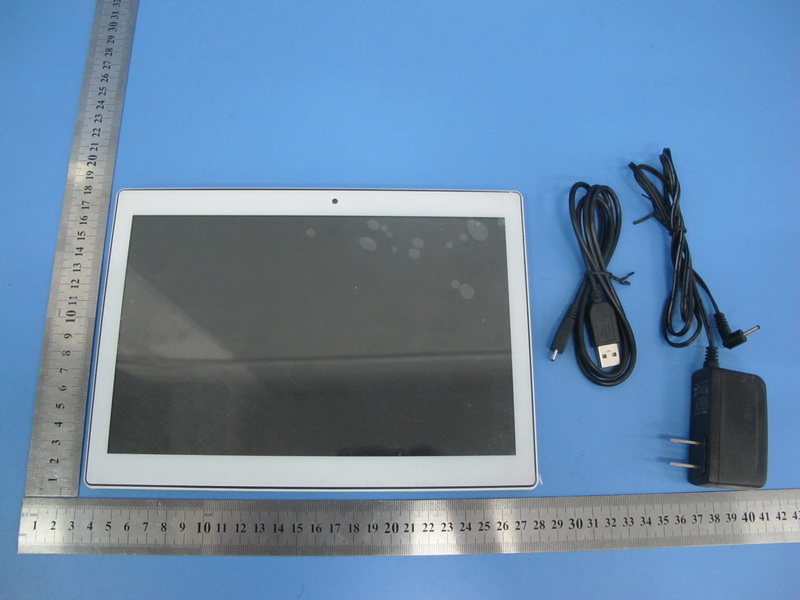

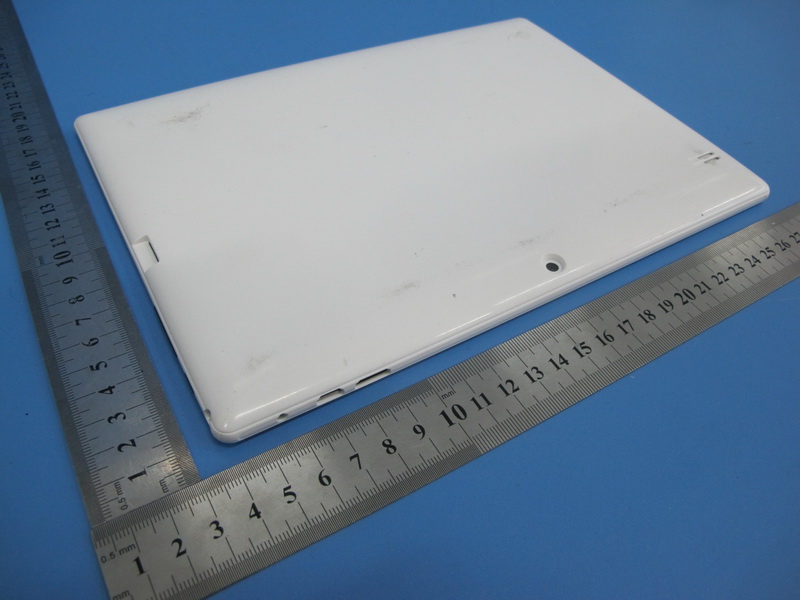

Report No.: TB-FCC140886 Page: 3 of 12 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Adapter Report No.: TB-FCC140886 Page: 4 of 12 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC140886 Page: 5 of 12 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

Report No.: TB-FCC140886 Page: 2 of 12 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC140886 Page: 1 of 12 TB-RF-074-1.0 Appendix IFCC ID Label

Report No.: TB-FCC140886 Page: 6 of 12 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT Report No.: TB-FCC140886 Page: 7 of 12 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB WiFi (2.4G) AntennaBT(2.4G) Antenna Report No.: TB-FCC140886 Page: 8 of 12 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Report No.: TB-FCC140886 Page: 9 of 12 TB-RF-075-1.0 Photo 13 Appearance of PCB Photo 14 Appearance of Camera WiFi (2.4G) Antenna BT (2.4G) Antenna Report No.: TB-FCC140886 Page: 10 of 12 TB-RF-075-1.0 Photo 15 Appearance of Camera Photo 16 Appearance of Battery and Screen

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE140889 Page: 1 of 5 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: XMF-MID1024 1. Client Information Applicant : Lightcomm Technology Co., Ltd. Address : RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG Manufacturer : Huizhou Hengdu Electronics Co., Ltd. Address : DIP South Area, Huiao Highway, Huizhou, Guangdong, China 2. General Description of EUT EUT Name : MID Models No. : MID1024-Z, TM1088 Model Difference : All models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11b/g/n(HT40): 2422MHz~2452MHz Bluetooth with BLE: 2402MHz~2480MHz Number of Channel: 802.11b/g/n(HT20):11 channels 802.11b/g/n(HT40): 7 channels Bluetooth:79 Channels Bluetooth (BLE): 40 Channels Max Peak Output Power:802.11b: 9.54 dBm 802.11g: 8.94 dBm 802.11n (HT20): 9.20 dBm 802.11n (HT40): 9.47 dBm Bluetooth: GFSK:7.62 dBm 8-DPSK: 6.72 dBm BLE(GFSK):0.074 dBm Antenna Gain: 0 dBi PIFA Antenna Modulation Type: 802.11b: DSSS (CCK, QPSK, BPSK) 802.11g: OFDM 802.11n: OFDM GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) BLE (GFSK) Power Supply : DC power supplied by AC/DC Adapter DC Voltage supplied from Li-Polymer battery. Report No.: TB-MPE140889 Page: 2 of 5 TB-RF-074-1.0 Power Rating : USB DC 5V form PC. AC/DC Adapter(TEKA012-0502000UK) (DC Power Jack): Input: AC 100~240V 50/60Hz 0.35A Max. Output: DC 5V 2A DC 3.7V 5000mAh from Li-Polymer battery Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE140889 Page: 3 of 5 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE140889 Page: 4 of 5 TB-RF-074-1.0 2. Calculation: 802.11b Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.412 9.54 0 8.995 5 2.794 3.0 2.437 9.23 0 8.375 5 2.615 3.0 2.462 9.01 0 7.962 5 2.499 3.0 802.11g Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.412 8.79 0 7.568 5 2.351 3.0 2.437 8.94 0 7.834 5 2.446 3.0 2.462 8.78 0 7.551 5 2.369 3.0 802.11n(HT20) Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.412 9.08 0 8.091 5 2.513 3.0 2.437 9.20 0 8.318 5 2.597 3.0 2.462 9.08 0 8.091 5 2.539 3.0 802.11n(HT40) Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.422 9.24 0 8.395 5 2.613 3.0 2.437 8.72 0 7.447 5 2.325 3.0 2.452 9.47 0 8.851 5 2.772 3.0 Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 7.48 0 5.598 5 1.735 3.0 2.441 7.62 0 5.781 5 1.806 3.0 2.480 7.58 0 5.728 5 1.804 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 6.55 0 4.519 5 1.401 3.0 2.441 6.72 0 4.699 5 1.468 3.0 2.480 6.72 0 4.699 5 1.480 3.0 Report No.: TB-MPE140889 Page: 5 of 5 TB-RF-074-1.0 Bluetooth Mode (BLE) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -2.559 0 0.5548 5 0.172 3.0 2.442 -1.962 0 0.6365 5 0.198 3.0 2.480 -1.821 0 0.6575 5 0.207 3.0 So standalone SAR measurements are not required. Remark: WiFi and Bluetooth can’t transmit at the same time.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC140887 Page: 1 of 83 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: XMF-MID1024 Original Grant Report No. : TB-FCC140887 Applicant : Lightcomm Technology Co., Ltd. Equipment Under Test (EUT) EUT Name : MID Model No. : MID1024-Z Series Model No. : TM1088 Brand Name : N/A Receipt Date : 2014-06-16 Test Date : 2014-06-17 to 2014-06-24 Issue Date : 2014-06-24 Standards : FCC Part 15, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC140887 Page: 2 of 83 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. CONDUCTED EMISSION TEST ........................................................................................... 10 3.1 Test Standard and Limit .................................................................................................... 10 3.2 Test Setup ........................................................................................................................... 10 3.3 Test Procedure ................................................................................................................... 10 3.4 Test Equipment Used ........................................................................................................ 11 3.5 EUT Operating Mode ........................................................................................................ 11 3.6 Test Data ............................................................................................................................. 11 4. RADIATED EMISSION TEST ................................................................................................ 14 4.1 Test Standard and Limit .................................................................................................... 14 4.2 Test Setup ........................................................................................................................... 15 4.3 Test Procedure ................................................................................................................... 16 4.4 EUT Operating Condition ................................................................................................. 16 4.5 Test Equipment .................................................................................................................. 16 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 32 5.1 Test Standard and Limit .................................................................................................... 32 5.2 Test Setup ........................................................................................................................... 32 5.3 Test Procedure ................................................................................................................... 32 5.4 EUT Operating Condition ................................................................................................. 33 5.5 Test Equipment .................................................................................................................. 33 6. NUMBER OF HOPPING CHANNEL .................................................................................... 46 6.1 Test Standard and Limit .................................................................................................... 46 6.2 Test Setup ........................................................................................................................... 46 6.3 Test Procedure ................................................................................................................... 46 6.4 EUT Operating Condition ................................................................................................. 46 6.5 Test Equipment .................................................................................................................. 46 6.6 Test Data ............................................................................................................................. 46 7. AVERAGE TIME OF OCCUPANCY ....…

Text truncated - open the document above for the full version.

Report No.: TB-FCC140886 Page: 11 of 12 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC140886 Page: 12 of 12 TB-RF-075-1.0 Photo of Setup for Conducted Emission
