DL701Q Thanks For Purchasing Your Tablet This user manual has been specially designed to guide you through the functions and features of your device. 1) Please read this manual carefully before using your device to ensure safe and correct use. 2) The descriptions in this manual are based on the default settings of your device. 3) Do not use this unit near water. Do not place over the unit any container with liquid inside. 4) Please do not put your device in high temperature, moisture or dust place; the tablet is not waterproof. 5) Avoid falling or violent collision, do not violently shake the touch screen, otherwise, it could lead to damage or display unnormal. 6) If system shutdown automatically, bootable again soon after the shutdown. 7) Please charge the tablet regularly if not use it for long time to avoid the damage caused by the excessive consumption from battery. 8) Do not disassemble or use alcohol, thinner or benzene class to swab product surface. 9) Please do not use the tablet when driving or walking in the street, otherwise it may lead an accident. 10) Please choose the appropriate volume, if had tinnitus, please lower the volume or stop using. 11) Memory space available dishonest nominal for the android system itself takes up part of the memory space and the operation of the program will also take up space if you open them. 12) Storage capacity that dishonest nominal for android system occupies about hundreds of MB storage capacity, also in order to install the software needs, the system must lay off certain storage capacity, so the actual usable space and nominal space have deviation. 13) When CPU in high-speed operation, especially in 3D games or in long time playback high-definition video, the fuselage will have the phenomenon of fever. 14) Please keep this manual for future reference. Chapter One(overview) Appearance Buttons Open and shut down Open and close standby mode Lock and unlock the screen Homepage information column Text input Reset USB Connect Accessories C a t a l o g 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 1.10 1 2 2 2 2 3 3 4 4 4 Chapter Two (Internet) Browser Chapter Three (Applications) Explorer Downloads 2.1 3.1 3.2 5 5 6 Chapter Four (System setting) Wireless networks setting Sound setting Display setting Application setting Date & Time setting Language and input setting 4.1 4.2 4.3 4.4 4.5 4.6 Chapter Five (Specification) Chapter Six (Attentions) 6 6 7 7 8 8 9 10 1.1 Appearance Chapter OneOverview 1 Back camera MIC Front Camera Speaker USB Earphone Volume+ Volume- POWER TF CARD RESET 1.2 Buttons Power button Long press the power button 2-3 seconds to open the screen When open the tablet, short press this button to enter the off-screen state and short press again to light up the screen. Note: If the tablet is hanging, please use a small hardware to reset at the bottom upper right corner. Volume Press Volume+/- to adjust the volume. 1.3 Open and shut down Open Long press the power button (see the appearance) 2-3 seconds, pictures will show up until to the interface. Shut down Long press the power button, then the screen shows do you want shut down, press OK to shut down in charging state, when the tablet is off, press the power button, it will shows charging feature, once again to click power button, the tablet will be opened. 1.4 Open and close standby mode Open the standby mode In boot mode, you can tap the power button, the system will into the standby mode which can save power. Close the standby mode In the standby mode, light tap of the power button of the device, enter the normal state. 1.5 Lock and unlock the screen Lock You can set the sleep time in the system of display. The system will sleep automatically and lock the screen to the standby mode if without any inactivity when reaches the preset of standby time. Unlock Move the sign to unlock. Drag this to unlock the screen and enter the application interface. 2 ?123 1.6 Homepage Information Column 1.7 Text Input When use the tablet, you can use the virtual keyboard to enter text, number, symbols directly by touching screen. After selecting the Android input method, the default keyboard show as below: To switch the numbers and letters, please press this To switch the capital and lowercase letter, please press 3 Time WIFI Battery power Back Volmue - Volmue + Host interface Screen shot Recent search 1.8 Reset Use a thin object (like the end of a paper clip) to press the reset button at the bottom upper right corner of the device, then you device will reset and power off.Press the power 2~3 seconds to restart. 1.9 USB connect Please connect PC with in-box USB cable for your tablet and you will see on your tablet, click this sign and turn on USB storage to connect your device. Turn off USB storage to disconnect your device with PC. 1.10 Accessories 4 Power Adapter USB Cable User manuaI Warranty card 1 1 1 1 Enter the URL-touch the input area to get the soft keyboard, then text the UPL. Bookmark searchclick this to add into the bookmark Touch this to read the favorite website that collected Touch this to search the internet Touch this to add new browser Touch this to close the browser Chapter three: Application Browser supports the following features. 5 3.1 Explorer Touch here (File manager) in the application list, it supports the files mutual copy in this two places SD Card, internal memory and USB. Chapter two: Internet 2.1 Browser Require network support before using a web browser, if there are network supporting problems, please contact your network operator or the service provider. Tablet's web browser can connect to the Internet. via WIFI to satisfy your business and individual network needs . Please touch (Setting) to set up the WIFI so that can use the browser normally. Touch here (Browser) in the application list to enter the browser pages; the default homepage is the Recently Viewed showing recently viewed pages. 3.2 Downloads Click here in the application list; you can preview the downloading o…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 Lightcomm Technology Co., Ltd. 2014-08-15 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter FCC ID: XMF- MID713 We, _____Lightcomm Technology Co., Ltd. _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (MID, MID713-L, MID721-L, DL701Q, DL701Q(B)) Sincerely, Client’s signature Client’s name / title Jason Zeng / Certification Engineer Contact information / address RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 4.0 Lightcomm Technology Co., Ltd. 2014-08-15 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter FCC ID: XMF- MID713 We, _____ Lightcomm Technology Co., Ltd. ____hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): (MID, MID713-L, MID721-L, DL701Q, DL701Q(B)) We affirm that between SIEMIC, Inc. and ____ Lightcomm Technology Co., Ltd.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title Jason Zeng / Certification Engineer Contact information / address RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG

Lightcomm Technology Co., Ltd. SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Lightcomm Technology Co., Ltd. SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2014-08-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XMF- MID713 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Jason Zeng/ Certification Engineer Contact information / address RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG

2014-08-15 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: XMF- MID713 To Whom It May Concern: This letter is to ascertain that Lightcomm Technology Co., Ltd. Product MID has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature : Client’s name / title : Jason Zeng/ Certification Engineer

Model Declaration Letter We, the undersigning company Company Name: Lightcomm Technology Co., Ltd. Address: RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG Hereby confirm that the following products: Product description: MID Type designation: MID713-L , MID721-L, DL701Q, DL701Q(B) Trade name or Brand(s): / That MID721-L with different shells of the same material, the other models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. City and Country: Date: Name: Function: Signature: Hongkong 08/15/2014 Jason Zeng Certification Engineer

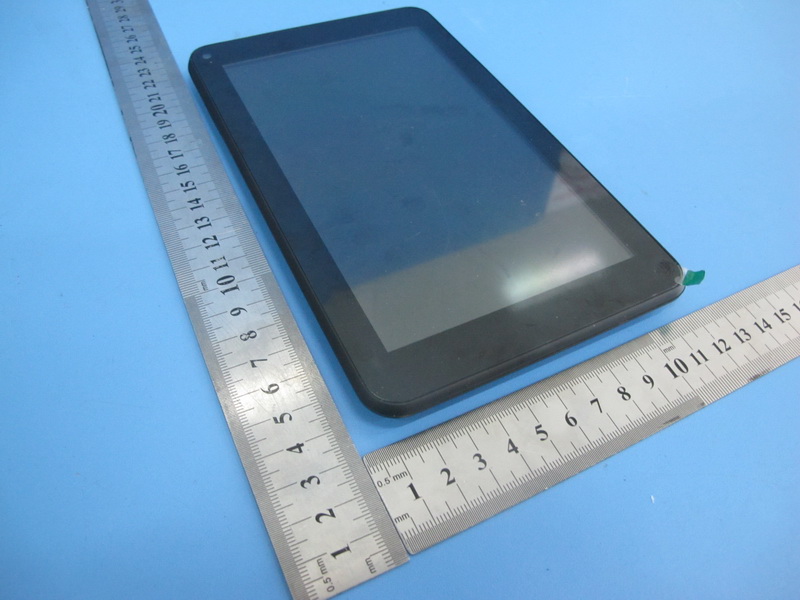

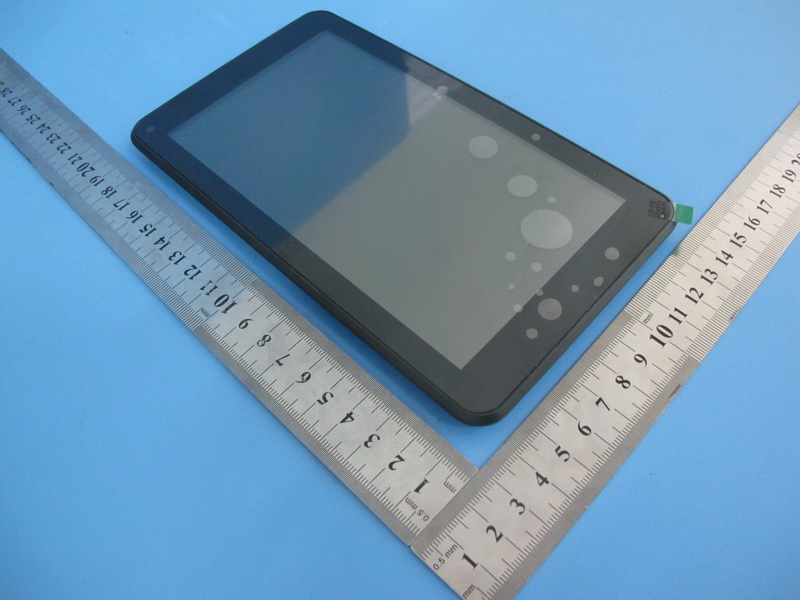

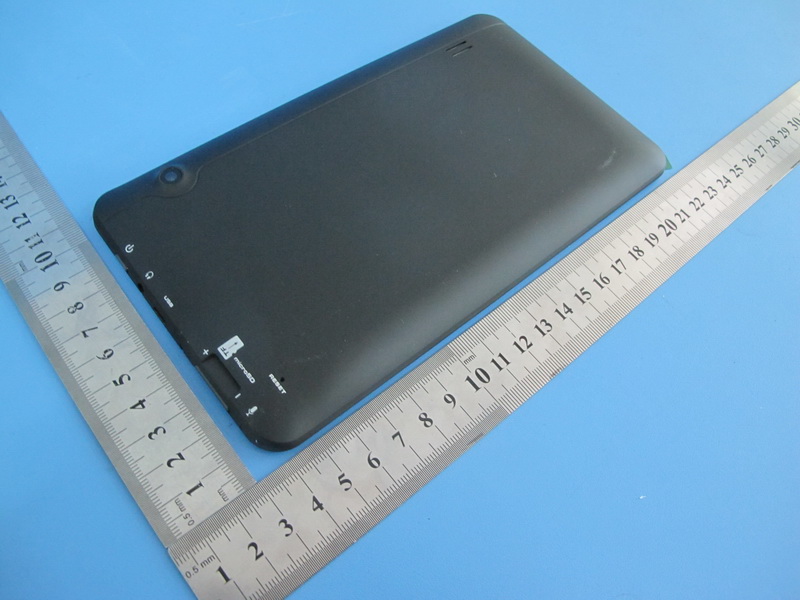

Report No.: TB-FCC141395 Page: 3 of 12 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Adapter Report No.: TB-FCC141395 Page: 4 of 12 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC141395 Page: 5 of 12 TB-RF-075-1.0 Photo 5 Appearance of EUT (Model: MID721-L) Photo 6 Appearance of EUT (Model: MID721-L)

Report No.: TB-FCC141395 Page: 1 of 12 TB-RF-074-1.0 Appendix IFCC ID Label

Report No.: TB-FCC141395 Page: 2 of 12 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC141395 Page: 6 of 12 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT (2.4G) Antenna Report No.: TB-FCC141395 Page: 7 of 12 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of Screen Report No.: TB-FCC141395 Page: 8 of 12 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB (2.4G) Antenna Report No.: TB-FCC141395 Page: 9 of 12 TB-RF-075-1.0 Photo 13 Appearance of PCB Photo 14 Appearance of PCB Report No.: TB-FCC141395 Page: 10 of 12 TB-RF-075-1.0 Photo 15 Appearance of PCB Photo 16 Appearance of Battery

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE141498 Page: 1 of 5 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: XMF-MID713 1. Client Information Applicant : Lightcomm Technology Co., Ltd. Address : RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG Manufacturer : Huizhou Hengdu Electronics Co., Ltd. Address : DIP South Area, Huiao Highway, Huizhou, Guangdong, China 2. General Description of EUT EUT Name : MID Models No. : MID713-L, MID721-L, DL701Q, DL701Q(B) Model Difference : MID721-L with different shells of the same material, the other models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11b/g/n(HT40): 2422MHz~2452MHz Bluetooth with BLE: 2402MHz~2480MHz Number of Channel: 802.11b/g/n(HT20):11 channels 802.11b/g/n(HT40): 7 channels Bluetooth:79 Channels Bluetooth (BLE): 40 Channels Max Peak Output Power:802.11b: 9.49 dBm 802.11g: 9.43 dBm 802.11n (HT20): 9.23 dBm 802.11n (HT40): 9.30 dBm Bluetooth: GFSK:4.824 dBm 8-DPSK: 4.819 dBm BLE(GFSK):-2.7 dBm Antenna Gain: 0 dBi FPC Antenna Modulation Type: 802.11b: DSSS (CCK, QPSK, BPSK) 802.11g: OFDM 802.11n: OFDM GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) BLE (GFSK) Power Supply : DC power supplied by AC/DC Adapter DC Voltage supplied from Li-Polymer battery. Report No.: TB-MPE141398 Page: 2 of 5 TB-RF-074-1.0 Power Rating : USB DC 5V form PC. AC/DC Adapter(TEKA006-0501500UKU): Input: AC 100~240V 50/60Hz 0.35A Max. Output: DC 5V 1.5A DC 3.7V 2100mAh from Li-Polymer battery Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE141398 Page: 3 of 5 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE141398 Page: 4 of 5 TB-RF-074-1.0 2. Calculation: 802.11b Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.412 9.40 0 8.709 5 2.705 3.0 2.437 9.49 0 8.892 5 2.776 3.0 2.462 9.20 0 8.318 5 2.610 3.0 802.11g Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.412 9.43 0 8.770 5 2.724 3.0 2.437 9.08 0 8.091 5 2.526 3.0 2.462 8.91 0 7.780 5 2.442 3.0 802.11n(HT20) Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.412 9.23 0 8.375 5 2.601 3.0 2.437 9.01 0 7.962 5 2.486 3.0 2.462 8.79 0 7.568 5 2.375 3.0 802.11n(HT40) Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.422 9.30 0 8.511 5 2.649 3.0 2.437 9.11 0 8.147 5 2.544 3.0 2.452 9.02 0 7.979 5 2.499 3.0 Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 4.716 0 2.962 5 0.918 3.0 2.441 4.824 0 3.037 5 0.949 3.0 2.480 4.803 0 3.022 5 0.952 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 4.714 0 2.961 5 0.918 3.0 2.441 4.819 0 3.033 5 0.948 3.0 2.480 4.808 0 3.026 5 0.953 3.0 Report No.: TB-MPE141398 Page: 5 of 5 TB-RF-074-1.0 Bluetooth Mode (BLE) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -2.756 0 0.530 5 0.164 3.0 2.442 -2.700 0 0.537 5 0.168 3.0 2.480 -3.097 0 0.490 5 0.154 3.0 So standalone SAR measurements are not required. Remark: WiFi and Bluetooth can’t transmit at the same time.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC141396 Page: 1 of 41 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: XMF-MID713 Original Grant Report No. : TB-FCC141396 Applicant : Lightcomm Technology Co., Ltd. Equipment Under Test (EUT) EUT Name : MID Model No. : MID713-L Series Model No. : MID721-L, DL701Q, DL701Q(B) Brand Name : N/A Receipt Date : 2014-07-25 Test Date : 2014-07-28 to 2014-08-05 Issue Date : 2014-08-13 Standards : FCC Part 15, Subpart C (15.247:2012) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC141396 Page: 2 of 41 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 5 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 6 1.7 Test Facility ........................................................................................................................... 7 2. TEST SUMMARY ....................................................................................................................... 8 3. CONDUCTED EMISSION TEST ............................................................................................. 9 3.1 Test Standard and Limit ...................................................................................................... 9 3.2 Test Setup ............................................................................................................................. 9 3.3 Test Procedure ..................................................................................................................... 9 3.4 Test Equipment Used ........................................................................................................ 10 3.5 EUT Operating Mode ........................................................................................................ 10 3.6 Test Data ............................................................................................................................. 10 4. RADIATED EMISSION TEST ................................................................................................ 13 4.1 Test Standard and Limit .................................................................................................... 13 4.2 Test Setup ........................................................................................................................... 14 4.3 Test Procedure ................................................................................................................... 15 4.4 EUT Operating Condition ................................................................................................. 15 4.5 Test Equipment .................................................................................................................. 16 4.6 Test Data ............................................................................................................................. 16 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 25 5.1 Test Standard and Limit .................................................................................................... 25 5.2 Test Setup ........................................................................................................................... 25 5.3 Test Procedure ................................................................................................................... 25 5.4 EUT Operating Condition ................................................................................................. 26 5.5 Test Equipment .................................................................................................................. 26 5.6 Test Data ............................................................................................................................. 26 6. BANDWIDTH TEST ................................................................................................................. 32 6.1 Test Standard and Limit .................................................................................................... 32 6.2 Test Setup ........................................................................................................................... 32 6.3 Test Procedure ................................................................................................................... 32 6.4 EUT Operating Condition ..........................................................................…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC141397 Page: 1 of 85 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: XMF-MID713 Original Grant Report No. : TB-FCC141397 Applicant : Lightcomm Technology Co., Ltd. Equipment Under Test (EUT) EUT Name : MID Model No. : MID713-L Series Model No. : MID721-L, DL701Q, DL701Q(B) Brand Name : N/A Receipt Date : 2014-07-25 Test Date : 2014-07-28 to 2014-08-05 Issue Date : 2014-08-13 Standards : FCC Part 15, Subpart C (15.247:2012) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC141397 Page: 2 of 85 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 5 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 6 1.7 Test Facility ........................................................................................................................... 7 2. TEST SUMMARY ....................................................................................................................... 8 3. CONDUCTED EMISSION TEST ............................................................................................. 9 3.1 Test Standard and Limit ...................................................................................................... 9 3.2 Test Setup ............................................................................................................................. 9 3.3 Test Procedure ..................................................................................................................... 9 3.4 Test Equipment Used ........................................................................................................ 10 3.5 EUT Operating Mode ........................................................................................................ 10 3.6 Test Data ............................................................................................................................. 10 4. RADIATED EMISSION TEST ................................................................................................ 13 4.1 Test Standard and Limit .................................................................................................... 13 4.2 Test Setup ........................................................................................................................... 14 4.3 Test Procedure ................................................................................................................... 15 4.4 EUT Operating Condition ................................................................................................. 15 4.5 Test Equipment .................................................................................................................. 16 4.6 Test Data ............................................................................................................................. 16 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 43 5.1 Test Standard and Limit .................................................................................................... 43 5.2 Test Setup ........................................................................................................................... 43 5.3 Test Procedure ................................................................................................................... 43 5.4 EUT Operating Condition ................................................................................................. 44 5.5 Test Equipment .................................................................................................................. 44 5.6 Test Data ............................................................................................................................. 44 6. BANDWIDTH TEST ................................................................................................................. 65 6.1 Test Standard and Limit .................................................................................................... 65 6.2 Test Setup ........................................................................................................................... 65 6.3 Test Procedure ................................................................................................................... 65 6.4 EUT Operating Condition ..........................................................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC141395 Page: 11 of 12 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC141395 Page: 12 of 12 TB-RF-075-1.0 Photo of Setup for Conducted Emission
