XMF-MID8001MID

: 128g. : 105x142 mm (: ,) This user manual has been specially designed to guide you through the functions and features of your device. 1) Please read this manual carefully before using your device to ensure safe and correct use. 2) The descriptions in this manual are based on the default settings of your device. 3) Do not use this unit near water. Do not place over the unit any container with liquid inside. 4) Please do not put your device in high temperature, moisture or dust place; the tablet is not waterproof. 5) Avoid falling or violent collision. Do not violently shake the touch screen, otherwise, it could lead to damage or display abnormal. 6) If system shutdown automatically, it means the battery may used up, battery charging is required. 7) Please charge the tablet regularly if not in use for a long time to avoid the damage caused by the excessive consumption of battery. 8) Do not disassemble or use alcohol, thinner or benzene class to swab product surface. 9) Please do not use the tablet when driving or walking in the street, otherwise it may lead an accident. 10) Please choose the appropriate volume, if had tinnitus, please lower the volume or stop using. 11) Memory space available is nominal, as the windows system itself takes up part of the memory space and the operation of the program will also take up space. 12) Storage capacity available is nominal, as the windows system occupies about hundreds of MB storage capacity. And in order to install the software needs, the system must reserve certain storage capacity, so the actual usable space is less than nominal space. 13) When CPU operates in high speed, especially playing 3D games or High-definition video for a long time, the fuselage will have fever. 14) Please keep this manual for future reference. 1.1 Appearance Front camera Back camera Speaker T F c a r d T F c a r d P O W E R P O W E R V o l u m e + V o l u m e + V o l u m e - V o l u m e - Earphone USB USB Chapter One: Overview 1.2 Buttons Power button Volume Press Volume+/- to adjust the volume. Long press the power button 2-3 seconds to turn the unit on. When the tablet is in operation, short press power button to enter the off-screen state and short press it again to light up the screen. 1.3 Power on and off 1.4 Activate Windows: Power on Long press the power button 2-3 seconds, pictures will show up until to the interface. The original activation code has been built in the tablet. It will be enter into "Control Panel-System and Security-System" when the tablet connect network, the tablet will be activated after click the "Activate Windows". 1.5 Accessories Power Adapter USB Cable User manuaI Warranty card 1 1 1 1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Chapter Three: Attentions Chapter Two: Specification Dimension(mm*mm*mm) Weight LCD OS Processor Storage WI-FI Connections Battery Service time Operating temperature Video support Audio support Picture support Adapter Input Adapter Output 208.4x123.1x10.3 Approx 380g 8" 800x1280 Windows 8.1 1.33GHz Quad-Core 1GB internal memory 16GB EMMC (expandable micro SD slot up to 32GB) 802.11b/g/n Micro-USB, Micro-SD (up to 32GB), Headphone Jack 3.7V 4500mAh Li-Poly Up to 20h music mode, 5.5h video Between 0 et 40 AVI, WMV, FLV, RMVB, 3GP, MKV, MP4, VOB, ASF, MPG, MOV OGG, FLAC, WAV, ACC, APE JPEG, BMP, GIF, PNG AC 100-240V, 50/60Hz DC 5V 2A Power off Long press the power button, choose “Power off” and press OK to shut down. Owing to continuous improvement, no prior notice will be given regarding changes on above feature and spec. lf at any time in the future you should need to dispose of this product please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic equipment Directive) ENGILISH -1- ENGILISH -2- ENGILISH -4- ESPAÑOL -1- ESPAÑOL -2- ENGILISH -5- ENGILISH -3- Capítulo Uno: Vista general 1.1Apariencia Altavoz Cámara trasera Cámara frontal Auricular Este manual de usuario ha sido diseñado específicamente para guiarte a través de las funciones y características del dispositivo. 1) Por favor, lea atentamente este manual antes de utilizar su dispositivo para garantizar el uso seguro y correcto. 2) Las descripciones en este manual se basan en la configuración predeterminada de su dispositivo. 3) No utilice este dispositivo cerca del agua. No coloque ningún recipiente con líquido eneste dispositivo. 4) Por favor, n…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0 Lightcomm Technology Co., Ltd. 2015-01-27 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Lightcomm Technology Co., Ltd._____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (MID, MID8001-IB, DL801W) FCC ID: XMF-MID8001 Sincerely, Client’s signature Client’s name / title Jason Zeng / Certification Engineer Contact information / address RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG

Lightcomm Technology Co., Ltd. SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Lightcomm Technology Co., Ltd. SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2015-01-27 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: XMF-MID8001 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Jason Zeng/ Certification Engineer Contact information / address RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG

2015-01-27 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: XMF-MID8001 To Whom It May Concern: This letter is to ascertain that Lightcomm Technology Co., Ltd. Product MID has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature : Client’s name / title : Jason Zeng/ Certification Engineer

Model Declaration Letter For FCC ID: XMF-MID8001 We, the undersigning company Company Name: Lightcomm Technology Co., Ltd. Address: RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG Hereby confirm that the following products: Product description: MID Type designation: MID8001-IB, DL801W Trade name or Brand(s): / That All models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. City and Country: Date: Name: Function: Signature: Hongkong 01/27/2015 Jason Zeng Certification Engineer

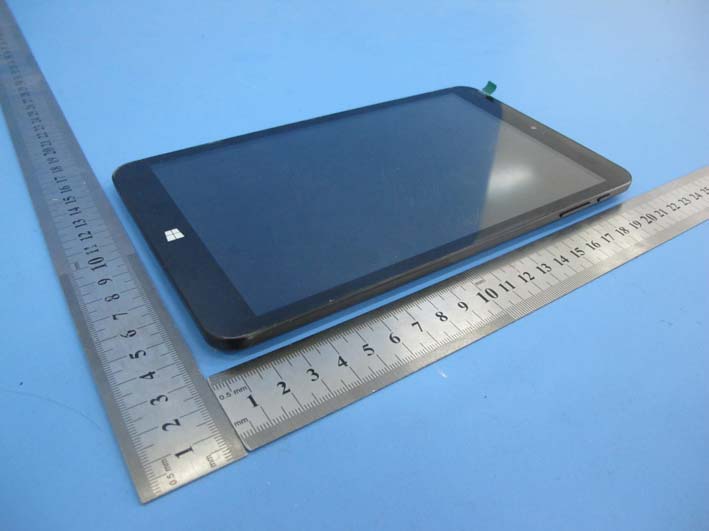

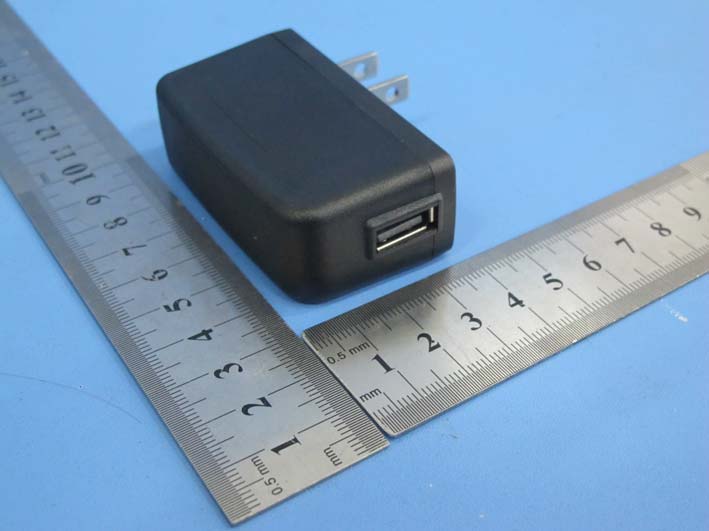

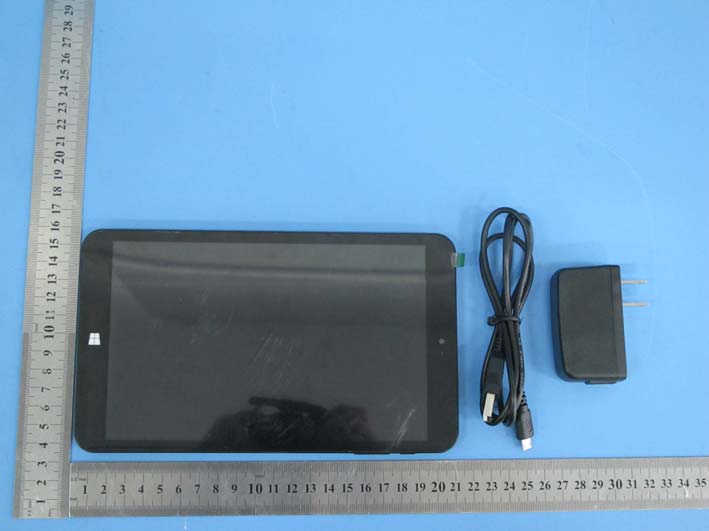

Report No.: TB-FCC143144 Page: 3 of 11 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC143144 Page: 4 of 11 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC143144 Page: 5 of 11 TB-RF-075-1.0 Photo 5 Appearance of Adapter Photo 6 Appearance of Adapter

Report No.: TB-FCC143144 Page: 1 of 11 TB-RF-074-1.0 Appendix IFCC ID Label

Report No.: TB-FCC143144 Page: 2 of 11 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC143144 Page: 6 of 11 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT Report No.: TB-FCC143144 Page: 7 of 11 TB-RF-075-1.0 Photo 9 Internal of EUT Photo 10 Appearance of PCB Antenna Report No.: TB-FCC143144 Page: 8 of 11 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Report No.: TB-FCC143144 Page: 9 of 11 TB-RF-075-1.0 Photo 13 Appearance of Screen

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE143147 Page: 1 of 5 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: XMF-MID8001 1. Client Information Applicant : Lightcomm Technology Co., Ltd. Address : RM 1708-10, 17/F, PROSPERITY CENTRE, 25 CHONG YIP STREET, KWUN TONG, KOWLOON, HONG KONG Manufacturer : Huizhou Hengdu Electronics Co.,Ltd. Address : DIP South Area, Huiao Highway, Huizhou, Guangdong, China 2. General Description of EUT EUT Name : MID Models No. : MID8001-IB, DL801W Models Difference : All models are identical in the same PCB layout, interior structure and electrical circuit, The only difference is model name for commercial purpose. Product Description : Operation Frequency: WiFi 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz BLE 2402~2480MHz Bluetooth 2402~2480MHz Number of Channel: WiFi 802.11b/g/n(HT20):11 channels 802.11n(HT40): 7 channels BLE 40 Channels Bluetooth 79 Channels Max Peak Output Power: WiFi 802.11b: 9.09 dBm 802.11g: 8.95dBm 802.11n (HT20): 8.89dBm 802.11n (HT40): 8.97dBm BLE 5.778 dBm Bluetooth GFSK:4.204dBm 8-DPSK: 4.098dBm Antenna Gain: 0 dBi PCB Antenna Modulation Type: WiFi: 802.11b: DSSS (CCK, QPSK,BPSK) 802.11g: OFDM 802.11n: OFDM BLE: GFSK Bluetooth: GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) Report No.: TB-MPE143147 Page: 2 of 5 TB-RF-074-1.0 8-DPSK(3 Mbps) Power Supply : DC power supplied by AC/DC Adapter DC Voltage supplied from Li-ion battery. Power Rating : Input: AC 100~240V 50/60Hz 0.35A Max Output: 5V 2A DC 3.7V from Li-ion battery Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE143147 Page: 3 of 5 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE143147 Page: 4 of 5 TB-RF-074-1.0 2. Calculation: Test separation: 5mm WiFi Mode(802.11b) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.412 9.03 0 ±0.5 8.97 2.79 3.0 2.437 9.02 0 ±0.5 8.95 2.80 3.0 2.462 9.09 0 ±0.5 9.10 2.86 3.0 WiFi Mode(802.11g) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.412 8.94 0 ±0.5 8.79 2.73 3.0 2.437 8.73 0 ±0.5 8.38 2.61 3.0 2.462 8.95 0 ±0.5 8.81 2.76 3.0 WiFi Mode(802.11n(HT20)) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.412 8.89 0 ±0.5 8.69 2.70 3.0 2.437 8.73 0 ±0.5 8.38 2.61 3.0 2.462 8.88 0 ±0.5 8.67 2.72 3.0 WiFi Mode(802.11n(HT40)) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.422 8.97 0 ±0.5 8.85 2.75 3.0 2.437 8.79 0 ±0.5 8.49 2.65 3.0 2.452 8.55 0 ±0.5 8.04 2.52 3.0 BLE Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2402 5.765 0 ±0.5 4.232 1.312 3.0 2442 5.289 0 ±0.5 3.792 1.185 3.0 2480 5.778 0 ±0.5 4.244 1.337 3.0 Report No.: TB-MPE143147 Page: 5 of 5 TB-RF-074-1.0 Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2402 4.204 0 ±0.5 2.954 0.916 3.0 2441 4.037 0 ±0.5 2.842 0.888 3.0 2480 3.989 0 ±0.5 2.811 0.885 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 4.098 0 ±0.5 2.883 0.894 3.0 2.441 3.892 0 ±0.5 2.749 0.859 3.0 2.480 3.852 0 ±0.5 2.724 0.858 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC143146 Page: 1 of 76 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: XMF-MID8001 Original Grant Report No. : TB-FCC143146 Applicant : Lightcomm Technology Co., Ltd. Equipment Under Test (EUT) EUT Name : MID Model No. : MID8001-IB Series Model No. : DL801W Brand Name : N/A Receipt Date : 2015-01-20 Test Date : 2015-01-20 to 2015-01-26 Issue Date : 2015-01-27 Standards : FCC Part 15: 2014, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC143146 Page: 2 of 76 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. CONDUCTED EMISSION TEST ........................................................................................... 10 3.1 Test Standard and Limit .................................................................................................... 10 3.2 Test Setup ........................................................................................................................... 10 3.3 Test Procedure ................................................................................................................... 10 3.4 Test Equipment Used ........................................................................................................ 11 3.5 EUT Operating Mode ........................................................................................................ 11 3.6 Test Data ............................................................................................................................. 11 4. RADIATED EMISSION TEST ................................................................................................ 14 4.1 Test Standard and Limit .................................................................................................... 14 4.2 Test Setup ........................................................................................................................... 15 4.3 Test Procedure ................................................................................................................... 16 4.4 EUT Operating Condition ................................................................................................. 16 4.5 Test Equipment .................................................................................................................. 17 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 32 5.1 Test Standard and Limit .................................................................................................... 32 5.2 Test Setup ........................................................................................................................... 32 5.3 Test Procedure ................................................................................................................... 32 5.4 EUT Operating Condition ................................................................................................. 33 5.5 Test Equipment .................................................................................................................. 33 6. NUMBER OF HOPPING CHANNEL .................................................................................... 46 6.1 Test Standard and Limit .................................................................................................... 46 6.2 Test Setup ........................................................................................................................... 46 6.3 Test Procedure ................................................................................................................... 46 6.4 EUT Operating Condition ................................................................................................. 46 6.5 Test Equipment .................................................................................................................. 46 6.6 Test Data ............................................................................................................................. 46 7. AVERAGE TIME OF OCCUPAN…

Text truncated - open the document above for the full version.

Report No.: TB-FCC143144 Page: 10 of 11 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC143144 Page: 11 of 11 TB-RF-075-1.0 Photo of Setup for Conducted Emission
