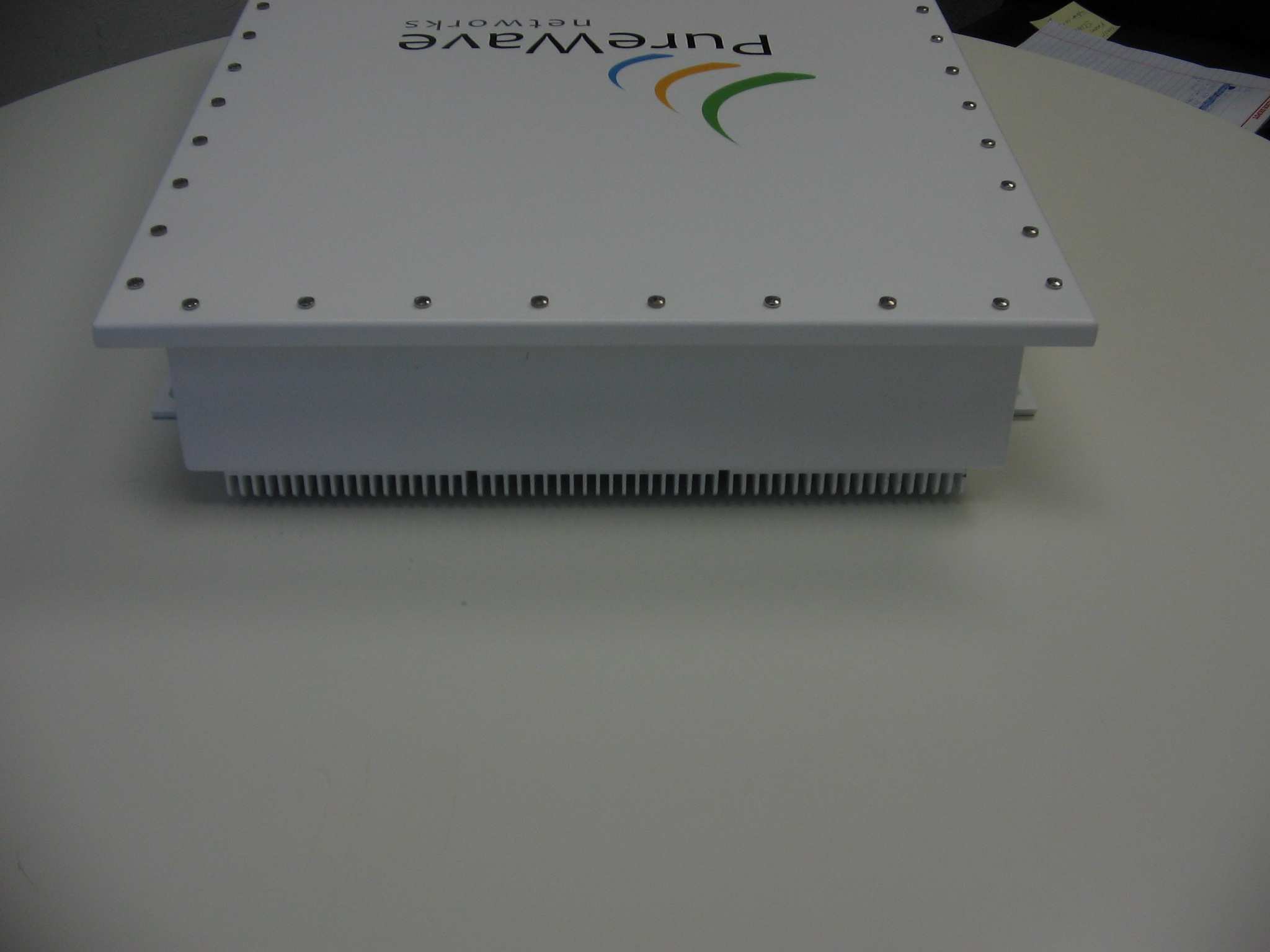

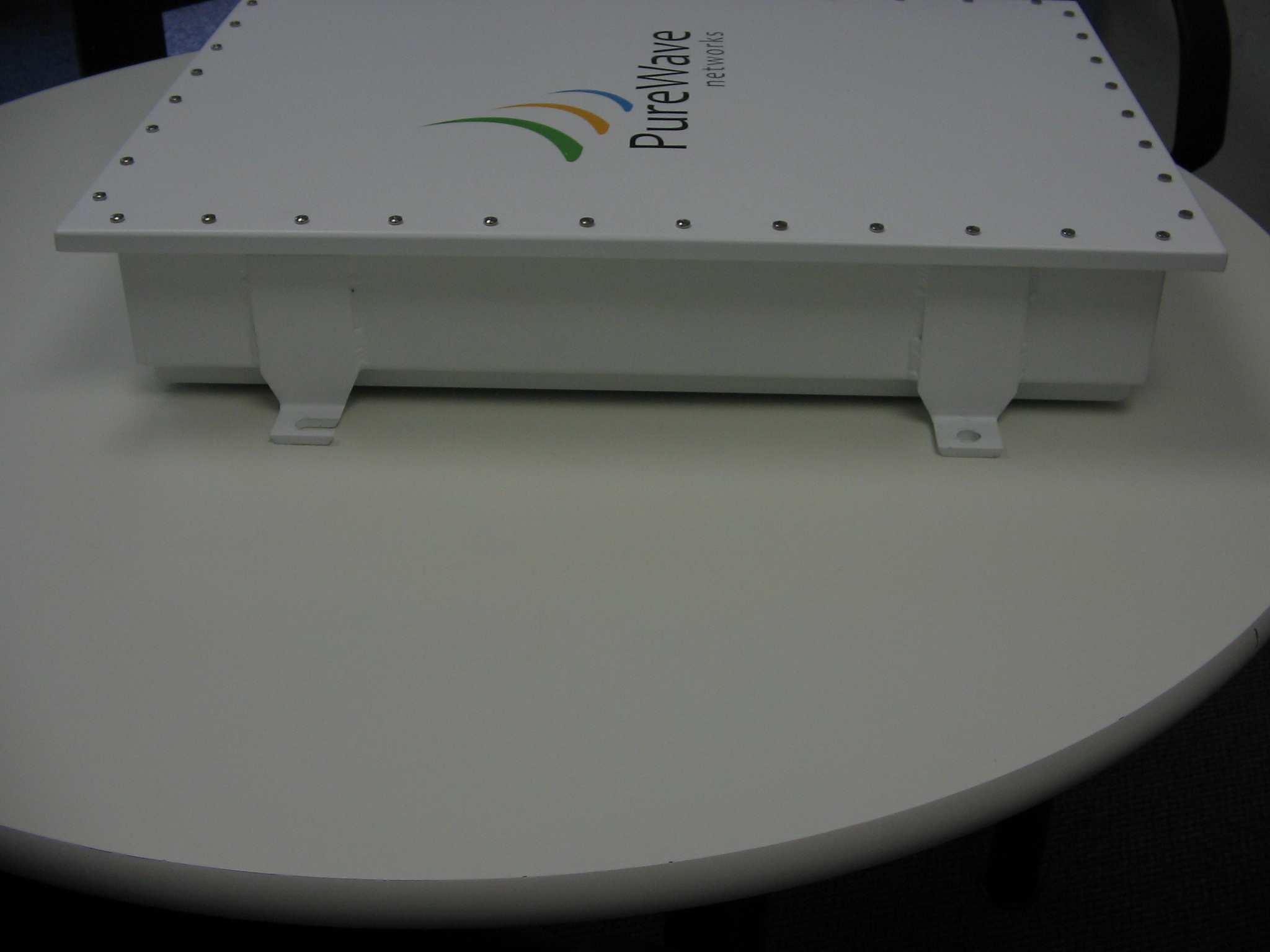

XN3-QUANTUM1000Quantum 1000 Base Station

Quantum 1000 Base Station User Quantum 1000 Base Station Revision History Rev No. Issue Date Summary of Change 1.0 July 09 Initial Draft 1.1 24 Jul 09 Significant Changes Added Quantum 1000 Base Station User Guide Rev 1.1, Page Quantum 1000 Base Station User Guide Summary of Change Author Sajed Saeed Changes Added Steven Chaganis Rev 1.1, Page 1 of 70 Quantum 1000 Base Station Sajed Saeed Steven Chaganis Quantum 1000 Base Station User It is hoped that this document will be useful in understanding and using the PureWave note that the information provided herein is subject to change without notice. Always refer to the current set of Release Notes for the most the current features as they relate to the contained within this User Guide. Quantum 1000 Base Station User Guide Rev 1.1, Page NOTICE that this document will be useful in understanding and using the PureWave System. Please note that the information provided herein is subject to change without notice. Release Notes for the most upto date information and a as they relate to the PureWave system. These may be different to the information Rev 1.1, Page 2 of 70 System. Please and a description of These may be different to the information Quantum 1000 Base Station User It is the intention of PureWave Networks to ensure that this equipment is tested to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to c • Re-orient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which connected. • Consult the dealer or an experienced radio/TV technician for help. Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC regulations. Changes or modifications not expressly approved in authority to operate this equipment. Note: This device must be professionally installed Quantum 1000 Base Station User Guide Rev 1.1, Page REGULATORY NOTICE It is the intention of PureWave Networks to ensure that this equipment is tested to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: orient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is Consult the dealer or an experienced radio/TV technician for help. Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC Changes or modifications not expressly approved in writing by PureWave Networks may void the user's authority to operate this equipment. This device must be professionally installed. Rev 1.1, Page 3 of 70 It is the intention of PureWave Networks to ensure that this equipment is tested to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and orrect the interference by one or more of the following measures: the receiver is Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC writing by PureWave Networks may void the user's Quantum 1000 Base Station User PROPRIETARY STATEMENT © PureWave™ Networks, 2003-2007. All rights reserved. PureWave™ Networks has prepared this manual for use by PureWave Networks personnel, licensees, customers and customers of customers. The information contained herein is the property of PureWave Networks and shall neither be reproduced in whole nor in part without prior written approval from Pure PureWave Networks reserves the right to make changes without notice to the specifications and materials contained herein, and shall not be responsible for any damages caused by reliance on the material presented, including, but not limited WARRANTY STATEMENT Hardware PureWave Inc (“PureWave” or the “Company”) warrants to the end product will conform in all material respects to the specifications provided with the hardware and will be free from defects in workmanship and materials, under normal use and ser from the date of original shipment by PureWave. PureWave's sole obligation under this limited warranty shall be, at PureWave's option, to repair the defective product or part, deliver to Customer an equivalent product or pa or if neither of the two foregoing options is reasonably possible, refund …

Text truncated - open the document above for the full version.

Quantum 1000 Base Station User 3. Grounding and Lightning Requirements Proper lightning protection requires t protection built into the PureWave equipment. The primary protectors offer the surge currents a direct path to earth ground versus the undesirable “sneak” paths it may find through the equip Properly installed and grounded primary protectors will dramatically increase the surge withstanding capabilities of the PureWave equipment. Surges that exceed the maximum ratings of the primary protector devices will eventually cause them to fail, short or open, as the application warrants, such that further surges will not damage the end equipment. While a failed primary protector still results in a service outage, it does prevent further damage more expensive end equipment. A Base Station that is installed outdoor on the tower or mast (ODU) is especially vulnerable to lightning surges. Good surge mitigation practice starts with the lightning rod and its connection to a proper sized down conductor. The ground down conductor should be as straight as possible and avoid incidental contact with other conductors such that it represents the path of least resistance to earth ground from the lightning rod. The tower/mast is also earth grounded to safety, and generally presents a less desirable path to ground to surge currents. ODU equipment and external primary protection devices are mounted to the tower/mast and should be bonded t at the same point on the down conductor. This practice is intended to avoid ground loop currents that may flow from differences in potential between the tower/mast structure and down conductor while large surge currents are flowing in them respectively. Good surge mitigation practice also makes use of shielded cables with peripheral shield grounding to minimize potentials induced on circuit conductors. These cables should also be secured to the tower/mast at regular intervals to create from conductors which are carrying surge currents. This practice avoids incidental contact or possible insulation breakdown from high surge potentials. A Base Station that is installed indoor units (IDU) requires similar protection as (ODU). Primary protection devices are installed on all cables just prior to entry of the facility and bonded to an earth ground stake. Likewise, the cable shields are grounded at the entry panel which should be bonded to the same earth ground stake. IDU equipment may also be vulnerable to surges entering via the AC power connection and steps should be taken to install a proper AC Surge Suppressor device to complete a well protected installation. 3.1 Lightning Protection Installation The following are considered to be the main elements that constitute the components of a lightning protection scheme.
Lightning Rod
Base Station and Antenna Grounding
Down Conductor
Coaxial and/or Cat 5 Cable Shield Grounding Quantum 1000 Base Station User Guide Rev 1.1, Page Grounding and Lightning Requirements Proper lightning protection requires the use of external primary protectors to complement the secondary protection built into the PureWave equipment. The primary protectors offer the surge currents a direct path to earth ground versus the undesirable “sneak” paths it may find through the equip Properly installed and grounded primary protectors will dramatically increase the surge withstanding capabilities of the PureWave equipment. Surges that exceed the maximum ratings of the primary protector devices will eventually cause them to fail, however these devices are generally designed to fail short or open, as the application warrants, such that further surges will not damage the end equipment. While a failed primary protector still results in a service outage, it does prevent further damage A Base Station that is installed outdoor on the tower or mast (ODU) is especially vulnerable to lightning surges. Good surge mitigation practice starts with the lightning rod and its connection to a proper sized The ground down conductor should be as straight as possible and avoid incidental contact with other conductors such that it represents the path of least resistance to earth ground from the lightning rod. The tower/mast is also earth grounded to keep its conductive elements at earth potential (0V) for personnel safety, and generally presents a less desirable path to ground to surge currents. ODU equipment and external primary protection devices are mounted to the tower/mast and should be bonded t at the same point on the down conductor. This practice is intended to avoid ground loop currents that may flow from differences in potential between the tower/mast structure and down conductor while large surge espectively. Good surge mitigation practice also makes use of shielded cables with peripheral shield grounding to minimize potentials induced on circuit conductors. These cables should also be secured to the tower/mast at regular intervals to create physical separation from conductors which are carrying surge currents. This practice avoids incidental contact or possible insulation breakdown from high surge potentials. A Base Station that is installed indoor units (IDU) requires similar protection as the outdoor installation (ODU). Primary protection devices are installed on all cables just prior to entry of the facility and bonded to an earth ground stake. Likewise, the cable shields are grounded at the entry panel which should be arth ground stake. IDU equipment may also be vulnerable to surges entering via the AC power connection and steps should be taken to install a proper AC Surge Suppressor device to complete a well protected installation. Lightning Protection Installation Components The following are considered to be the main elements that constitute the components of a lightning Base Station and Antenna Grounding Coaxial and/or Cat 5 Cable Shield Grounding Rev 1.1, Page 38 of 70 he use of external primary protectors to complement the secondary protection built into t…

Text truncated - open the document above for the full version.

2660-C Marine Way Mountain View, CA 94043 pwnets.com Tel: (650) 528-5200 Fax: (650) 528-5222 Date: August 11, 2009 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: Authority to act as an Agent to FCC Applicant: PureWave Networks Product: Point to Point Radio Link 3.65GHz Model: QUANTUM 1000 FCC ID: XN3-QUANTUM 1000 Dear Sir/Madam: I here by appoint Intertek Services Lab (ITS) to act as my agent in preparation of this application to FCC for authorization of equipment under FCC rules. I also certify that the information provided, properly described the device or system for which authorization is required. Sincerely, Jas Dhaliwal Manager Compliance Engineering and Approvals PureWave Networks

2660-C Marine Way Mountain View, CA 94043 pwnets.com Tel: (650) 528-5200 Fax: (650) 528-5222 Date: August 11, 2009 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID: XN3-QUANTUM1000 (3.65 GHz) and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematic Block Diagram Theory of Operations These documents contain detailed system and equipment description and related information about the product that PureWave Networks considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, PureWave Networks considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Jas Dhaliwal Manager Compliance Engineering and Approvals PureWave Networks

1 PureWave Quantum 1000 3.65GHz, 5MHz (FCC ID: XN3-Quantum1000) DataSheet PureWave Networks Feb 2010 Proprietary – Under NDA PureWave Networks, the PureWave Networks Logo, and PureMax are trademarks of PureWave Networks, Inc. Information in this document is subject to change without notice. PureWave Networks assumes no responsibility for any errors that may appear in this document. Copyright © 2010 PureWave Networks, Inc. All rights reserved. 2 PureWave Quantum 1000 Datasheet FCC ID: XN3-Q1000-25 PRODUCT DESCRIPTION The PureWave Quantum 1000 product is a 2Tx, 4Rx WiMAX base station with peak EIRP power of 37dBm (5 Watts) total for its 2 antennas. Its compact size and all-in-one weatherproof outdoor enclosure further facilitate its deployment in virtually any environment. The PureWave Quantum 1000 can support MIMO-A/B as well as a host of additional multi- antenna capabilities. The PureWave Quantum 1000 is highly compact, fully-integrated (except for antennas), and is designed for all-outdoor, all-weather operation. The PureWave Quantum 1000 is fully 802.16e (Mobile WiMAX) compliant and is designed to interoperate seamlessly with standard, off-the-shelf, WiMAX-certified subscriber devices. It features a software-defined radio (SDR) architecture that allows it to continuously evolve and take on new features as they become available. Some of the key differentiating highlights of the PureWave Quantum 1000 product include the following: • Superior Range – An antenna array of up to 4 receive antennas extend the range of each base station by significantly and provide improved uplink throughput. • Software Defined Radio – Protects operators’ investment and will allow for over-the-air, field upgrades of existing networks as standards evolve and new features and capabilities are released. • Completely Weatherproof – PureWave Quantum 1000 base stations do not require shelter and can be installed completely outdoors. This eliminates the capital cost of building a shelter and the recurring cost of leasing or running an air-conditioned site. • Flexibly Mounts Virtually Anywhere – PureWave Quantum 1000 base stations can be deployed on towers, utility poles, walls, rooftops, etc, without the need for remote RF heads. • ASN-GW Optional – PureWave Quantum 1000 base stations can optionally operate in stand-alone mode, without an ASN-GW, making even small deployments affordable. The PureWave Quantum 1000 base stations can utilize virtually any off the shelf antennas, from omni to sectored, however, PureWave offers our own line of highly affordable, compact, multi- antenna panels designed specifically to complement the performance of our base stations. PureWave Networks, the PureWave Networks Logo, and PureMax are trademarks of PureWave Networks, Inc. Information in this document is subject to change without notice. PureWave Networks assumes no responsibility for any errors that may appear in this document. Copyright © 2010 PureWave Networks, Inc. All rights reserved. 3 PureWave Quantum 1000 Datasheet FCC ID: XN3-Q1000-25 TECHNICAL DATA General Standards Compliance IEEE 802.16e-2005 Frequency Bands 3.65-3.675 GHz Channel Size 5 MHz Duplex Method TDD Number of Tx/Rx Antennas 2x4 Peak RF Power per Antenna 27dBm Smart Antenna Capabilities Beamforming, MIMO Matrix A, MIMO Matrix B, Cyclic Delay Diversity, MRC, UL Collaborative Spatial Multiplexing*, UL SDMA* (Future) Backhaul Interface Options 2x Gig-E RJ-45 with inter-sector daisy-chain support. Inter-BS Synchronization Integrated GPS Modulation QPSK, 16QAM, 64QAM QoS BE, UGS, rtPS, ErtPS, nrtPS Convergence Sublayer IP-CS, Eth-CS, PHS*, IPv4, IPv6*, IPv6 Transparency (*Future) Security AES-128, EAP-TLS, EAP-TTLS, PKMv2 Management PureView EMS/NMS, Remote CLI, Web Interface, SNMPv2c Capacity Active Users 256 Service Flows per User 16 Sleep-Mode Users 1024 Idle-Mode Users 2048 Peak Throughput/Sector Aggregate: Up to 25Mbps, DL: Up to 22Mbps, UL: Up to 10Mbps Note: Typical TCP/IP Application Layer “goodput” 15-20% lower. Mechanical, Electrical, and Environmental Dimensions 24.6” x 17.4” x 4.5” (62.5cm x 44.2cm x 11.4cm) Weight 23lbs (10.45kg) Power -48 VDC, 65 Watts Temperature -33 to +55 degrees C Humidity 5-95% Altitude To 10,000 feet above sea level Weatherproofing IEC IP67 Surge Protection UL497B PureWave Networks, the PureWave Networks Logo, and PureMax are trademarks of PureWave Networks, Inc. Information in this document is subject to change without notice. PureWave Networks assumes no responsibility for any errors that may appear in this document. Copyright © 2010 PureWave Networks, Inc. All rights reserved. 4 PureWave Quantum 1000 Datasheet FCC ID: XN3-Q1000-25 Lightning Protection Min 10kA IEC 6100-4-5 (*optional via external kit) Connectors DC Power 4 conductor 14-18AWG guage, 796095-2 Tyco Connector Grounding Bulkhead mounting screw Cat-5 Backhaul Port 2x RJ-45 RS-232 Maintenance Port RJ-45 GPS SMA Jack with 3.3VDC power on center pin Antenna 4 x N-type

1 PureWave Quantum 1000 3.65GHz, 10MHz (FCC ID: XN3-Quantum1000) DataSheet PureWave Networks Feb 2010 Proprietary – Under NDA PureWave Networks, the PureWave Networks Logo, and PureMax are trademarks of PureWave Networks, Inc. Information in this document is subject to change without notice. PureWave Networks assumes no responsibility for any errors that may appear in this document. Copyright © 2010 PureWave Networks, Inc. All rights reserved. 2 PureWave Quantum 1000 Datasheet FCC ID: XN3-Q1000-25 PRODUCT DESCRIPTION The PureWave Quantum 1000 product is a 2Tx, 4Rx WiMAX base station with peak EIRP power of 40dBm (10 Watts) total for its 2 antennas. Its compact size and all-in-one weatherproof outdoor enclosure further facilitate its deployment in virtually any environment. The PureWave Quantum 1000 can support MIMO-A/B as well as a host of additional multi- antenna capabilities. The PureWave Quantum 1000 is highly compact, fully-integrated (except for antennas), and is designed for all-outdoor, all-weather operation. The PureWave Quantum 1000 is fully 802.16e (Mobile WiMAX) compliant and is designed to interoperate seamlessly with standard, off-the-shelf, WiMAX-certified subscriber devices. It features a software-defined radio (SDR) architecture that allows it to continuously evolve and take on new features as they become available. Some of the key differentiating highlights of the PureWave Quantum 1000 product include the following: • Superior Range – An antenna array of up to 4 receive antennas extend the range of each base station by significantly and provide improved uplink throughput. • Software Defined Radio – Protects operators’ investment and will allow for over-the-air, field upgrades of existing networks as standards evolve and new features and capabilities are released. • Completely Weatherproof – PureWave Quantum 1000 base stations do not require shelter and can be installed completely outdoors. This eliminates the capital cost of building a shelter and the recurring cost of leasing or running an air-conditioned site. • Flexibly Mounts Virtually Anywhere – PureWave Quantum 1000 base stations can be deployed on towers, utility poles, walls, rooftops, etc, without the need for remote RF heads. • ASN-GW Optional – PureWave Quantum 1000 base stations can optionally operate in stand-alone mode, without an ASN-GW, making even small deployments affordable. The PureWave Quantum 1000 base stations can utilize virtually any off the shelf antennas, from omni to sectored, however, PureWave offers our own line of highly affordable, compact, multi- antenna panels designed specifically to complement the performance of our base stations. PureWave Networks, the PureWave Networks Logo, and PureMax are trademarks of PureWave Networks, Inc. Information in this document is subject to change without notice. PureWave Networks assumes no responsibility for any errors that may appear in this document. Copyright © 2010 PureWave Networks, Inc. All rights reserved. 3 PureWave Quantum 1000 Datasheet FCC ID: XN3-Q1000-25 TECHNICAL DATA General Standards Compliance IEEE 802.16e-2005 Frequency Bands 3.65-3.675 GHz Channel Size 10 MHz Duplex Method TDD Number of Tx/Rx Antennas 2x4 Peak RF Power per Antenna 30dBm Smart Antenna Capabilities Beamforming, MIMO Matrix A, MIMO Matrix B, Cyclic Delay Diversity, MRC, UL Collaborative Spatial Multiplexing*, UL SDMA* (Future) Backhaul Interface Options 2x Gig-E RJ-45 with inter-sector daisy-chain support. Inter-BS Synchronization Integrated GPS Modulation QPSK, 16QAM, 64QAM QoS BE, UGS, rtPS, ErtPS, nrtPS Convergence Sublayer IP-CS, Eth-CS, PHS*, IPv4, IPv6*, IPv6 Transparency (*Future) Security AES-128, EAP-TLS, EAP-TTLS, PKMv2 Management PureView EMS/NMS, Remote CLI, Web Interface, SNMPv2c Capacity Active Users 256 Service Flows per User 16 Sleep-Mode Users 1024 Idle-Mode Users 2048 Peak Throughput/Sector Aggregate: Up to 50Mbps, DL: Up to 43Mbps, UL: Up to 20Mbps Note: Typical TCP/IP Application Layer “goodput” 15-20% lower. Mechanical, Electrical, and Environmental Dimensions 24.6” x 17.4” x 4.5” (62.5cm x 44.2cm x 11.4cm) Weight 23lbs (10.45kg) Power -48 VDC, 65 Watts Temperature -33 to +55 degrees C Humidity 5-95% Altitude To 10,000 feet above sea level Weatherproofing IEC IP67 Surge Protection UL497B PureWave Networks, the PureWave Networks Logo, and PureMax are trademarks of PureWave Networks, Inc. Information in this document is subject to change without notice. PureWave Networks assumes no responsibility for any errors that may appear in this document. Copyright © 2010 PureWave Networks, Inc. All rights reserved. 4 PureWave Quantum 1000 Datasheet FCC ID: XN3-Q1000-25 Lightning Protection Min 10kA IEC 6100-4-5 (*optional via external kit) Connectors DC Power 4 conductor 14-18AWG guage, 796095-2 Tyco Connector Grounding Bulkhead mounting screw Cat-5 Backhaul Port 2x RJ-45 RS-232 Maintenance Port RJ-45 GPS SMA Jack with 3.3VDC power on center pin Antenna 4 x N-type

EMC Report for PureWave Networks on the model QUANTUM 1000 File: 3183595MPK-001 Page 1 of 70 Test Report Report Number: 3183595MPK-001 Project Number: 3183595 July 31, 2009 Testing performed on the Quantum 1000 Base Station Model Number: QUANTUM 1000 FCC ID: XN3-QUANTUM1000 to FCC Part 90 Subpart Z for PUREWAVE NETWORKS Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc 1365 Adams Court Menlo Park, CA 94025 PUREWAVE NETWORKS 2660-C Marine Way Mountain View, CA 94043 USA Prepared by: Date: July 31, 2009 Krishna Vemuri, EMC Engineer Reviewed by: Date: July 31, 2009 Ollie Moyrong, Engineering Manager This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for PureWave Networks on the model QUANTUM 1000 File: 3183595MPK-001 Page 2 of 70 Report No. 3183595MPK-001 Equipment Under Test: Quantum 1000 Base Station Trade Name: PUREWAVE NETWORKS Model No.: QUANTUM 1000 Serial No.: EMCProto1 FCC ID: XN3-QUANTUM1000 Applicant: PUREWAVE NETWORKS Contact: Mr. Jas Dhaliwal Address: 2660-C Marine Way Mountain View, CA 94043 Country USA Tel. number: 650-528-5200 Fax number: 650-528-5222 Applicable Regulation: FCC Part 90 Subpart Z Test Site Location: 1365 Adams Court Menlo Park, CA 94025 Date of Test: July 27 – July 31, 2009 We attest to the accuracy of this report: Krishna Vemuri EMC Engineer Ollie Moyrong Engineering Manager EMC Report for PureWave Networks on the model QUANTUM 1000 File: 3183595MPK-001 Page 3 of 70 TABLE OF CONTENTS 1.0 Introduction 5 1.1 Product Description.......................................................................................................... 5 1.2 Summary of Test Results ................................................................................................. 7 1.3 Test Configuration ........................................................................................................... 8 1.3.1 Support Equipment ................................................................................... 8 1.3.2 Block diagram of Test Setup.....................................................................8 1.4 Related Submittal(s) Grants ............................................................................................. 8 2.0 RF Power Output and Antenna Limits......................................................................... 9 2.1 Test Procedure.................................................................................................................. 9 2.2 Test Equipment .............................................................................................................. 10 2.3 Test Results .................................................................................................................... 10 3.0 Occupied Bandwidth ...................................................................................................... 29 3.1 Test Procedure................................................................................................................ 29 3.2 Test Equipment .............................................................................................................. 29 3.3 Test Results ..................................................................................................................... 29 4.0 Spurious Emissions at Antenna Terminals .................................................................. 39 4.1 Requirement ................................................................................................................... 39 4.3 Test Equipment .............................................................................................................. 39 4.4 Test Results .................................................................................................................... 39 5.0 Spurious Radiation ....................................................................................................... 59 5.1 Requirement ................................................................................................................... 59 5.2 Test Procedure................................................................................................................ 59 5.3 Test Equipment .............................................................................................................. 59 5.4 Test Results .................................................................................................................... 60 6.0 Frequency Stability vs Temperature and Voltage ..................................................... 62 6.1 Requirement ................................................................................................................... 62 6.2 Test Procedure................................................................................................................ 62 6.3 Test Equipment ............................................................................................................... 62 6.4 Test Results ...............................................…

Text truncated - open the document above for the full version.

EMC Report for PureWave Networks on the model QUANTUM 1000 File: 3183595MPK-00…
