XN3-QUANTUM66366X6 MIMO WiMAX Base Station

1 STATEMENTS 1.1 GENERAL NOTICE It is hoped that this document will be useful in understanding and using the PureWave System. Please note that the information provided herein is subject to change without notice. Always refer to the current set of Release Notes for the most up to date information and a description of the current features as they relate to the PureWave system. These may be different to the information contained within this User Guide. 1.2 REGULATORY NOTICE It is the intention of PureWave Networks to ensure that this equipment is tested to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Re-orient or relocate the receiving antenna/s. • Increase the separation between the equipment and other receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC regulations. Changes or modifications not expressly approved in writing by PureWave Networks may void the user's authority to operate this equipment. Note: This device must be professionally installed, and the responsibility to comply with the FCC regulations is of the user. ! 1.3 PROPRIETARY STATEMENT © PureWave™ Networks, 2003-2010. All rights reserved. PureWave™ Networks has prepared this manual for use by PureWave Networks personnel, licensees, customers and customers of customers. The information contained herein is the property of PureWave Networks and shall neither be reproduced in whole nor in part without prior written approval from PureWave Networks. PureWave Networks reserves the right to make changes without notice to the specifications and materials contained herein, and shall not be responsible for any damages caused by reliance on the material presented, including, but not limited to, typographical, arithmetic and listing errors. 1.4 WARRANTY STATEMENT 1.4.1 Hardware PureWave Inc (“PureWave” or the “Company”) warrants to the end-user (“Customer”) that this hardware product will conform in all material respects to the specifications provided with the hardware and will be free from defects in workmanship and materials, under normal use and service, for a period of 365 days from the date of original shipment by PureWave. PureWave's sole obligation under this limited warranty shall be, at PureWave's option, to repair the defective product or part, deliver to Customer an equivalent product or part to replace the defective item, or if neither of the two foregoing options is reasonably possible, refund to Customer the purchase price paid for the defective product. All products that are replaced will become the property of PureWave. Replacement products may be new or reconditioned. PureWave's obligations hereunder are conditioned upon the returned of affected articles in accordance with PureWave's Return Material Authorization (RMA) procedures. Subject to the limitations and conditions herein and in the Supply Agreement, after Customer has completed the steps outlined below in Section 2, PureWave will evaluate each returned Product and will use reasonable commercial efforts to either, in its discretion, repair or replace products confirmed by PureWave as non-conforming that are covered under the warranty provided in the Supply Agreement. PureWave shall be responsible for shipping the repaired or replaced Product to Customer. PureWave will use reasonable commercial efforts to ship repaired or replacement Product within thirty (30) business days of its receipt, however, the allegedly non-conforming Product must be received by PureWave before any replacement unit will be shipped. The above warranty will also apply to any replaced or repaired product for 90 days from the date of shipment from PureWave of the replaced or repaired product, or the remainder of the initial warranty period, whichever is longer. 1.4.2 Software PureWave warrants to the Customer that for a period of ninety (90) days from your receipt of the Product (the “Warranty Period”) the Software will perform substantially in accordance with the Documentation. If the Software fails to comply with the warranty set forth above, your exclusive remedy will be, at the option of PureWave (i) a reasonable effort by PureWave to make the Software perform substantially in accordance with the Documentation, or (ii) return of the purchase price. This limited warranty applies only if you return all copies of the Product, together with proof of purchase, to PureWave during the Warranty Period. This limited warranty is VOID if failure of the Software is due to modification of the Software not made by PureWave, or the abuse or misapplication of the Software. PureWave does not warrant that the Software is error free, that the Customer will be able to operate the Software without problems or interruptions or that the Software or any equipment, system or network on which the Software is used will be free of vulnerability to intrusion or attack. For further details of the terms and conditions of PureWave's obligations from a software perspective please refer to “PureWave Software Maintenance Program” (document not found). 1.4.3 Additional Conditions Notwithstanding anything else her…

Text truncated - open the document above for the full version.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 email: [email protected] FCC Laboratory 3 Sept 2010 7435 Oakland Mills Road Columbia MD 20146 Attention: Applications Examiner Re: Request for confidentiality pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules Applicant: PureWave Networks Equipment: Part 90Z Restricted Contention Protocol 3.650- 3.675 GHz Base Station FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Model No.: Quantum 6636 To whom it may concern, PureWave Networks requests that the following documents be kept from public view indefinitely: Schematics Block Diagram Theory of Operations Internal photographs Justification for requesting confidentiality for internal photographs: The product is a non-consumer WiMAX base station transmitter that is installed on top of poles, in fenced- in areas of rooftops and in other locations not accessible to anyone but authorized installation and repair personnel. Access is made difficult both for security purposes and for RF safety considerations. The internal photographs for a microwave transmitter yield a lot of design information to a prospective competitor that would otherwise not be accessible. The schematics and block diagrams are routinely kept confidential, but the internal photographs show IC numbers and part numbers which tell a great deal about the reference designs that are used, making it easier to reverse engineer the design. The photographs also reveal critical information regarding interconnection of subsystems (by following PCB traces shown in the photos). Finally, the photos show how the circuits are packaged and fit into the housing, which can be a challenge for the correct operation of microwave circuits. These documents contain detailed system and equipment description and related information about the product that PureWave Networks considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, PureWave Networks considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give Internal photographs If you have questions or need further information, please contact the undersigned. Sincerely, T.N. Cokenias Agent for PureWave Networks

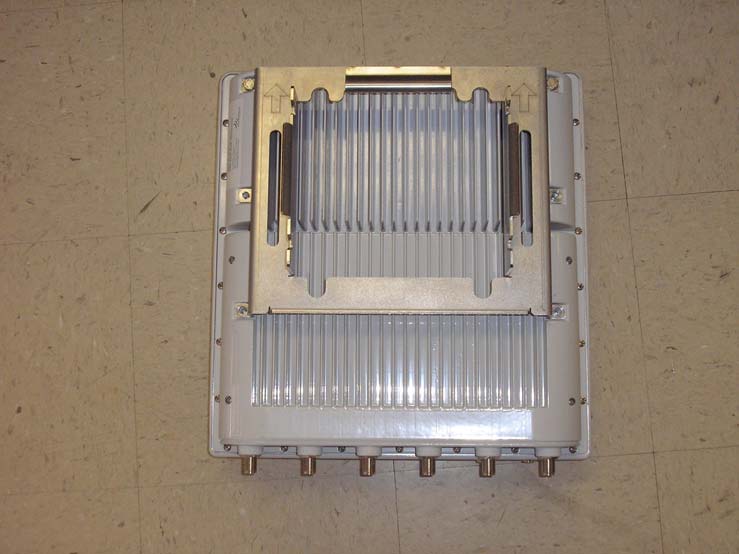

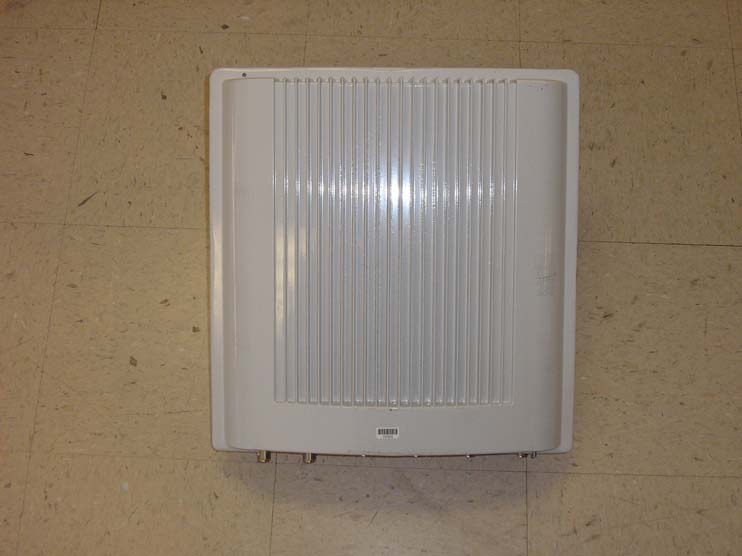

EXTERNAL VIEW PHOTOGRAPHS Equipment: 6x6 MIMO Part 90Z 3.65 Base Station Company: PureWave Networks FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636

Label and Label Location Label Location

Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 18 of 84 4.6.1.4 MAXIMUM PERMISSIBLE EXPOSURE LIMITS §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 19 of 84 CALCULATIONS Given E =
(30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d =
((30 * P * G) / (3770 * S)) Changing to units of Power to mW and Distance to cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 *
((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 *
(P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yields d = 0.282 * 10 ^ ((P + G) / 20) /
S Equation (1) where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Equation (1) and the measured peak power is used to calculate the MPE distance. Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 20 of 84 LIMITS From §1.1310 Table 1 (B), S = 1.0 mW/cm^2 RESULTS RF exposure considerations will be addressed by the licensee at the time of installation. The maximum eirp allowed under Part 90 for this product is 10 Watts/10 MHz channels, or 40 dBm EIRP. The MPE distance for 40 dBm eirp calculated below: Power DensityOutputAntennaMPE LimitPowerGainDistance (mW/cm^2)(dBm)(dBi)(cm) 1.040.000.0028.20

FCC CFR47 PART 90 SUBPART Z Test Report 3.65 GHz Fixed Wireless Base Station Transceiver – 2x2 MIMO Configuration Model Number: Quantum 2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Report Number: 10PRO01719 Issue Date: 4 September 2010 Prepared for PureWave Networks Inc. 2660-C Marine Way Mountain View, CA 94043 Prepared by T.N. Cokenias Consulting P.O. Box 1086 El Granada CA 94018 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 2 of 61 Report Revision History Revision No. Description Revised by Date - Original issue T.N. Cokenias 4 Sept 2010 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 3 of 61 TABLE OF CONTENTS 1. TEST AND TEST LOCATION INFORMATION..............................................................................4 2. TEST METHODOLOGY........................................................................................................................5 3. EQUIPMENT UNDER TEST.................................................................................................................5 3.1. DESCRIPTION OF EUT.....................................................................................................................5 3.2. MAXIMUM OUTPUT POWER SETTINGS FOR TESTS..................................................................5 3.3. ANTENNA SELECTION AND EIRP LIMITS.....................................................................................6 3.4. SOFTWARE AND FIRMWARE...........................................................................................................6 3.5. WORST-CASE CONFIGURATION AND MODE ..............................................................................6 3.6. DESCRIPTION OF TEST SETUP......................................................................................................7 3.7 Modifications to EUT............................................................................................................................7 3.8 TEST AND MEASUREMENT EQUIPMENT..........................................................................................8 4. LIMITS AND RESULTS.............................................................................................................................9 4.1ANTENNA PORT CHANNEL TESTS.......................................................................................................9 4.1.1 -26 dB and 99%OCCUPIED BANDWIDTH..................................................................................9 4.6.1.2 PEAK OUTPUT POWER ...........................................................................................................17 4.6.1.3 PEAK EIRP POWER DENSITY LIMIT ...................................................................................18 4.6.1.4 MAXIMUM PERMISSIBLE EXPOSURE................................................................................19 4.6.1.5 CONDUCTED SPURIOUS EMISSIONS..................................................................................22 4.6.2 RADIATED EMISSIONS.....................................................................................................................41 4.6.2.1 TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ HARMONICS AND SPURIOUS EMISSIONS.........................................................................................................................42 4.6.2.2 TRANSMITTER RADIATED EMISSIONS BELOW 1 GHZ SPURIOUS AND DIGITAL SECTION EMISSIONS ...........................................................................................................................43 4.6.3 FREQUENCY STABILITY TEST ...............................................................................................45 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 4 of 61 1. TEST AND TEST LOCATION INFORMATION COMPANY NAME: PureWave Networks, Inc. 2660-C Marine Way Mountain View, CA 94043 EUT DESCRIPTION: FCC Part 90Z Base Station Frequency Range: 3650-3675MHz WiMax 6x6 MIMO Configuration Channel Bandwidths: 5 MHz, 10 MHz Modulations: QPSK, 16QAM, 64QAM FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 MODEL: Quantum 2236 DATE TESTED: 22 June, 28-30 June, 8-13 July, 26 and 30 August 2010 Radiated and Occupied Bandwidth antenna port conducted tests were performed by Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 Other antenna port and frequency stability tests were performed at PureWave Networks, Inc. 2660-C Marine Way Mountain View, CA 94043 4 September 2010 T.N. Cokenias Agent for PureWave Networks, Inc. Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 5 of 61 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with EIA/TIA 603, FCC CFR 47 Part 2 and FCC CFR 47 Part 90Subpart Z. 3. EQUIPMENT UNDER TEST 3.1. DESCRIPTION OF EUT The EUT is a WiMAX base station radio operating in the 3650-3675 MHz restricted contention-based protocol frequency band. Modulation is 802.16d/e in 5 MHz and 10 MHz channel bandwidths. The EUT is capable of operation in 2x2 MIMO and 6x6 MIMO modes. This report will cover only 2x2 MIMO operation measurements. A separate report covers 6x6 MIMO operation. 3.2. MAXIMUM OUTPUT POWER SETTINGS FOR TESTS 5 MHz EBW QPSK 16QAM 64QAM (MHz) (dBm) (dBm) (dBm) Low 3652.5 28 28 28 Middle 3662.5 35 35 35 High 3672.5 29 29 29 10 MHz EBW QPSK 16QAM 64QAM (MHz) (dBm) (dBm) (dBm) Low 3655 29 29 29 Middle 3662.5 36 36 36 High 3670 30 30 30 All other 5 MHz Channels: 35 dBm power setting All other 10 MHz channels: 36 dBm power setting Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236…

Text truncated - open the document above for the full version.

Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 50 of 61 APPENDIX A: POWER OUTPUT SPECTRUM ANALYZER PLOTS QPSK 5 MHZ EBW LOW CHANNEL Chain 1 Chain 2 QPSK 5 MHZ EBW MID CHANNEL Chain 1 Chain 2 QPSK 5 MHZ EBW HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 51 of 61 POWER OUTPUT SPECTRUM ANALYZER PLOTS: QPSK 10 MHZ EBW LOW CHANNEL Chain 1 Chain 2 QPSK 10 MHZ EBW MID CHANNEL Chain 1 Chain 2 QPSK 10 MHZ EBW HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 52 of 61 POWER OUTPUT SPECTRUM ANALYZER PLOTS: 16QAM 5 MHZ EBW LOW CHANNEL Chain 1 Chain 2 16QAM 5 MHZ EBW MID CHANNEL Chain 1 Chain 2 16QAM 5 MHZ EBW HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 53 of 61 POWER OUTPUT SPECTRUM ANALYZER PLOTS: 16QAM 10 MHZ EBW LOW CHANNEL Chain 1 Chain 2 16QAM 10 MHZ EBW MID CHANNEL Chain 1 Chain 2 16QAM 10 MHZ EBW HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 54 of 61 POWER OUTPUT SPECTRUM ANALYZER PLOTS: 64QAM 5 MHZ EBW LOW CHANNEL Chain 1 Chain 2 64QAM 5 MHZ EBW MID CHANNEL Chain 1 Chain 2 64QAM 5 MHZ EBW HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 55 of 61 POWER OUTPUT SPECTRUM ANALYZER PLOTS: 64QAM 10 MHZ EBW LOW CHANNEL Chain 1 Chain 2 64QAM 10 MHZ EBW MID CHANNEL Chain 1 Chain 2 64QAM 10 MHZ EBW HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 56 of 61 APPENDIX B PSD SPECTRUM ANALYZER PLOTS: 5 MHZ EBW PSD QPSK LOW CHANNEL Chain 1 Chain 2 5 MHZ EBW PSD QPSK MID CHANNEL Chain 1 Chain 2 5 MHZ EBW PSD QPSK HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 57 of 61 10 MHZ EBW PSD QPSK LOW CHANNEL Chain 1 Chain 2 10 MHZ EBW PSD QPSK MID CHANNEL Chain 1 Chain 2 10 MHZ EBW PSD QPSK HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 58 of 61 5 MHZ EBW PSD 16QAM LOW CHANNEL Chain 1 Chain 2 5 MHZ EBW PSD 16QAM MID CHANNEL Chain 1 Chain 2 5 MHZ EBW PSD 16QAM HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 59 of 61 10 MHZ EBW 16QAM LOW CHANNEL Chain 1 Chain 2 10 MHZ EBW PSD 16QAM MID CHANNEL Chain 1 Chain 2 10 MHZ EBW PSD 16QAM HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 60 of 61 5 MHZ EBW PSD 64QAM LOW CHANNEL Chain 1 Chain 2 5 MHZ EBW PSD 64QAM MID CHANNEL Chain 1 Chain 2 5 MHZ EBW PSD 64QAM HIGH CHANNEL Chain 1 Chain 2 Report No: 10PRO0179 Date: 4 September 2010 3.65 GHz Fixed Wireless Transceiver Model No.: Quantum2236 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 61 of 61 10 MHZ EBW PSD 64QAM LOW CHANNEL Chain 1 Chain 2 10 MHZ EBW PSD 64QAM MID CHANNEL Chain 1 Chain 2 10 MHZ EBW PSD 64QAM HIGH CHANNEL Chain 1 Chain 2

FCC CFR47 PART 90 SUBPART Z Test Report 3.65 GHz Fixed Wireless Base Station Transceiver – 6x6 MIMO Configuration Model Number: Quantum 6636 FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Report Number: 10PRO017 Issue Date: 2 September 2010 Prepared for PureWave Networks Inc. 2660-C Marine Way Mountain View, CA 94043 Prepared by T.N. Cokenias Consulting P.O. Box 1086 El Granada CA 94018 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 2 of 84 Report Revision History Revision No. Description Revised by Date - Original issue T.N. Cokenias 2 Sept 2010 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 3 of 84 TABLE OF CONTENTS 1. TEST AND TEST LOCATION INFORMATION..............................................................................4 2. TEST METHODOLOGY........................................................................................................................5 3. EQUIPMENT UNDER TEST.................................................................................................................5 3.1. DESCRIPTION OF EUT.....................................................................................................................5 3.2. MAXIMUM OUTPUT POWER SETTINGS FOR TESTS..................................................................5 3.3. ANTENNA SELECTION AND EIRP LIMITS.....................................................................................6 3.4. SOFTWARE AND FIRMWARE...........................................................................................................6 3.5. WORST-CASE CONFIGURATION AND MODE ..............................................................................6 3.6. DESCRIPTION OF TEST SETUP......................................................................................................7 50 ohm term........................................................................................7 3.7 Modifications to EUT............................................................................................................................7 3.8 TEST AND MEASUREMENT EQUIPMENT..........................................................................................8 4. LIMITS AND RESULTS.............................................................................................................................9 4.1ANTENNA PORT CHANNEL TESTS.......................................................................................................9 4.1.1 -26 dB and 99%OCCUPIED BANDWIDTH..................................................................................9 4.6.1.2 PEAK OUTPUT POWER ...........................................................................................................16 4.6.1.3 PEAK EIRP POWER DENSITY LIMIT ...................................................................................17 4.6.1.4 MAXIMUM PERMISSIBLE EXPOSURE................................................................................18 4.6.1.5 CONDUCTED SPURIOUS EMISSIONS..................................................................................21 4.6.2 RADIATED EMISSIONS.....................................................................................................................40 4.6.2.1 TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ HARMONICS AND SPURIOUS EMISSIONS.........................................................................................................................41 4.6.2.2 TRANSMITTER RADIATED EMISSIONS BELOW 1 GHZ SPURIOUS AND DIGITAL SECTION EMISSIONS ...........................................................................................................................42 4.6.3 FREQUENCY STABILITY TEST ...............................................................................................44 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 4 of 84 1. TEST AND TEST LOCATION INFORMATION COMPANY NAME: PureWave Networks, Inc. 2660-C Marine Way Mountain View, CA 94043 EUT DESCRIPTION: FCC Part 90Z Base Station Frequency Range: 3650-3675MHz WiMax 6x6 MIMO Configuration Channel Bandwidths: 5 MHz, 10 MHz Modulations: QPSK, 16QAM, 64QAM FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 MODEL: Quantum 6636 DATE TESTED: 22 June, 28-30 June, 8-13 July, 26 and 30 August 2010 Radiated and Occupied Bandwidth antenna port conducted tests were performed by Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 Other antenna port and frequency stability tests were performed at PureWave Networks, Inc. 2660-C Marine Way Mountain View, CA 94043 2 September 2010 T.N. Cokenias Agent for PureWave Networks, Inc. Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 5 of 84 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with EIA/TIA 603, FCC CFR 47 Part 2 and FCC CFR 47 Part 90Subpart Z. 3. EQUIPMENT UNDER TEST 3.1. DESCRIPTION OF EUT The EUT is a WiMAX base station radio operating in the 3650-3675 MHz restricted contention-based protocol frequency band. Modulation is 802.16d/e in 5 MHz and 10 MHz channel bandwidths. The EUT is capable of operation in 2x2 MIMO and 6x6 MIMO modes. This report will cover only 6x6 MIMO operation measurements. A separate report will cover 2x2 MIMO operation. 3.2. MAXIMUM OUTPUT POWER SETTINGS FOR TESTS 5 MHz EBW QPSK 16QAM 64QAM (MHz) (dBm) (dBm) (dBm) Low 3652.5 26 26 26 Middle 3662.5 30 30 30 High 3672.5 28 28 28 10 MHz EBW QPSK 16QAM 64QAM (MHz) (dBm) (dBm) (dBm) Low 3655 26 26 26 Middle 3662.5 33 33 33 High 3670 28 28 28 All other 5 MHz Channels: 30 dBm power setting All other 10 MHz channels: 33 dBm power setting Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC…

Text truncated - open the document above for the full version.

Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 49 of 84 APPENDIX A: POWER OUTPUT SPECTRUM ANALYZER PLOTS POWER OUTPUT SPECTRUM ANALYZER PLOTS: QPSK 5 MHZ EBW LOW CHANNEL 26 dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 50 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: QPSK 5 MHZ EBW MID CHANNEL 30 dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 51 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: QPSK 5 MHZ EBW HIGH CHANNEL 28 dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 52 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: QPSK 10 MHZ EBW LOW CHANNEL 26 dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 53 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: QPSK 10 MHZ EBW MID CHANNEL 33 dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 54 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: QPSK 10 MHZ EBW HIGH CHANNEL 28 dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 55 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: 16QAM 5 MHZ EBW LOW CHANNEL 26 dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 56 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: 16QAM 5 MHZ EBW MID CHANNEL 30 dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 57 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: 16QAM 5 MHZ EBW HIGH CHANNEL 28 dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 58 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: 16QAM 10 MHZ EBW LOW CHANNEL 26dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 59 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: 16QAM 10 MHZ EBW MID CHANNEL 33 dBm setting Chain 1 Chain 2 Chain 3 Chain 4 Chain 5 Chain 6 Report No: 10PRO017 Date: 20 August 2010 3.65 GHz Fixed Wireless Transceiver FCC ID: XN3-QUANTUM6636 IC: 8974A-QUANTUM6636 Page 60 of 84 POWER OUTPUT SPECTRUM ANALYZER PLOTS: 16QAM 10 MHZ EBW HIGH CHANNEL 28 dBm setting Chain 1 Chain 2 Chain 3…
