XNNMD100ABZigBee PIFA Module

Tigo MD100AB Data Sheet IEEE802.15.4 / ZigBee PIFA Module Family Overview This MD100A ZigBee PIFA Module is a range of surface mount modules that enables users to implement IEEE802.15.4 or ZigBee compliant systems with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules provide a comprehensive solution with high radio performance and all RF components included. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators and sensors, considerably simplifying product development. Module Block Diagram Ti mers UARTs 12-bit ADC, comparators 11- bi t DACs, temp sensor 2-wire serial SPI RAM 96kB 128-bit AES Encr ypt i on Accelerator 2. 4GHz Radi o ROM 192kB RI SC CPU Power Management XTAL O- QPSK Modem IEEE802.15.4 MAC Accel erator 128kB Serial Fl ash Memory JN5139 chip Power Bal un Connector Bal un Cerami c Antenna Bal unConnectorPA / LNA Features: Module • 2.4GHz IEEE802.15.4 & ZigBee Compatible • 2.7-3.6V Operation • Sleep Current ( with Active Sleep Timer ) 2.6μA • Receiver Sensitivity -96dBm • TX Power +1.5dBm ( without PIFA Antenna ) • PIFA Antenna Gain +3dBi • TX Current 37mA • RX Current 37mA • Dimension：18*30*3.5mm • Weight：2.5g Features: Microcontroller • 16MHz 32-Bit RISC CPU • 96KB RAM, 192KB ROM • 4-input 12-bit ADC, 2 11-Bit DACs, 2 Comparators, Temperature Sensor • 2 Application Timer / Counters, 3 System Timers • 2 UARTs (One for In-System Debug) • SPI Port with 5 Selects • 2-Wire Serial Interface • 21 GPIO Temperature Range -40°C to +85°C Humidity 10 to 95% RH Lead-Free and RoHS Compliant t er nal t enna M00 Option M01/03 Option M02/04 Option Ex An Benefits • Microminiature module solutions • Ready to use in products • Minimises product development time • No RF test required for systems • Compliant with FCC part 15 rules, IC Canada Applications • Robust and secure low power wireless applications • Wireless sensor networks, particularly IEEE802.15.4 / ZigBee systems • Home and commercial building automation • Home networks • Toys and gaming peripherals • Industrial systems • Telemetry and utilities (e.g. AMR) V1.02 1 Tigo MD100AB Data Sheet Table of Contents 1. Introduction ..............................................................................3 1.1 Key Features ........................................................................3 1.1.1 Module ..................................................................3 1.1.2 Microcontroller ......................................................3 1.2 Applications ........................................................................3 2. Specifications ........................................................................4 3. Pin Configurations ..................................................................5 3.1 Pin Assignment ..................................................................6 4. Additional Information ............................................................8 4.1 Outline Drawing ..................................................................8 4.2 Module PCB Footprint ............................................................9 4.3 Ordering / Lable Information ...............................................10 4.4 Tape and Reel Information .....................................................11 4.4.1 Tape Orientation and dimensions ...................................11 4.4.2 Cover tape details .....................................................11 4.4.3 Leader and Trailer .....................................................12 4.4.4 Reel Dimensions ...........................................................12 4.5 SMT IR Profile .................................................................13 4.6 How to Avoid ESD Damage to ICs .........................................13 V1.02 2 Tigo MD100AB Data Sheet 1. Introduction This MD100A ZigBee PIFA Module is a range of surface mount modules that enables users to implement IEEE802.15.4 or ZigBee compliant systems with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules provide a comprehensive solution with high radio performance and all RF components included. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators and sensors, considerably simplifying product development. 1.1 Key Features 1.1.1 Module • 2.4GHz IEEE802.15.4 & ZigBee Compatible • 2.7-3.6V Operation • Sleep Current ( with Active Sleep Timer ) 2.6μA • Receiver Sensitivity -96dBm • TX Power +1.5dBm ( without PIFA Antenna ) • PIFA Antenna Gain +3dBi • TX Current 37mA • RX Current 37mA • Dimension：18*30*3.5mm • Weight：2.5g 1.1.2 Microcontroller • 16MHz 32-Bit RISC CPU • 96KB RAM, 192KB ROM • 4-input 12-bit ADC, 2 11-Bit DACs, 2 Comparators, Temperature Sensor • 2 Application Timer / Counters, 3 System Timers • 2 UARTs (One for In-System Debug) • SPI Port with 5 Selects • 2-Wire Serial Interface • 21 GPIO 1.2 Applications • Robust and secure low power wireless applications • Wireless sensor networks, particularly IEEE802.15.4 / ZigBee systems • Home and commercial building automation • Home networks • Toys and gaming peripherals • Industrial systems • Telemetry and utilities (e.g. AMR) V1.02 3 Tigo MD100AB Data Sheet 2. Specifications VDD=3.0V @ +25°C Typical DC Characteristics Notes Deep Sleep Current 1.6uA Sleep Current 2.6uA With active sleep timer Radio Transmit Current 37mA CPU in doze, radio transmitting Radio Receive Current 37mA CPU in doze, radio receiving Centre Frequency Accuracy ±20ppm Additional ±20ppm allowance for temperature and ageing Typical RF Characteristics Notes Receive Sensitivity -96dBm Nominal for 1% PER, as per 802.15.4 section 6.5.3.3 (Note 1) Maximum Trans…

Text truncated - open the document above for the full version.

1 Tigo Energy, Inc. MD-100AB ZigBee PIFA Module Antenna Test Report 2 Antenna Specification Specification PIFA Center Frequency ( MHz ) 2400 ~ 2500 Gain ( dBi ) 3 Efficiency ( % ) 70 Return Loss ( dB ) < -10 VSWR < 2.0 Impedance( Ohm ) 50 Test Ground Plane L*W ( mm ) 40*35 Polarization Linear Dimension L*W*H ( mm ) 16.2*10.4*2.4 Weight ( g ) 0.1 Material 洋白銅 C7521 Operating Temp (°C) -40 ~ +85 Substance Meets RoHs requirement 30mm 18mm Groud Feed Point 3 Test Chamber Configuration Equipment Specification ETS-lindgren AMS-8500 (CTIA Authorized Chamber) Fully Anechoic Chamber — 7x4x4 m，outside dimension Quiet Zone Volume — 0.3 m，diameter sphere EUT Dimension — max. 0.54 m Path Length — 5 m Performance — Quiet Zone Reflectivity Level：< - 27dB — Amplitude Ripples：± 0.5dB — Amplitude Taper： < 0.5dB 4 Spectrum Analyzer: R&S FSP7/ 9kHz~7GHz Universal Radio Communication Tester: R&S CMU200 (GSM/GPRS/EGPRS/CDMA/1xEVDO/WCDMA supported) Network Analyzer: Agilent E5071B / 300Hz~8.5GHz Testing Capability OTA：CTIA OTA Certification / Vodafone Certification 2D / 3D Gain：780MHz – 6GHz Free Space Talking Position — SAM Phantom (Phantom) Talking — SAM Phantom (Phantom + hand) 5 Antenna Structure Antenna Return Loss 40mm 35mm 6 Pattern Measurement Reference Coordination Y Z 7 Antenna 3D Pattern @ 2400 MHz 8 Antenna 3D Pattern @ 2450 MHz 9 Antenna 3D Pattern @ 2500 MHz 10 Summary Frequency ( MHz )240024502500 Antenna PIFA Directivity ( dBi ) 3.89 4.29 4.37 Gain ( dBi ) 2.19 2.93 2.71 Efficiency ( % ) 67.54 73.12 68.33 Average Gain ( dB ) -1.70 -1.36 -1.65 3D Gain Table Test Date 2009/4/30 Trade Name JOYMAX App.No 09-D0155-C Model Name SSP-90038 Test Mode Free Space &Talking Position Free Space Communication System Frequency (MHz) 240024502500 TC01 Note PIFA Ant. Port Input Pwr. (dBm) 000 Tot. Rad. Pwr. (dBm) -1.7046-1.3598-1.6538 Peak EIRP (dBm) 2.18585 2.93269 2.71336 Directivity (dBi) 3.89044 4.29244 4.36715 Efficiency (dB) -1.7046-1.3598-1.6538 Efficiency (%) 67.5369 73.1181 68.3314 Gain (dBi) 2.18585 2.93269 2.71336 NHPRP ±Pi/4 (dBm) -2.6771-2.3952-2.7054 NHPRP ±Pi/6 (dBm) -3.9895-3.6984-3.9555 NHPRP ±Pi/8 (dBm) -5.1362-4.8278-5.0056 Upper Hem. PRP (dBm) -6.2503-6.1535-6.5043 Lower Hem. PRP (dBm) -3.5828-3.1095-3.3756 NHPRP4 / TRP Ratio (dB) -0.9725-1.0355-1.0516 NHPRP4 / TRP Ratio (%) 79.937578.787 78.4954 NHPRP6 / TRP Ratio (dB) -2.2849-2.3387-2.3017 NHPRP6 / TRP Ratio (%) 59.0893 58.3627 58.8616 NHPRP8 / TRP Ratio (dB) -3.4316-3.468-3.3518 NHPRP8 / TRP Ratio (%) 45.377 44.9986 46.2191 UHPRP / TRP Ratio (dB) -4.5457-4.7937-4.8505 UHPRP / TRP Ratio (%) 35.1102 33.1611 32.7306 11 LHPRP / TRP Ratio (dB) -1.8782-1.7497-1.7218 LHPRP / TRP Ratio (%) 64.8898 66.8389 67.2694 Front/Back Ratio (dB) 9.72643 12.2588 4.68554 Phi BW (°) 9765169 + Phi BW (°) 673673 - Phi BW (°) 302996 Theta BW (°) 373724 + Th. BW (°) 262712 - Th. BW (°) 111012 Boresight Phi (°) 245.5245.5173.05 Boresight Th. (°) 135135105 Maximum Power (dBm) 2.18585 2.93269 2.71336 Minimum Power (dBm) -16.49-16.129-15.098 Average Power (dBm) -2.5202-2.0721-2.3461 Max/Min Ratio (dB) 18.6761 19.0619 17.8109 Max/Avg Ratio (dB) 4.70604 5.004775.0595 Min/Avg Ratio (dB) -13.97-14.057-12.751 Average Gain (dB) -1.7046-1.3598-1.6538 E-Plane BW (°) 404038 + E-Plane BW (°) 282921 - E-Plane BW (°) 121117 H-Plane BW (°) 585532 + H-Plane BW (°) 403815 - H-Plane BW (°) 181717

'" r " JOYMAXELBC:fRONiCS CO., LTD. . - :», -Aripllca nt/Gr a nt ee ., -r .. ;;;" .: FCC'ID: . ;.; ;" . ' XNNMDIOOAi3 , .' ... ;.~ .. -. ' " ',,, .. . ...~. , 'v. .. ;,-Section 15;212 ModularTransmitters " .. .> / 0 ..•. Request for Modular Approval /·0 "",I.R eq ues t forLimited-ModularApproval ... Requirements EUT Conditions Comply (YIN) '-'~ -' .. ," . .. ..' ., .··... Sinale Modular Approval Requirements " y 1 The radio elements ofthe modular The radio portion ofthis module has transmitter must have their own been shielded, please see exhibition shielding. The physical crystal and External Photo. tuning capacitors may be located external to the shielded radio elements. y The EUT has buffered data inputs, it is buffered modulation/data inputs (if such The modular transmitter must have 2 integrated in chip JN5139-20 I inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. 3 y own power s upp ly regulation. The modular transmitter must have its The module has its own power supply by 3.3VDC via mini PCI interface. 4 The modular transmitter must comply The EUT meets the FCC antenna Y with the antenna and tran smi ssion requirements. The spurious emission sy stem requirements of Sections 15.203, unique antenna connector and please 15.204(b) and 15.204(c). The antenna refer to antenna spec. must either be permanently attached or employ a " un iq ue" antenna coupler (at all connections between the module and the antenna, including the cable). The " p ro fe ss io n a l installation" provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) ofthis section. 5 The modular transmitter must be tested The EUT was tested in a stand-alone Y in a stand-alone configuration, i.e., the configuration via a mini PCI interface to module must not be inside another test kit. Please see section Photographs device during testing for compliance ofTest Configuration in the test report, with Part 15 requirements. Unless the the EUT was plugged in this test kit. transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a». The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) ifusing a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, ifthe FCC identification number is not visible when the FCC 10 is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. "Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, y module is installed inside another device, then the outside ofthe device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: "Contains Transmitter Module FCC ID: XYZMODELl " or "Contains FCC ID: XYZMODELI. " Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example ofwhich must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) ifthe modular transmitter uses an electronic display ofthe FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. Ifthe module is installed inside another device, then the outside ofthe device into which the module is installed must display a label referring to the enclo sed module. This exterior label can use wording such as the following: "Contains FCC certified transmitter module/s). " Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy ofthese instructions must be included in the application for equipment authorization. There are instructions give to the OEM on how to label the end product. 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The EUT is complied with all FCC rules. Please refer to user's manual for detail. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. RF exposure requirement can be fulfilled only for mobile configuration. y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements und…

Text truncated - open the document above for the full version.

JOYMAX ELECTRONICS CO.,LTD. 11/26/2009 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Steven Wang Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Tigo (Brand Name) / MDIOOAB (Model Name) FCC ID: Xl\JNMDI00AB Product Name: ZigBee PIFA Module Signature, Name/Title: Havin Lu I RO Oiector Company Name: JOYMAX ELECTRONICS CO., LTO. Address: No.5, Dong Yuan Rd. 2, Jhongli Industrial Park, Jhongli City, Tao Yuan 32063, Taiwan, R.O.C. Telephone No: +886-3-4 33-5698 ext. 319 Fax No: +886-3-433-5798 Email: [email protected]

JOYMAX ELECTRONICS CO.,LTD. 11/26/2009 Federal Communications Commission Authorization and Evaluation Division FCC ID: XNNMD100AB Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 , disclosure of this Application and all accompanying documentation will not be made before the date ofthe Grant for this application Signature, Name/Title: Havin Lu I RD Diector Company Name: JOYMAX ELECTRONICS CO., LTD. Address: No.5, Dong Yuan Rd. 2, Jhongli Industrial Park, Jhongli City, Tao Yuan 32063, Taiwan, R.O.C. Telephone No: +886~3-433-5698 ext. 319 Fax No: +886-3-433-5798 Email: [email protected]

Compliance Certification Services Inc. Report No.: 91119201-1 Reference No: 90810201 Date of Issue: November 25, 2009 Page 1 Total Page: 1 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

MD100AB ZigBee PIFA Module Label Information Label Line 1：IC ID Number Label Line 2：FCC ID Number Label Line 3：Part Name Label Line 4：Lot Code YYWWNNNNNN (See Below) Identifier Description Format YY Year 09 (Example) WW Week 45 (Example) NNNNNN Serial Number 000001 (Example) 13mm 16mm Label Placed Here.

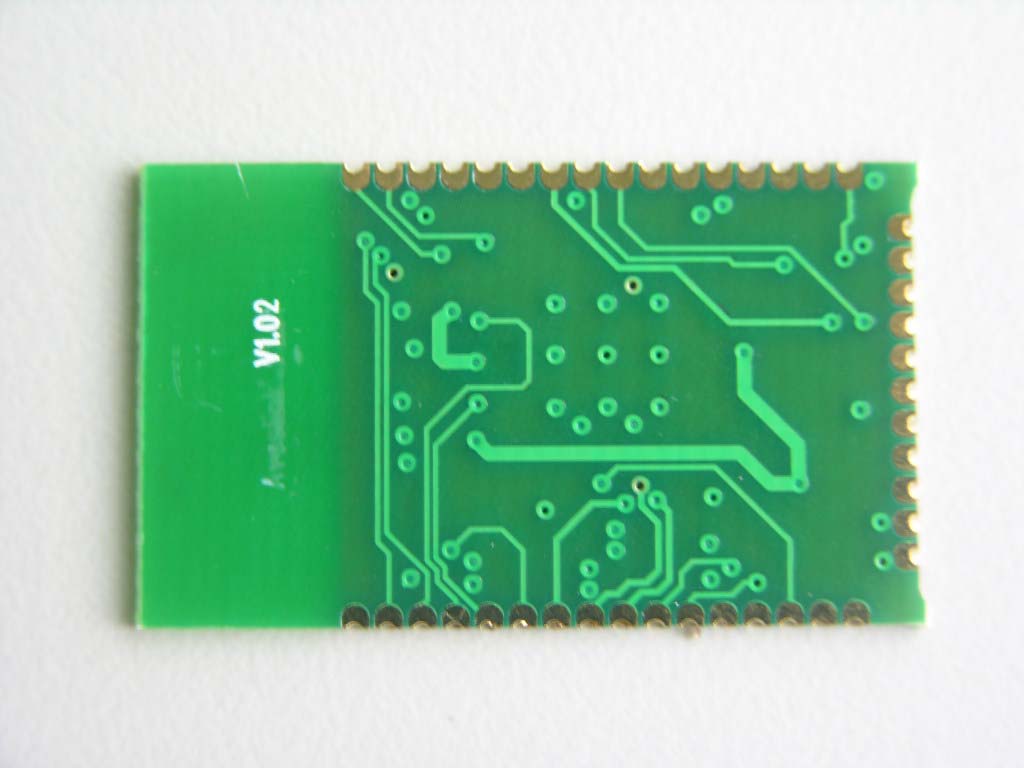

Compliance Certification Services Inc. Report No.: 91119201-1 Reference No: 90810201 Date of Issue: November 25, 2009 Page 1 Total Page: 1 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT

Compliance Certification Services Inc. Reference No: 90810201-RP1 Report No.: 91119201-RP1-1 FCC ID: XNNMD100AB Date of Issue: November 25, 2009 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 49 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For ZigBee PIFA Module Model: MD100AB Trade Name: Tigo Issued to JOYMAX ELECTRONICS CO., LTD. No. 5, Dong Yuan Rd. 2, Jhongli Industrial Park, Jhongli City, Tao Yuan 32063, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Pa-De 2nd Rd., Luchu Hsiang, Taoyuan Shien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Reference No: 90810201-RP1 Report No.: 91119201-RP1-1 FCC ID: XNNMD100AB Date of Issue: November 25, 2009 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 15, 2009 Initial Issue ALL Celine Chou Compliance Certification Services Inc. Reference No: 90810201-RP1 Report No.: 91119201-RP1-1 FCC ID: XNNMD100AB Date of Issue: November 25, 2009 Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION......................................................................................... 4 2. EUT DESCRIPTION ............................................................................................................. 5 3. TEST METHODOLOGY ....................................................................................................... 6 3.1 EUT CONFIGURATION .................................................................................................. 6 3.2 EUT EXERCISE .............................................................................................................. 6 3.3 GENERAL TEST PROCEDURES................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................ 7 3.5 DESCRIPTION OF TEST MODES .................................................................................. 7 4. INSTRUMENT CALIBRATION............................................................................................. 8 4.1 MEASURING INSTRUMENT CALIBRATION.................................................................. 8 4.2 MEASUREMENT EQUIPMENT USED............................................................................ 8 4.3 MEASUREMENT UNCERTAINTY .................................................................................. 9 5. FACILITIES AND ACCREDITATIONS............................................................................... 10 5.1 FACILTIES .................................................................................................................... 10 5.2 EQUIPMENT ................................................................................................................. 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ........................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................................ 12 6.1 SETUP CONFIGURATION OF EUT.............................................................................. 12 6.2 SUPPORT EQUIPMENT............................................................................................... 12 7. FCC PART 15.247 REQUIREMENTS ................................................................................ 13 7.1 6 DB BANDWIDTH ......................................................................................................... 13 7.2 PEAK POWER..............................................................................................................16 7.3 AVERAGE POWER......................................................................................................19 7.4 BAND EDGES MEASUREMENT .................................................................................. 22 7.5 PEAK POWER SPECTRAL DENSITY..........................................................................27 7.6 SPURIOUS EMISSIONS............................................................................................... 30 7.7 POWERLINE CONDUCTED EMISSIONS.....................................................................42 APPENDIX I RADIO FREQUENCY EXPOSURE ..................................................................... 45 APPENDIX II PHOTOGRAPHS OF TEST SETUP ................................................................... 47 Compliance Certification Services Inc. Reference No: 90810201-RP1 Report No.: 91119201-RP1-1 FCC ID: XNNMD100AB Date of Issue: November 25, 2009 Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: JOYMAX ELECTRONICS CO., LTD. No. 5, Dong Yuan Rd. 2, Jhongli Industrial Park, Jhongli City, Tao Yuan 32063, Taiwan, R.O.C. Equipment Under Test: ZigBee PIFA Module Trade Name: Tigo Model: MD100AB Date of Test: August 6 ~ 13, 2009 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No: 90810201-RP1 Report No.: 91119201-RP1-1 FCC ID: XNNMD100AB Date of Issue: November 25, 2009 Page 47 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX II PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Reference No: 90810201-RP1 Report No.: 91119201-RP1-1 FCC ID: XNNMD100AB Date of Issue: November 25, 2009 Page 48 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photos Compliance Certification Services Inc. Reference No: 90810201-RP1 Report No.: 91119201-RP1-1 FCC ID: XNNMD100AB Date of Issue: November 25, 2009 Page 49 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted Emissions Setup Photos
