XNNMD102ACIEEE802.15.4 / Zigbee PIFA Module Family

    V1.01 1 Benefits
Microminiature module solutions
Ready to use in products
Minimizes product development time
No RF test required for systems
Compliant with FCC part 15 rules, IC Canada Features: Module
2.4GHz IEEE802.15.4 & ZigBee PRO Compatible
2.3-3.6V for SOC
Sleep Current ( with Active Sleep Timer ) 2.6μA
Receiver Sensitivity -95dBm
TX Power +2dBm
TX Current 15mA
RX Current 17.5mA
Dimension
32.2*18*3.5mm
Weight
3.0g Features: Microcontroller
32-Bit RISC CPU,up to 32MIPs with low power
128KB RAM, 128KB ROM
4Mbit serial flash for program code and data
On chip OTP efuse
JTAG debug interface
4-input 12-bit ADC, 2 12-Bit DACs, 2 Comparators
3 Application Timer / Counters, 3 System Timers
2 UARTs (One for In-System Debug)
SPI Port with 5 Selects
2-Wire Serial Interface
4-wire digtal audio interface
Watchdog timer
21 GPIO Temperature Range -40°C to +85°C Humidity 10 to 95% RH Lead-Free and RoHS Compliant Features: Module
2.4GHz IEEE802.15.4 & ZigBee PRO Compatible
2.3-3.6V for SOC
Sleep Current ( with Active Sleep Timer ) 2.6μA
Receiver Sensitivity -95dBm
PIFA Antenna Gain +3dBi
TX Power +2dBm (without PIFA Antenna )
TX Current 15mA
RX Current 17.5mA
Dimension
30*18*3.5mm
Weight
3.0g Features: Microcontroller
32-Bit RISC CPU,up to 32MIPs with low power
128KB RAM, 128KB ROM
4Mbit serial flash for program code and data
On chip OTP efuse
JTAG debug interface
4-input 12-bit ADC, 2 12-Bit DACs, 2 Comparators
3 Application Timer / Counters, 3 System Timers
2 UARTs (One for In-System Debug)
SPI Port with 5 Selects
2-Wire Serial Interface
4-wire digtal audio interface
Watchdog timer
21 GPIO Temperature Range:-40°C to +85°C Humidity:10 to 95% RH Lead-Free and RoHS Compliant IEEE802.15.4 / ZigBee PIFA Module Family Overview This MD-102AC-5148A ZigBee PIFA Module is a surface mount module with 1mW output power that enables users to implement IEEE802.15.4 or ZigBee PRO networking applications with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules provide a comprehensive solution with high radio performance and all RF components included. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators and sensors, considerably simplifying product development. Applications
Robust and secure low power wireless applications
ZigBee PRO networks
Home and commercial building automation
Home networks
Toys and gaming peripherals
Industrial systems
Telemetry and utilities (e.g. AMR)
    V1.01 2 Revised History Date Revision Description 2011/01/03 1.0 1 st Released Table of Contents 1. Introduction...................................................................................................... 3 1.1 Key Features ......................................................................................... 3 1.1.1 Module........................................................................................... 3 1.1.2 Microcontroller ............................................................................. 3 1.2 Applications .......................................................................................... 3 2. Specifications .................................................................................................... 4 3. Pin Configurations ........................................................................................... 5 3.1 Pin Assignment ..................................................................................... 6 4. Additional Information .................................................................................... 8 4.1 Outline Drawing ................................................................................... 8 4.2 Module PCB Footprint ......................................................................... 9 4.3 Ordering / Lable Information ............................................................ 10 4.4 Tape and Reel Information................................................................. 11 4.4.1 Tape Orientation and dimensions.................................................. 11 4.4.2 Cover tape details........................................................................... 11 4.4.3 Leader and Trailer ......................................................................... 12 4.4.4 Reel Dimensions ............................................................................. 12 4.5 SMT IR Profile ................................................................................... 13 4.6 How to Avoid ESD Damage to ICs..................................................... 13 5. FCC Statement ............................................................................................... 14 6. IC Statement................................................................................................... 16 7. Contact Information ...................................................................................... 18
    V1.01 3 1. Introduction This MD-102AC-5148A ZigBee PIFA Module is a surface mount module with 1mW output power that enables users to implement IEEE802.15.4 or ZigBee PRO networking applications with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules provide a comprehensive solution with high radio performance and all RF components included. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators and sensors, considerably simplifying product development. 1.1 Key Features 1.1.1 Modu…

Text truncated - open the document above for the full version.

Page No. : 18 Module Approval Request Letter Subject: Module Approval Date: 2011/6/7 FCC ID: XNNMD102AC Dear Reviewer, We, Sporton International Inc., are authorized by Joymax Electronics Co., Ltd. to have their state-of-the-art IEEE802.15.4 / ZigBee PIFA Module Family approved under limited module approval authorization. The application of this module is specified to portable host and mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip JN5148. 3. The requirement of power supply regulation: The part number of the power regulator is M25PX0_SO8. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: device is exempted due to very low output power. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

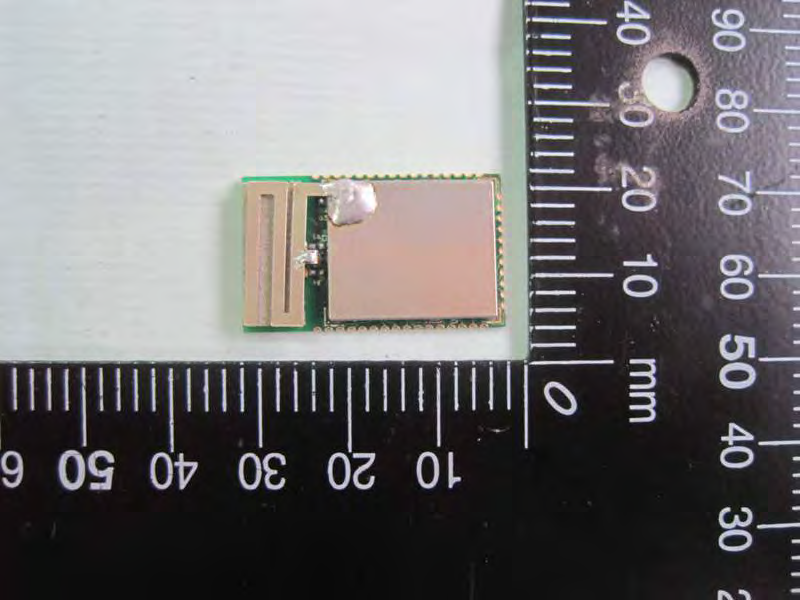

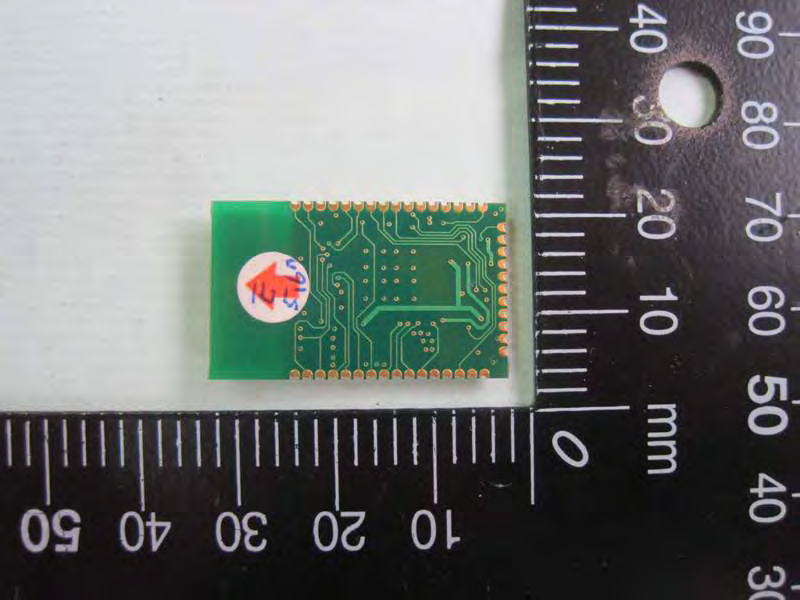

Report No.: 151901 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 02, 2011 FAX : 886-2-2696-2255 Photographs of EUT EUT 1. Crystal 1 (Main source) Report No.: 151901 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 02, 2011 FAX : 886-2-2696-2255 EUT 2. Crystal 2 (Second source)

MD102AC Label Information Label Line 1



IC ID Number Label Line 2



FCC ID Number Label Line 3



Part Name Label Line 4



Barcode Label Line 5



Lot Code YYWWNNNNNN (See Below) Identifier Description Format YY Year 11 (Example) WW Week 02 (Example) NNNNNN Serial Number 000001 (Example) Figure : Example MD-102AC-5148A Labeling for FCC Approved Modules 13mm 16mm

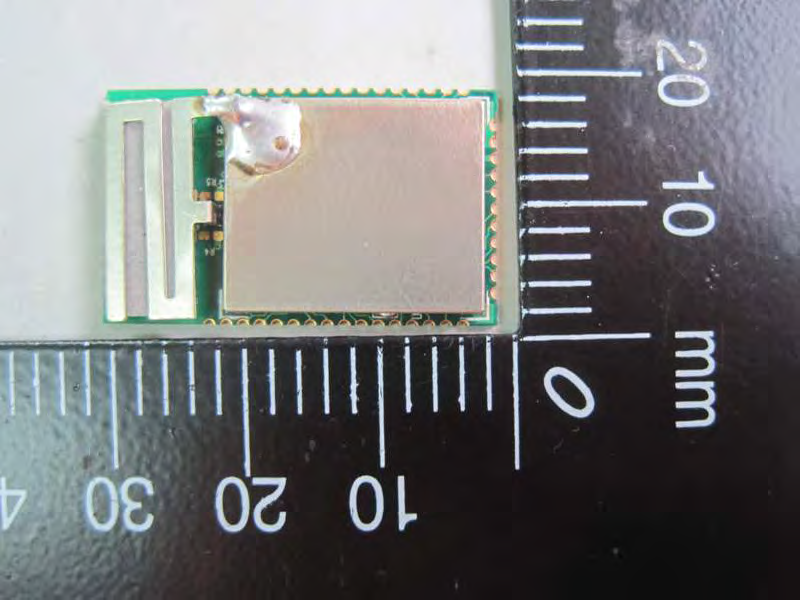

Report No.: 151901 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 02, 2011 FAX : 886-2-2696-2255 Photographs of EUT EUT 1. Crystal 1 (Main source) Report No.: 151901 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 02, 2011 FAX : 886-2-2696-2255 Report No.: 151901 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 02, 2011 FAX : 886-2-2696-2255 EUT 2. Crystal 2 (Second source) Report No.: 151901 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 02, 2011 FAX : 886-2-2696-2255 Report No.: 151901 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 02, 2011 FAX : 886-2-2696-2255

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 02 FCC RADIO TEST REPORT Applicant’s company Joymax Electronics Co., Ltd. Applicant Address No. 5, Dong Yuan Rd. 2, Jhongli Industrial Park, Jhongli City, Tao Yuan 32063 Taiwan, R.O.C. FCC ID XNNMD102AC Manufacturer’s company Joymax Electronics Co., Ltd. Manufacturer Address No. 5, Dong Yuan Rd. 2, Jhongli Industrial Park, Jhongli City, Tao Yuan 32063 Taiwan, R.O.C. Product Name IEEE802.15.4 / ZigBee PIFA Module Family Brand Name Joymax Model Name MD102AC Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2405~ 2480MHz Received Date May 19, 2011 Final Test Date May 30, 2011 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.15.4 ZigBee part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR151901 Report Format Version: 02 Page No. : i of ii FCC ID: XNNMD102AC Issued Date : Jun. 10, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 3 3.3. Table for Filed Antenna ............................................................................................................................................................................. 3 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 3 3.5. Table for Test Modes .................................................................................................................................................................................. 4 3.6. Table for Testing Locations........................................................................................................................................................................ 4 3.7. Table for Supporting Units ......................................................................................................................................................................... 4 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 5 3.9. Test Configurations..................................................................................................................................................................................... 6 4. TEST RESULT........................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement ........................................................................................................................... 8 4.2. Peak Output Power Measurement ....................................................................................................................................................... 12 4.3. Power Spectral Density Measurement.................................................................................................................................................. 14 4.4. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 17 4.5. Radiated Emissions Measurement......................................................................................................................................................... 20 4.6. Band Edge Emissions Measurement...................................................................................................................................................... 29 4.7. Antenna Requirements ........................................................................................................................................................................... 32 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 33 6. TEST LOCATION.................................................................................................................................................. 35 7. TAF CERTIFICATE OF ACCREDITATION.............................................................................................................. 36 APPENDIX A. TEST PHOTOS........................................................................................................................... A1 ~ A7 Report No.: FR151901 Report Format Version: 02 Pag…

Text truncated - open the document above for the full version.

Report No.: FR151901 FCC ID: XNNMD102AC Page No. : 1 of 7 Appendix A. Test Photos Report No.: FR151901 FCC ID: XNNMD102AC Page No. : 2 of 7 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR151901 FCC ID: XNNMD102AC Page No. : 3 of 7 SIDE VIEW Report No.: FR151901 FCC ID: XNNMD102AC Page No. : 4 of 7 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR151901 FCC ID: XNNMD102AC Page No. : 5 of 7 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR151901 FCC ID: XNNMD102AC Page No. : 6 of 7 SIDE VIEW Report No.: FR151901 FCC ID: XNNMD102AC Page No. : 7 of 7 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
