XNNMD102AD2.4GHz ZigBee Wireless Module

TIGO MD102AD User Manual V1.01 1 Benefits  Microminiature module solutions  Ready to use in products  Minimizes product development time  No RF test required for systems  Compliant with FCC part 15 rules, IC Canada Features: Module  2.4GHz IEEE802.15.4 & ZigBee PRO Compatible  2.3-3.6V for SOC  Sleep Current ( with Active Sleep Timer ) 2.6μA  Receiver Sensitivity -95dBm  TX Power +2dBm  TX Current 15mA  RX Current 17.5mA  Dimension：32.2*18*3.5mm  Weight：3.0g Features: Microcontroller  32-Bit RISC CPU,up to 32MIPs with low power  128KB RAM, 128KB ROM  4Mbit serial flash for program code and data  On chip OTP efuse  JTAG debug interface  4-input 12-bit ADC, 2 12-Bit DACs, 2 Comparators  3 Application Timer / Counters, 3 System Timers  2 UARTs (One for In-System Debug)  SPI Port with 5 Selects  2-Wire Serial Interface  4-wire digtal audio interface  Watchdog timer  21 GPIO Temperature Range -40°C to +85°C Humidity 10 to 95% RH Lead-Free and RoHS Com pliant Features: Module  2.4GHz IEEE802.15.4 & ZigBee PRO Compatible  2.3-3.6V for SOC  Sleep Current ( with Active Sleep Timer ) 2.6μA  Receiver Sensitivity -95dBm  PIFA Antenna Gain +3dBi  TX Power +2dBm (without PIFA Antenna )  TX Current 15mA  RX Current 17.5mA  Dimension：30*18*3.5mm  Weight：3.0g Features: Microcontroller  32-Bit RISC CPU,up to 32MIPs with low power  128KB RAM, 128KB ROM  4Mbit serial flash for program code and data  On chip OTP efuse  JTAG debug interface  4-input 12-bit ADC, 2 12-Bit DACs, 2 Comparators  3 Application Timer / Counters, 3 System Timers  2 UARTs (One for In-System Debug)  SPI Port with 5 Selects  2-Wire Serial Interface  4-wire digtal audio interface  Watchdog timer  21 GPIO Temperature Range:-40°C to +85°C Humidity:10 to 95% RH Lead-Free and RoHS Compliant IEEE802.15.4 / ZigBee PIFA Module Family Overview This MD-102AD ZigBee PIFA Module is a surface mount module with 1mW output power that enables users to implement IEEE802.15.4 or ZigBee PRO networking applications with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules provide a comprehensive solution with high radio performance and all RF components included. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators and sensors, considerably simplifying product development. Applications  Robust and secure low power wireless applications  ZigBee PRO networks  Home and commercial building automation  Home networks  Toys and gaming peripherals  Industrial systems  Telemetry and utilities (e.g. AMR) TIGO MD102AD User Manual V1.01 2 Revised History Date Revision Description 2011/08/17 1.0 1 st Released Table of Contents 1. Introduction .......................................................................................................... 3 1.1 Key Features ............................................................................................. 3 1.1.1 Module .............................................................................................. 3 1.1.2 Microcontroller ................................................................................ 3 1.2 Applications .............................................................................................. 3 2. Specifications ........................................................................................................ 4 3. Pin Configurations ............................................................................................... 5 3.1 Pin Assignment ......................................................................................... 6 4. Additional Information ....................................................................................... 8 4.1 Outline Drawing ....................................................................................... 8 4.2 Module PCB Footprint ............................................................................ 9 4.3 Ordering / Lable Information ............................................................... 10 4.4 Tape and Reel Information ................................................................... 11 4.4.1 Tape Orientation and dimensions .................................................... 11 4.4.2 Cover tape details .............................................................................. 11 4.4.3 Leader and Trailer ............................................................................ 12 4.4.4 Reel Dimensions ................................................................................ 12 4.5 SMT IR Profile ....................................................................................... 13 4.6 How to Avoid ESD Damage to ICs ....................................................... 13 5. FCC Statement ................................................................................................... 14 6. IC Statement ....................................................................................................... 16 TIGO MD102AD User Manual V1.01 3 1. Introduction This MD-102AD ZigBee PIFA Module is a surface mount module with 1mW output power that enables users to implement IEEE802.15.4 or ZigBee PRO networking applications with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules provide a comprehensive solution with high radio performance and all RF components included. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators and sensors, considerably simplifying product development. 1.1 Key Features 1.1.1 Module  2.4GHz IEEE802.15.4 & ZigBee PRO Compatible  2.3 -3.6V for SOC  Sleep Current ( with Active Sleep Ti…

Text truncated - open the document above for the full version.

Joymax Electronics Co.. Ltd. No.5.DongYuan Rd. 2,JhongllIndustrial Park, JhongllCity,TaoYuan32063Taiwan, R.O.C. Tel: +886-3-4335698 Fax: +886-3-4335798 Confidential letter Date: 2011/9/1 Federal Communications Commission Authorization and Evaluation DMslon FCC ID : XNNMD1 02AD Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant Hereby requests confidential treatment of information accomparting thisApplication Asoutlined below: 1. Block Diagram 2 . Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely. Applicant's company name Joymax Electronics Co., Ltd. No.5, Dong Yuan Rd. 2, Jhongli Industrial Park, Jhongli City, Tao Applicant's company address Yuan 32063 Taiwan, R.O.C. Signature f\ 'l-L~J~\ _ ,/'--i --c:;7 Job Title and Dept. Irene Wu E-Mail irene @joymax.com Tel. +886-3-4335698

Joymax Electronics Co., Ltd. No.5, DongYuan Rd.2, Jhonglllndustrlal Park,JhongliCity, TaoYuan32063Taiwan, R.O,C. Tel: +886-3-4335698 Fax: +886-3-4335798 DoC Attestation Letter Date: 2011/9/1 We Jovrnox Electronics Co., Ltd., as the grantee of this project FCC ID: XNNMD102AD. would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant's company name Joymax Electronics Co., Ltd. No.5. Dong Yuan Rd. 2. Jhongli I nd ustrial Park, Jhongli City, Tao Applicant's company address Yuan 32063 Taiwan. R.O.C. Signa ture 0,~"-\J~ Job Title and Dept. Irene Wu E-Mail [email protected] +886-3-4335698 Tel.

Page No. : 18 Module Approval Request Letter Subject: Module Approval Date: 2011/8/18 FCC ID: XNNMD102AD Dear Reviewer, We, Sporton International Inc., are authorized by Joymax Electronics Co., Ltd. to have their state-of-the-art 2.4GHz ZigBee Wireless Module approved under limited module approval authorization. The application of this module is specified to portable host and mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip JN5148. 3. The requirement of power supply regulation: The part number of the power regulator is M25PX0_SO8. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: device is exempted due to very low output power. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Joymax Electronics co., Ltd. No.5, Dong Yuan Rd. 2, Jhongli Industrial Park,Jhongll City, Tao Yuan 32063 Taiwan, R,O.C. Tel: +886-3-4335698 Fax: +886-3-4335798 Power of Attorney Date: 2011/9/1 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Spartan International Inc. Address NO.8, Lane 724, Bo-ai St.,Jhubei City, Hsmchu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manoger e-mail [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Tigo / MDl 02AD FCC ID: XNNMD102AD Product name: 2.4GHz ZigBee Wireless Module FCC Grantee contact person information. Applicant's company name : Joymax Electronics Co., Ltd. No .5, Dong Yuan Rd. 2, JhOngli Industrial Park, Jhongli City, Tao Applicant's company address Yuan 32063 Taiwan, R.O.C. Signature ~c.U (;)", Job TItle and Dept. frene Wu E-Mail irene @joymax .com +886-3-4335698 Tel.

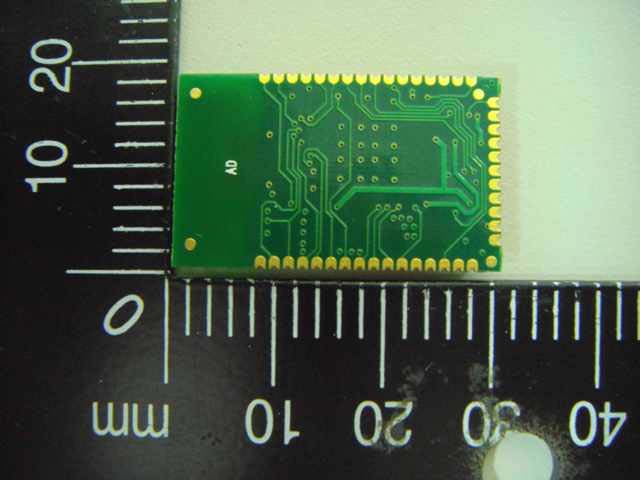

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 16, 2011 FAX : 886-2-2696-2255 Photographs of EUT EUT 1. Crystal 1 (Main source) SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 16, 2011 FAX : 886-2-2696-2255 EUT 2. Crystal 2 (Second source)

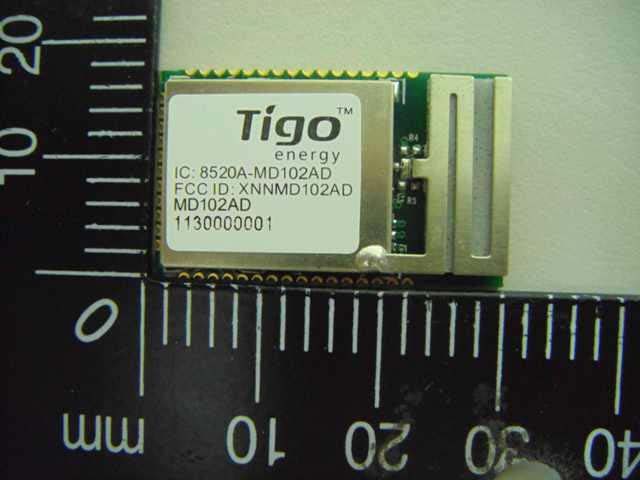

MD102AD Label Information Logo Label Line 1：IC ID Number Label Line 2：FCC ID Number Label Line 3：Part Name Label Line 4：Lot Code YYWWNNNNNN (See Below) Identifier Description Format YY Year 11 (Example) WW Week 33 (Example) NNNNNN Serial Number 000001 (Example) Figure: Example MD-102AD-5148A Labeling for FCC Approved Modules 13mm 16mm
