XNNMD120FAZigBee uFL High Power Module Family

   V1.02 1 Benefits
Microminiature module solutions
Ready to use in products
Minimizes product development time
No RF test required for systems
Compliant with FCC part 15 rules, IC Canada
Long coverage with build-in power amplifier chip Features: Module
2.4GHz IEEE802.15.4 & ZigBee Compatible
2.7-3.6V for SOC
3.0-3.6V for Power Amplifier
Sleep Current ( with Active Sleep Timer ) 2.6μA
Receiver Sensitivity -100dBm
TX Power +20dBm
TX Current 170mA
RX Current 45mA
Dimension
40.5*18*3.5mm
Weight
3.0g Features: Microcontroller
16MHz 32-Bit RISC CPU
96KB RAM, 192KB ROM
4-input 12-bit ADC, 2 11-Bit DACs, 2 Comparators, Temperature Sensor
2 Application Timer / Counters, 3 System Timers
2 UARTs (One for In-System Debug)
SPI Port with 5 Selects
2-Wire Serial Interface
21 GPIO Temperature Range -40°C to +85°C Humidity 10 to 95% RH Lead-Free and RoHS Compliant IEEE802.15.4 / ZigBee uFL High Power Module Family Overview This MD-120FA-5139A ZigBee Module is a surface mount modules with 100mW output power that enables users to implement IEEE802.15.4 or ZigBee compliant systems with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. This module also provides an uFL connector with the ability to connect to the external antenna. It enables the system to extend the communication range. The modules provide a comprehensive solution with high radio performance and all RF components included. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators and sensors, considerably simplifying product development. Module Block Diagram Applications
Robust and secure low power wireless applications
Wireless sensor networks, particularly IEEE802.15.4 / ZigBee systems
Home and commercial building automation
Home networks
Toys and gaming peripherals
Industrial systems
Telemetry and utilities (e.g. AMR)
   V1.02 2 Table of Contents 1. Introduction ..............................................................................3 1.1 Key Features ........................................................................3 1.1.1 Module ..................................................................3 1.1.2 Microcontroller ......................................................3 1.2 Applications ........................................................................3 2. Specifications ........................................................................4 3. Pin Configurations ..................................................................5 3.1 Pin Assignment ..................................................................6 4. Additional Information ............................................................8 4.1 Outline Drawing ..................................................................8 4.2 Module PCB Footprint .............................................................9 4.3 Ordering / Lable Information ...............................................10 4.4 Tape and Reel Information .....................................................11 4.4.1 Tape Orientation and dimensions ...................................11 4.4.2 Cover tape details .....................................................11 4.4.3 Leader and Trailer .....................................................12 4.4.4 Reel Dimensions ...........................................................12 4.5 SMT IR Profile .................................................................13 4.6 How to Avoid ESD Damage to ICs .........................................13 5. FCC Statement ........................................................................14 6. IC Statement ........................................................................16 7. Contact Information .................................................................18
   V1.02 3 1. Introduction This MD-120FA-5139A ZigBee Module is a surface mount modules with 100mW output power that enables users to implement IEEE802.15.4 or ZigBee compliant systems with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. This module also provides an uFL connector with the ability to connect to the external antenna. It enables the system to extend the communication range. The modules provide a comprehensive solution with high radio performance and all RF components included. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators and sensors, considerably simplifying product development. 1.1 Key Features













    ! "  # $%
    ! "  # & ' ' #  (  ()
$    * # #  ( + ,  - ./   0  $    1   # 2  3 .
&  /   0  # $ (4    0   5  )
16 7 , # 8  )
16 * # #  (    .
& 6 * # #  (   .
9   (4   (
   : :
;  -
    1.1.2 Microcontroller
<      & $7=
> ?& .< @  > ?& %<
 ( *      .9@    9.4 @     #    # 4 @ 1    #   * #  $ (4  #
.    /     (1   # A * (  # 4 @  $5 4    1   # 4
= .& 14 + %( "  #  ($5 4    9  * 2
$7 7 #  ,  -  $   /  4
; #  $ #     (  # "  /
  7 %




Robust and secure low power wireless applications
Wireless sensor networks, particularly IEEE802.15.4 /…

Text truncated - open the document above for the full version.

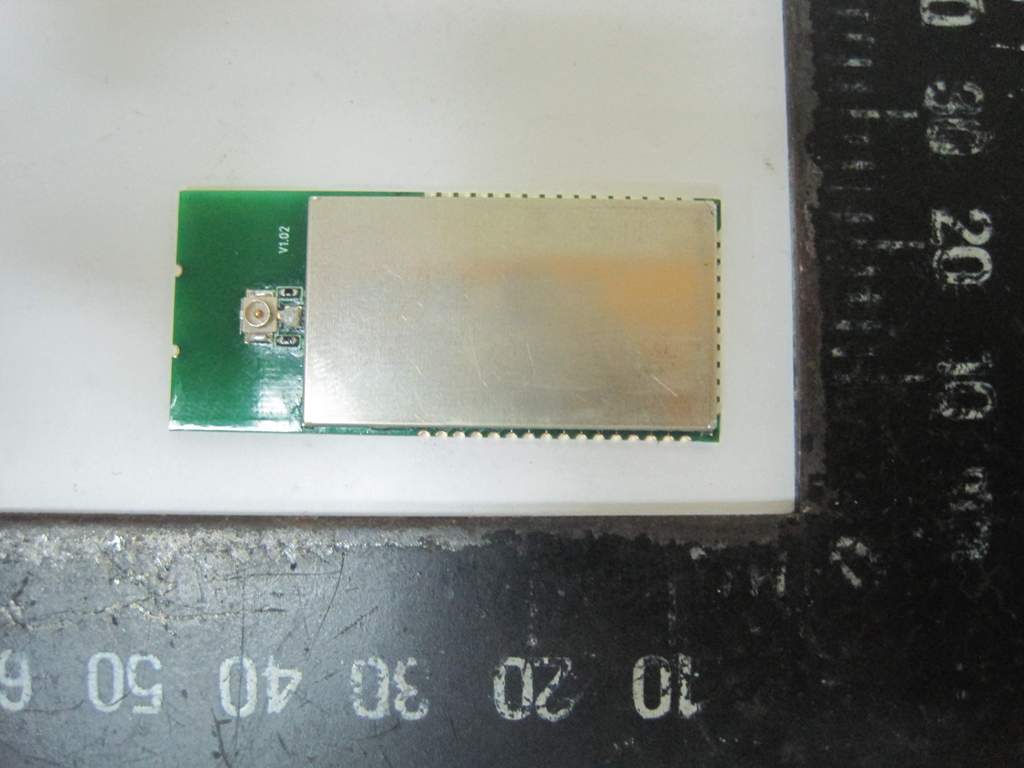

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 22, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 22, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 22, 2010 FAX : 886-2-2696-2255

MD120FA Label Information Label Line 1



IC ID Number Label Line 2



FCC ID Number Label Line 3



Part Name Label Line 4



Barcode Label Line 5



Lot Code YYWWNNNNNN (See Below) Identifier Description Format YY Year 09 (Example) WW Week 34 (Example) NNNNNN Serial Number 000001 (Example) Figure : Example MD-120FA-5139A Labeling for FCC Approved Modules 13mm 16mm

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 22, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 22, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 22, 2010 FAX : 886-2-2696-2255

Report No.: FR0N1114 FCC ID: XNNMD120FA Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR0N1114 FCC ID: XNNMD120FA Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR0N1114 FCC ID: XNNMD120FA Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type :Dipole Antenna Max Conducted Power for IEEE 802.15.4 ZigBee : 18.53 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4 2.5119 18.5300 71.2853 0.035641 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Joymax Electronics Co., Ltd. Applicant Address No. 5 Dong Yuan Rd. 2, Jhongli Industrial Park, Jhongli City, Tao Yuan 32063 Taiwan, R.O.C. FCC ID XNNMD120FA Manufacturer’s company Joymax Electronics Co., Ltd. Manufacturer Address No. 5 Dong Yuan Rd. 2, Jhongli Industrial Park, Jhongli City, Tao Yuan 32063 Taiwan, R.O.C. Product Name ZigBee uFL High Power Module Family Model Name MD120FA Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2405 ~ 2475MHz Received Date Nov. 12, 2010 Final Test Date Nov. 17, 2010 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.15.4 ZigBee part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR0N1114 Report Format Version: 01 Page No. : i of ii FCC ID: XNNMD120FA Issued Date : Nov. 22, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details .................................................................................................................................................................................... 3 3.2. Accessories ......................................................................................................................................................................................... 3 3.3. Table for Filed Antenna....................................................................................................................................................................... 3 3.4. Table for Carrier Frequencies ............................................................................................................................................................. 4 3.5. Table for Test Modes ........................................................................................................................................................................... 4 3.6. Table for Testing Locations .................................................................................................................................................................. 4 3.7. Table for Supporting Units ................................................................................................................................................................... 5 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 5 3.9. Test Configurations ............................................................................................................................................................................. 6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement ........................................................................................................................... 8 4.2. Peak Output Power Measurement .................................................................................................................................................... 12 4.3. Power Spectral Density Measurement .............................................................................................................................................. 14 4.4. 6dB Spectrum Bandwidth Measurement .......................................................................................................................................... 19 4.5. Radiated Emissions Measurement .................................................................................................................................................... 24 4.6. Band Edge Emissions Measurement ................................................................................................................................................. 34 4.7. Antenna Requirements ..................................................................................................................................................................... 39 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 40 TEST LOCATION ................................................................................................................................................. 42 6. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 43 APPENDIX A. PHOTOGRAPHS OF EUT .......................................................................................................... A1 ~ A6 APPENDIX B. TEST PHOTOS .......................................................................................................................... B1 ~ B 6 APPENDIX C. MAXIMUM…

Text truncated - open the document above for the full version.

Report No.: FR0N1114 FCC ID: XNNMD120FA Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR0N1114 FCC ID: XNNMD120FA Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR0N1114 FCC ID: XNNMD120FA Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR0N1114 FCC ID: XNNMD120FA Page No. : 4 of 6 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR0N1114 FCC ID: XNNMD120FA Page No. : 5 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR0N1114 FCC ID: XNNMD120FA Page No. : 6 of 6
