XQC-CS602Audio Detector

70 CS-602 AUDIO DETECTOR patent pending Installation Manual & Users Guide SPECIFICATIONS Frequency: 345MHz Battery: One 3Vdc lithium CR123A Battery life: up to 4 years Detection distance: 6 in max Operating Temperature: 32°-120°F (0°-49°C) Operating Humidity: 5-95% RH noncondensing Compatible with 345MHz ClearSky Hub Supervisory signal interval: 70 min(approx.) Maximum current draw: 23mA during transmission OPERATION The FireFighter™ sensor is designed to listen to any smoke, carbon or combo detector. Once confirmed as an alarm, it will transmit a signal to the alarm control panel which if connected to a central monitoring station, will dispatch the fire department. WARNING:This audio detector is intended only for use with smoke, carbon and combo detectors but it does not detect the presence of smoke, heat, or fire directly. ENROLLING To enroll the sensor remove the top cover by depressing the friction tab in order to reveal the battery. Pull and discard the battery plastic tab to turn on the device. Download and install ClearSky App on your android or IOS phone. Open yourClearSky APP and follow the directions on the app to learn in the sensor. App will require you to press the learn button when linking (Image 1). There are 2 modes of detection on the FireFighter™. Mode 1 is smoke only and Mode 2 is smoke and carbon monoxide alert detection. To switch between modes, remove the battery, press and hold the tamper switch and learn button until a red LED turns on. Let go of tamper and learn button. 1 red blink indicates smoke alert detection. 2 red blinks indicates smoke + CO alert detection. MOUNTING Included with this device is a mounting bracket, hardware and double sided tape. To ensure proper operation ensure the side of the device with the small holes is directly facing the sounder holes on the smoke detector. Secure the mounting bracket to the wall or ceiling using the two mounting screws and double sided tape provided, then secure the audio detector to the mounting bracket using the small screw provided.The FireFighter™ must be mounting within 6 inches of the detector for optimal operation. WARNING:No n-interconnected smoke detectors require an audio detector by each smoke detector sounder. This equipment should be installed in accordance with Chapter 2 of the National Fire Alarm Code, ANSI/NFPA 72, (National Fire Protection Association, Batterymarch Park, Quincy, MA 02269). Printed information describing proper installation, operation, testing, maintenance, evacuation planning, and repair service is to be provided with this equipment. Warning: Owner’s instruction notice: ’Not to be removed by anyone except occupant’. A Universal Electronics Company TESTING To test the RF transmission from the mounted position you can either generate a tamper by removing the cover or press the learn button located next to the tamper switch. Press and release ONCE to send a Smoke signal or press and HOLD for 2 seconds to send a Carbon signal. To test the audio detection, press and hold the smoke detector test button. Press and hold the smoke detector button for at least 30 seconds to ensure that FireFighter™ has had sufficient time to identify the smoke alarm pattern and lock into alarm. Ensure the FireFighter™ cover is on and that you wear hearing protection. NOTE: This system must be checked by a qualified technician at least once every three (3) years. Please test the unit once per week to ensure proper functionality. LED The Firefighter™ is equipped with a multi-color LED. When a valid audio signal is heard the LED will turn red and flash in sequence to the smoke detector sounder. When the Firefighter™ has determined the audio signal heard is a valid alarm, the LED will turn solid green to indicate it has transmitted to the panel. The LED will blink yellow following the detected alarm tone. On power up, the LED will blink red to show which mode it is in, once for smoke only, twice for smoke + CO detection mode. REPLACING THE BATTERY When the battery is low a signal will be sent to the control panel. To replace the battery: 1) Remove the FireFighter™ from installation location by sliding the unit off the wall/ceiling mount in the direction indicated on the FireFighter™ Cover. 2) Unscrew the two screws on the back of the FireFighter™. Remove the top cover by depressing the friction tab in order to reveal the battery. This will send a tamper signal to the control panel.) 3) Replace with a Panasonic CR123A battery ensuring the + side of the battery faces as indicated on the device. 4) Re-attach the cover, you should hear a click when the cover engages properly. Then replace the screws removed in step 2. 5) Replace the on the mounting plate from step 1. WARNING:While the audio detector monitors its own battery, it does not monitor the battery in the smoke detectors. Batteries should be changed as per the original smoke detector manufacturer’s instructions. Always test the audio detector and smoke alarms after battery installation to confirm proper operation IMAGE 1: ENROLLING / TEST / TAMPER BUTTON TAMPER SWITCH LEARN BUTTON IMAGE 2: INSTALLATION DISTANCE HOLES TO LINE UP WITH EXISTING SMOKE DETECTOR IMAGE 3:SIDEMARKINGS PACKAGE CONTENTS Included Items: 1 x FireFighter™ Wireless Audio Detector 1 x Mounting Plate 2 x Mounting Screws 2 x Double Sided Tape 1 x CR123A battery 1 x Installation Manual FCC Compliance Statement This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency e…

Text truncated - open the document above for the full version.

December 07, 2020 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for Ecolink Intelligent Technology, 2055 Corte Del Nogal, Carlsbad, CA 92011, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Ecolink Intelligent Technology product: Model CS-602 FireFighter under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Ecolink Intelligent Technology nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Dru g-Abuse act of 1988,21 U.S.C. 853(a). In addition, Ecolink Intelligent Technology will no tify the Federal Communications Commission if, at any time, the situation changes causing Ecolink Intelligent Technology to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at (855)432-6546. Sincerely, Jay Stone Director of Engineering Ecolink Intelligent Technology 2055 Corte Del Nogal, Carlsbad, CA 92011

1 December 05, 2020 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: TCB application submittal Gentlemen: We, Ecolink Intelligent Technology, would like to declare that the application being submitted for the device with FCC ID: XQC-CS602, has not been submitted to another TCB or FCC for certification. If you have any questi ons, please do not hesitate t o contact us at (855)432-6546. Sincerely, Jay Stone Director of Engineering Ecolink Intelligent Technologies

1(1) December 07, 2020 Attention: Application Examiner RE: Request for Confidentiality Applicant: Ecolink Intelligent Technology FCC ID: XQC-CS602 To Whom It May Concern: Request is hereby submitted by Ecolink Intelligent Technology to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: Schematics Detailed Block Diagrams Detailed Operational/Functional Description Ecolink Intelligent Technology has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The information contained in the confidential exhibits listed above is not available to the public. Sincerely, Jay Stone Director of Engineering Ecolink Intelligent Technology 2055 Corte Del Nogal, Carlsbad, CA 92011

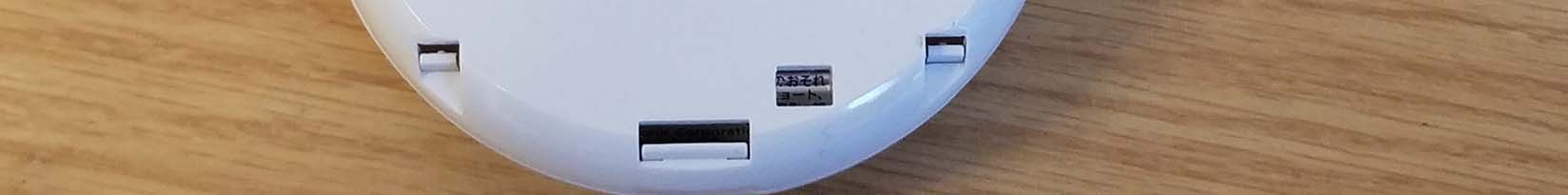

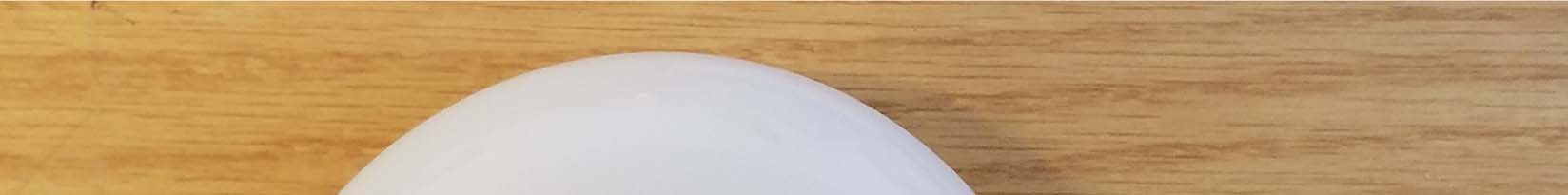

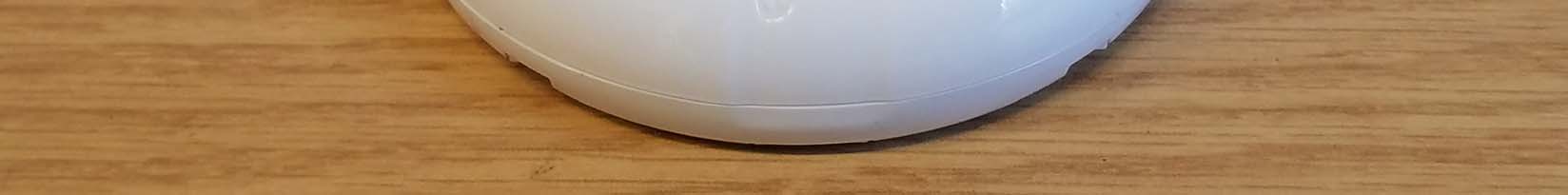

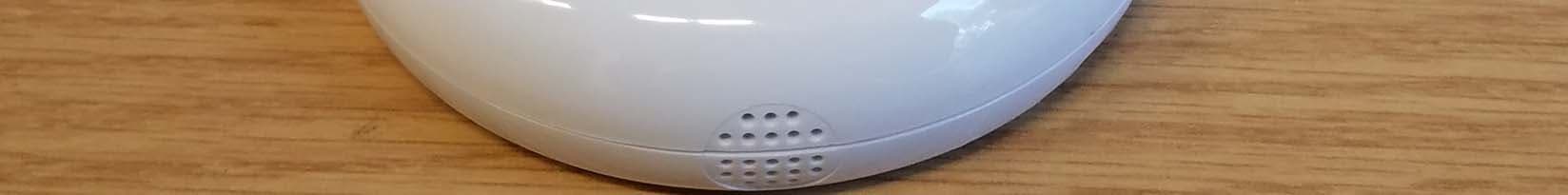

Top View of the EUT Bottom View of the EUT Side View #1 of the EUT Side View #2 of the EUT Side View #3 of the EUT Side View #4 of the EUT

Ecolink Intelligent Technology, Inc.Page 1 of 1 2055 Corte Del Nogal Carlsbad, CA 92011 CS-602 Regulatory Label Information Model Number: CS-602 FCC ID: XQC-CS602 IC: 9863B-CS602 The FCC ID label material for this is: Adhesive is acrylic resin Substrate is white paper Ink printed Model #: CS-602 FCC ID: XQC-CS602 IC: 9863B-CS602

Inside View #1 of the EUT Inside View #2 of the EUT Top View of the PCB - #1 Top View of the PCB - View #2 Bottom View of the PCB - View #1 Bottom View of the PCB - View #2

Compatible Electronics, Inc.https://celectronics.com 114 Olinda Drive Brea, CA 92823 This device FCC ID: Prepared By: Date: The maximum power that the transmitter is capable of is 0.87 mW Applied duty cycle? no Using the following formula from section 4.3.1 of KDB 447498 at test separation distances ≤ 50 mm [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [ √ f(GHz)] Duty Cycle 50.00% Value 1-g (mW) 10-g (mW) 0.10 152 535 "Value" shall be ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR 1-g power limit 10-g power limit 255 638 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An example of this is the determination of exposure from a device that uses digital technology such as a time-division multiple-access (TDMA) scheme for transmission of a XQC-CS602 Max Peak Power (dBm) Min Separation distance (mm) * Frequency (Ghz) < 50mm power limits for above frequency and distance When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 0.345 5 -0.60 Kyle FujimotoNovember 23, 2020 SAREXJUST-B-0-43 D 02/27/2020

Report Number: B01123D1 FCC Part 15 Subpart B and FCC Section 15.231; RSS-210 & RSS-GEN Test Report Clear Sky Firefighter Model: CS-602 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 22 FCC PART 15, SUBPART B and C; FCC 15.231; and RSS-210 & RSS GEN TEST REPORT for CLEAR SKY FIREFIGHTER Model: CS-602 Prepared for ECOLINK INTELLIGENT TECHNOLOGY, INC. 2055 CORTE DEL NOGAL CARLSBAD, CALIFORNIA 92011 Prepared by:_____________________ JAMES ROSS Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: DECEMBER 8, 2020 REPORT APPENDICES TOTAL BODY A B C D E PAGES 22 2 2 2 10 25 63 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B01123D1 FCC Part 15 Subpart B and FCC Section 15.231; RSS-210 & RSS-GEN Test Report Clear Sky Firefighter Model: CS-602 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 22 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 1.1 Decision Rule & Risk 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration – Emissions 9 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 Emissions Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Measurement Uncertainty 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions Test 14 7.1.3 RF Emissions Test Results 16 7.1.4 Sample Calculations 17 7.1.5 Duty Cycle Calculation 19 7.1.6 99 % Bandwidth 20 7.1.7 -20 dB Bandwidth 20 7.1.8 Transmission Time 21 8. CONCLUSIONS 22 Report Number: B01123D1 FCC Part 15 Subpart B and FCC Section 15.231; RSS-210 & RSS-GEN Test Report Clear Sky Firefighter Model: CS-602 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 22 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Models Covered Under This Report D Diagrams, Charts, and Photos  Test Setup Diagrams  Antenna and Effective Gain Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Layout of the Semi-Anechoic Test Chamber LIST OF TABLES TABLE TITLE 1 Radiated Emission Results Report Number: B01123D1 FCC Part 15 Subpart B and FCC Section 15.231; RSS-210 & RSS-GEN Test Report Clear Sky Firefighter Model: CS-602 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 22 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used by the client to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the United States government. Device Tested: Clear Sky Firefighter Model: CS-602 S/N: N/A Product Description: The equipment under test is a battery powered Clear Sky Firefighter manufactured by Ecolink Intelligent Technology. The transmit frequency is 345 MHz. The oscillator(s) are 10.78 MHz. Dimensions: 6.0 cm (L) x 6.0 cm (W) x 0.8 cm (H). Modifications: The EUT was not modified to meet the specifications. Customer: Ecolink Intelligent Technology, Inc. 2055 Corte Del Nogal Carlsbad, California 92011 Test Date: November 23, 2020 Test Specifications covered by accreditation: Test Specifications : Emissions requirements CFR Title 47, Part 15, Subpart B; CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.231; RSS-210 and RSS-Gen Test Procedures: ANSI C63.4 and ANSI C63.10 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B01123D1 FCC Part 15 Subpart B and FCC Section 15.231; RSS-210 & RSS-GEN Test Report Clear Sky Firefighter Model: CS-602 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 22 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Spurious Radiated RF Emissions, 9 kHz – 3.45 GHz (Transmitter and Digital portion) Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; the limits of CFR Title 47, Part 15 Subpart C, sections 15.205, 15.209, and 15.231; and the limits of RSS-210 and RSS-Gen Highest reading in relation to spec limit 76.05 dBuV/m (AVG) @ 345 MHz (*U = 3.19 dB) 2 -20 dB Bandwidth Complies with limits of CFR Title 47, Part 15 Subpart C, section 15.231 (c); and the limits of RSS-210 3 Transmi…

Text truncated - open the document above for the full version.

FRONT VIEW ECOLINK INTELLIGENT TECHNOLOGY, INC. CLEAR SKY FIREFIGHTER MODEL: CS-602 FCC SUBPART B AND C; RSS-210 AND RSS-GEN – RADIATED EMISSIONS – BELOW 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS REAR VIEW ECOLINK INTELLIGENT TECHNOLOGY, INC. CLEAR SKY FIREFIGHTER MODEL: CS-602 FCC SUBPART B AND C; RSS-210 AND RSS-GEN – RADIATED EMISSIONS – BELOW 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FRONT VIEW ECOLINK INTELLIGENT TECHNOLOGY, INC. CLEAR SKY FIREFIGHTER MODEL: CS-602 FCC SUBPART B AND C; RSS-210 AND RSS-GEN – RADIATED EMISSIONS – ABOVE 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS REAR VIEW
ECOLINK INTELLIGENT TECHNOLOGY, INC. ECOLINK INTELLIGENT TECHNOLOGY, INC. CLEAR SKY FIREFIGHTER MODEL: CS-602 FCC SUBPART B AND C; RSS-210 AND RSS-GEN – RADIATED EMISSIONS – ABOVE 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONs
