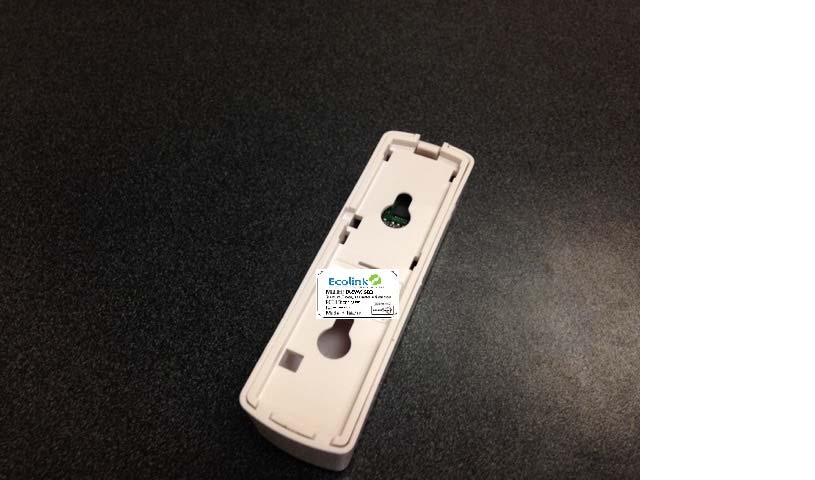

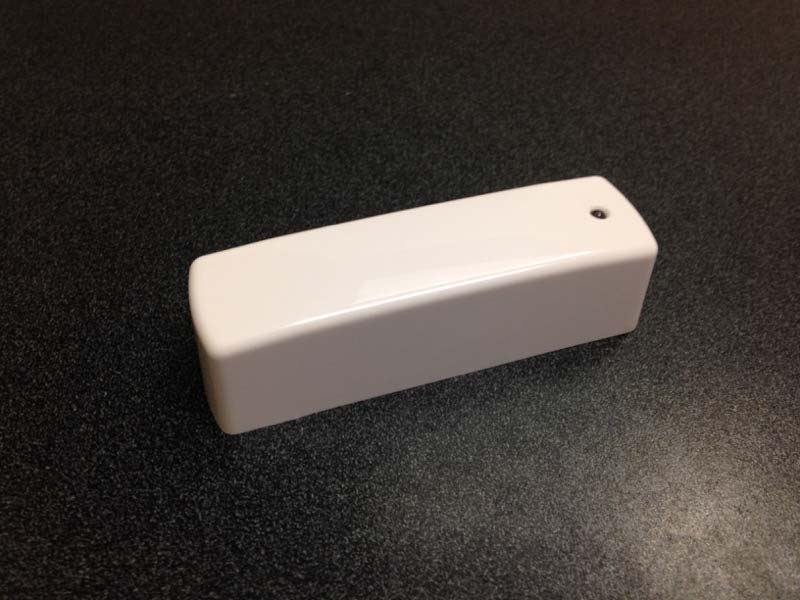

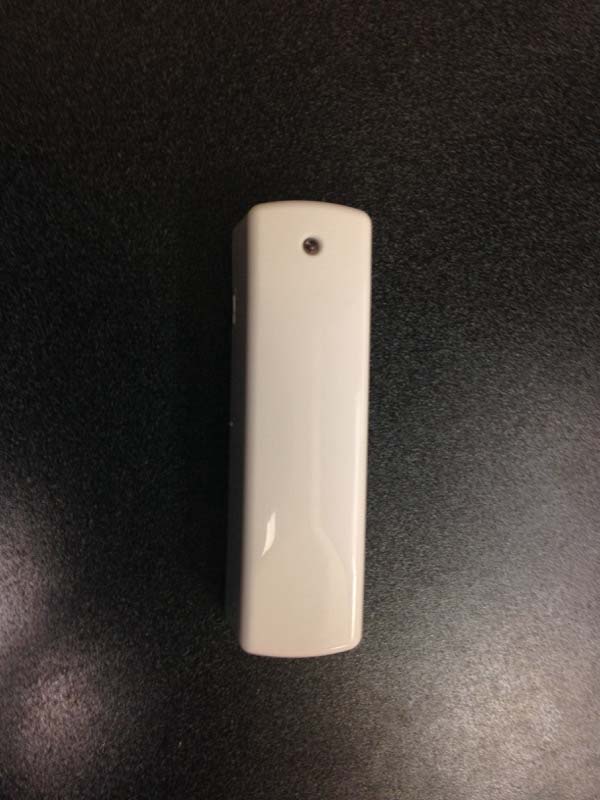

XQC-DWZ25Door & Window Sensor

© 2015 Ecolink Intelligent Technology Inc. PN DW-ZWAVE2.5 R1.04 Door/Window Sensor Installation Instructions Product Overview  Z-Wave+™ enabled device which provides open/closed position status  Transmits open/closed status  Reports tamper condition when cover is open Product Specifications  For indoor use only  Operating frequency: 908.42 MHz  Operation range: Up to 100 feet (30.5 meters) line-of-sight  Operating temperature: 0° – 49°C, 32° – 120°F (ambient temperature)  Battery type required: 3V Lithium CR123A  Battery life approximately 3 years Network Inclusion The sensor must be added to a Z-Wave network prior to use. To include the sensor in a network both the sensor and the network controller must be in inclusion mode at the same time. Refer to the instructions provided by the manufacturer of your specific controller for details on initiating the controller’s inclusion mode. STEP ONE Start by placing the controller into inclusion mode. STEP TWO Activate inclusion mode for the sensor by removing the plastic pull-tab from the back of the sensor. When the inclusion process in complete, the LED on the sensor will be solid blue, then go out. STEP THREE Test the sensor. Place the magnet next to the sensor to represent a closed position (see Installation section to see where to position the magnet). If the LED flashes ONE TIME, it is successfully communicating on your Zwave network. If the LED on the sensor flashes slow and steady for 5 seconds, you need to repeat the inclusion process. Notes: If you need to repeat the inclusion process, repeat STEP ONE above, then for STEP TWO you will need to simply remove the cover of the sensor, remove the battery for 10 seconds, reinsert the battery, and replace the sensor cover. This will re-enter the sensor in inclusion mode. © 2015 Ecolink Intelligent Technology Inc. PN DW-ZWAVE2.5 R1.04 Network Inclusion: Key Points to Remember  Controller inclusion mode must be activated BEFORE starting sensor inclusion mode.  The sensor can only be included into one controller network at a time, and must be excluded from one network before inclusion in another.  Removing the pull tab connects the battery and initiates sensor inclusion mode. Inclusion mode can also be initiated by removing the battery for at least 5 seconds, reinstalling the battery, then replacing the sensor cover.  The plastic pull tab must be removed to enable sensor operation.  The sensor automatically enters inclusion mode at power-up.  Exclusion mode on the senor is initiated following the same exact procedure as inclusion. Installation The package contains the following: 1- Door/Window Sensor 1- Sensor Mounting Bracket 2- Screws for Sensor Mounting Bracket 1- Adhesive tape for Sensor Mounting Bracket 1- Sensor Magnet 2- Screws for Sensor Magnet 1- Adhesive tape for Sensor Magnet STEP ONE Identify Location for Sensor and Magnet: Determine where on the door or window you are able to mount the sensor and magnet. Note, that the sensor has a line and arrow that identify where the magnet should be located, relative to the sensor. The sensor is typically attached to the non-moving part of the door or window (i.e. the door jamb or window frame). For your convenience two mounting methods are provided. The sensor can be mounted with adhesive tape and/or screws. First make sure you have a flat clean surface to mount the sensor and magnet to. Please verify the correct orientation of the sensor and location of the magnet before you continue on to mounting the sensor and magnet. Magnet Location © 2015 Ecolink Intelligent Technology Inc. PN DW-ZWAVE2.5 R1.04 Left hand door mounting (arrow pointing UP, magnet on left side) Right hand door mounting (arrow pointing down, magnet on right side) STEP TWO Mount the sensor and magnet to a clean dry surface with the adheasive tape and/or the screws provided Fixed jamb Door Adhesive Tape Mounting Bracket Screws (optional) Senso r Adhesive Tape Mounting Bracket Screws (optional) Magnet Fixed jamb Door © 2015 Ecolink Intelligent Technology Inc. PN DW-ZWAVE2.5 R1.04 ADDITIONAL NOTES AND SUMMARY:  With either mounting method the first step is to attach the sensor mounting bracket to door frame or window frame. (The mounting bracket is used regardless of choice of screws or tape).  The sensor can slide onto the mounting bracket in two different ways. To ensure that the sensor is securely fastened it is recommended that the tab on the bracket engage the back of the sensor.  Before attaching the bracket to a surface note how the bracket will need to be oriented in order for the tab to engage the sensor. The required orientation of the sensor determines the bracket orientation.  The sensor slides onto the bracket until the tab engages. Please be advised that adhesive tape may damage the surfaces to which it is attached. BROWN PLASTIC HOUSINGS ( OPTIONAL ) Included with every Ecolink Door/Window Sensor is a second set of plastics in BROWN. If your door or window is darker in color, you may choose to use the BROWN cover for the sensor and the BROWN plastics for the magnet. MAX GAP: 5/8” IMPORTANT: The edge of the magnet must align with the line on the sensor, AND the magnet must locate next to the arrow on the sensor. Maximum gap between the magnet and the sensor is 5/8”. If the magnet is not located following these rules, the sensor may not get activated. © 2015 Ecolink Intelligent Technology Inc. PN DW-ZWAVE2.5 R1.04 What is Z-Wave? The Z-Wave protocol is an interoperable, wireless, RF-based communications technology designed specifically for control, monitoring and status reading applications in residential and light commercial environments. Mature, proven and broadly deployed (with over 35 million products sold worldwide), Z-Wave is by far the world market leader in wireless control, bringing affordable, reliable and easy-to-use 'smart' products to many millions of people in every aspect of daily life. Certified Z-Wave devices regardless of manufact…

Text truncated - open the document above for the full version.

1(2) 10/21/2015 Attention: Application Examiner RE: Request for Confidentiality Applicant: Ecolink Intelligent Technology FCC ID: XQC-DWZ25 To Whom It May Concern: Request is hereby submitted by Ecolink Intelligent Technology to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description Request is hereby submitted by Ecolink Intelligent Technology to withhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 45 days from the date of Authorization:  Test setup photos  Internal photos  User manual Rationale for request for confidentiality: Ecolink Intelligent Technology has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. 2(2) Sincerely, Jay Stone Director of Engineering Ecolink Intelligent Technology

September 11, 2015 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Ecolink Intelligent Technology FCC ID: XQC-DWZ25 To Whom It May Concern: We, Ecolink Intelligent Technology, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number XQC-DWZ25 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is September 11, 2015. The Limited Agency Agreement expires on September 11, 2017, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Jay Stone Director of Engineering Ecolink Intelligent Technology

Non-Specific Radio Report Shell Rev. August 2015 Page 1 of 27 Ecolink, Model: DW-ZWAVE2.5-ECO EMC TEST REPORT Report Number: 102222322LAX-001 Project Number: G102222322 Report Issue Date: October 18, 2015 Model(s) Tested: DW-ZWAVE2.5-ECO Standards: FCC CFR47 Part 15 Subpart C, October 2014 Intentional Radiator §15.249, Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz FCC CFR47 Part 15 Subpart B, October 2014 Unintentional Radiator Industry Canada RSS-210 Issue 8, December 2010 License-exempt Radio Apparatus (All Frequency Bands): Category I Equipment §A2.9, Bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz Industry Canada ICES-003 Issue 5 Information Technology Equipment (ITE) - Limits and methods of measurement Tested by: Client: Intertek 25791 Commercentre Drive Lake Forest, CA 92630 USA Ecolink 2055 Corte Del Nogal Carlsbad, CA 92011 USA Report prepared by Report reviewed by Grace Lin EMC Staff Engineer Krishna Vemuri EMC Senior Staff Engineer This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Report Number: 102222322LAX-001 Issued: 10/18/2015 Non-Specific Radio Report Shell Rev. August 2015 Page 2 of 27 Ecolink, Model: DW-ZWAVE2.5-ECO Table of Contents 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Client Information ................................................................................................................................ 4 4 Description of Equipment Under Test and Variant Models ............................................................. 4 5 System Setup and Method .................................................................................................................. 6 6 Fundamental Field Strength ............................................................................................................... 7 7 Occupied Bandwidth ......................................................................................................................... 11 8 Transmitter Radiated Spurious Emissions ..................................................................................... 14 9 Receiver Radiated Spurious Emissions .......................................................................................... 21 10 AC Mains Conducted Emissions .................................................................................................. 25 11 Revision History ............................................................................................................................. 27 Intertek Report Number: 102222322LAX-001 Issued: 10/18/2015 Non-Specific Radio Report Shell Rev. August 2015 Page 3 of 27 Ecolink, Model: DW-ZWAVE2.5-ECO 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 4.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested does not comply with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Intertek does not make any claims of compliance for samples or variants which were not tested. 2 Test Summary Section Test full name Result 6 Fundamental Field Strength (FCC §15.249(a), FCC §15.249(c); IC RSS-210 Issue 8 §A2.9) Compliant 7 Occupied Bandwidth (FCC §15.215; IC RSS-Gen Issue 4 §6.6) Compliant 8 Transmitter Radiated Spurious Emissions (FCC §15.249(a), FCC §15.249(c), FCC §15.249(d), FCC §15.209; IC RSS-210 Issue 8 §A2.9, IC RSS-Gen Issue 4 §8.9) Compliant 9 Receiver Radiated Spurious Emissions (FCC §15.109; IC ICES-003 Issue 5 §6.2) Compliant 10 AC Mains Conducted Emissions (FCC §15.207; IC RSS-Gen Issue 4 §8.8) (FCC §15.107; IC ICES-003 Issue 5 §6.1) N/A* *: EUT is battery powered Intertek Report Number: 102222322LAX-001 Issued: 10/18/2015 Non-Specific Radio Report Shell Rev. August 2015 Page 4 of 27 Ecolink, Model: DW-ZWAVE2.5-ECO 3 Client Information This EUT was tested at the request of: Client: Ecolink 2055 Corte Del Nogal Carlsbad, CA 92011 USA Contact: Mike Archbold Telephone: (760) 431-8804 Fax: Email: [email protected] 4 Description of Equipment Under Test and Variant Models Equipment Under Test Description Manufacturer Model Number Serial Number Home Motion Sensor Ecolink DW-ZWAVE2.5-ECO 908.42 MHz Home Motion Sensor Ecolink DW-ZWAVE2.5-ECO 916.00 MHz Home Motion Sensor Ecolink DW-ZWAVE2.5-ECO Production Firmware Receive Date: 07/30/2015, 09/16/2015 Received Condition: Good Type: Production Description of Equipment Under Test Th…

Text truncated - open the document above for the full version.
