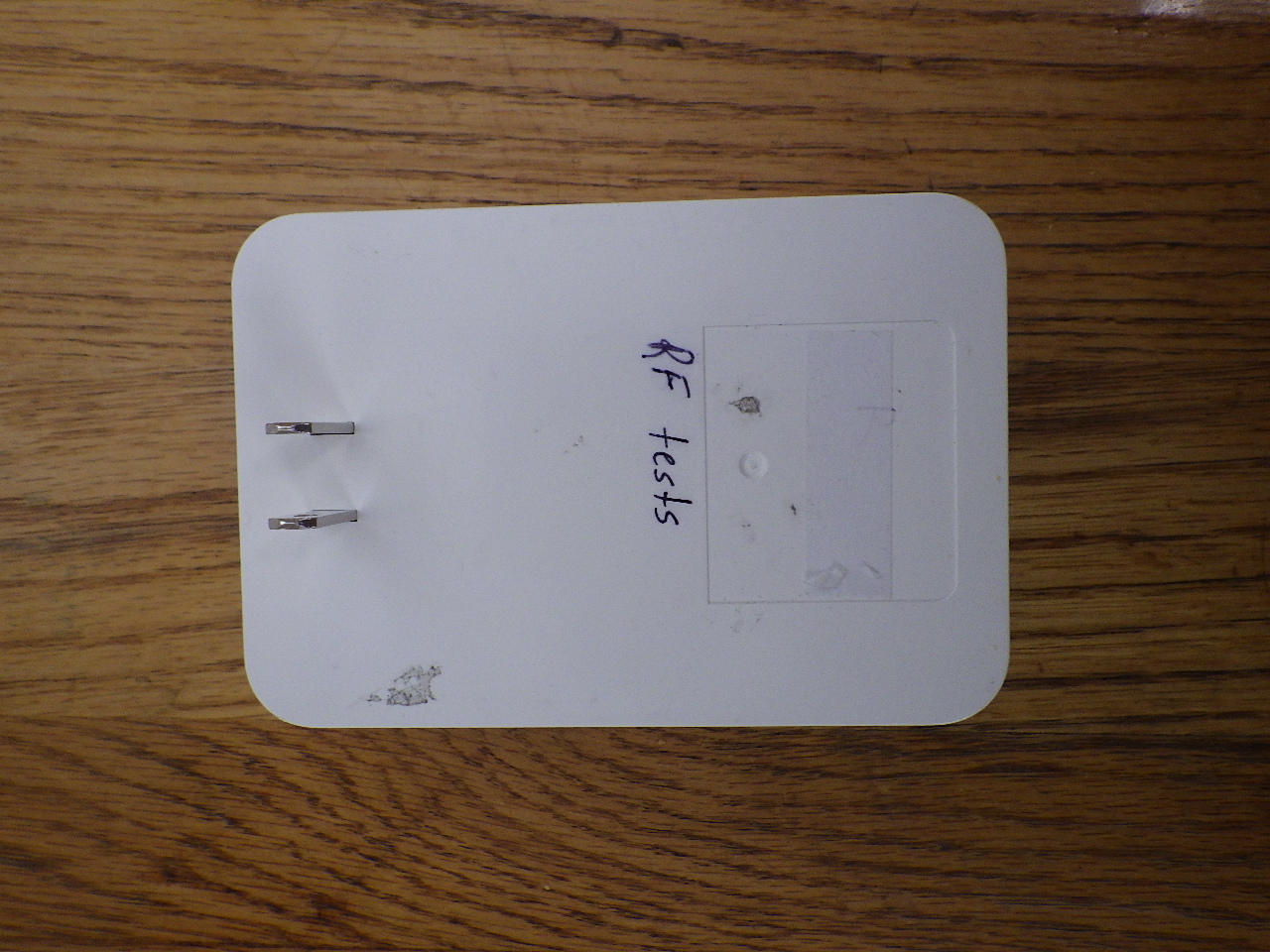

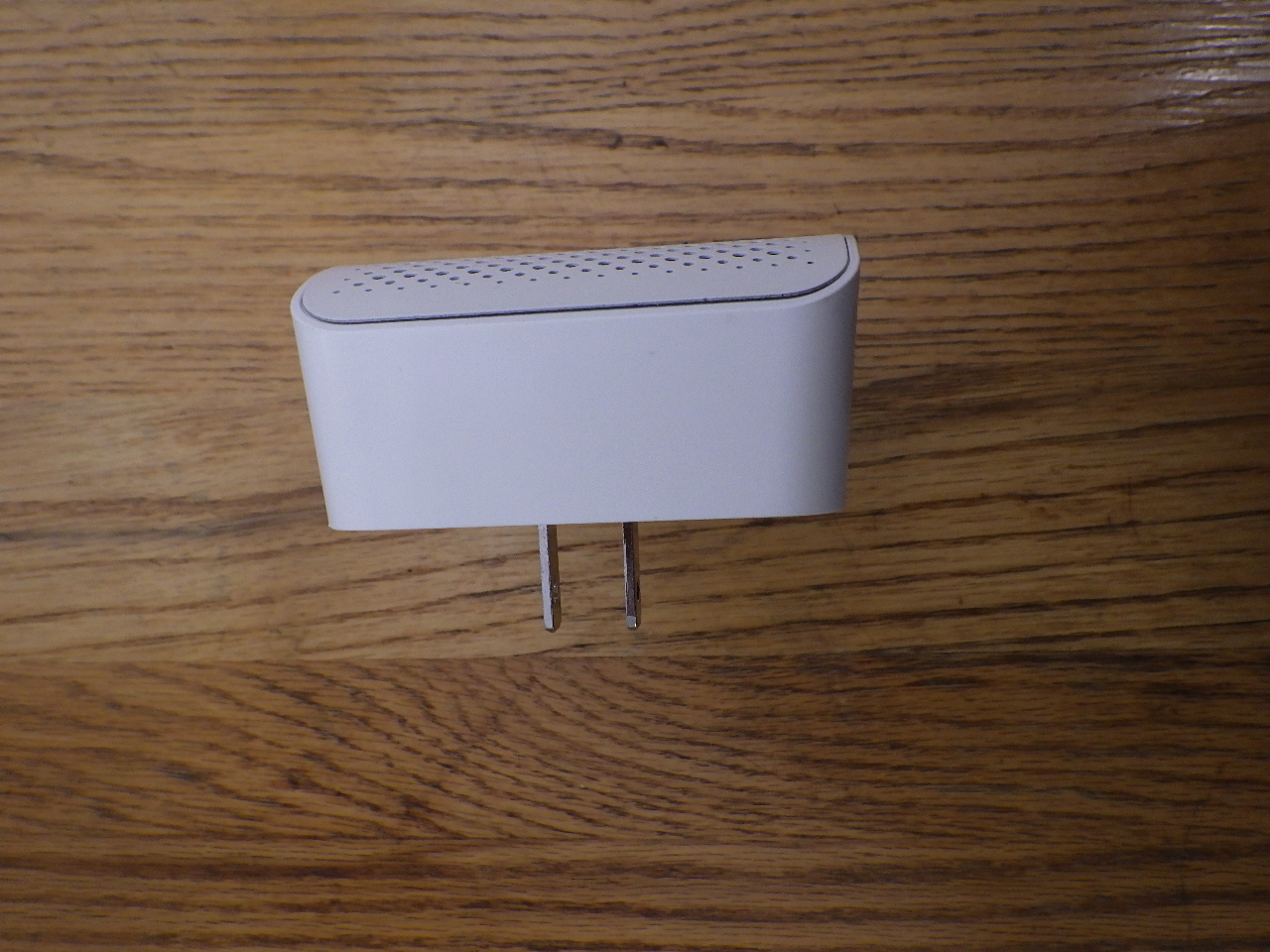

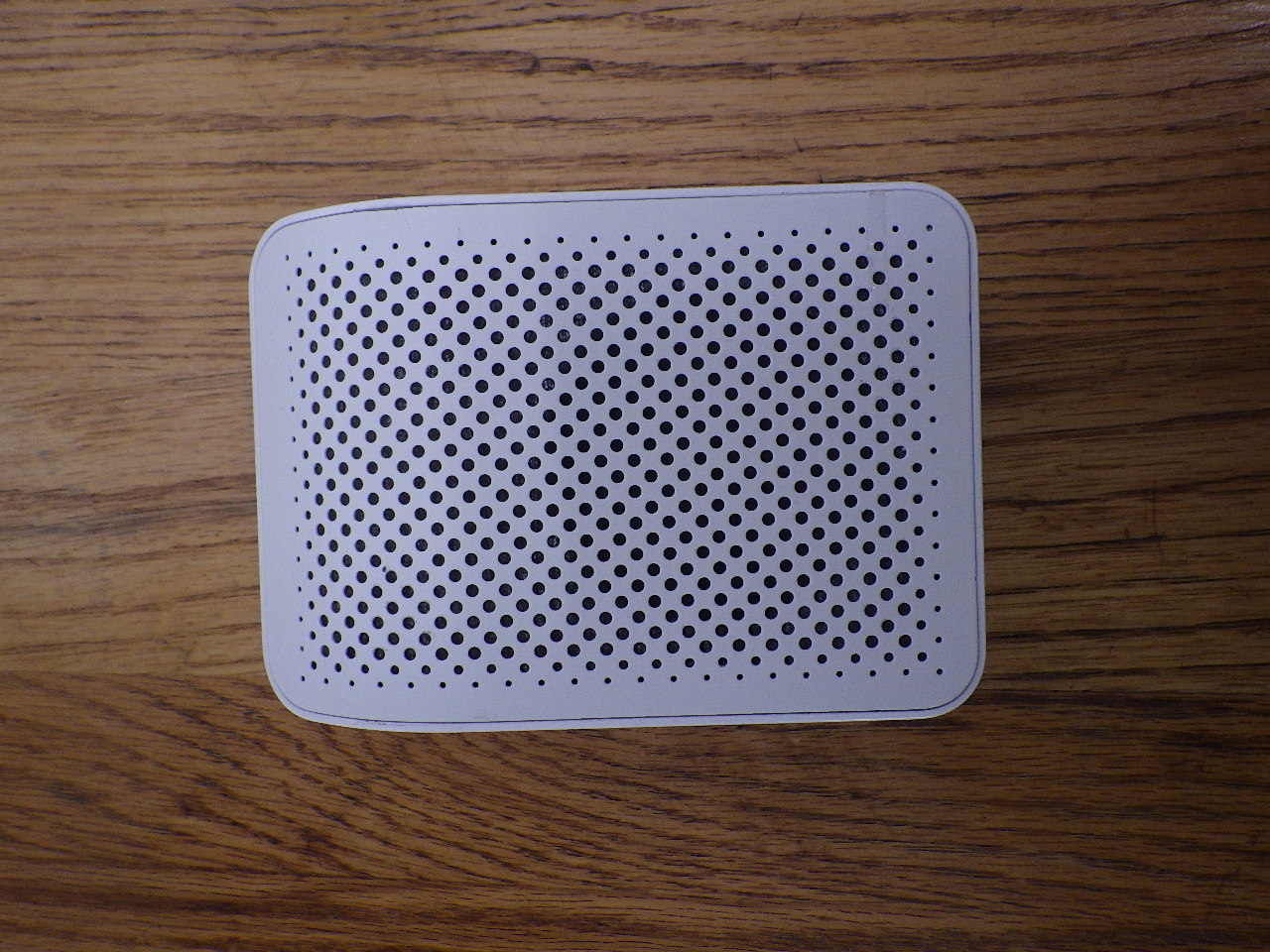

XQC-ISZW7ECOZ-Wave Siren

Page 1 of 10 Chime+Siren Manual Product Overview • Z-Wave+™ enabled device which provides open/closed position status • Transmits open/closed status of eight wired inputs • Reports tamper condition when cover is open Product Specifications • For indoor use only • Operating frequency: 908.42, 916 MHz • Operation range: Up to 100 feet (30.5 meters) line-of-sight • Operating temperature: 0° – 49°C, 32° – 120°F (ambient temperature) • Line Powered 120v AC 60Hz US • 24-hour battery backup. Adding via SmartStart To add via SmartStart, you will need the device’s DSK QR-Code which is located on the back side of the device, on the packaging, and on a leaflet within the packaging. Apply power to the device by inserting the device into a wall receptacle, and the device will go into SmartStart inclusion mode. While in this mode, the sensor can be added to a Z-Wave controller that supports SmartStart. Please refer to the inclusion controller’s manual for activating SmartStart. Page 2 of 10 Adding to a Z-Wave Network (Classic Inclusion Method) Make sure the device has power. Press the Add/Test Button which is the smaller of the two buttons, and the device will enter classic inclusion mode which implements both classic inclusion with a Node Information Frame, and Network Wide Inclusion. During Classic Inclusion mode, the Green LED will blink three times every three seconds. When Classic inclusion times-out, the device will blink red and green. Page 3 of 10 Led behavior for Inclusion Blink Pattern Smart Start Started Green LED Three Times Classic Inclusion Started Green LED Three Times every three seconds. Classic Inclusion Timed-Out Green and Red several times. Inclusion Successful (Authenticated S2) Green LED on solid Inclusion Not Successful (Self-Destruct) Red LED on solid Removing a Sensor from a Z-Wave Network To remove the device, place the controller into Remove or “Z-Wave Exclusion” mode. Press the smaller of the two buttons (Add/Test) following the same procedure to add for removal. Upon successful removal, the device’s red led will come on solid for 1 second. Note: Any Z-Wave Inclusion Controller can remove a Z-Wave device regardless of manufacturer or which network the device is currently added to. Battery Backup The device is equipped with a non-user serviceable lithium-ion 24-hour battery backup to keep the device alive and active in the Z-Wave network for up to 24- hours. What is Z-Wave? The Z-Wave protocol is an interoperable, wireless, RF-based communications technology designed specifically for control, monitoring and status reading applications in residential and light commercial environments. Mature, proven and broadly deployed (with over 35 million products sold worldwide), Z-Wave is by far the world market leader in wireless control, bringing affordable, reliable and easy-to-use 'smart' products to many millions of people in every aspect of daily life. Certified Z-Wave devices regardless of manufacturer can work together to form a Z-Wave mesh network. Always on Z-Wave devices can act as repeaters in the mesh increasing range and redundancy. For a more complete look at Z-Wave technology for non-technologists, and to learn more about Z-Wave's role as a key enabling technology for the Internet of Things and connected objects, please visit www.z-wave.com . Page 4 of 10 Z-Wave Device Class and Command Class Information This Z-Wave sensor is a Z-Wave generic Device Class of GENERIC_TYPE_AV_CONTROL_POINT (0x03), and a specific device class of SPECIFIC_TYPE_SOUND_SWITCH (0x01). Manufacturer Specific Manufacturer ID: MFG_ID_ECOLINK Product Type: 0x0007 Product ID: 0x3975 Factory Default To restore the device back to factory settings and remove it from any Z-Wave network. Remove the device from power-outlet. Hold the Add/Test button while re-inserting siren into power-outlet and continue to hold Add/Test button for 10 seconds. During the 10 seconds of continuing to hold the Add/Test button the green LED with flash, and after 10 seconds the red LED will come on solid for 1 second indicating that the factory default of the device has been successful, and the device is ready to add back into a Z-Wave network. Association This sensor has one Association group (Lifeline) with only one node for that group. Group one is a lifeline group who will receive unsolicited messages relating to AC and Battery power notifications, and Device Reset Notifications. Network Wide Inclusion This sensor also supports Network Wide Inclusion such that the Sensor can be included into the Z-Wave network over the mesh network and not directly near the main controller. This mode is automatically activated after regular inclusion was not successful. Test Mode While the device is included into a network, the learn button can be used to test the Z-Wave connection. It will transmit a System Heartbeat notification to the node configured in Association Group 1. If the device receives an ACK + Supervision, the Green LED will turn on solid, otherwise the Red LED will turn on solid, and the device will then send a Wake-Up Notification. Page 5 of 10 Mapping of the Basic Command Class The Chime+Siren has the Basic Command Class mapped such that a Basic Set of 0x00 is always off. A Basic set of 1 is sound 1; 2 is sound 2, 5 is sound 5, etc. Finally a Basic Set of 0xFF is mapped to the primary sound which is either a siren or chime sound. Z-Wave Command Classes Command Class Name Version Allowed unsecure when Included with S2 Authenticated/Unauthenticated Allowed when Not included with S2 Comments Encapsulated with Supervision When included with S2 and Enabled With Configuration Association 2 No Yes NA Association Group Information 1 No Yes NA Device Reset Locally 1 No Yes Device will factory reset when button us held as a user inserts siren into AC power then held for 10 seconds. No Firmware Update Meta Data 5 No Yes 3 targets: The Z-Wave module, the STM32, and the external flash for sounds. NA Indicator 3 Yes Yes No Manufacturer Sp…

Text truncated - open the document above for the full version.

(1) February 17, 2020 Attention: A pplication Examiner RE: Request for Confidentiality Applicant: Ecolink Intelligent Technology FCC ID: XQC-ISZW7ECO To Whom It May Concern: Request is hereby submitted by Ecolink Intelligent Technology to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: •Schematics •Detailed Block Diagrams •Detailed Operational/Functional Description •Antenna Specification Ecolin k Intelligent Technology has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The information contained in the confidential exhibits listed above is not available to the public. Sincere ly, Jay Stone Director of Engineering Ecolink Intellige nt Technology

VISION 品名 日期 規格 視角 品號 審核 材質 繪圖 比例 版本 承認 單位 MSDS NOTICE:(重金屬及溴化阻燃劑含量不超過以下規格) 以上元素規格適用金屬,塑膠,塗裝,電鍍,印刷,線材及粘劑 **符合ROHS重要規定** 6 溴化阻燃劑 2.鉛(Pb)<1000ppm 1.鎘(Cd)<75ppm 3.汞(Hg)<1000ppm 4.六價鉻(Cr )<1000ppm 5.聚溴聯苯(PBB)<1000ppm 6.聚溴二苯醚(PBDB)<1000ppm 重金屬: + Part Number:ISZW7-ECO FCC ID:XQC-ISZW7ECO IC ID:9863B-ISZW7ECO Battery Type:ICR18650-26J Made in Taiwan Z-Wave DSK XXXXX ELISZW1936TW00123 Ecolink CHIME+SIREN Part Number:ISZW7-ECO FCC ID:XQC-ISZW7ECO IC ID:9863B-ISZW7ECO Battery Type:ICR18650-26J Made in Taiwan Z-Wave DSK XXXXX ELISZW1936TW00123 Ecolink CHIME+SIREN

SAR Exclusion Justification This device FCC ID:is excluded from SAR testing by the following justification The maximum power that the transmitter is capable of is0.76mW Using the following formula from section 4.3.1 of KDB 447498at test separation distances ≤ 50 mm [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] Duty Cycle 11.00% Value1-g (mW)10-g (mW) 0.14(115)121 "Value" is3, the SAR test exclusion threshold 1-g power limit10-g power limit 157393 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An example of this is the determination of exposure from a device that uses digital technology such as a time-division multiple-access (TDMA) scheme for transmission < 50mm power limits for above caclulation using specified frequency XQC-ISZW7ECO Max Peak Power (dBm)Min Separation distance (mm)Frequency (Ghz) When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 0.908425-1.19 SAREXJUST-B-0-43REV A01/21/2014

Report Number: B00211D1 FCC Part 15 Subpart B and C; FCC Section 15.249; RSS-210 & RSS-GEN Test Report Z-Wave Siren Part Number: ISZW7-ECO Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 19 FCC PART 15, SUBPART B and C; FCC 15.249; RSS-210, RSS GEN TEST REPORT for Z-WAVE SIREN Part Number: ISZW7-ECO Prepared for ECOLINK INTELLIGENT TECHNOLOGY, INC. 2055 CORTE DEL NOGAL CARLSBAD, CALIFORNIA 92011 Prepared by:_____________________ HARVEY SAMACO Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBRUARY 11, 2020 REPORT APPENDICES TOTAL BODY A B C D E PAGES 19 2 2 2 17 73 115 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B00211D1 FCC Part 15 Subpart B and C; FCC Section 15.249; RSS-210 & RSS-GEN Test Report Z-Wave Siren Part Number: ISZW7-ECO Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 19 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration – Emissions 9 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 Emissions Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Measurement Uncertainty 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions Test 14 7.1.3 RF Emissions Test Results 15 7.1.4 Sample Calculations 16 7.1.5 99% Bandwidth 17 8. CONCLUSIONS 19 Report Number: B00211D1 FCC Part 15 Subpart B and C; FCC Section 15.249; RSS-210 & RSS-GEN Test Report Z-Wave Siren Part Number: ISZW7-ECO Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 19 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Model Covered Under This Report D Diagrams and Charts x Test Setup Diagrams x Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Layout of the Semi-Anechoic Test Chamber LIST OF TABLES TABLE TITLE 1 Conducted Emission Results 2 Radiated Emission Results (AC mode) 3 Radiated Emission Results (Battery mode) Report Number: B00211D1 FCC Part 15 Subpart B and C; FCC Section 15.249; RSS-210 & RSS-GEN Test Report Z-Wave Siren Part Number: ISZW7-ECO Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 19 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. The client must not use this report to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the U.S. government. Device Tested: Z-Wave Siren Part Number: ISZW7-ECO S/N: N/A Product Description: The equipment under test is an alarm sensor. Modifications: The EUT was not modified to meet the specifications. Customer: Ecolink Intelligent Technology, Inc. 2055 Corte Del Nogal Carlsbad, California 92011 Test Dates: February 6-8 and 10-12, 2020 Test Specifications covered by accreditation: Test Specifications: Emissions requirements CFR Title 47, Part 15, Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.249; RSS-210 Issue 9 (2017), and RSS-Gen Issue 5 (2018) Test Procedures: ANSI C63.4: 2014 and ANSI C63.10: 2013 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B00211D1 FCC Part 15 Subpart B and C; FCC Section 15.249; RSS-210 & RSS-GEN Test Report Z-Wave Siren Part Number: ISZW7-ECO Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 19 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Spurious Radiated RF Emissions, 9 kHz – 9300 MHz (Transmitter, Receiver, and Digital portion) Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15 Subpart C, section 15.205, 15.209 and 15.249; RSS-210 and RSS-Gen Highest reading in relation to spec limit 93.70 dBuV/m (QP) @ 908.42 MHz (*U = 3.19 dB) 2 Conducted RF Emissions 150 kHz – 30 MHz to Class B Limits The EUT complies with the Class B limits of the CFR Title 47, Part 15 Subpart B. Report Number: B00211D1 FCC Part 15 Subpart B and C; FCC Section 15.249; RSS-210 & RSS-GEN Test Report Z-Wave Siren Part Number: ISZW7-ECO Brea Division 114 Olinda Drive Bre…
